Description

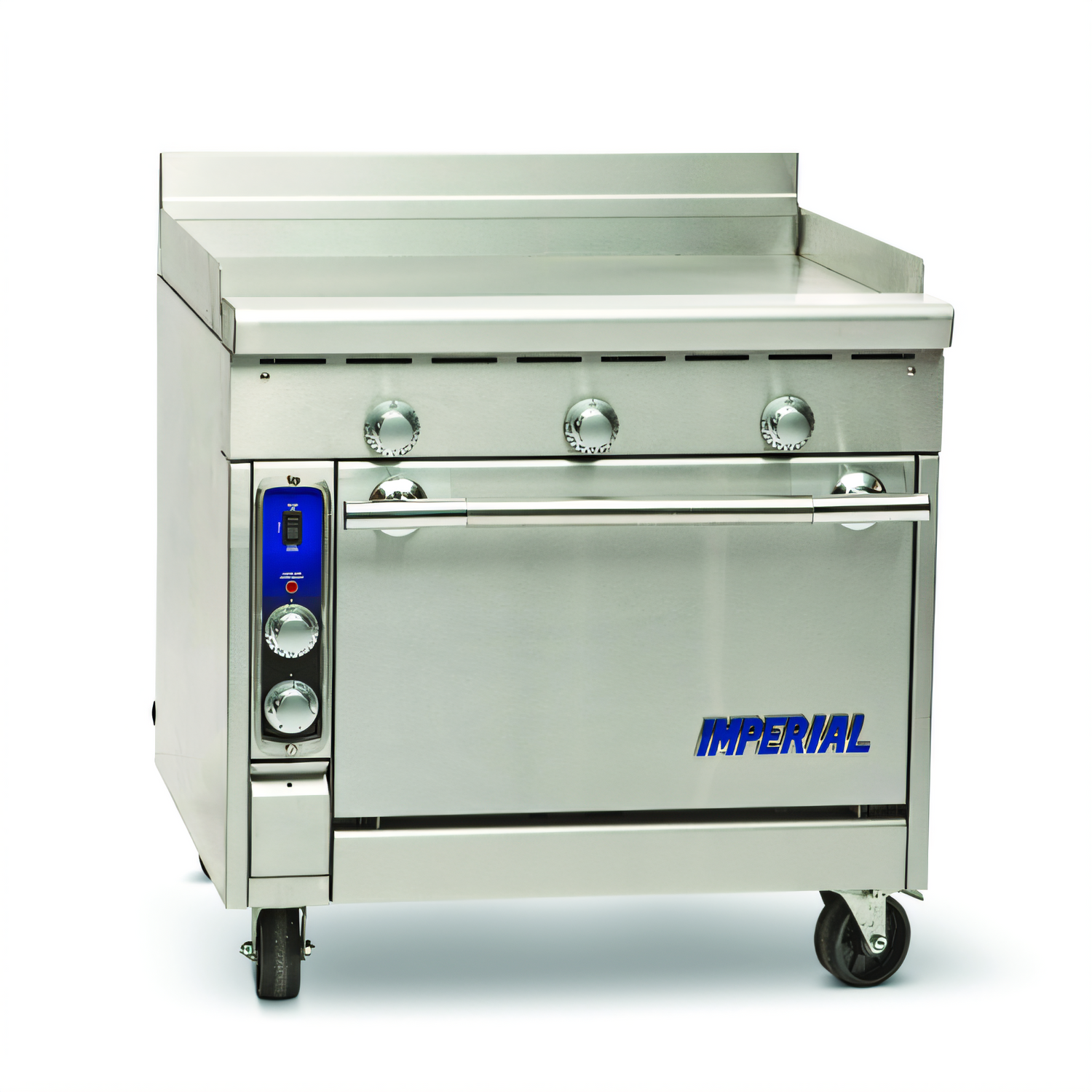

Imperial Spec Series 36" Electric Heavy-Duty Griddle Range w/ Convection Oven

Model IHR-GT36-E-C

Engineered for the rigors of high-volume food-service, Imperial’s Spec Series range combines an even-heating 36 inch thermostatic griddle with a high-performance convection oven in one space-saving footprint. Rugged stainless-steel construction, precise temperature control and easy-clean features keep your line moving through the busiest rushes.

Key Performance Features
  • Thick, polished steel griddle plate heated by 4 kW serpentine elements for edge-to-edge consistency.
  • Independent thermostatic controls maintain set temperature during peak hours.
  • 4" (102 mm) grease trough and 1 gal (3.8 L) removable can simplify clean-up.
  • 5.3 kW convection oven with ¼ HP fan cooks faster with less shrinkage.
  • Chef-depth cavity holds 18" × 26" sheet pans front-to-back & side-by-side.
  • Porcelainized oven interior and splatter screen protect elements and wipe clean.
  • Full stainless-steel front, sides, backguard, landing ledge & kick plate resist corrosion.
  • 6" (152 mm) heavy-duty legs with adjustable feet provide a level, NSF-compliant install.
  • cETLus, ETL-Sanitation & CE listings for international electrical and food-safety compliance.
Included With Your Range
  • Three adjustable chrome oven racks
  • Factory-installed ¼ HP blower motor
  • Removable 1 gal grease can
  • One-year parts & labor warranty
Technical Specifications
Width 36" (914 mm)
Depth 38" (965 mm)
Cooktop Height 36" (914 mm) to griddle plate
Total Connected Load 17.3 kW
Electrical Options 208 V or 240 V, 1 or 3 phase (specify on order)
Griddle Elements 4 kW serpentine, thermostatically controlled
Oven Element 5.3 kW; 150 °F – 500 °F (65 °C – 260 °C)
Convection Fan ¼ HP motor, auto-shutoff on door open
Oven Interior 26½" W × 22½" D × 14" H (673 × 572 × 356 mm)
Grease Can Capacity 1 gal (3.8 L)
Ship Weight 670 lb (304 kg)
Certifications cETLus, ETL-Sanitation, CE
Electrical & Clearance Notice: This unit must be hard-wired by a qualified electrician. Provide 0" clearance to non-combustible surfaces and 6" (152 mm) to combustible surfaces. Legs or optional casters are required for floor installations.

Need a high shelf, extra racks or a caster kit? Contact our team for factory-approved accessories to customize your Spec Series range.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Spec Series

Certifications

CE, cETLus, ETL-Sanitation

Height

42.0in

Width

36.0in

Depth

38.0in

Shipping Weight

670.0lbs

Base

(1) convection oven

Vent

backriser

Exterior Finish

stainless steel front & sides

Top

(1) griddle

Specifications

Spec Series Heavy Duty Range, electric, 36", griddle, (1) convection oven, thermostatic controls, (3) chrome racks, 4"W grease trough, removable grease can, porcelain oven interior, stainless steel front, sides, backguard, kick plate & landing ledge, 6" legs, adjustable feet, 1/4 HP, cETLus, ETL-Sanitation, CE
