Imperial Spec Series™ 18" Thermostatic Griddle Top Add-A-Unit – Model IHR-GT18-M

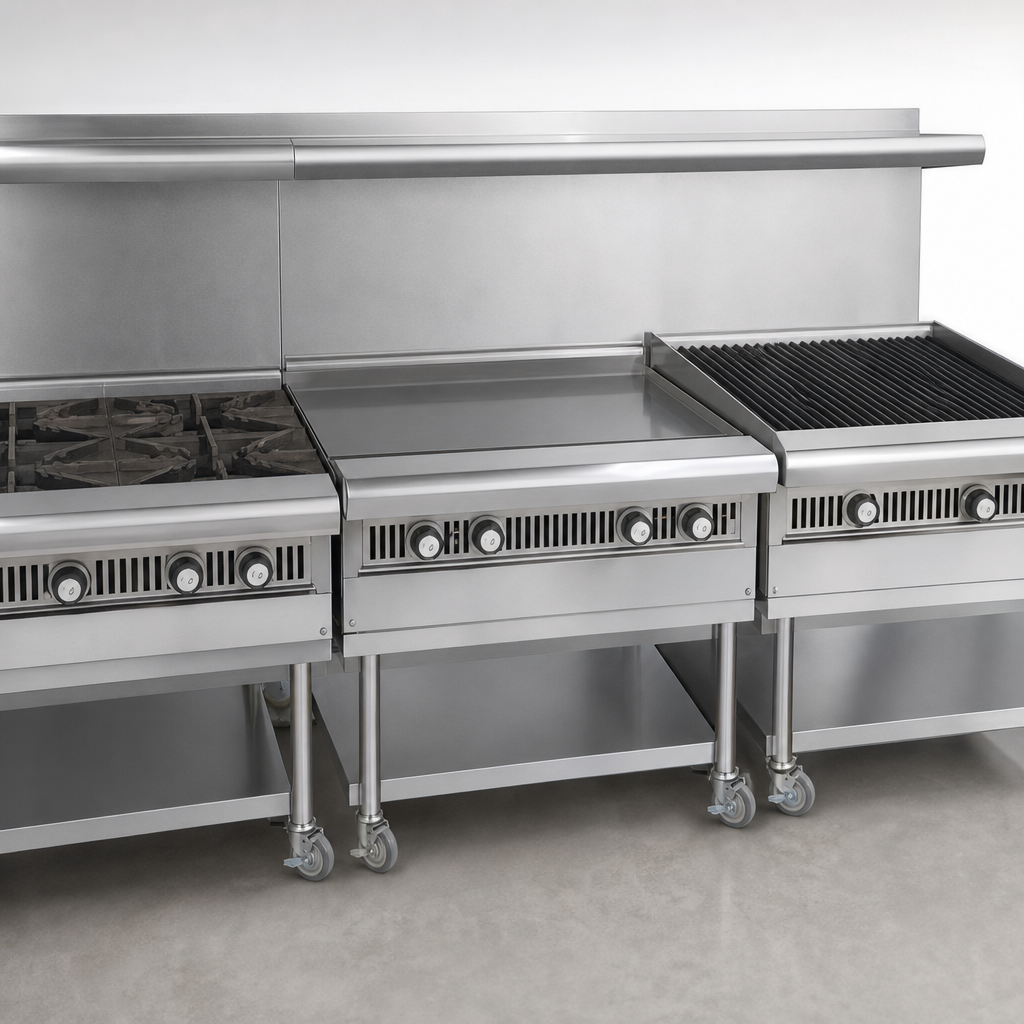

40,000 BTU modular gas range sectionBuild the exact cookline your kitchen needs with Imperial’s Spec Series Add-A-Unit. The 18-inch IHR-GT18-M drops a powerful, precision-controlled griddle section into any modular lineup, delivering even heat, easier cleanup, and durable stainless-steel construction built to thrive on the busiest lines.
Why You’ll Love It
- One U-shaped burner rated at 40,000 BTU (12 kW) for rapid recovery and consistent surface temps.
- Highly polished griddle plate spreads heat evenly across the full 18 inch width.

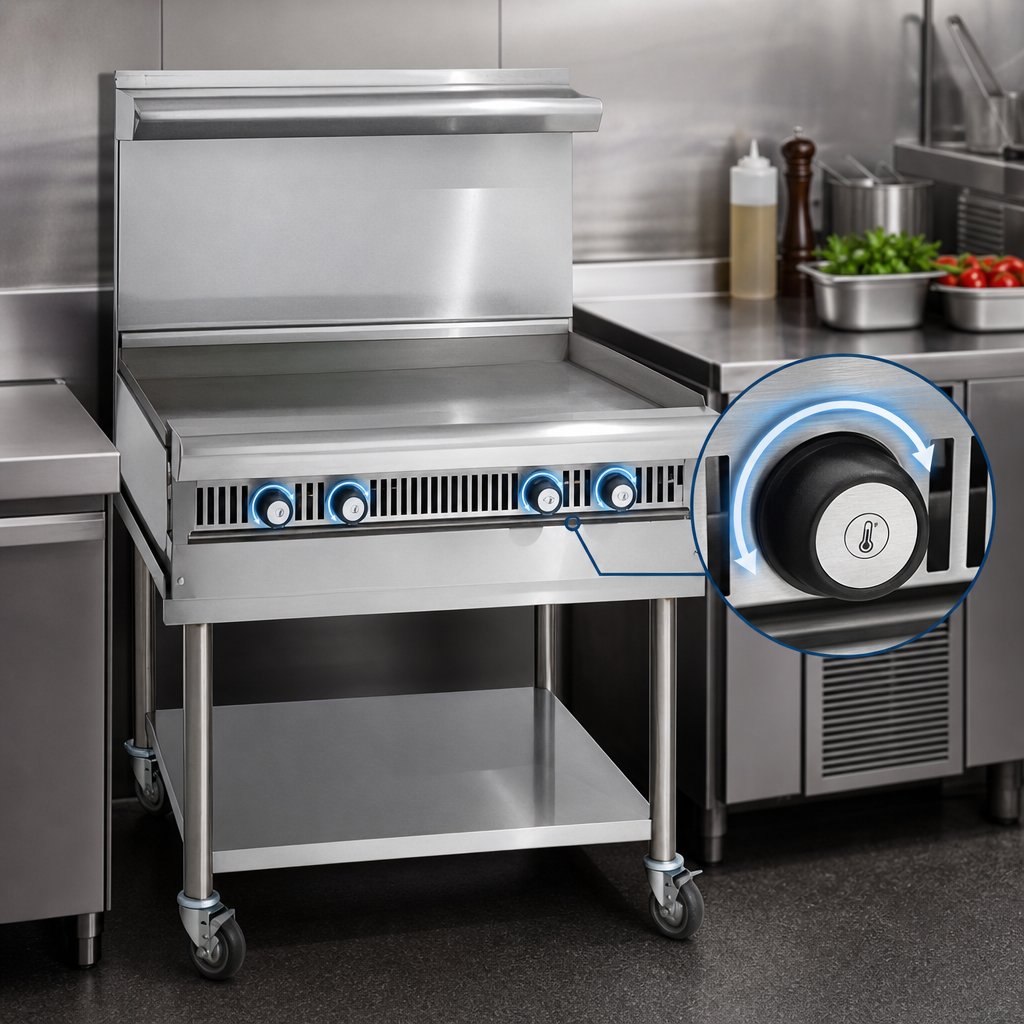

- Thermostatic control lets you set and hold exact cooking temperatures for perfect results batch after batch.
- 4 inch (102 mm) wide grease gutter channels runoff to a 1-gallon (3.8 L) grease can for quick, mess-free disposal.
- Full-width removable crumb tray snaps out for end-of-shift cleaning.
- Stainless steel front, sides, 7 inch landing ledge, and 6 inch backguard stand up to daily abuse and wipe clean fast.
- Cast-aluminum control knobs stay cool to the touch and resist cross-threading.
- 3/4" rear gas connection simplifies installation in a suite or as a stand-alone module.
- Ships cETLus & NSF listed for commercial peace of mind.
Key Specifications
Model | IHR-GT18-M |
---|---|
Unit type | Modular “Add-A-Unit” thermostatic griddle top |
Width | 18" (457 mm) |
Overall dimensions (W × D × H) | 18" × 38" × 11" (457 × 965 × 279 mm) |
Gas input | 40,000 BTU/hr – 12 kW |
Burners | 1 U-shaped burner (located every 12") |
Manifold pressure | Natural Gas 5.0" W.C. | LP Gas 10.0" W.C. |
Gas connection | 3/4" NPT rear |
Shipping weight | 110 kg (242 lb) |
Crated dimensions | 20-1/2" × 41" × 17" (521 × 1041 × 432 mm) |
Certifications | cETLus, NSF |
Warranty & Support
Backed by Imperial’s 1-year parts & labor warranty. Service must be performed by an authorized Imperial service agency to remain in warranty.
