Imperial (Middleby) IHR-GT12-M Spec Series Gas Ranges
Description
Imperial Spec Series 12″ Add-A-Unit Gas Griddle Top w/ Thermostat

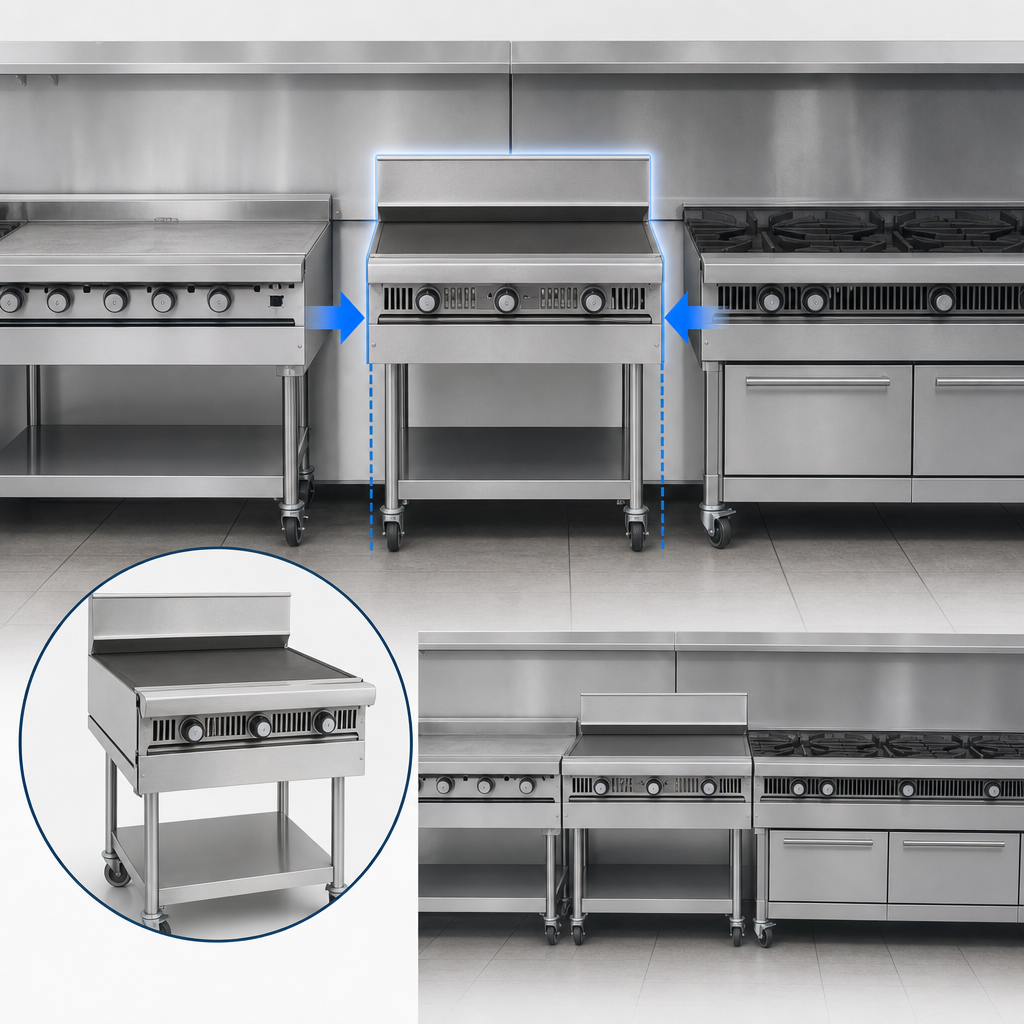

Model IHR-GT12-M | 30,000 BTU (9 kW)Expand your cook line one foot at a time. The Imperial Spec Series™ 12-inch thermostatic griddle module delivers even heat, rugged construction, and the flexibility to pair perfectly with any other Add-A-Unit range tops in the Spec Series family.
Key Advantages
- Space-saving 12″ (305 mm) width—ideal for tight lines or custom batteries
- Highly polished ¾″ steel plate ensures fast, even heat transfer & easy cleanup
- U-shaped burner outputs 30,000 BTU (9 kW) across the entire surface

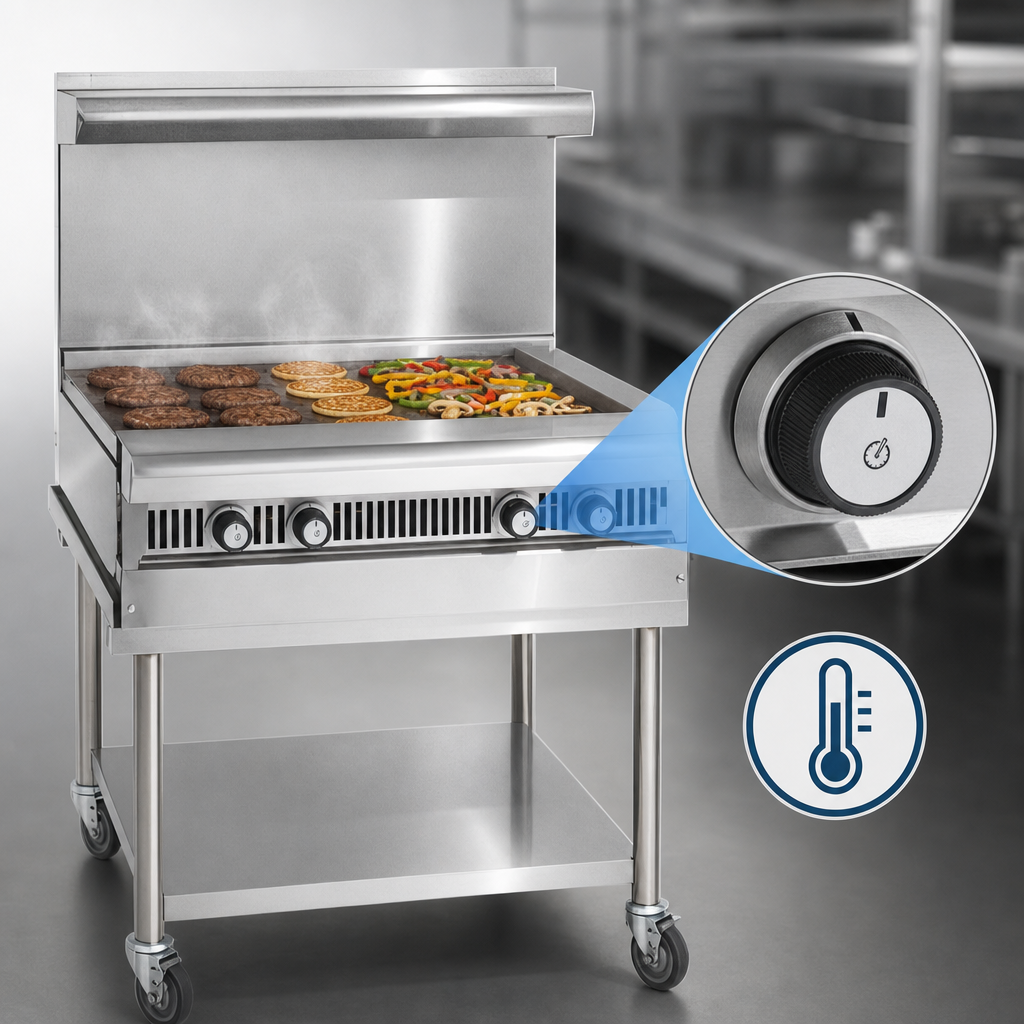

- Snap-action thermostat (150–450 °F / 65–232 °C) delivers precise temperature control
- 4″ (102 mm) wide grease gutter with 1-gal (3.8 L) can for mess-free disposal
- Full-width removable crumb tray simplifies end-of-shift cleaning
- 7″ (178 mm) deep landing ledge keeps plates & pans safely within reach
- Stainless steel front, sides, 6″ backguard & kick plate stand up to heavy use
- Cool-touch cast-aluminum knobs with heat-shield design
- Listings: cETLus & NSF • 1-year parts & labor warranty
At-a-Glance Specs
| Model | IHR-GT12-M |
|---|---|
| Type | Modular Add-A-Unit Gas Griddle Top |
| Width | 12″ (305 mm) |
| Overall Dimensions | 12″ W × 32″ D × 11″ H (305 × 813 × 279 mm) |
| Plate Thickness | ¾″ (19 mm) polished steel |
| Heat Output | 30,000 BTU/hr (9 kW) |
| Burner Configuration | 1 U-shaped burner • 1 control zone |
| Controls | Thermostatic 150–450 °F |
| Gas Connection | ¾″ NPT rear, natural or propane |
| Shipping Weight | 160 lb (73 kg) |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor |
Need more cooking power? Combine this 12″ griddle with Imperial Spec Series open burners, hot tops, charbroilers, or additional griddle modules to create the exact cook line your menu demands.
