Description

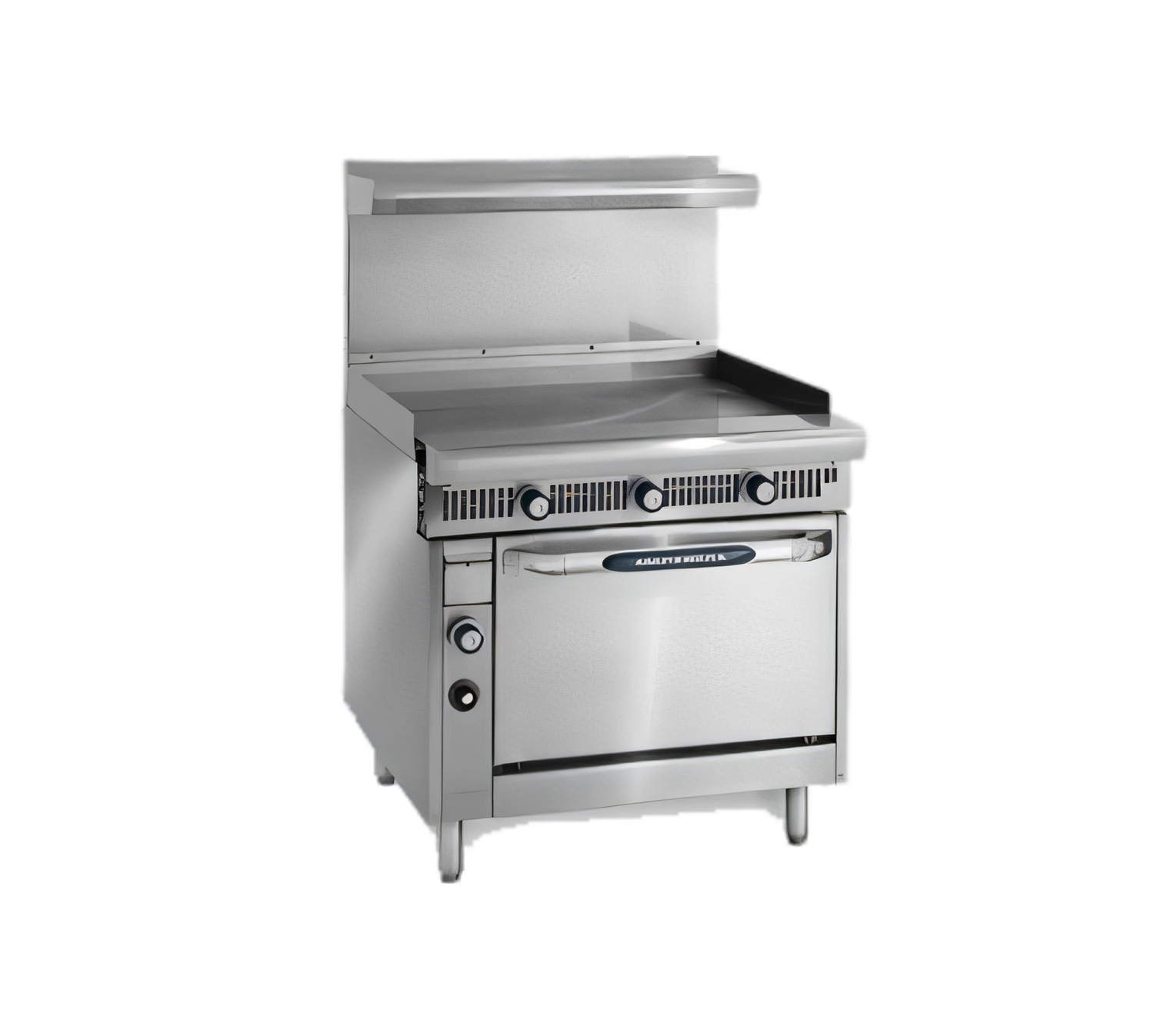

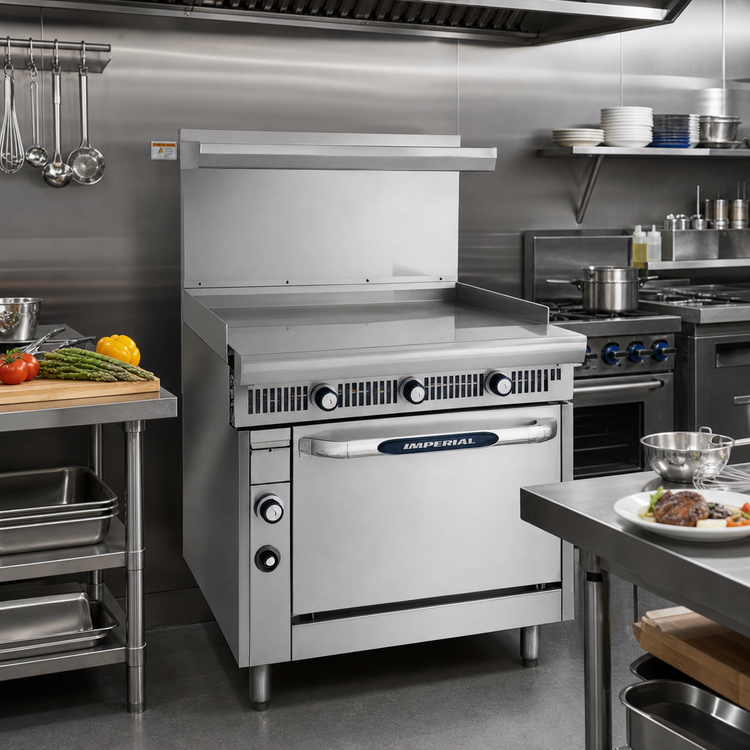

Imperial Spec Series 36" Gas Griddle-Top Range

Model IHR-GT36 | Heavy-Duty Manual Controls

The Imperial Spec Series 36" Griddle-Top Range delivers uncompromising performance for high-volume kitchens. A full-width 1" thick steel plate, 130,000 BTU of burner power, and an extra-deep chef oven give chefs the versatility to sear, sauté, and bake—all from one rock-solid station.

Highlights

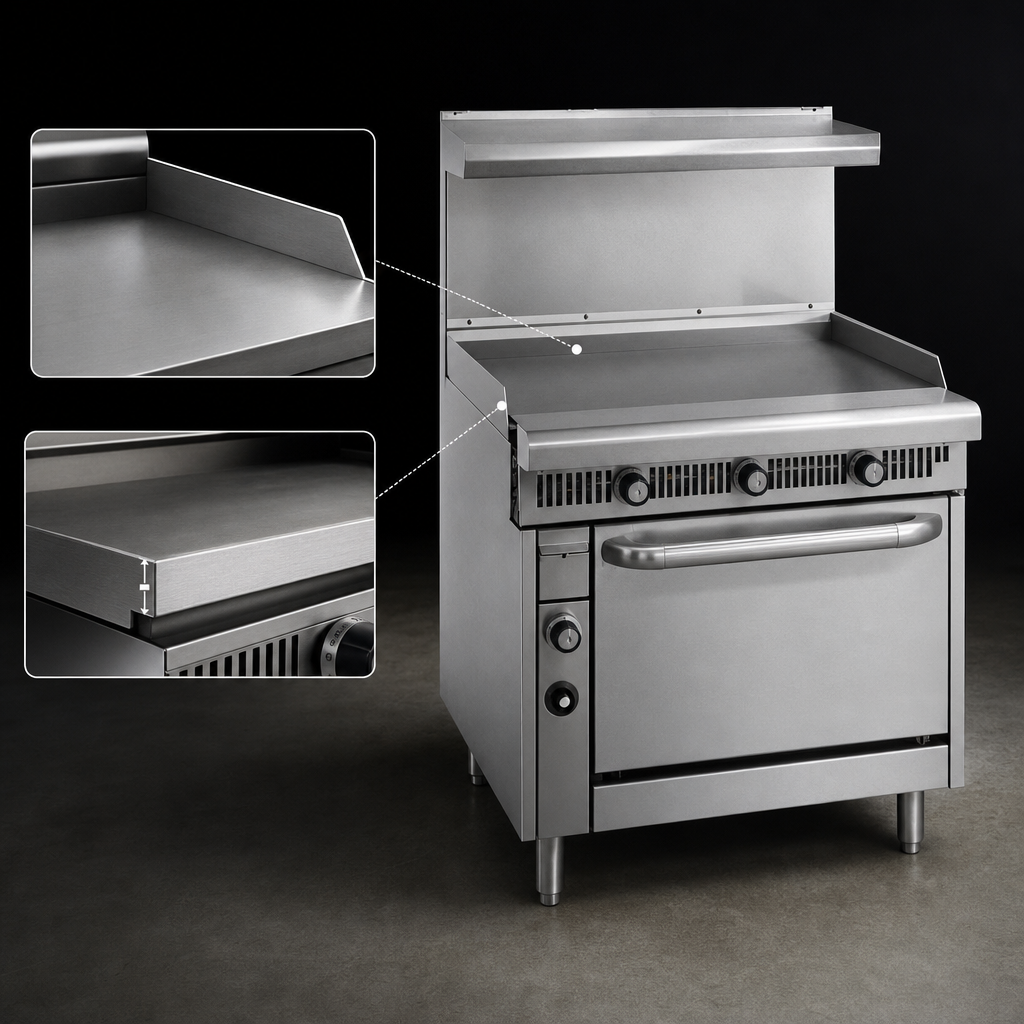

  • 1" (25 mm) polished steel griddle plate ensures even heat distribution and rapid recovery.
  • Four 30,000 BTU U-shaped burners (one every 12") for a total of 130,000 BTU / 38 kW.
  • Independent manual controls with standing pilots for instant flame adjustment.
  • 4" (102 mm) grease gutter & 1 gal (3.8 L) grease can keep the cookline clean.

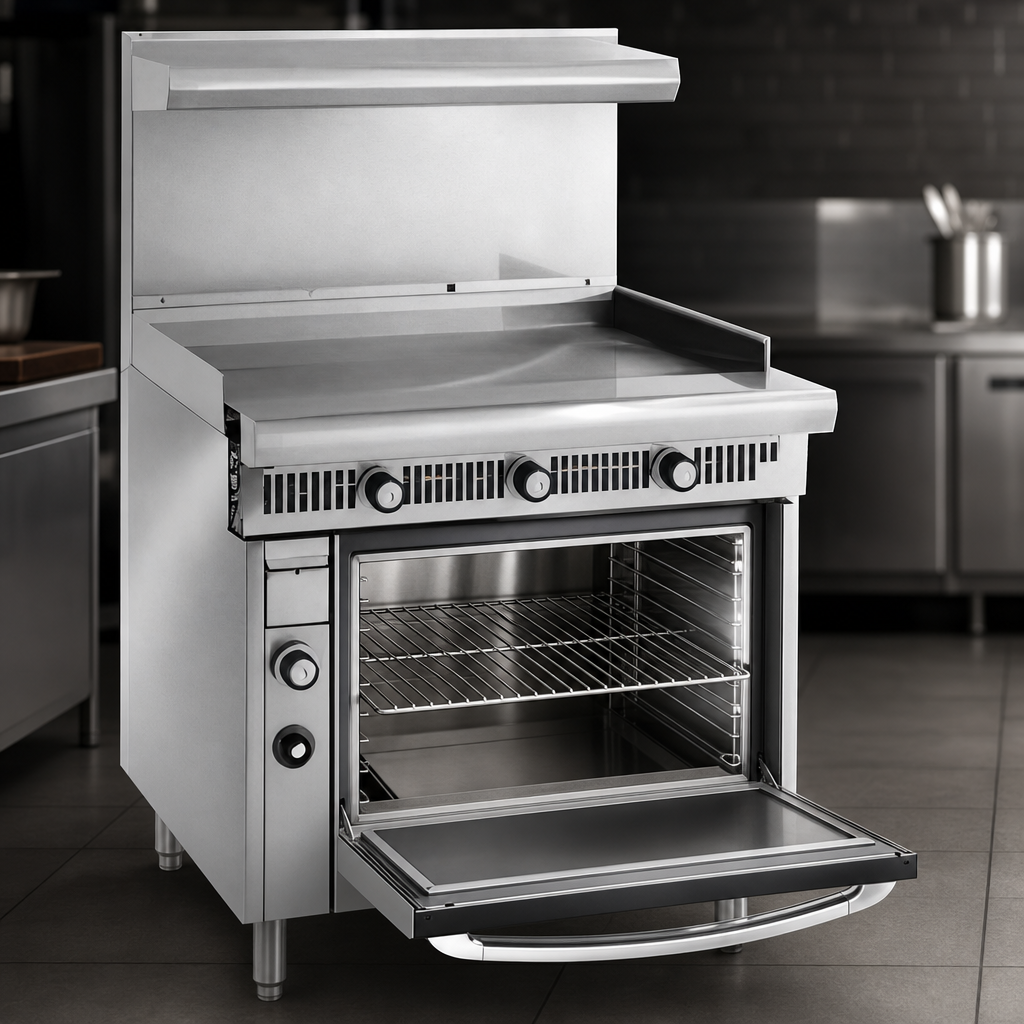

  • Chef-depth standard oven (40,000 BTU) fits full-size 18" × 26" sheet pans left-to-right or front-to-back.
  • Porcelainized oven interior with one chrome rack included for easy clean-up.
  • All-stainless front, sides, 5" landing ledge, backguard, and kick plate for maximum durability.
  • 6" (152 mm) heavy-duty legs with adjustable feet—optional swivel casters available.
  • Certified cETLus & NSF for gas safety and sanitation.
Built for Demanding Kitchens
  • Aeration baffles between burners boost heat recovery after heavy loads.
  • Exclusive oven heat deflector keeps floor temperatures lower.
  • Cast-aluminum control knobs feature a heat-protection grip.
  • Welded & polished seams plus enclosed 1 ¼" manifold create a sleek, easy-to-clean façade.
Specifications
Total Gas Input 130,000 BTU/hr (38 kW)
Griddle Plate 36" W × 24" D × 1" thick polished steel
Oven Power 40,000 BTU/hr (12 kW) safety pilot & manual shut-off
Oven Interior 26 ½" W × 26" D × 14" H (673 × 660 × 356 mm)
Controls Manual valves, standing pilots
Gas Connection ¾" NPT rear; Nat. 5.0" W.C. | LP 10.0" W.C.
Overall Dimensions 36" W × 38" D* × 36" H (914 × 965 × 914 mm)
*Depth to landing ledge; crated depth 41" (1041 mm)
Shipping Weight 760 lb (345 kg)
Certifications cETLus, ETL-Sanitation (NSF)
Warranty 1-year parts & labor

Clearance: 0" from non-combustible surfaces; 8" (203 mm) from combustible surfaces.

Popular Options & Accessories
  • 6" (152 mm) swivel casters (two locking)
  • Chrome-plated or grooved griddle surface
  • Stainless-steel oven interior & 650 °F thermostat
  • Additional chrome oven racks
  • Quick-disconnect & flexible gas hose kit
Installation Notice: This appliance must be installed, converted, and serviced by qualified personnel in accordance with local codes and the manufacturer’s manual.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Spec Series

Certifications

NSF, cETLus, ETL

Height

42.0in

Width

36.0in

Depth

38.0in

Shipping Weight

760.0lbs

Base

(1) standard oven

Exterior Finish

stainless steel front & sides

Plate Thickness

1.000" = 1"

Top

(1) griddle

Specifications

Spec Series Heavy Duty Range, gas, 36"W, griddle, 1" thick plate, 4"W grease gutter with 1 gallon can capacity, standard oven, (1) chrome rack, manual controls, stainless steel front, sides, 5"D landing ledge, backguard & kick plate, 6" legs with adjustable feet, 130,000 BTU, 38kW, cETLus, ETL, NSF
