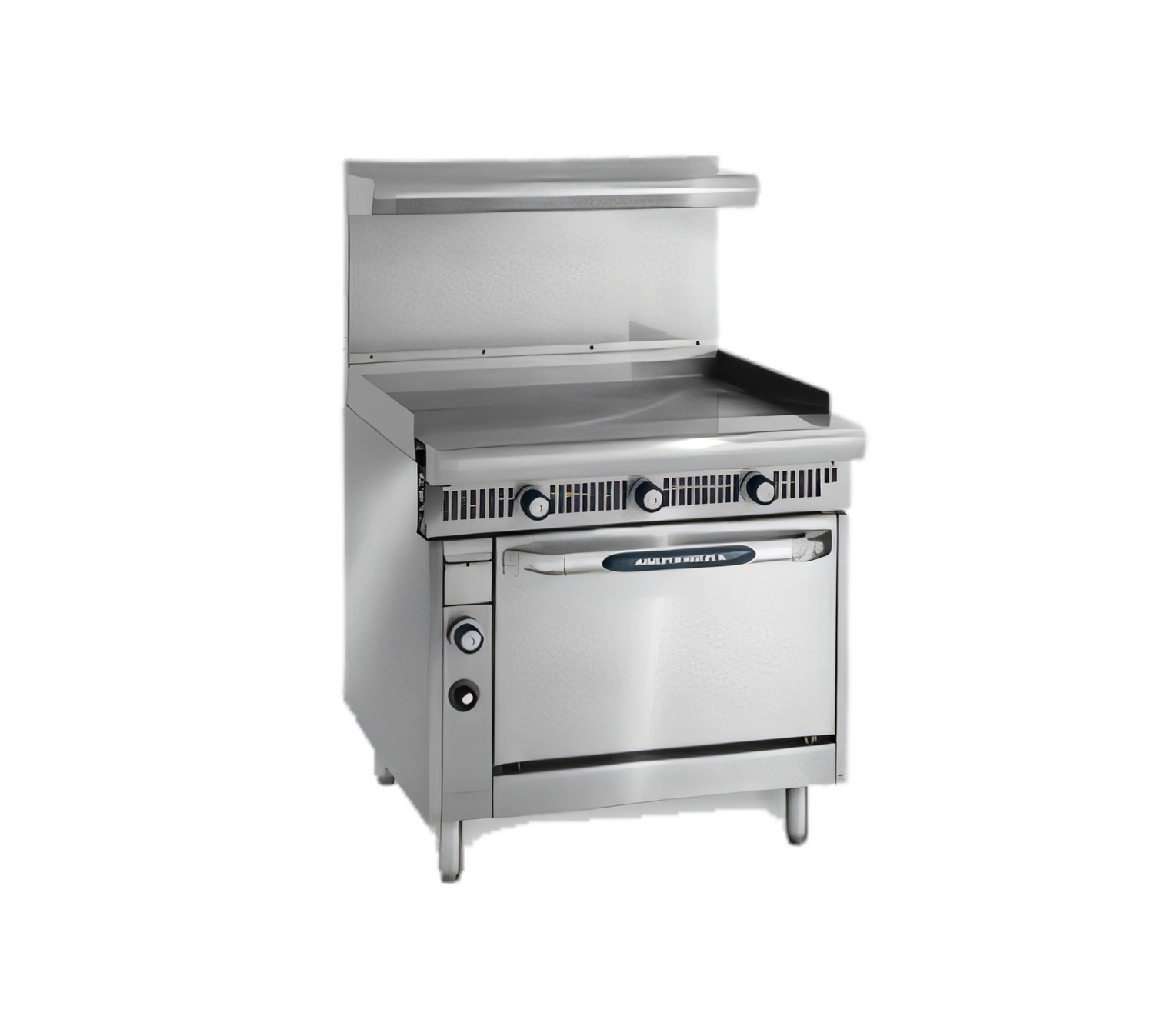

Imperial (Middleby) IHR-G36-M Spec Series Gas Ranges
Description

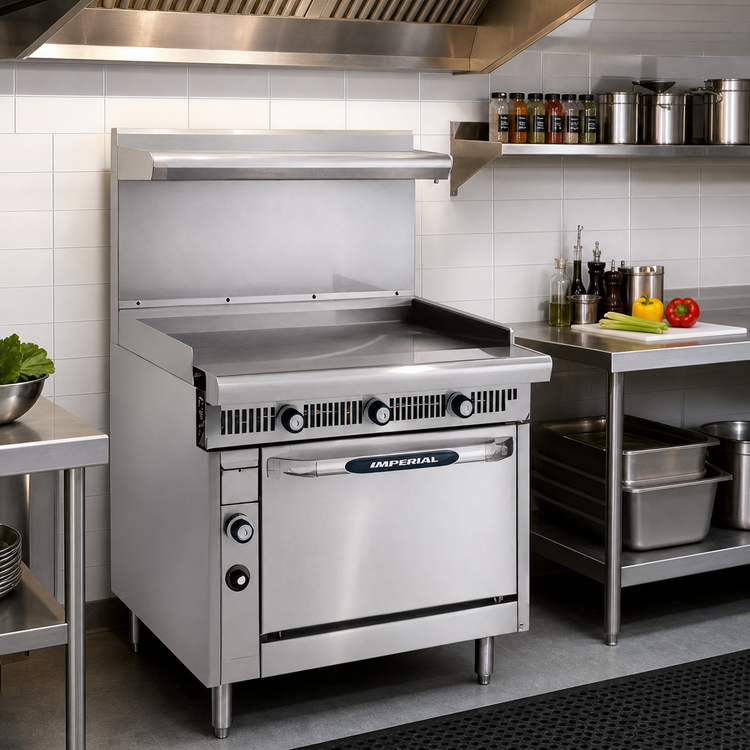

Imperial Spec Series 36" Modular Heavy-Duty Gas Griddle Range
Model IHR-G36-M • 90,000 BTU • 1" Thick PlateEngineered for high-volume kitchens, the Imperial IHR-G36-M delivers uniform heat, rapid recovery and rock-solid durability in a compact 36" footprint. Pair it with other Spec Series modules or drop it on an optional stand to create the heavy-duty cookline your menu demands.
Key Features
- Powerful 90,000 BTU (26 kW) output from three U-shaped burners spaced every 12" (305 mm).

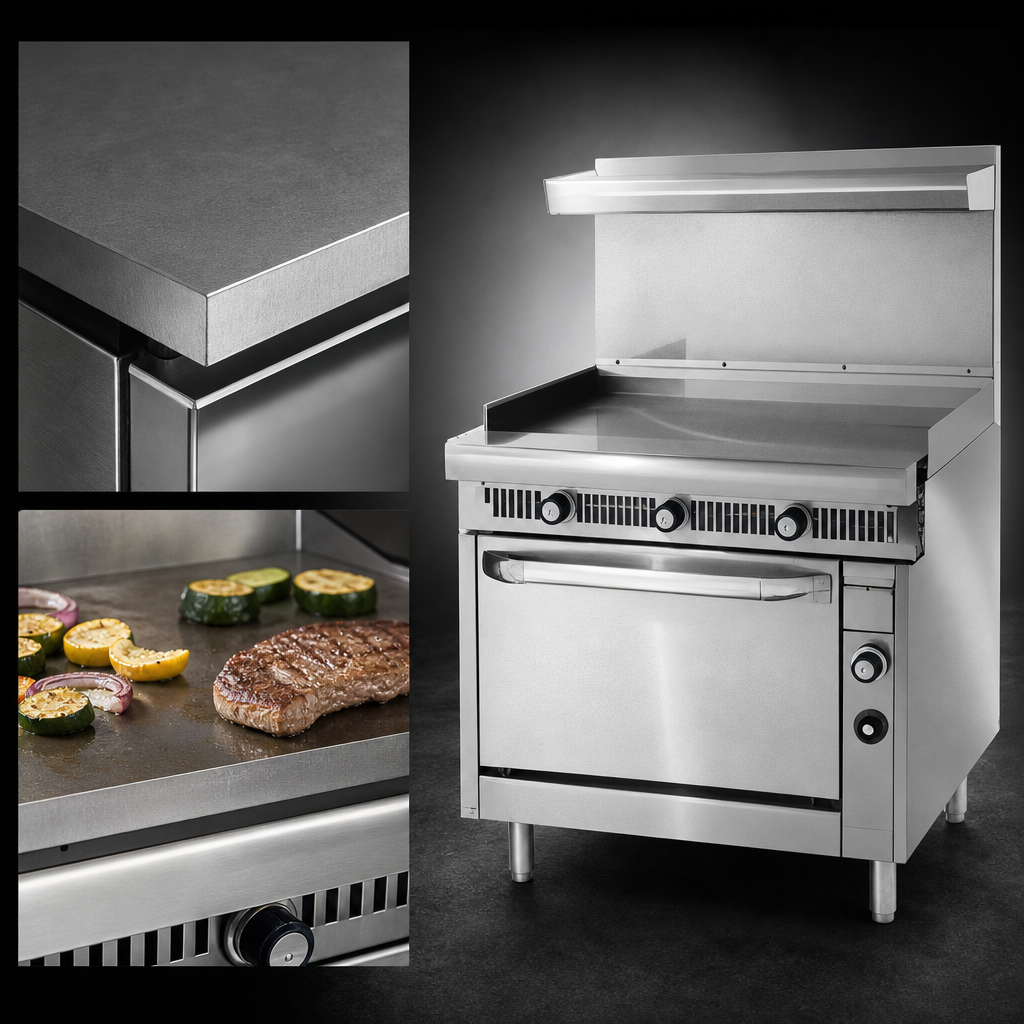

- 1" (25 mm) thick, highly polished steel griddle plate for superior heat retention and even browning.
- 4" (102 mm) wide grease gutter and removable 1 gallon (3.8 L) can keep the workspace clean.
- Independent manual controls provide precise zone cooking from sear to gentle simmer.
- Stainless steel front, sides, 5" (127 mm) landing ledge and backsplash stand up to daily abuse.
- Cast-aluminum control knobs stay cool and include a heat-shielded grip.
- Full-width slide-out crumb tray for quick end-of-shift clean-up.

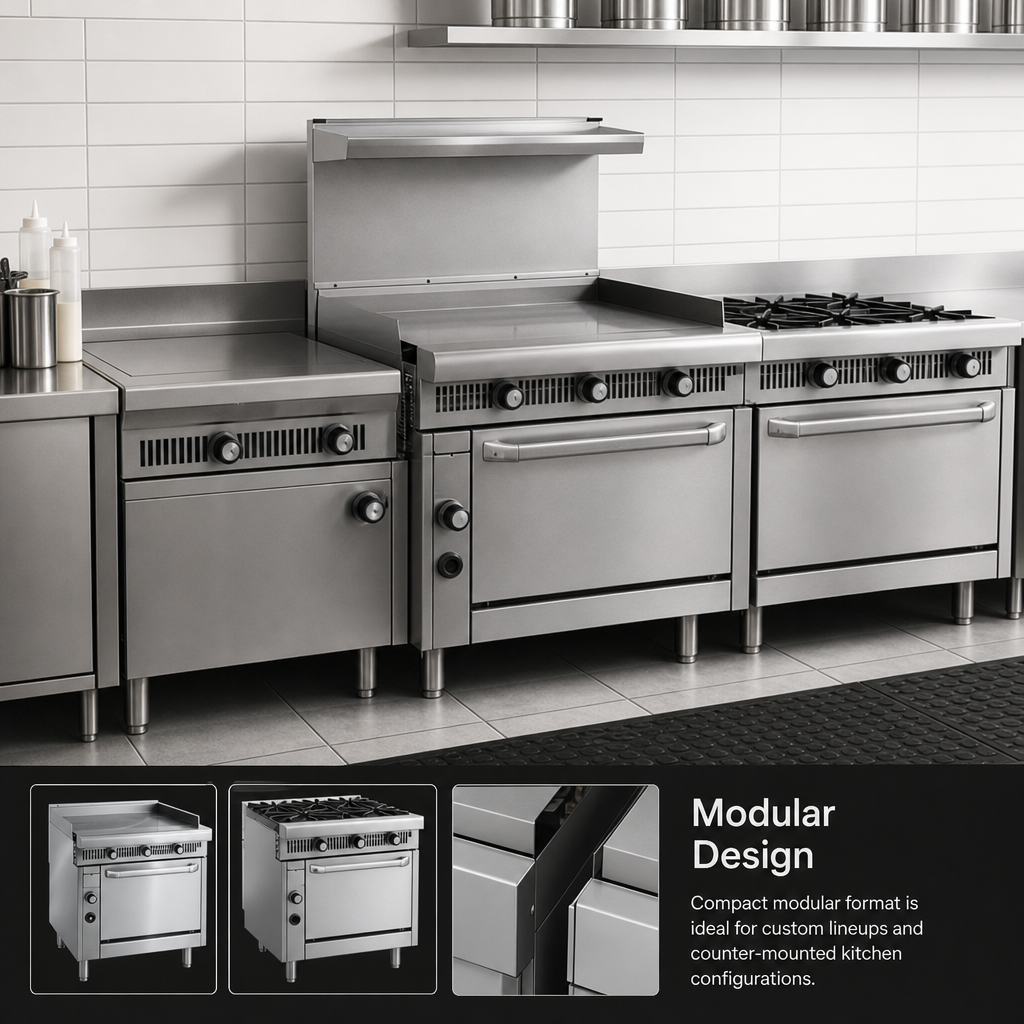

- Modular countertop design mates seamlessly with other 36" Spec Series units or an optional stainless stand.
Built for the Rush
Aeration baffles between the burners channel heat evenly across the plate and speed up temperature recovery after each load. Whether you’re cranking out diner-style breakfasts or high-volume burger orders, the IHR-G36-M keeps pace without hot spots or downtime.
Specifications
| Model | IHR-G36-M |
|---|---|
| Gas Type | Natural or Propane (field convertible) |
| Total BTU | 90,000 BTU/hr (26 kW) |
| Cooking Surface | 36" W × 24" D (914 mm × 610 mm), 1" thick polished steel |
| Burners | 3 × U-shaped; one manual valve & standing pilot per burner |
| Grease Management | 4" gutter, 1 gallon can |
| Overall Dimensions | 36" W × 38" D × 11" H to cooktop (914 × 965 × 279 mm) |
| Gas Connection | 1-1/4" front manifold (optional 3/4" rear) |
| Shipping Weight | Approx. 335 lb (152 kg) |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor |
Optional Accessories
- Stainless steel backguard with high shelf
- Common front landing ledge or common backguard for battery line-ups
- Stainless equipment stand with 6" locking casters
- Gas shut-off valve, regulator, or quick-disconnect hose
Install on a non-combustible surface. Provide 0" clearance to non-combustibles and 6" (152 mm) to combustibles. Specify elevation if installation exceeds 2,000 ft (610 m).
