Imperial Spec Series 24" Gas Add-A-Unit Griddle – Model IHR-G24-XB
60,000 BTU • Manual Controls • Open Cabinet BasePut heavy-duty cooking power exactly where you need it. The Imperial IHR-G24-XB combines a 24-inch polished griddle plate with an open cabinet base, giving bustling kitchens an ultra-durable, space-saving station that sears, browns and holds with rock-solid consistency shift after shift.
Key Performance Features
- Two 30,000 BTU “U”-shaped burners (60,000 BTU total) blanket the plate every 12" for even heat.
- 1" thick, machine-polished steel plate delivers excellent heat retention and recovery.

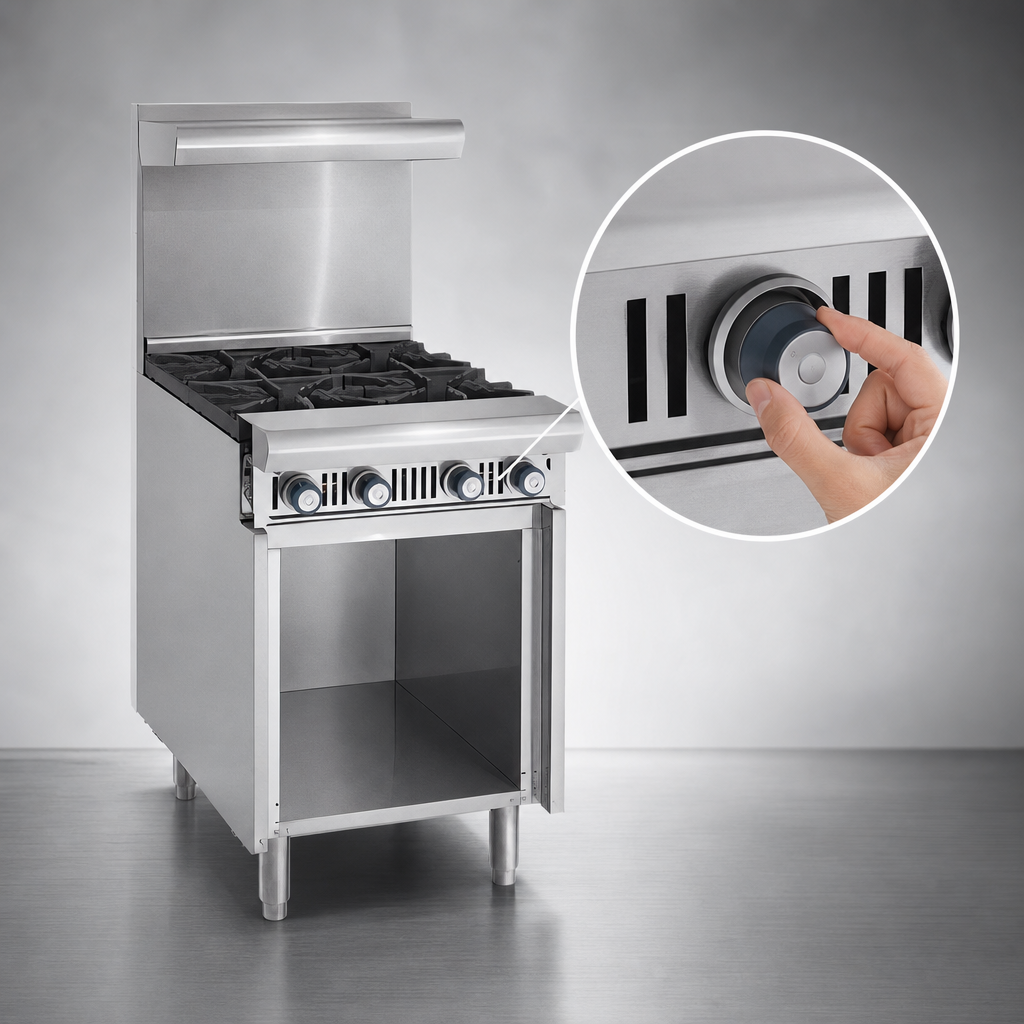

- Independent manual controls let chefs fine-tune zones instantly.
- 4" (102 mm) wide grease trough drains to a 1-gal (3.8 L) grease can for fast, mess-free clean-up.
- Full-width, slide-out crumb tray catches food debris and is removable for washing.
- Open stainless cabinet with bottom shelf keeps sheet pans and smallwares right under the cook surface.
Built to Last
- All-stainless front, sides, landing ledge and 22 ½" backguard resist corrosion and wipe clean.
- Aeration baffles between burners promote rapid recovery when the plate is loaded cold.
- Cast-aluminum knobs stay cool and feature a textured heat-protection grip.
- 6" adjustable stainless steel legs level the unit on any surface.
- cETLus & NSF listed for safety and sanitation.
Specifications
| Model | IHR-G24-XB |
|---|---|
| Cooking Surface | 24" W × 24" D (610 × 610 mm) steel griddle |
| Total Heat Input | 60,000 BTU/hr (17.6 kW) |
| Burners | 2 “U”-shaped, 30,000 BTU each |
| Overall Dimensions* | 24" W × 36" D × 47" H (610 × 914 × 1194 mm) |
| Gas Connection | ¾" NPT rear, 5" W.C. Natural / 10" W.C. LP |
| Base | Open cabinet with stainless shelf |
| Shipping Weight | ≈ 305 lb (138 kg) |
| Certifications | cETLus, NSF |
| Warranty | 1 Year parts & labor |
*Dimensions per Imperial specification sheet. Refer to installation manual for clearances.
Popular Options & Accessories
- Stainless high shelf or common backguard (54"–108")
- Salamander or cheesemelter mounting channels
- Quick-disconnect & flexible gas hoses (¾" or 1 ¼")
- 6" (152 mm) casters
Need flexible financing?
Middleby Equipment Financing can turn this purchase into low, fixed monthly payments while preserving your existing credit lines.
Imperial reserves the right to change specifications without notice.
$5,348.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IHR-G24-XB 24" heavy-duty gas range with griddle, 60,000 BTU, stainless steel, open cabinet, manual controls, NSF/cETLus certified.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, cETLus
Height
42.0in
Width
24.0in
Depth
38.0in
Shipping Weight
435.0lbs
Base
cabinet(s)
Plate Thickness
1.000" = 1"
Exterior Finish
stainless steel front & sides
Type
add-a-unit
Top
(1) griddle
Specifications
Spec Series Heavy Duty Range, gas, 24", Add-A-Unit, griddle, open cabinet, bottom shelf, manual controls, 4"W grease gutter, removable crumb tray, stainless steel front, sides, landing ledge & backguard, 6" legs, adjustable feet, 60,000 BTU, cETLus, NSF
Contact Us
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
