Imperial Spec Series 18" Modular Gas Griddle Top
Model IHR-G18-M | 40,000 BTU (12 kW)Drop powerful, even heat into any cookline without giving up precious floor space. The 18" Imperial Spec Series Add-A-Unit Gas Griddle Top delivers heavy-duty performance, seamless integration, and effortless clean-up—perfect for short-order eggs, pancakes, burgers, and finishing steaks.
Why You’ll Love It

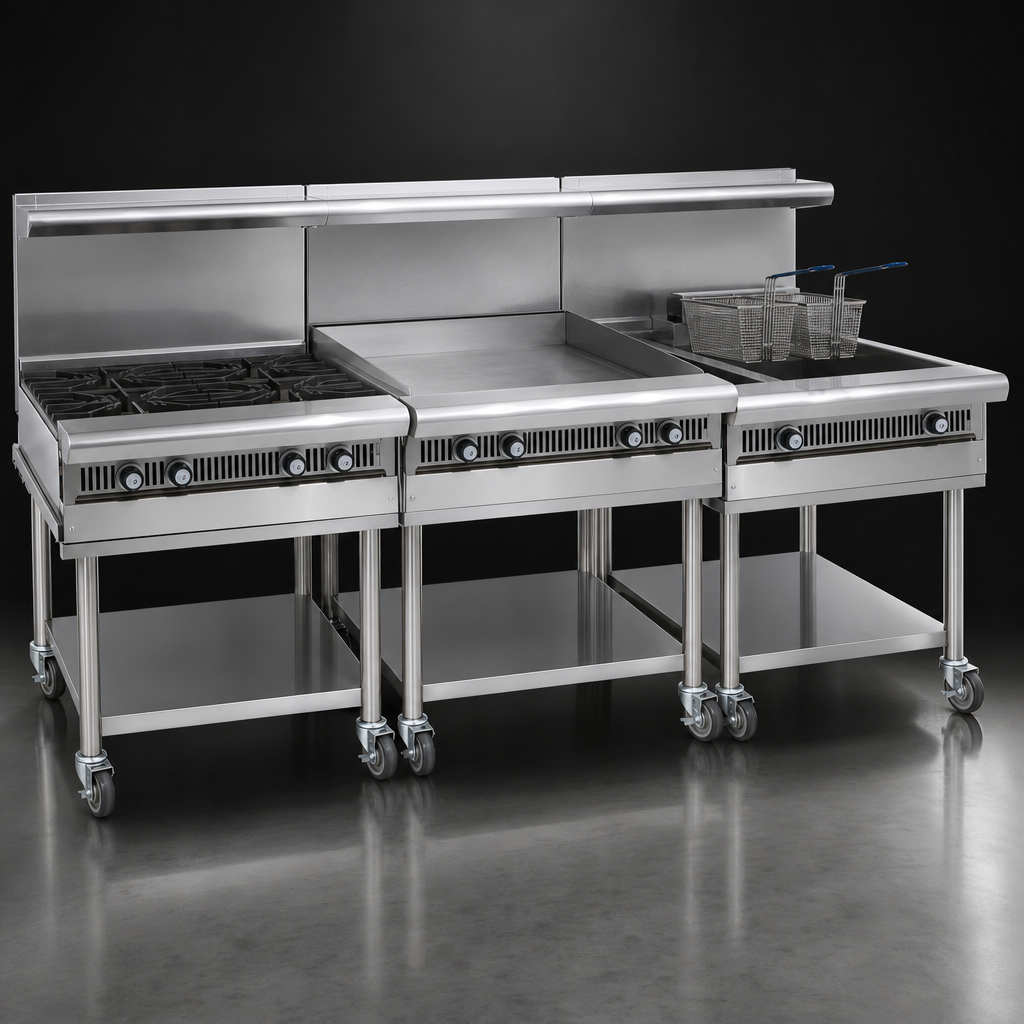

- Compact 18" (457 mm) modular / countertop design lines up flush with other Spec Series units.
- 40,000 BTU “U”-shaped steel burner blankets the plate for uniform heat and fast recovery.
- Highly polished griddle plate ensures excellent product release and easy seasoning.

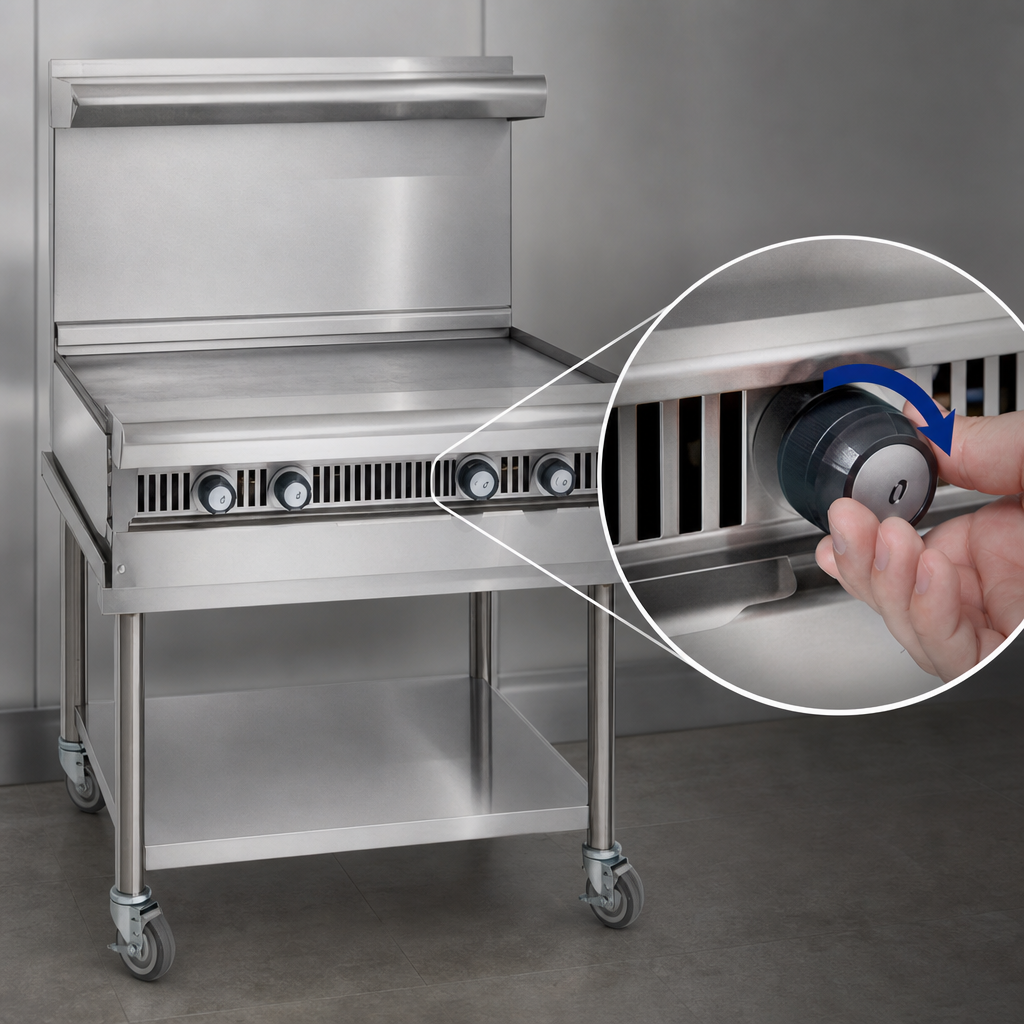

- Manual snap-action control lets chefs make quick temperature adjustments on the fly.
- 4" (102 mm) wide grease gutter funnels drippings into a 1-gallon (3.8 L) can for fewer change-outs.
- Full-width, removable crumb tray catches excess food particles for swift nightly clean-up.
- Rugged stainless steel front, sides, 7" (178 mm) landing ledge, and 6" (152 mm) backguard stand up to high-volume kitchens.
- Cast-aluminum control knobs with heat-shield grips stay cool to the touch.
- cETLus & NSF listed for gas safety and sanitation.
At-a-Glance Specs
| Cooking width | 18" / 457 mm |
|---|---|
| Overall dimensions | 18" W × 32" D × 11" H (457 × 825 × 279 mm) |
| BTU / kW | 40,000 BTU / 12 kW |
| Burner configuration | 1 “U”-shaped burner |
| Controls | Manual valve |
| Gas connection | 3/4" NPT (rear) |
| Shipping weight | 110 lb / 50 kg |
| Certifications | cETLus, NSF |
| Warranty | 1 year parts & labor (standard Imperial warranty) |
Installation & Operation Notes
- Provide 0" clearance from non-combustible and 6" (152 mm) from combustible surfaces.
- Rear 3/4" gas connection allows single-unit hook-up; 5.0" W.C. natural gas / 10.0" W.C. LP.
- Always season the plate before first use for best non-stick performance.
- Clean grease gutter and crumb tray daily to maintain peak efficiency.
Finance It the Easy Way
Turn today’s purchase into manageable monthly payments with Middleby Equipment Financing. Fast credit decisions, potential Section 179 tax advantages, and fixed terms keep your cash flow strong.
Warranty Reminder:
Coverage applies only to equipment installed and maintained per Imperial’s specifications
and serviced by an authorized agency. See full limited warranty for details.
$4,796.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IHR-G18-M 18" gas spec range: heavy-duty modular unit with griddle, 40,000 BTU, stainless steel, grease gutter, NSF & cETLus certified.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, cETLus
Height
11.0in
Width
18.0in
Depth
38.0in
Shipping Weight
242.0lbs
Plate Thickness
1.000" = 1"
Exterior Finish
stainless steel front & sides
Top
(1) griddle
Base
modular
Type
add-a-unit
Specifications
Spec Series Heavy Duty Range, gas, 18"W, modular, Add-A-Unit, griddle, manual controls, 4"W grease gutter with (1) gallon capacity grease can, removable crumb tray, stainless steel front, sides, 7"D landing ledge & 6"H backguard, 40,000 BTU, 12kW, cETLus, NSF
