Imperial (Middleby) IHR-G18-2 Spec Series Gas Ranges

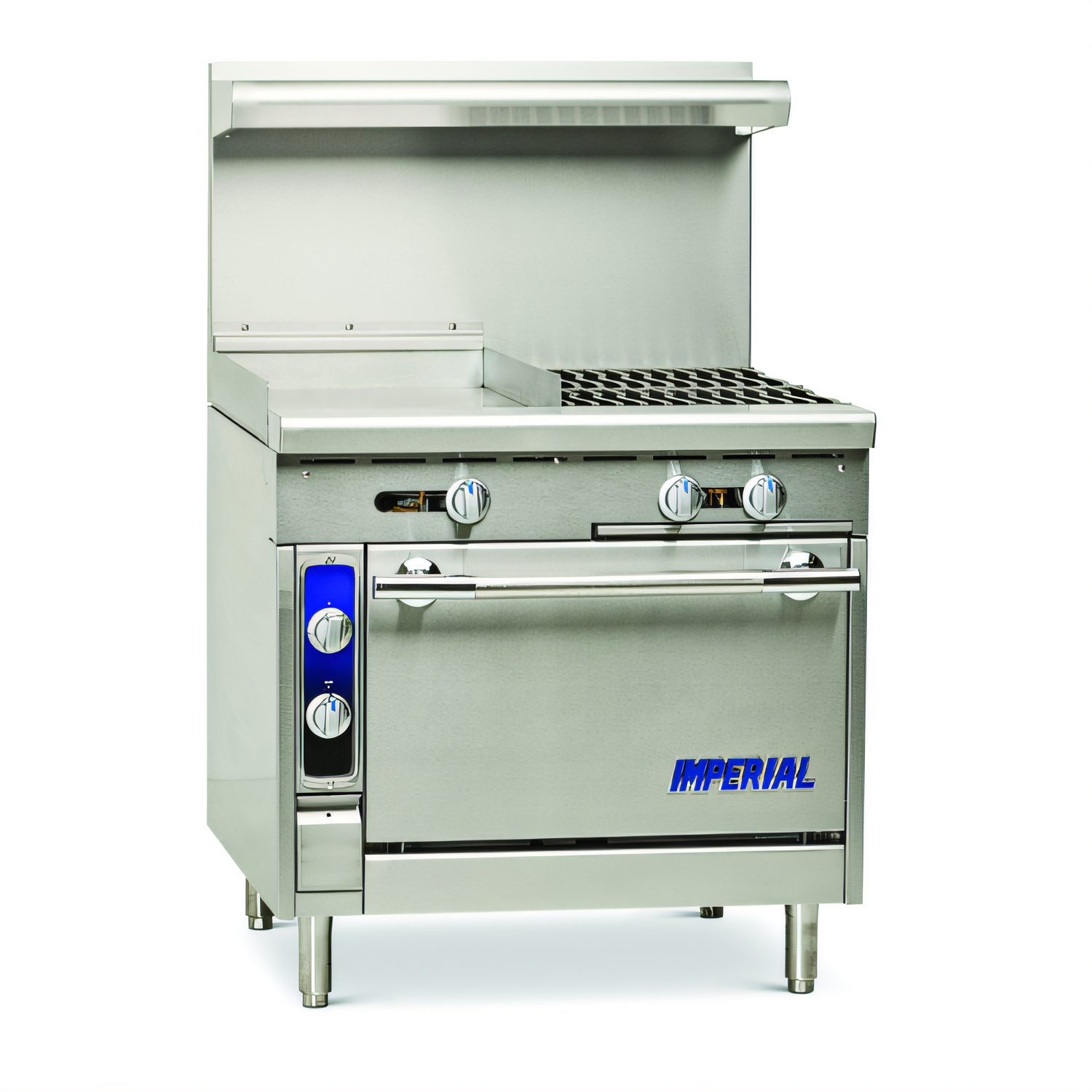

Imperial Spec Series 36" Gas Range w/ 18" Griddle & 2 Open Burners

Purpose-built for high-volume, all-day kitchens, the Imperial IHR-G18-2 combines two 40 000 BTU open burners, an 18 inch 1 inch-thick polished griddle and a chef-depth standard oven in just 36 inches of floor space. Heavy-gauge stainless steel construction and cast-iron “S” grates deliver the durability, heat retention and easy cleaning chefs demand on the line.

Why It Belongs on Your Line

• Power on tap — 160,000 BTU total output handles searing, sautéing, griddling and baking simultaneously.

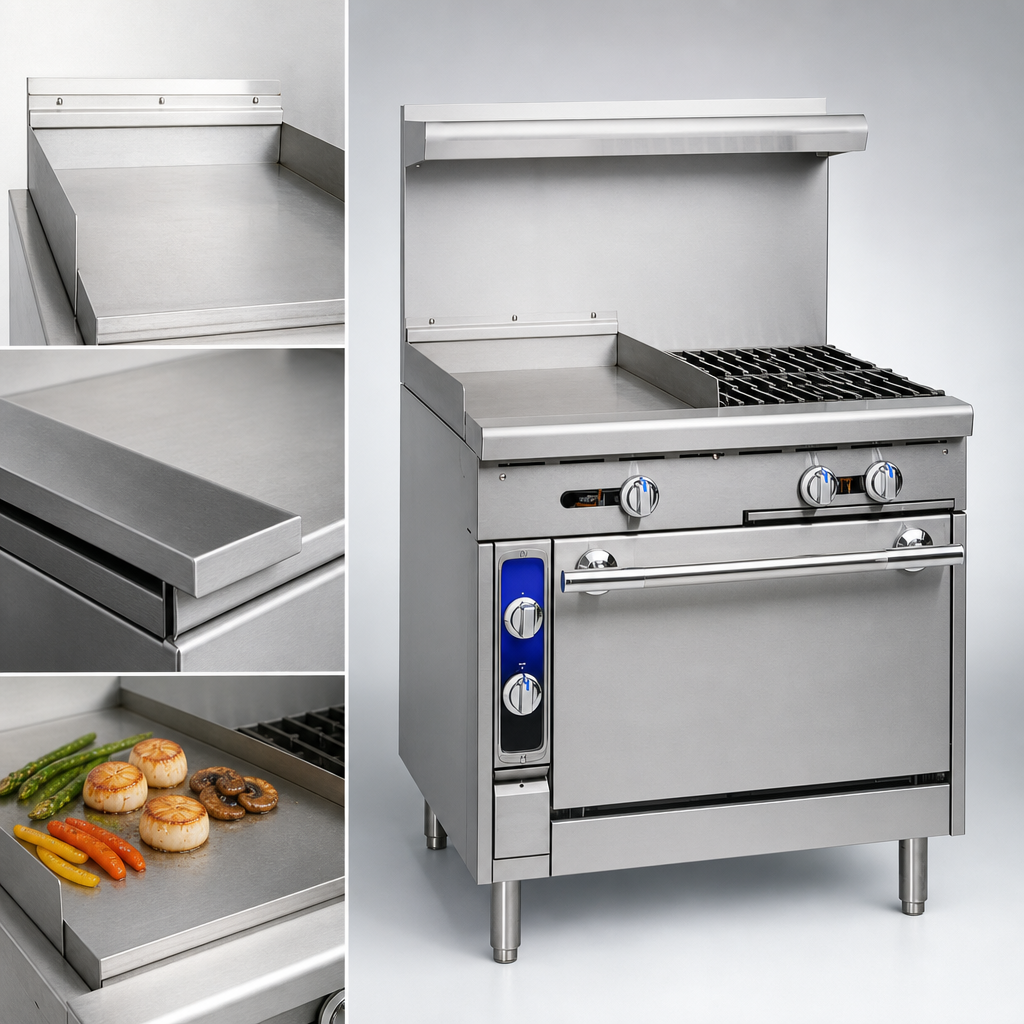

• 18" polished steel griddle (1 in. thick) with manual control distributes heat evenly for consistent caramelization.
• 4 in. wide grease gutter & 1 gal. removable can speed up end-of-shift clean-ups.

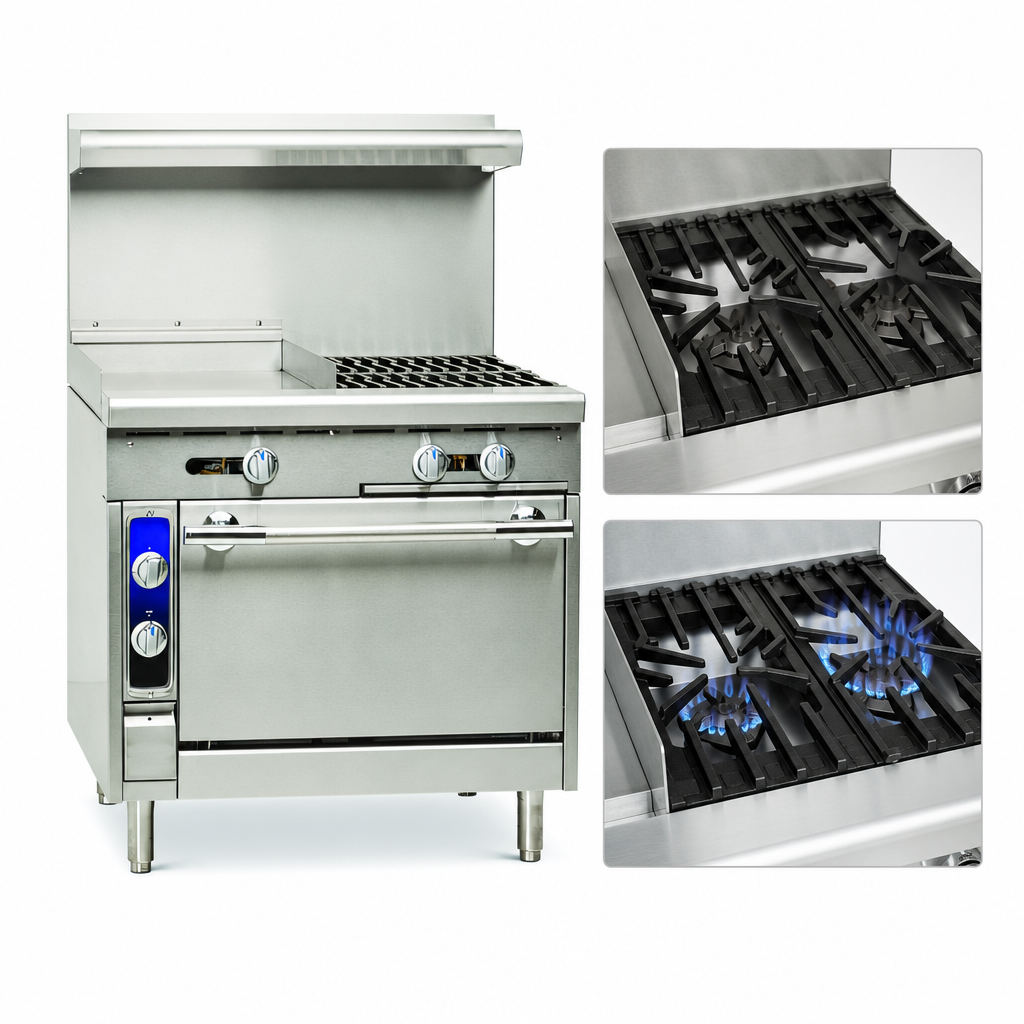

• Two 40 000 BTU open burners with anti-clogging cast-iron tops; 7 000 BTU simmer for delicate sauces.
• Cast-iron “S” grates raise pans above the flame for superior heat transfer and slide-easy pot movement.
• Chef-depth standard oven (40 000 BTU) fits 18" × 26" pans left-to-right or front-to-back; includes 1 chrome rack.
• Stainless steel front, sides, 5 in. landing ledge, backguard & kick plate stand up to daily abuse.
• 6 in. heavy-duty legs with adjustable feet help you level the range on uneven floors.
• Manual gas controls keep operation simple and field-service friendly.

Technical Specifications

Installation Notes

• For non-combustible floors: legs or casters required. When curb-mounted, provide a 2" overhang.
• Clearance from non-combustible surfaces: 0". From combustible surfaces: 8" (203 mm).
• A factory-supplied regulator and shut-off valve (¾" NPT) are required on the inbound gas line.
