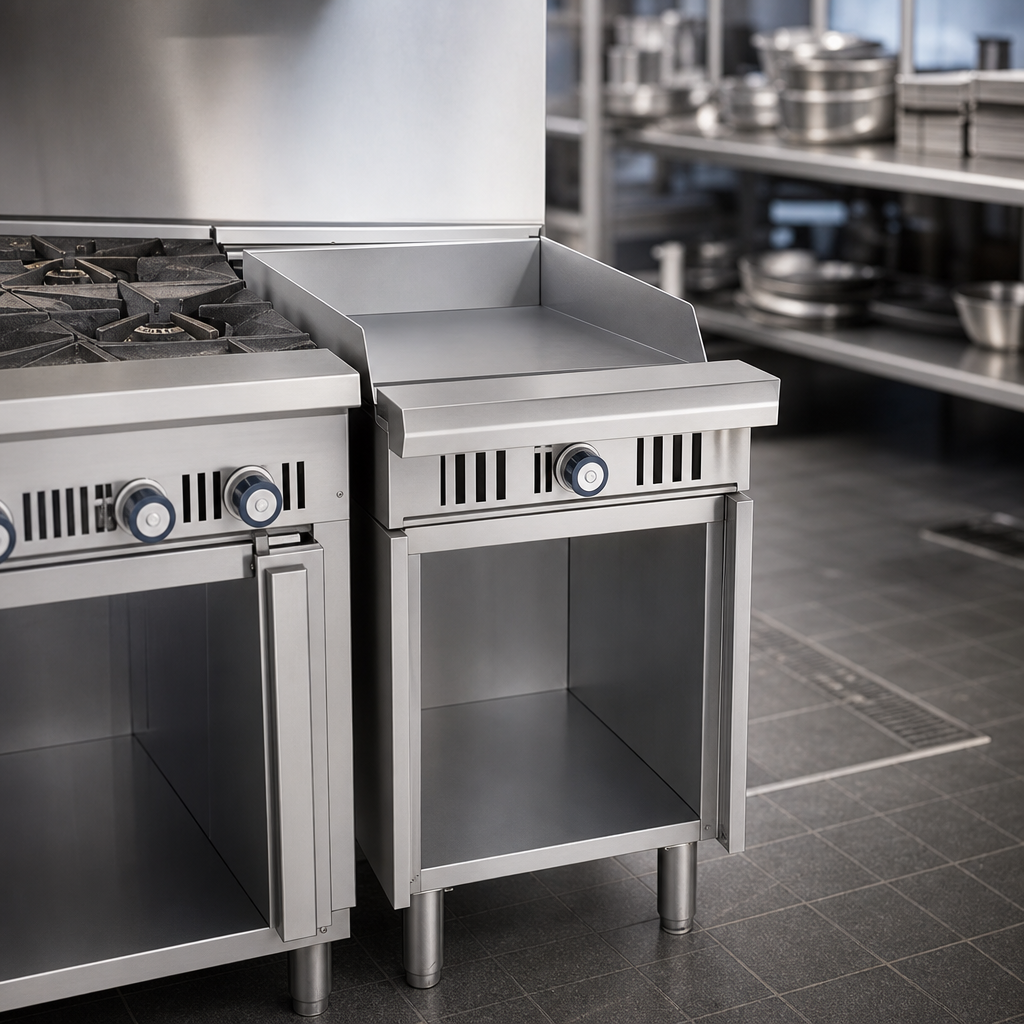

Spec Series™ 12" Add-A-Unit Gas Range – Griddle Top, Open Cabinet
Model IHR-G12-XB • 30,000 BTU • cETLus & NSF ListedImperial’s Spec Series Add-A-Unit lets you slide heavy-duty cooking power into the tightest line-ups. At just 12 inches wide, this floor model delivers 30,000 BTU of even griddle heat, rugged stainless-steel construction and a handy open-cabinet base—perfect for expanding capacity without expanding your footprint.
Performance & Design Highlights
- 12" W x 28" D highly polished steel griddle plate for a smooth, stick-resistant cooking surface.
- One 30,000 BTU U-shaped burner is centered under the plate for uniform heat from corner to corner.
- Aeration baffles between burners speed recovery and maintain temperature during peak periods.
- Manual snap-action gas valve gives you granular control over searing or low-heat holding.
- 4" (102 mm) wide grease gutter channels runoff into a large, removable grease can (≈1 gal) and a full-width crumb tray for fast cleanup.
- All-stainless exterior—front, sides, landing ledge & 4" backguard—stands up to daily commercial abuse.
- Open cabinet base with solid bottom shelf keeps sheet pans, utensils or small appliances within arm’s reach.
- 7" extra-deep landing ledge and cool-touch cast-aluminum knobs protect busy cooks.
- 6" stainless legs with adjustable feet level the unit on uneven floors.
- Matches other Imperial Spec Series equipment for a seamless cook-line.
Technical Specifications
| Exterior width | 12" / 305 mm |
|---|---|
| Exterior depth | 38" / 965 mm |
| Overall height (to top of backguard) | 47" / 1 207 mm |
| Griddle plate size | 12" W × 28" D (305 × 711 mm) |
| Heat input | 30,000 BTU/hr (9 kW) |
| Controls | Manual, 1 valve / 1 burner |
| Base configuration | Open cabinet with bottom shelf |
| Gas connection | 3/4" NPT (rear) – 5" W.C. NG / 10" W.C. LP |
| Ship weight | 185 lb / 84 kg |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor (factory authorized service) |
Popular Options & Accessories
- Stainless-steel high shelf or common front landing ledge (54", 72", 90", 108").
- Stainless-steel cabinet doors or interior.
- Gas shut-off, pressure regulator or quick-disconnect & flexible gas hose (¾" or 1-¼").
- Heavy-duty splash or cheesemelter/salamander mounting channels.
Imperial provides a limited 1-year parts & labor warranty when the unit
is installed and serviced by an authorized agent. Refer to the manufacturer’s
full warranty statement for terms and exclusions.
$3,973.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial IHR-G12-XB 12" heavy-duty gas range with griddle, stainless steel construction, 30,000 BTU, manual controls, NSF/cETLus certified.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, cETLus
Height
42.0in
Width
12.0in
Depth
38.0in
Shipping Weight
315.0lbs
Type
add-a-unit
Top
(1) griddle
Plate Thickness
1.000" = 1"
Exterior Finish
stainless steel front & sides
Base
cabinet(s)
Specifications
Spec Series Heavy Duty Range, gas, 12", Add-A-Unit, griddle, open cabinet, bottom shelf, manual controls, 4"W grease gutter, removable crumb tray, stainless steel front, sides, landing ledge & backguard, 6" legs, adjustable feet, 30,000 BTU, cETLus, NSF
