Imperial (Middleby)

Spec Series Heavy Duty Modular Gas Range with 6 Open Burners

SKU: IHR-6-M
$6,677.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Imperial (Middleby) New Arrivals Ranges Restaurant Equipment

Spec Series Heavy Duty Modular Gas Range with 6 Open Burners

36-inch, Modular, Natural Gas Convertible, 240,000 BTU

Experience robust performance and versatile cooking with the Imperial Spec Series IHR-6-M modular gas range, featuring six powerful anti-clogging open burners.

  • Modular countertop design saves space while delivering heavy-duty cooking power.
  • Equipped with six 40,000 BTU/hr open burners for efficient and consistent heating.
  • Standard cast iron 'S' grates are designed to prevent clogging and protect pilots.
  • Constructed with a durable stainless steel front, sides, landing ledge, and backguard for commercial use.
  • Features manual controls and a removable crumb tray for easy operation and cleaning.
  • Field convertible from natural gas to propane to suit various kitchen setups.

Overall Dimensions:

36.0"W x 38.0"D x 17.0"H

Product Weight:

400.0 lb

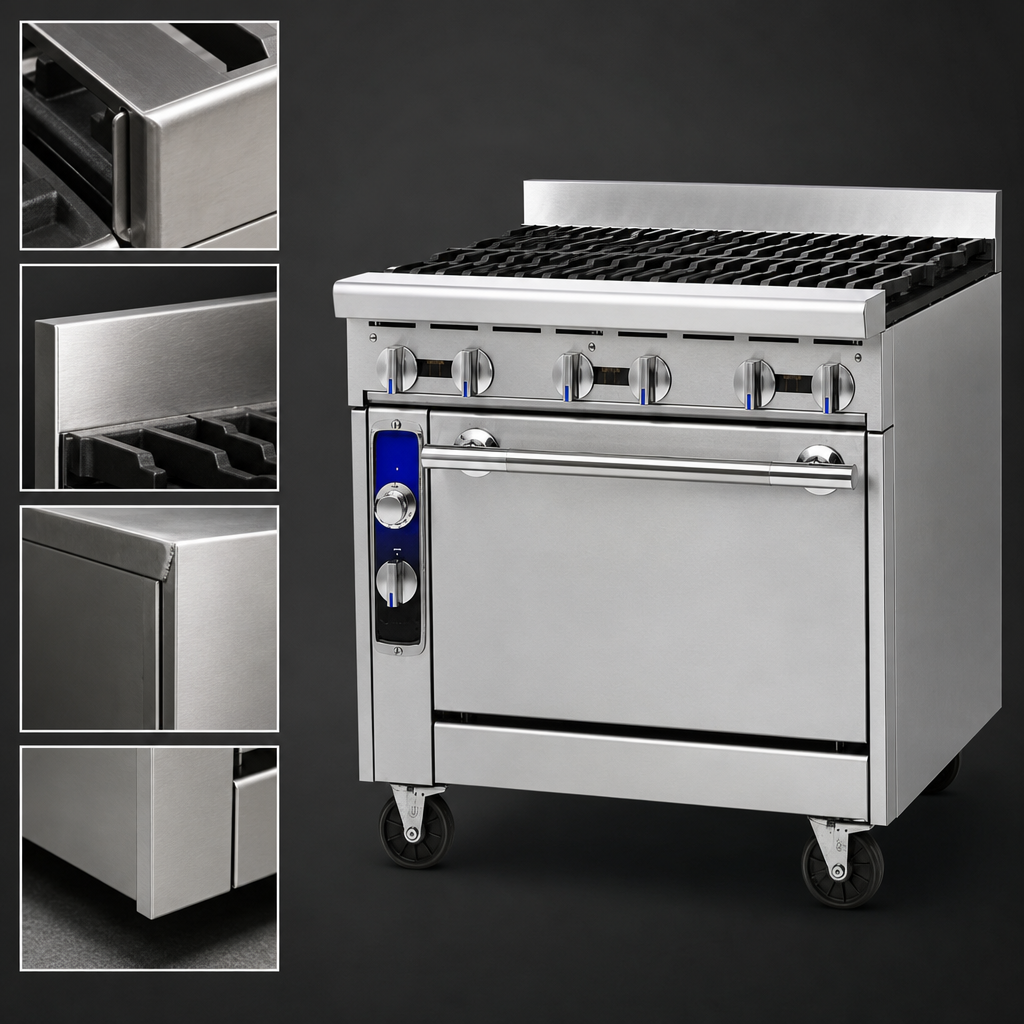

Heavy Duty Construction

Features a stainless steel front, sides, backguard, shelf, landing ledge, and kick plate with welded and polished stainless steel seams for superior durability and a sleek appearance.

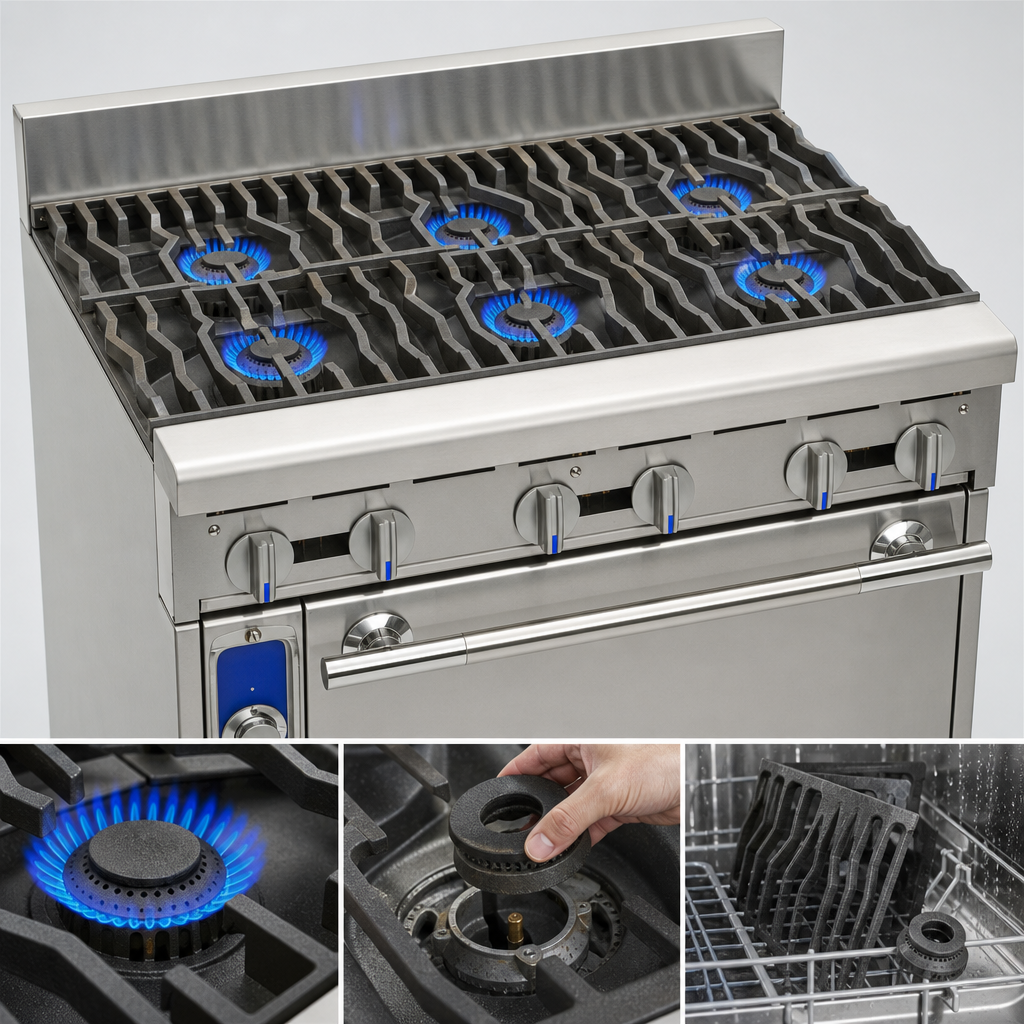

High-Performance Open Burners

Includes six 40,000 BTU/hr anti-clogging open burners with a 7,000 BTU/hr low simmer feature, providing versatile heat control from high searing to gentle simmering. Burners are made of cast iron and are removable for easy cleaning.

Standard 'S' Grates

Comes standard with 12" x 14" (305 x 356 mm) cast iron 'S' grates featuring an anti-clogging shield design that protects the pilot from grease and debris.

Manual Controls

Equipped with manual controls and unique cast aluminum control knobs with a heat protection grip for reliable operation.

Convenient Cleaning

Features a removable crumb tray and one-piece Venturi bases for easy maintenance and cleaning.

Large Landing Ledge

A 5" (178 mm) stainless steel landing ledge provides ample space for staging plates or holding tools.

Modular Design

Specifically designed as a modular, countertop model ('M' designation), ideal for flexible kitchen layouts.

Type Modular Gas Range
Style Open Burner
Installation Type Countertop
Open Burners 6
BTU 240,000 BTU
Watts 70 kW
Burner Output 40,000 BTU Per Burner
Gas Type Natural Gas (Convertible to Propane)
Gas Connection Size 3/4 Inch NPT
Natural Gas Inlet Pressure 5.0 Inches W.C.
Propane Gas Inlet Pressure 10.0 Inches W.C.
Controls Manual
Grates Cast Iron 'S' Grates
Material Stainless Steel
Interior Finish N/A
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 17 Inches
Shipping Weight 400 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor warranty

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Imperial IHR-6-M gas range provides a total gas output of 240,000 BTU, with each of its six open burners delivering 40,000 BTU/hr.
Yes, the Imperial IHR-6-M is field convertible from natural gas to propane gas. The manifold pressure for natural gas is 5.0" W.C., and for propane gas, it is 10.0" W.C.
The IHR-6-M comes standard with heavy-duty cast iron 'S' grates, which are designed with an anti-clogging shield to protect the pilot from grease and debris.
This range is for use only on non-combustible floors. It requires 0" clearance from non-combustible surfaces and 8" (203 mm) from combustible surfaces. Legs or casters are required for non-combustible floors, or a 2" (51 mm) overhang if curb mounted.
The 'M' in IHR-6-M indicates that it is a Modular, Counter Top Model, designed for flexible placement on existing counters or equipment stands.
