Imperial (Middleby) IHR-6-C Spec Series Gas Ranges
Description
Imperial Spec Series™ 36" Gas Range with 6 Open Burners & Convection Oven
Model IHR-6-C | Item #4528Engineered for the busiest commercial kitchens, the Imperial Spec Series 36" Heavy-Duty Range combines six high-performance open burners with a full-size convection oven, delivering the power, precision and durability chefs rely on every service.
Key Features
- 275,000 BTU total output – keeps up with peak-hour demand.

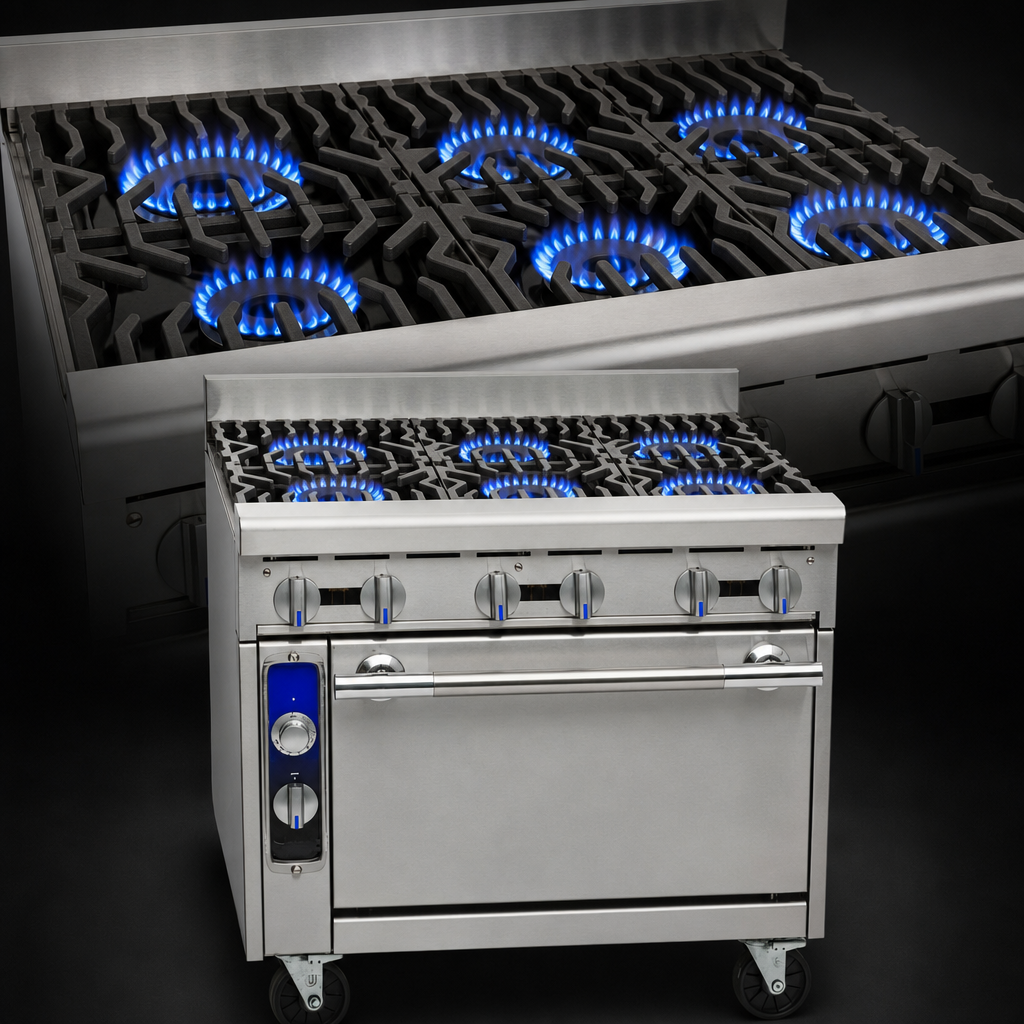

- Six 40,000 BTU open burners with 7,000 BTU low-simmer setting.
- Anti-clog burner design; lift-off cast-iron heads for fast cleaning.
- Standard cast-iron “S” grates (12" × 14") handle heavy stock pots with ease.
- 35,000 BTU convection oven with ½ HP blower ensures even browning and reduced shrinkage.
- Porcelainized oven interior & door liner; three chrome racks included.
- Manual front-mounted controls and three-position fan switch (cook / cool / off).
- 5" stainless steel landing ledge doubles as a plating and utensil rest.
- Full-width removable crumb tray simplifies nightly cleanup.
- All-stainless front, sides, backguard & kick plate with welded, polished seams.
- 6" (152 mm) heavy-duty legs with adjustable feet; optional casters available.
At-A-Glance Specs
| Width | 36" (914 mm) |
|---|---|
| Depth | 38" (965 mm) |
| Height (to cooktop) | 36" (914 mm) |
| Open Burners | 6 × 40,000 BTU (11.7 kW each) |
| Oven Type | Gas convection, porcelain interior, ½ HP blower |
| Oven Capacity | 26½" W × 22½" D × 14" H (673 × 572 × 356 mm) Holds (3) 18" × 26" sheet pans |
| Oven BTU | 35,000 BTU (10.3 kW) |
| Total BTU | 275,000 BTU (81 kW) |
| Gas Connection | 3/4" NPT (1¼" rear manifold) |
| Manifold Pressure | Natural Gas 5.0" W.C. | LP Gas 10.0" W.C. |
| Shipping Weight | 805 lb (366 kg) |
| Certifications | cETLus, NSF |
| Warranty | 1 year parts & labor |
Built for the Line, Backed by Imperial
- Performance – electronic ignition and high-velocity fan promote faster cook times.
- Durability – solid-brass valves, stainless chassis and heavy cast-iron components withstand years of abuse.
- Cleanability – smooth welded seams, porcelain oven surfaces and removable parts cut down on labor.
- Serviceability – front-accessible gas manifold and nationwide authorized service network keep downtime to a minimum.
Looking to add casters, a salamander or extra oven racks? Reach out—Imperial offers a full range of factory options and accessories.
