Imperial (Middleby) IHR-4 Spec Series Gas Ranges
Description

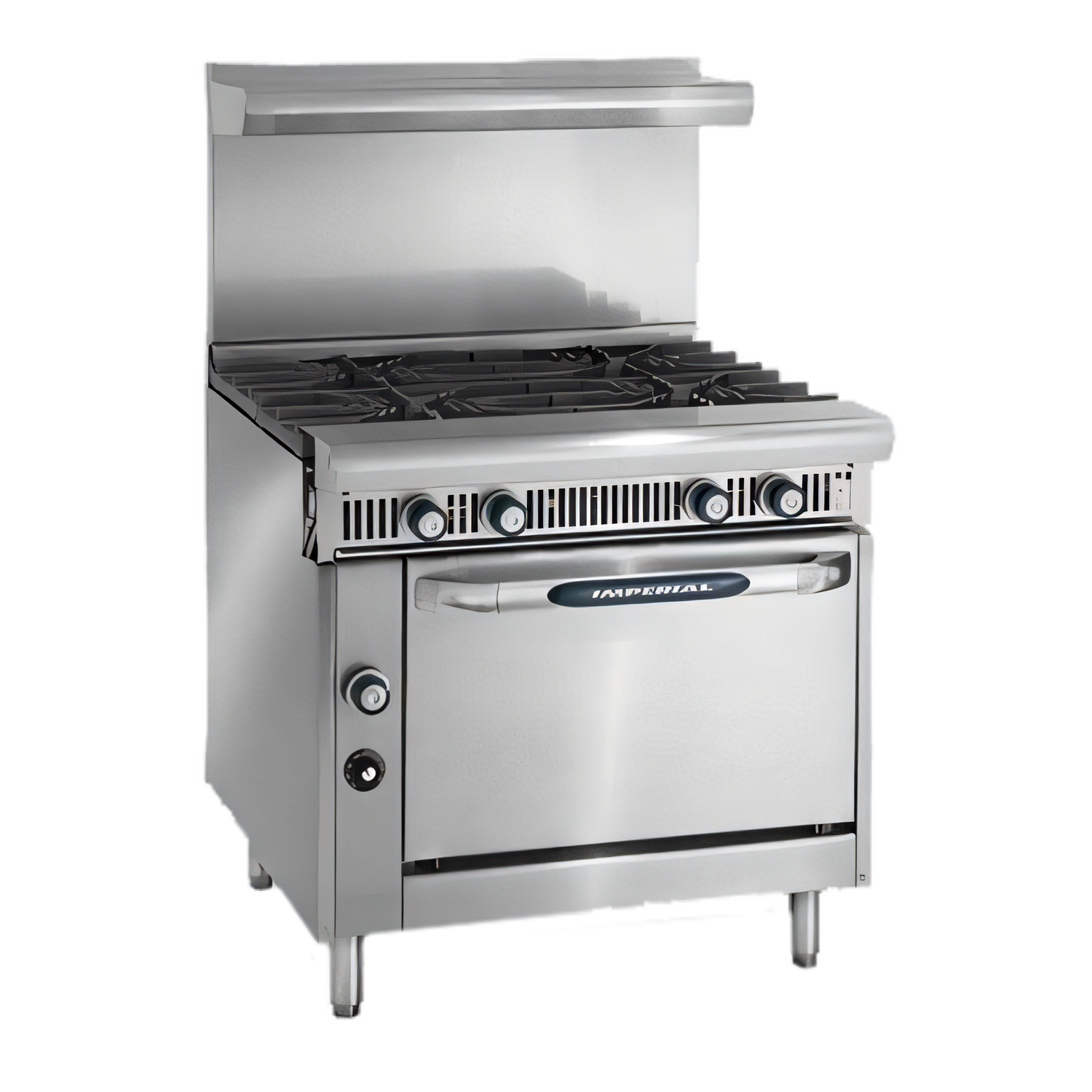

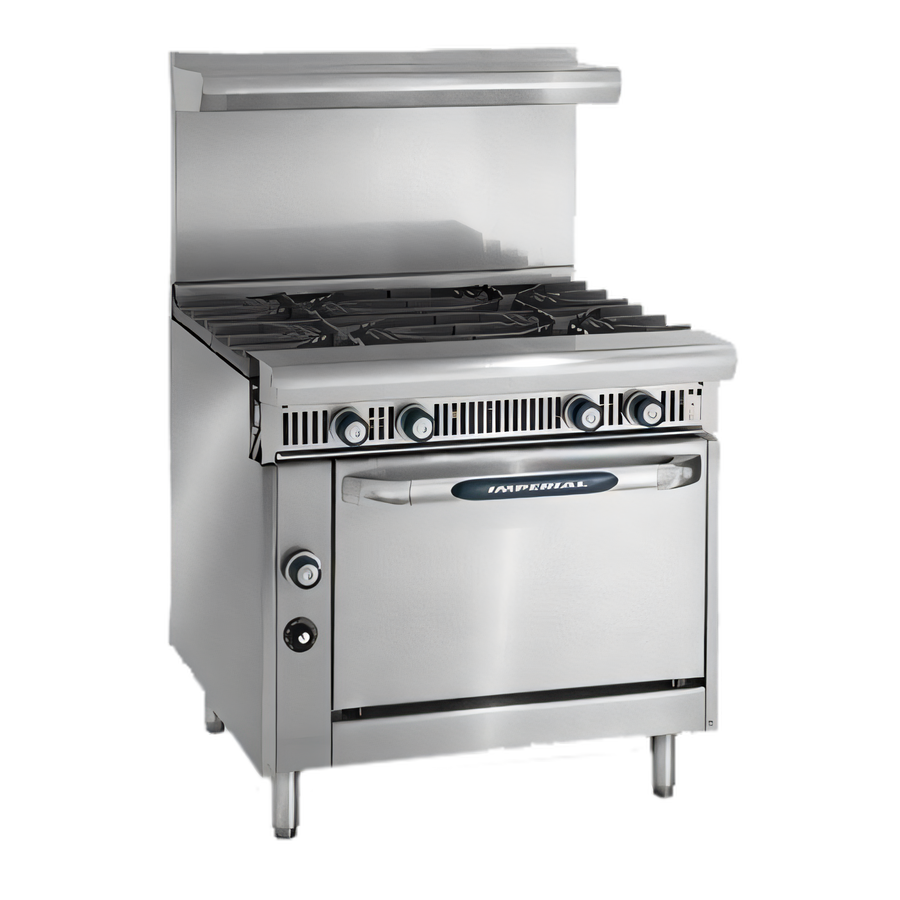

Imperial Spec Series™ 36" Heavy-Duty Gas Range
Model IHR-4 – 4 Open Burners / Standard Oven – 200,000 BTUBuilt for demanding commercial kitchens, the Imperial Spec Series IHR-4 combines four ultra-powerful open burners with a full-size standard oven, all inside a rugged 36-inch footprint. Stainless-steel construction, easy-clean features, and NSF certification make it a workhorse you can count on shift after shift.
Why Choose This Range

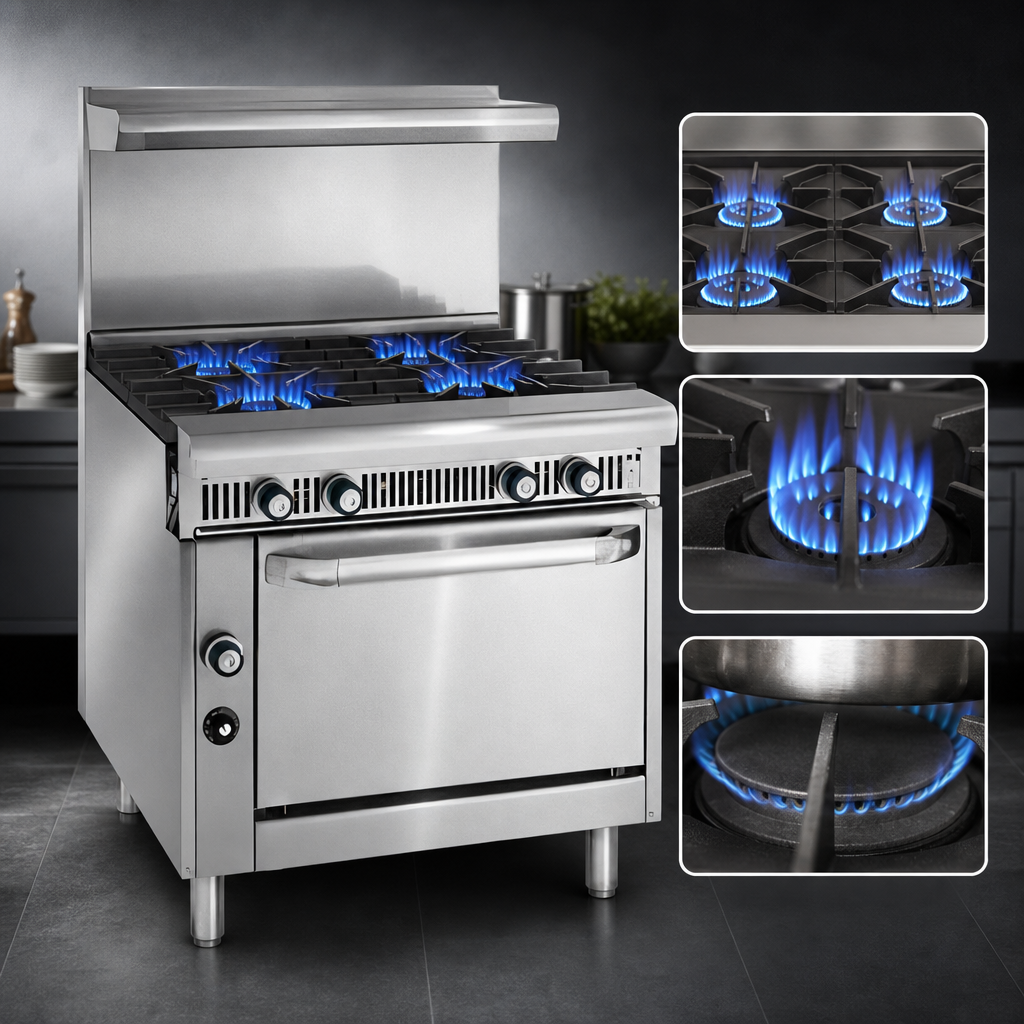

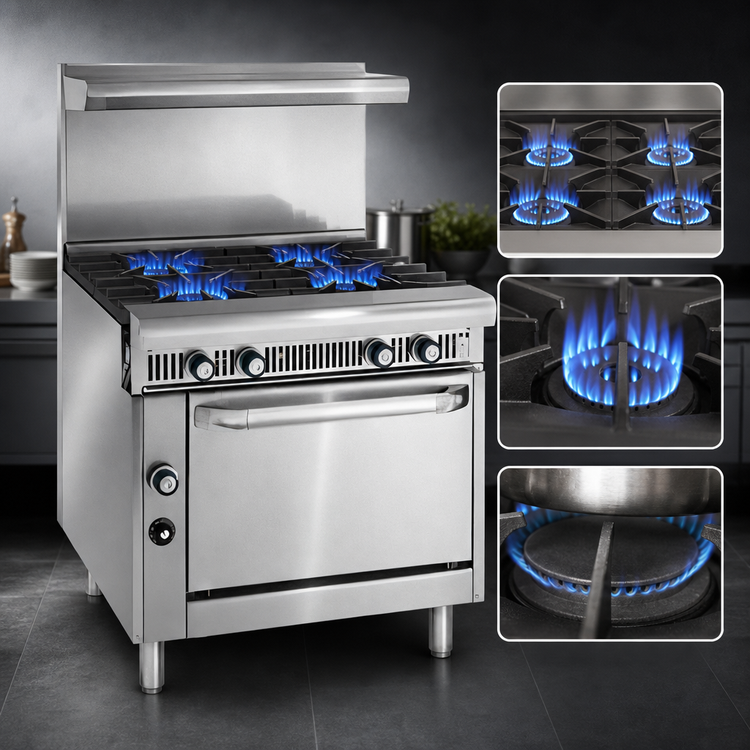

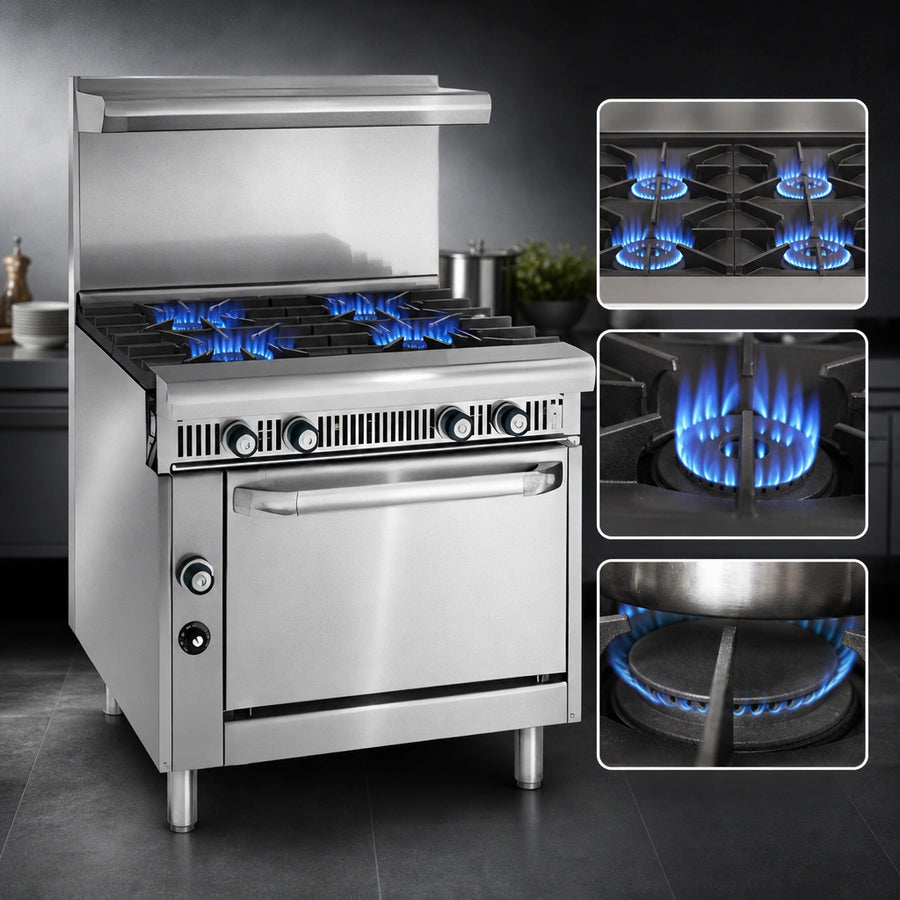

- Serious Heat: 4 open burners deliver 40,000 BTU each for a total of 160,000 BTU up top, plus a 40,000 BTU oven burner.
- “S” Grates Standard: Heavy cast-iron grates (18" × 14") handle large stock pots and slide out for fast cleaning.
- Anti-Clogging Design: Open burners feature sloped venturi tubes and protected pilots for reliable ignition.

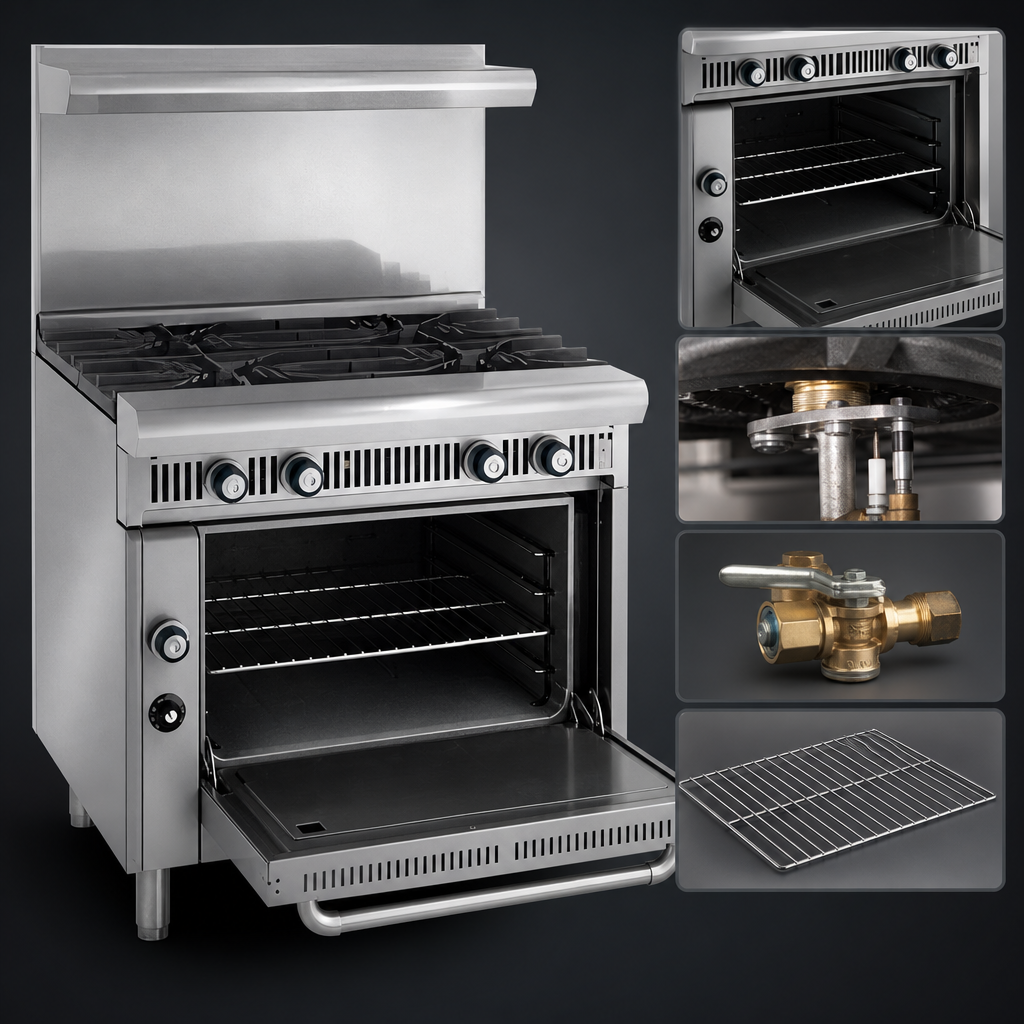

- Even-Heat Oven: Chef-depth cavity (26½" W × 26" D × 14" H) fits 18" × 26" sheet pans left-to-right or front-to-back.
- Durable All-Stainless Exterior: Front, sides, 5" landing ledge, backguard, & kick plate stand up to daily abuse.
- Simple, Precise Control: Cool-touch cast-aluminum knobs with positive-stop indexing.
- Easy Maintenance: Removable crumb tray, separate cast-iron burner rings, and porcelainized oven interior.
- Ready to Install: 6" adjustable stainless legs, ¾" NPT rear gas connection, factory-installed pressure regulator.
- Certified & Supported: cETLus & NSF listed with a 1-year parts and labor warranty backed by Imperial’s nationwide service network.
Technical Specifications
| Cooking Surface | 4 open burners with cast-iron “S” grates |
|---|---|
| Total BTU Output | 200,000 BTU / 59 kW |
| Burner Output | 40,000 BTU (11.7 kW) each, 7,000 BTU low simmer |
| Oven Type | Standard bake oven, manual thermostat, single chrome rack included |
| Oven Interior (WxDxH) | 26.5" × 26" × 14" (673 × 660 × 356 mm) |
| Pan Capacity | (1) 18" × 26" sheet pan, left-to-right or front-to-back |
| Exterior Dimensions | 36" W × 38" D × 56" H* (914 × 965 × 1422 mm) *Height to top of backguard |
| Gas Connection | ¾" NPT (regulator included) |
| Certifications | cETLus, NSF |
| Warranty | 1 year parts & labor (U.S./Canada) |
| Ship Weight | 740 lb / 336 kg (crated) |
Clearance: 0" sides & rear to non-combustible surfaces; allow 8" (203 mm) to combustibles. Legs (included) or casters (optional) are required for non-combustible floors.
