Imperial (Middleby) IHR-4-C Spec Series Gas Ranges
$13,965.00
Unit price
/
Unavailable
Description

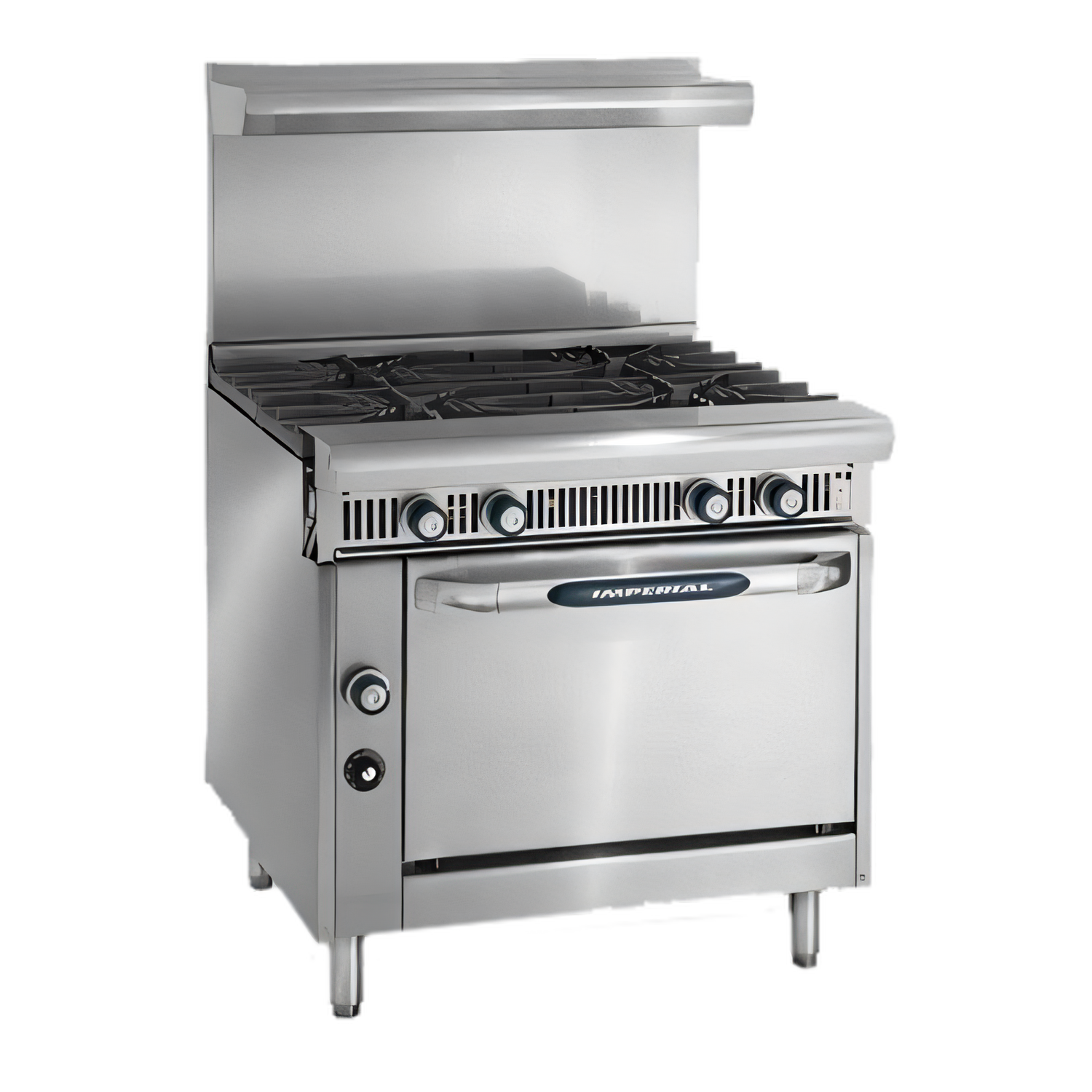

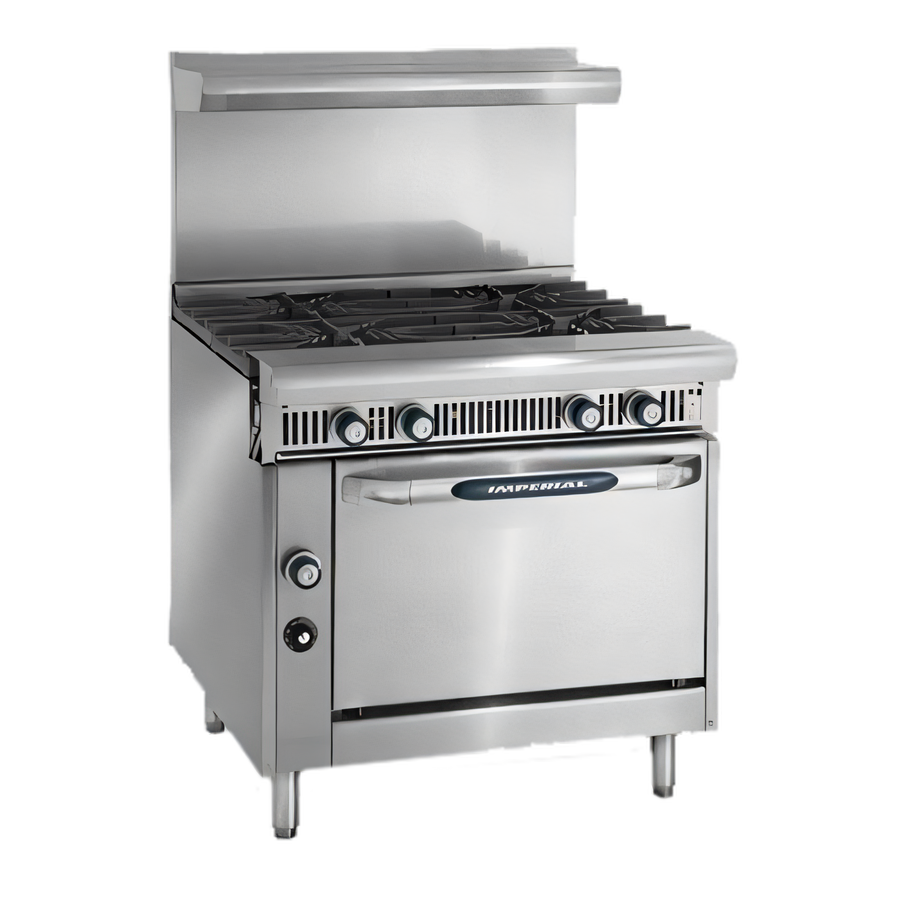

Imperial “Spec Series” 36" Heavy-Duty Gas Range
Model IHR-4-C | 4 Open Burners + Convection Oven | 195,000 BTUBuilt for high-volume kitchens that refuse to compromise on consistency, the Imperial Spec Series IHR-4-C combines four 40,000 BTU open burners with a precision 35,000 BTU convection oven. Rugged stainless-steel construction, porcelainized interiors, and industry-leading burner technology deliver the power, durability, and cleanability professionals demand.
Performance & Design Highlights

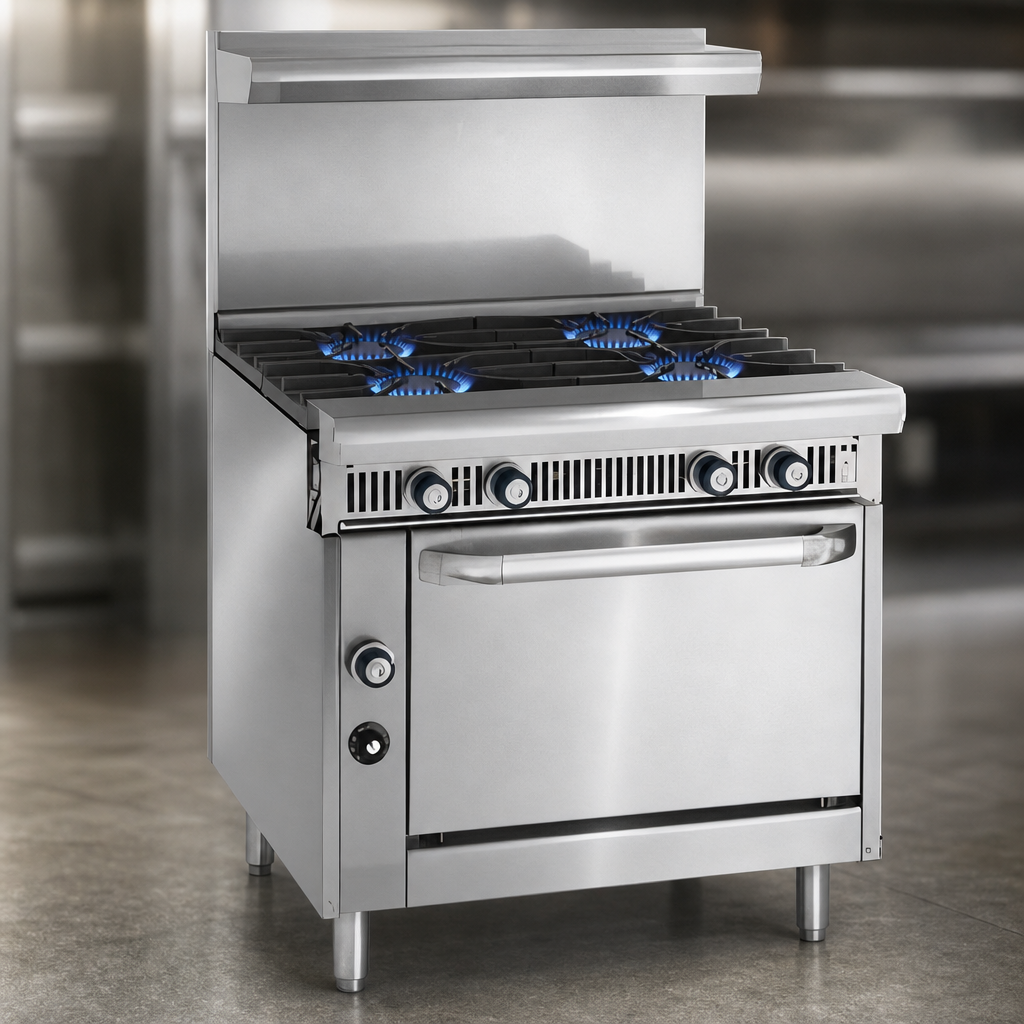

- 4 × 40,000 BTU anti-clogging burners with 7,000 BTU low-simmer setting for delicate sauces.
- Removable S-pattern cast-iron grates (18" × 14") protect pilots from grease and debris.
- One-piece venturi burner base—no gaskets—sloped for efficient heat flow and easy cleaning.

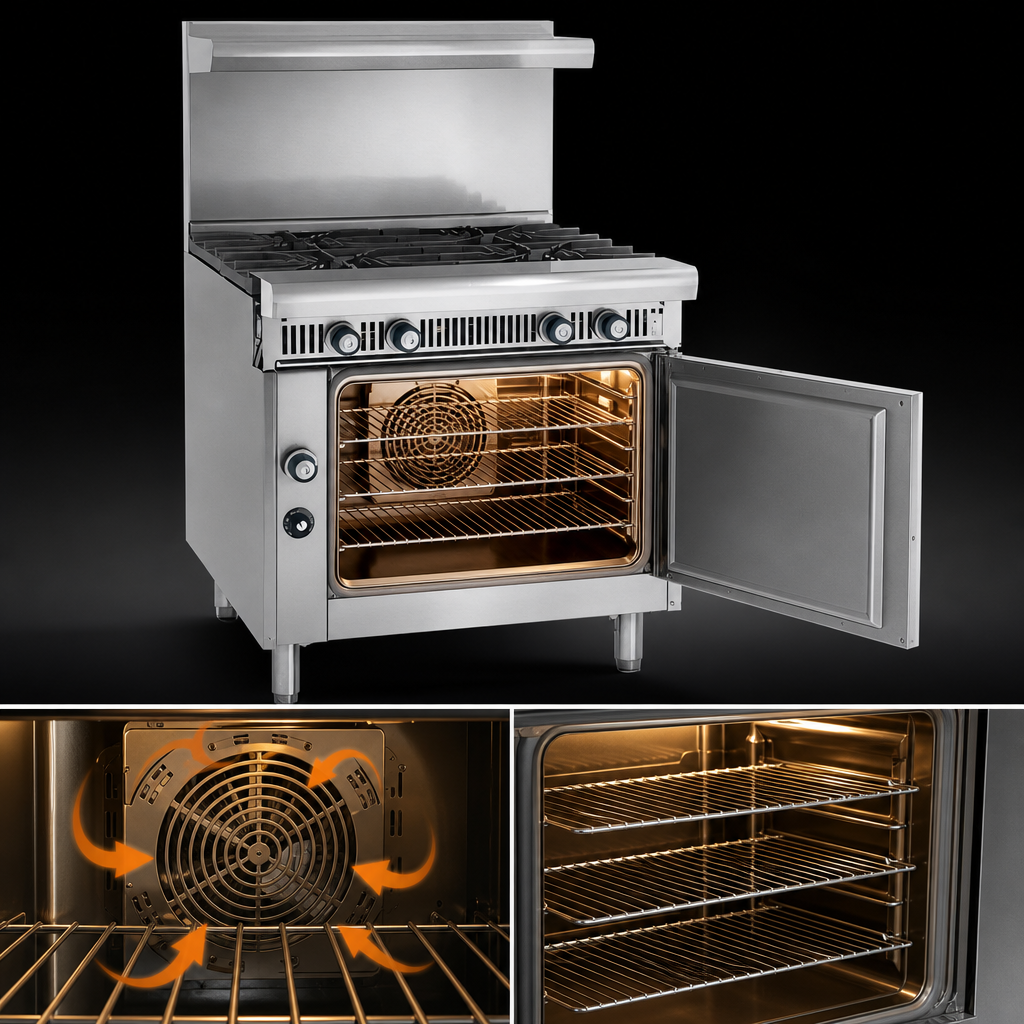

- 35,000 BTU convection oven with ½ HP blower motor for faster, even baking and reduced food shrinkage.
- Three-speed switch (cook / cool-down / off); fan automatically stops when the door opens.
- Porcelainized oven interior, door liner & deck plus 3 chrome racks on removable guides.
- Manual, heavy-duty cast-aluminum control knobs with heat-shield grips.
- 5" deep stainless-steel landing ledge doubles as a plating shelf.
- Full-width, removable crumb tray speeds end-of-shift clean-up.
- All stainless-steel front, sides, 22" backguard & kick plate; welded & polished seams.
- 6" (152 mm) legs with adjustable feet for level installation on any surface.
- Certified cETLus & NSF for safety, sanitation, and code compliance.
Technical Specifications
| Overall Width | 36" (914 mm) |
|---|---|
| Overall Depth (to front of landing ledge) | 38" (965 mm) |
| Overall Height (to cooktop) | 36" (914 mm) |
| Total BTU Input | 195,000 BTU / 57 kW |
| Open Burners | 4 × 40,000 BTU (anti-clog, cast-iron) |
| Oven Type | Convection | 35,000 BTU | ½ HP blower |
| Oven Interior (W × D × H) | 26 ½" × 22 ½" × 14" (673 × 572 × 356 mm) |
| Gas Connection | ¾" NPT (Natural or LP) | Manifold: 5" W.C. Nat. / 10" W.C. LP |
| Electrical (blower & igniter) | 120 V / 1-ph / 60 Hz, 6 ft cord & plug |
| Rack Positions / Included Racks | 5 positions / 3 chrome racks |
| Landing Ledge | 5" (127 mm) stainless steel |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor (factory authorized service) |
Warranty Reminder: Imperial’s one-year parts & labor warranty applies to equipment installed and maintained per the factory manual. Service must be performed by an authorized Imperial service agency for coverage.
Features & Specs
Features & Specs
Manufacturer
Imperial (Middleby)
Brand_name
Spec Series
Certifications
NSF, cETLus
Height
42.0in
Width
36.0in
Depth
38.0in
Shipping Weight
800.0lbs
Exterior Finish
stainless steel front & sides
Base
(1) convection oven
Top
(4) open burners
Specifications
Spec Series Heavy Duty Range, gas, 36"W, (4) open burners, cast iron "S" grates (standard), convection oven, 1/2 HP blower motor, porcelain interior, (3) chrome racks, manual controls, removable crumb tray, stainless steel front, sides, 5"D landing ledge, backguard & kick plate, 6" legs with adjustable feet, 195,000 BTU, 57kW, cETLus, NSF
