Imperial (Middleby) IHR-4-24-XB Spec Series Gas Ranges
Description

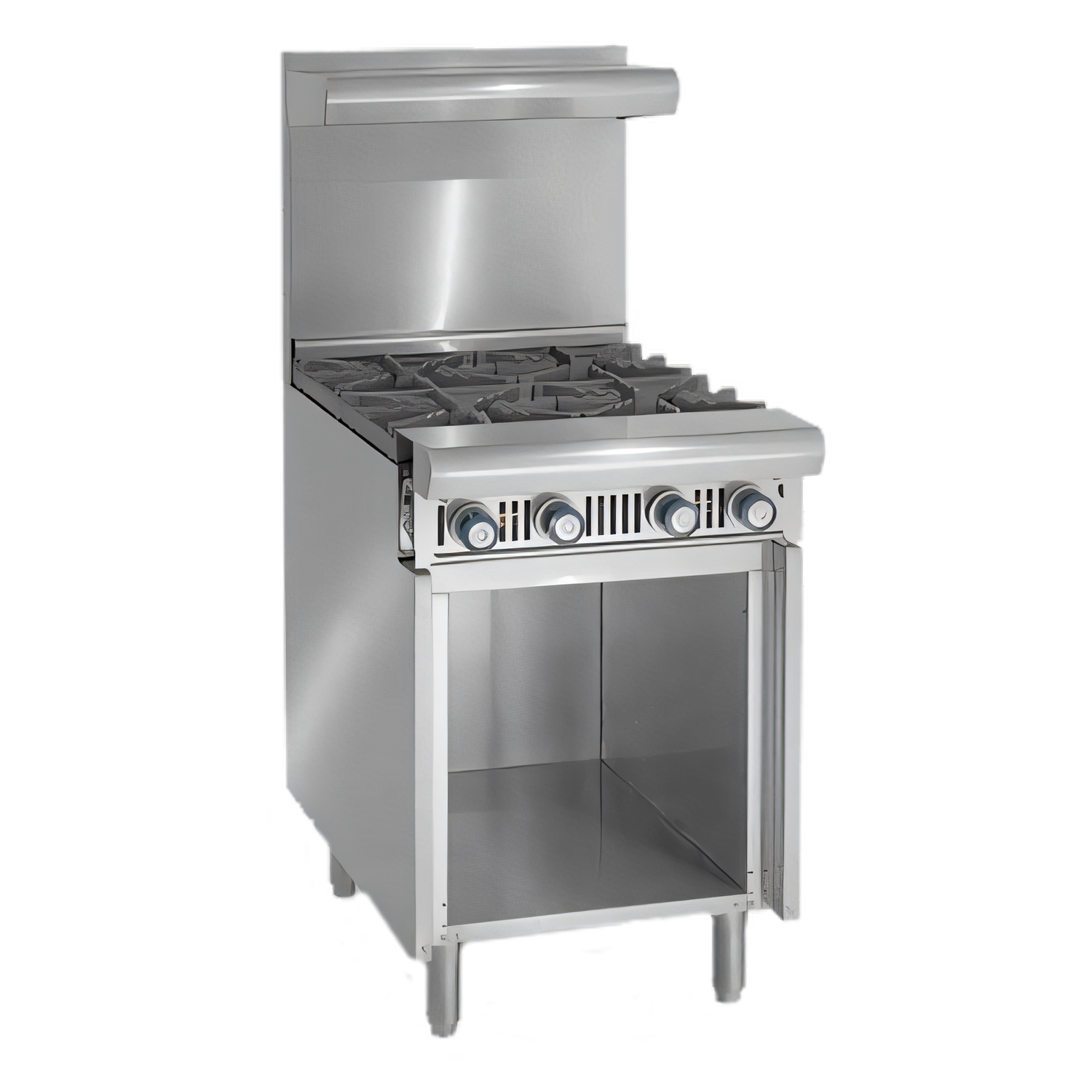

Imperial Spec Series IHR-4-24-XB 24" Gas Add-A-Unit Range
4 Open Burners • Open Cabinet Base • 140,000 BTUPack maximum firepower into a compact 24" footprint. Imperial’s Spec Series Add-A-Unit delivers 140,000 BTU of heavy-duty performance with the rugged construction, quick cleanup and modular flexibility demanded by high-volume kitchens.
Key Benefits

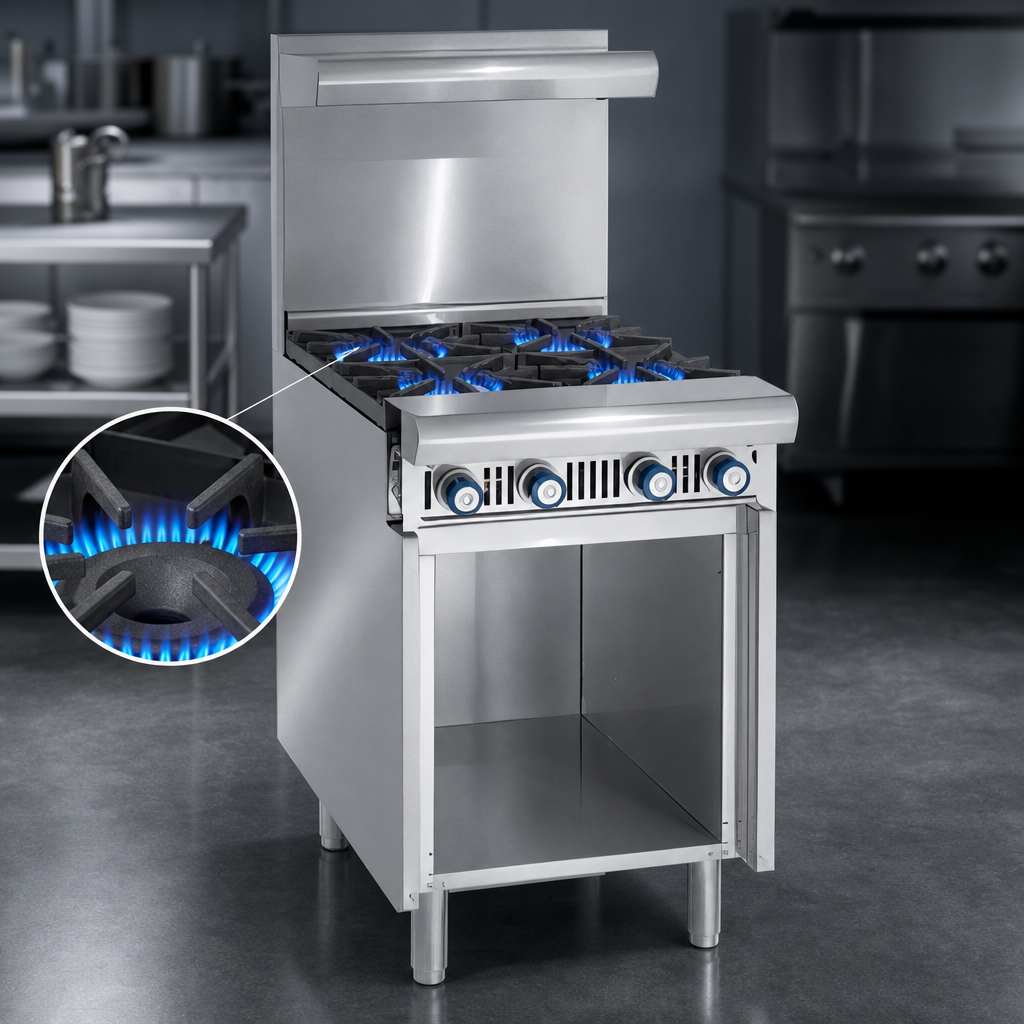

- (4) 35,000 BTU open burners provide instant heat and a 7,000 BTU low-simmer setting.
- Anti-clogging cast-iron burners lift out individually for fast cleaning.

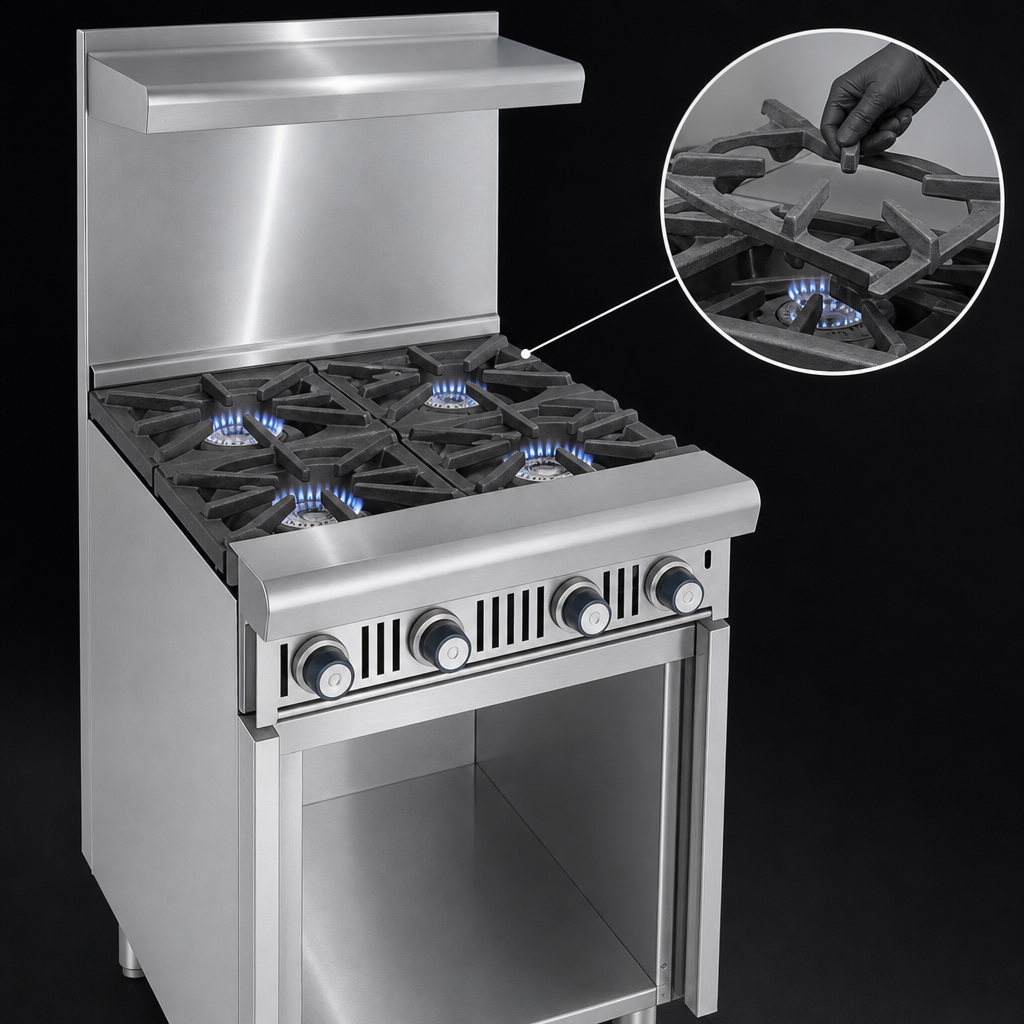

- 12" × 14" cast-iron “S” grates form a continuous cooking surface for heavy stock pots.
- Full-width removable crumb tray speeds end-of-day sanitation.
- Open cabinet base with stainless bottom shelf keeps hotel pans and smallwares organized.
- Stainless steel front, sides, landing ledge, backguard and kick plate stand up to daily abuse.
- 6" stainless steel legs with adjustable feet level the unit on uneven floors.
Built for Performance
- Sloped one-piece Venturi design improves burner efficiency and eliminates gaskets.
- 7" (178 mm) deep stainless steel landing ledge doubles as a plating shelf.
- Cool-touch cast-aluminum control knobs feature a heat-protection grip.
- All stainless tubing and solid brass components extend service life.
- Enclosed 1-1/4" gas manifold with front & rear 3/4" NPT connections simplifies line-ups.
Specifications
| Model | IHR-4-24-XB |
|---|---|
| Gas Type | Natural or Propane (field convertible) |
| Total Output | 140,000 BTU/hr (4 × 35,000 BTU) |
| Grate Size | (4) 12" × 14" cast-iron “S” grates |
| Overall Width | 24" / 610 mm |
| Overall Depth | 38" / 965 mm |
| Cooking Height | 36" / 914 mm to grate |
| Backguard Height | 47" / 1,207 mm |
| Gas Connection | 3/4" NPT (front & rear) |
| Manifold Pressure | Natural 5.0" W.C. | Propane 10.0" W.C. |
| Certifications | cETLus, NSF |
| Ship Weight | 300 lb / 136 kg |
Specifications are provided by the manufacturer and are subject to change without notice.
Peace-of-Mind Warranty
- 1-year parts & labor coverage.
- Service must be performed by an authorized Imperial agency.
