Imperial Spec Series 24" Modular Add-A-Unit Range – 4 Open Burners

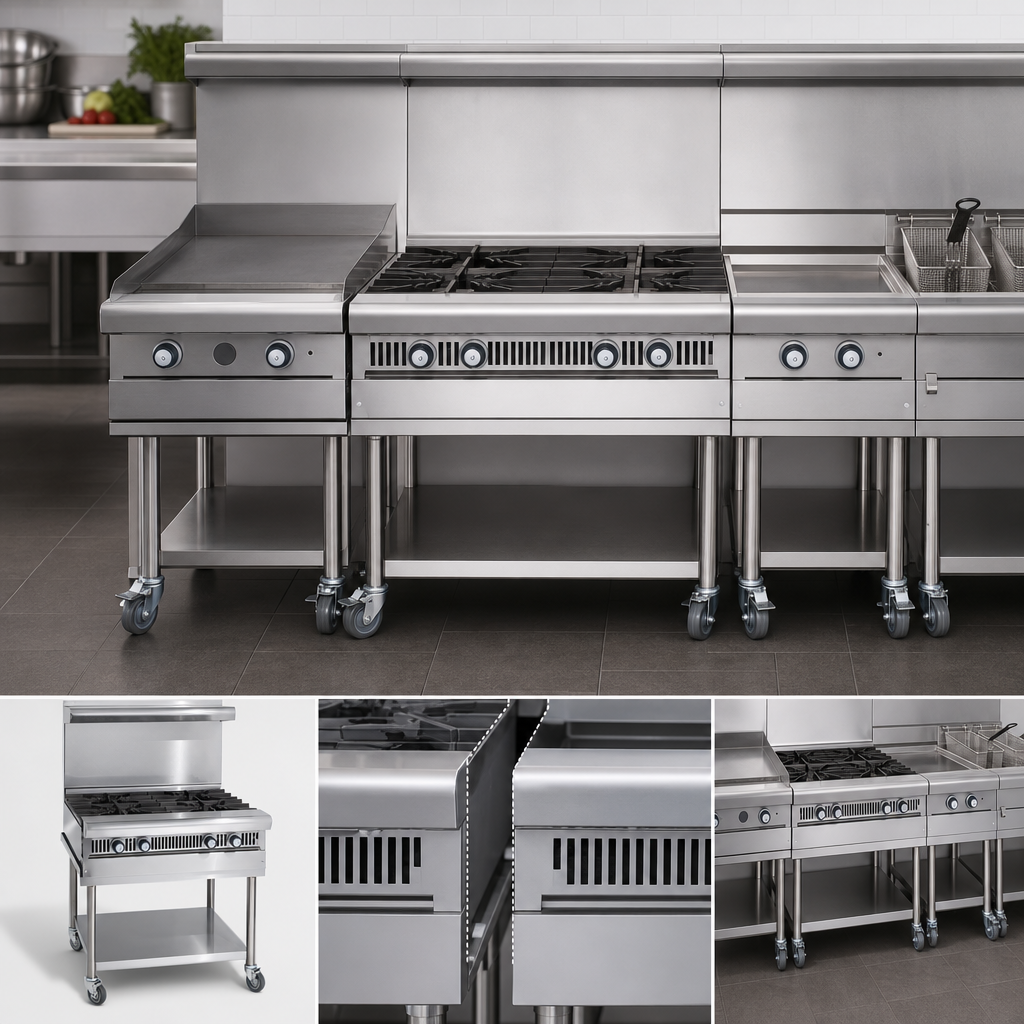

Model IHR-4-24-M · Heavy-Duty Gas Countertop RangeBuild a seamless cookline without giving up power. At just 24 inches wide, the Imperial IHR-4-24-M drops 140,000 BTU/hr of high-heat performance into a compact, modular “Add-A-Unit” footprint—perfect for suites, chef’s counters, food trucks, and anywhere every inch matters.
Why You’ll Love It

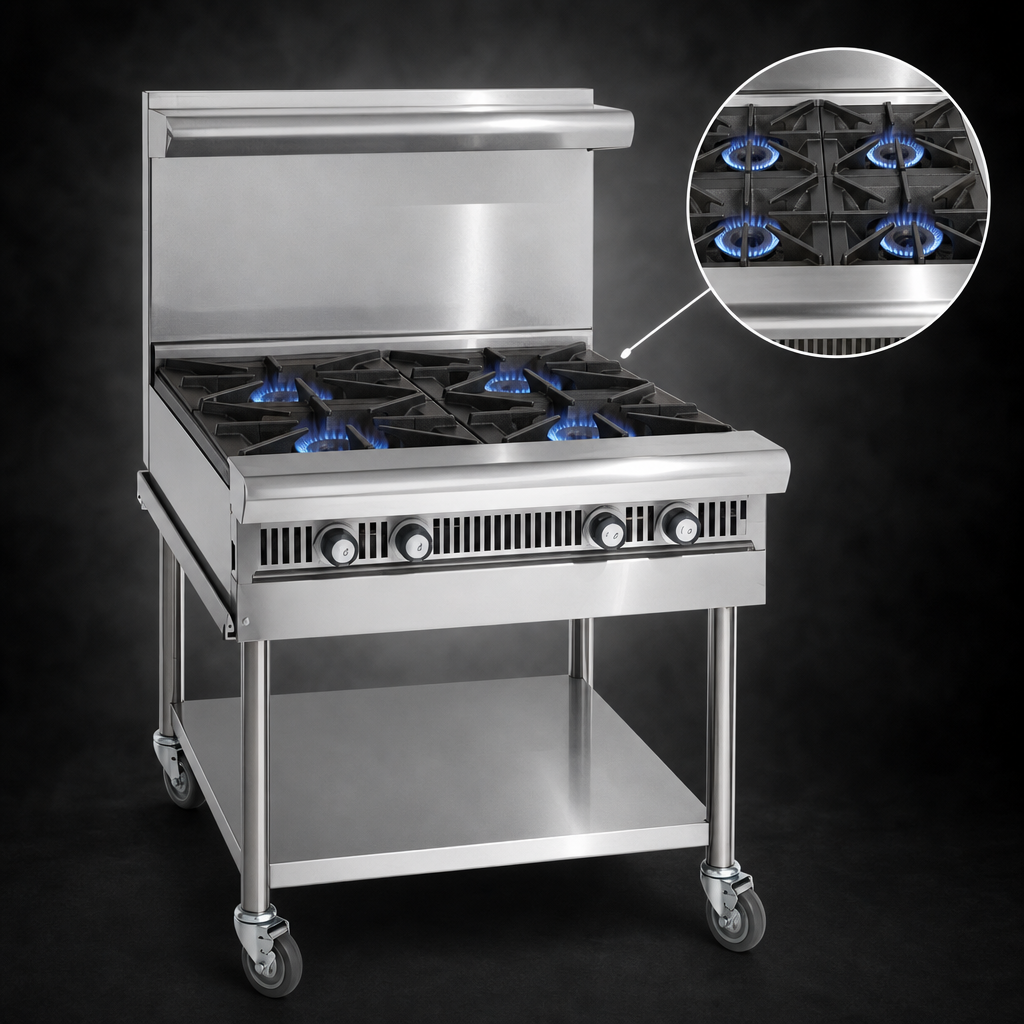

- Four 35,000 BTU anti-clogging burners with a 7,000 BTU low-simmer setting on each well.
- Durable cast-iron “S” grates create continuous surface waves for better heat transfer and easy pan movement.
- One-piece Venturi bases—no gaskets to leak and a sloped design that self-drains debris.
- Full-width, removable crumb tray slides out for quick clean-up.
- All stainless-steel front, sides, landing ledge & 4" backguard stand up to high-volume abuse.
- Large 7" (178 mm) landing ledge keeps plating and garnishing within arm’s reach.
- Cool-touch, cast-aluminum knobs with a heat-shielded grip.
- Compact 3/4" rear gas connection; natural gas (5" W.C.) or LP (10" W.C.).
- 0" clearance required to non-combustible surfaces—ideal for tight cookline layouts.
- cETLus & NSF listed; meets strict sanitation and safety codes.
Technical Specs
| Model | IHR-4-24-M |
|---|---|
| Equipment Type | Modular countertop “Add-A-Unit” range |
| Burners / Type | 4 open burners, cast iron, anti-clogging |
| Total BTU Input | 140,000 BTU/hr (41 kW) |
| Per-Burner Output | 35,000 BTU high / 7,000 BTU simmer |
| Cooking Surface | Cast-iron “S” grates, 18" × 14" (457 × 356 mm) |
| Exterior Dimensions | 24" W × 38" D × 11" H (610 × 965 × 279 mm) |
| Gas Inlet | 3/4" NPT (rear connection) |
| Ship Weight | 300 lb (136 kg) |
| Construction | Stainless steel front, sides, landing ledge, backguard |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor (factory-authorized service required) |
Full warranty terms available in the Imperial Limited Warranty statement. Warranty applies to equipment
installed and maintained per the manufacturer’s instructions.
Need to preserve cash flow?
Competitive equipment financing is available through Middleby Finance—fast credit decisions, fixed monthly payments, and potential Section 179 tax advantages.
Competitive equipment financing is available through Middleby Finance—fast credit decisions, fixed monthly payments, and potential Section 179 tax advantages.
Specifications are subject to change without notice. Always verify gas type, clearances, and local code
requirements with your installer prior to purchase.
$4,281.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial Middleby IHR-4-24-M 24" gas spec range: 4 open burners, 140k BTU, cast iron grates, stainless steel, removable crumb tray, NSF/cETLus certified.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, cETLus
Height
17.0in
Width
24.0in
Depth
38.0in
Shipping Weight
380.0lbs
Top
(4) open burners
Type
add-a-unit
Exterior Finish
stainless steel front & sides
Base
modular
Specifications
Spec Series Heavy Duty Range, gas, 24", modular, Add-A-Unit, (4) open burners, cast iron "S" grates (standard), removable crumb tray, stainless steel front, sides, landing ledge & backguard, 140,000 BTU, cETLus, NSF
