Imperial (Middleby) IHR-4-1HT-XB Spec Series Gas Ranges
Imperial (Middleby) IHR-4-1HT-XB Spec Series Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Imperial (Middleby) IHR-4-1HT-XB Spec Series Gas Ranges
Description

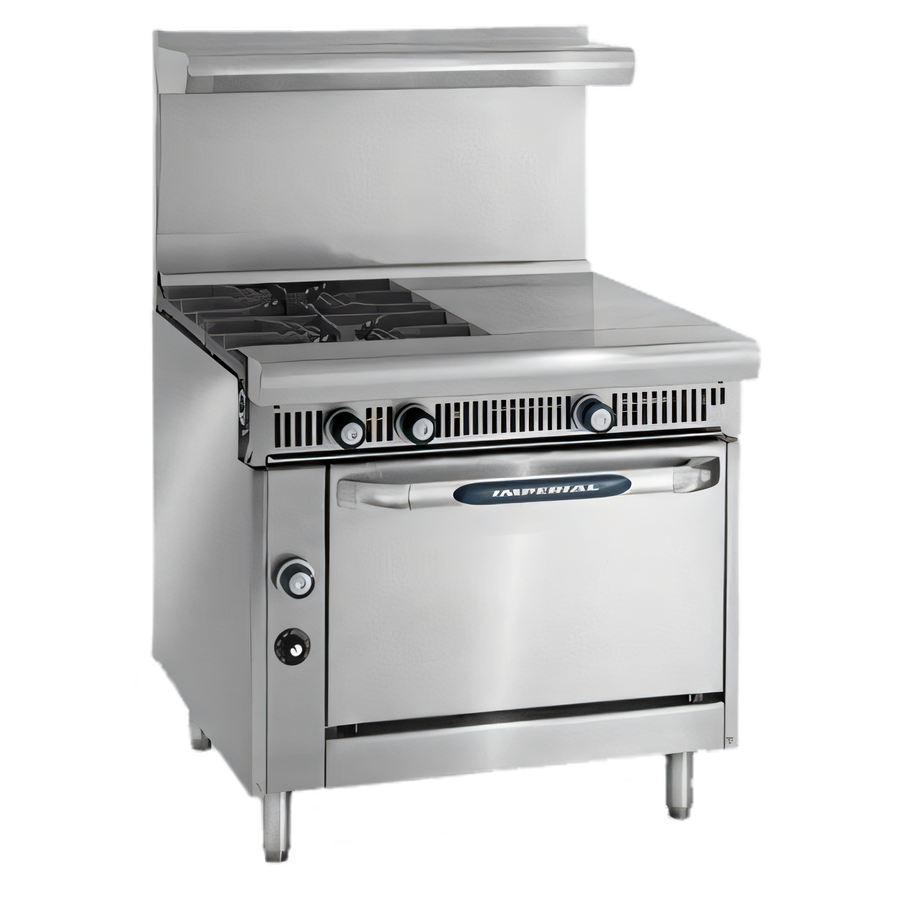

Imperial Spec Series 36" Heavy-Duty Gas Range
4 Open Burners + 12" Even-Heat Hot Top | 190,000 BTUCombine high-output open burners with a true even-heat hot top in one rugged platform. Imperial’s Spec Series 36" range is engineered for nonstop duty in busy restaurants, hotels and institutional kitchens that demand power, consistency and easy cleanup.
Key Features
- Total 190,000 BTU/h (56 kW) gas input for rapid recovery and high-volume production

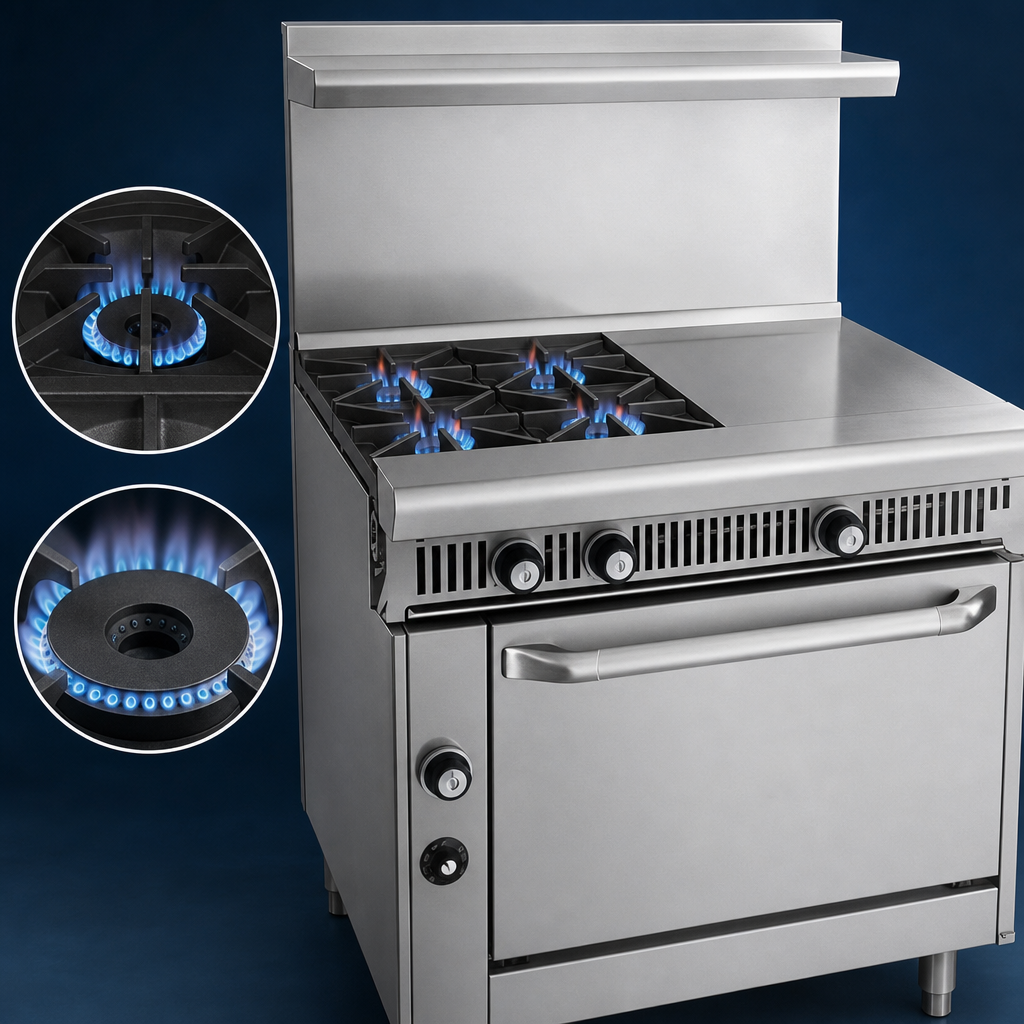

- Four heavy-duty open burners with low-simmer setting and anti-clogging design
- 12" even-heat hot top powered by a U-shaped burner—ideal for sauces, stockpots or holding
- Removable cast-iron “S” grates; two-piece design improves heat transfer and simplifies cleaning
- Manual standing-pilot controls give chefs precise, instant flame adjustment
- Full-width removable crumb tray pulls out from the front for fast end-of-shift cleanup
- Open cabinet base with stainless steel bottom shelf keeps pans and smallwares within reach
- 7" (178 mm) stainless steel landing ledge for plating and staging
- Stainless steel front, sides, backguard & kick plate; welded and polished for a seamless look
- 6" (152 mm) heavy-duty legs with adjustable feet for level installation
- Cool-touch cast-aluminum control knobs with heat-protective grip
- cETLus & NSF listed for gas safety and sanitation compliance
At-a-Glance Specifications
| Manufacturer | Imperial Cooking Equipment (Middleby) |
|---|---|
| Series / Model | Spec Series — 36" Open Burner & Hot Top Range (IHR-4-1HT-X) |
| Gas Type | Field convertible; ships Natural Gas (5.0" W.C.) with LP conversion kit included |
| Total Input | 190,000 BTU/h | 56 kW |
| Cooking Surface | 4 open burners + 1 × 12" even-heat hot top |
| Overall Dimensions | 36" W × 34" D × 37⅜" H (914 × 864 × 949 mm) |
| Gas Connection | ¾" NPT rear manifold |
| Base Configuration | Open cabinet with stainless steel bottom shelf |
| Required Clearances | 0" sides & rear (non-combustible surfaces) |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor (factory-authorized service network) |
Looking for salamander mounts, extra cast-iron grates or casters? The Spec Series platform is fully modular—ask us about custom options and lead times.
