Imperial (Middleby) IHR-4-1HT-C Spec Series Gas Ranges
Description

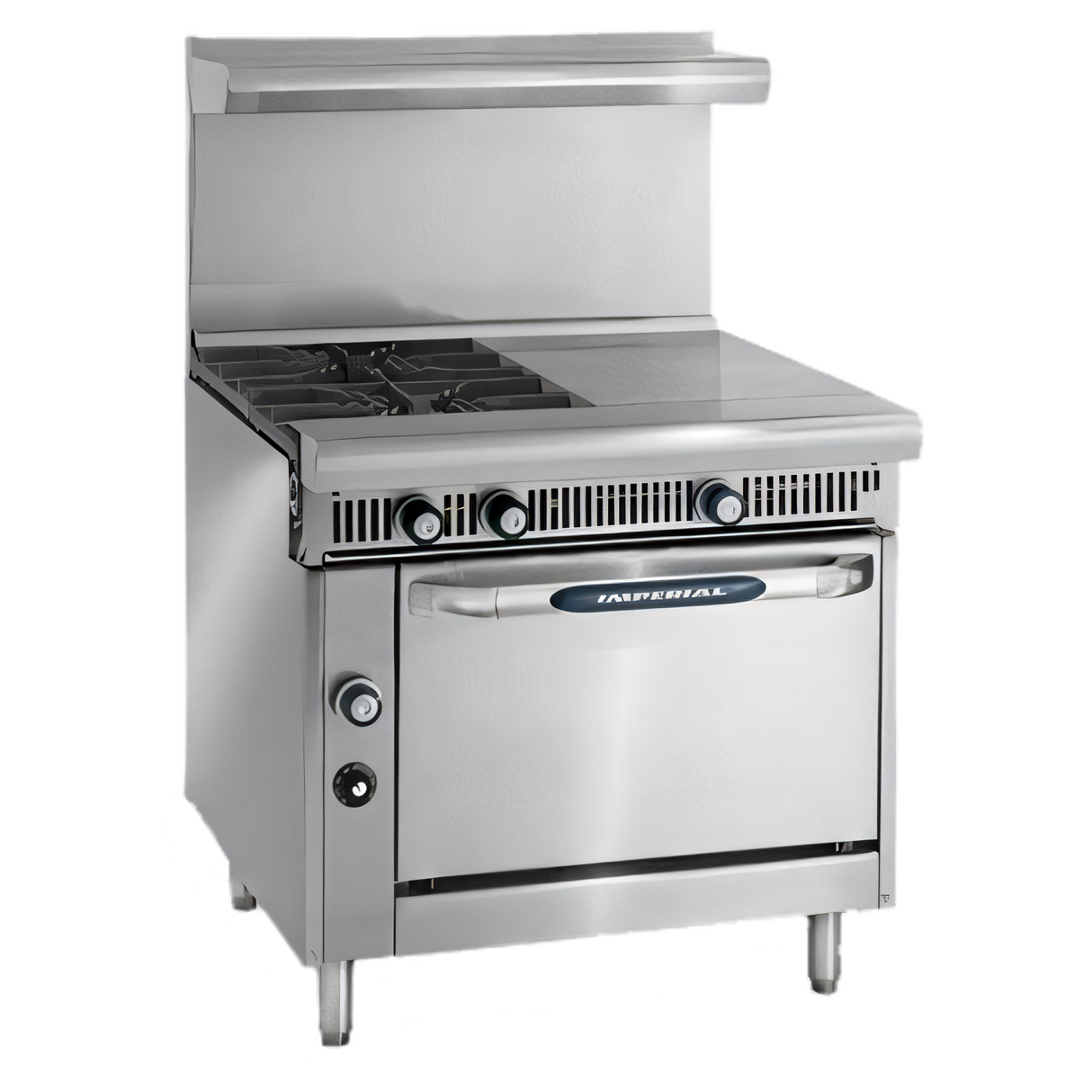

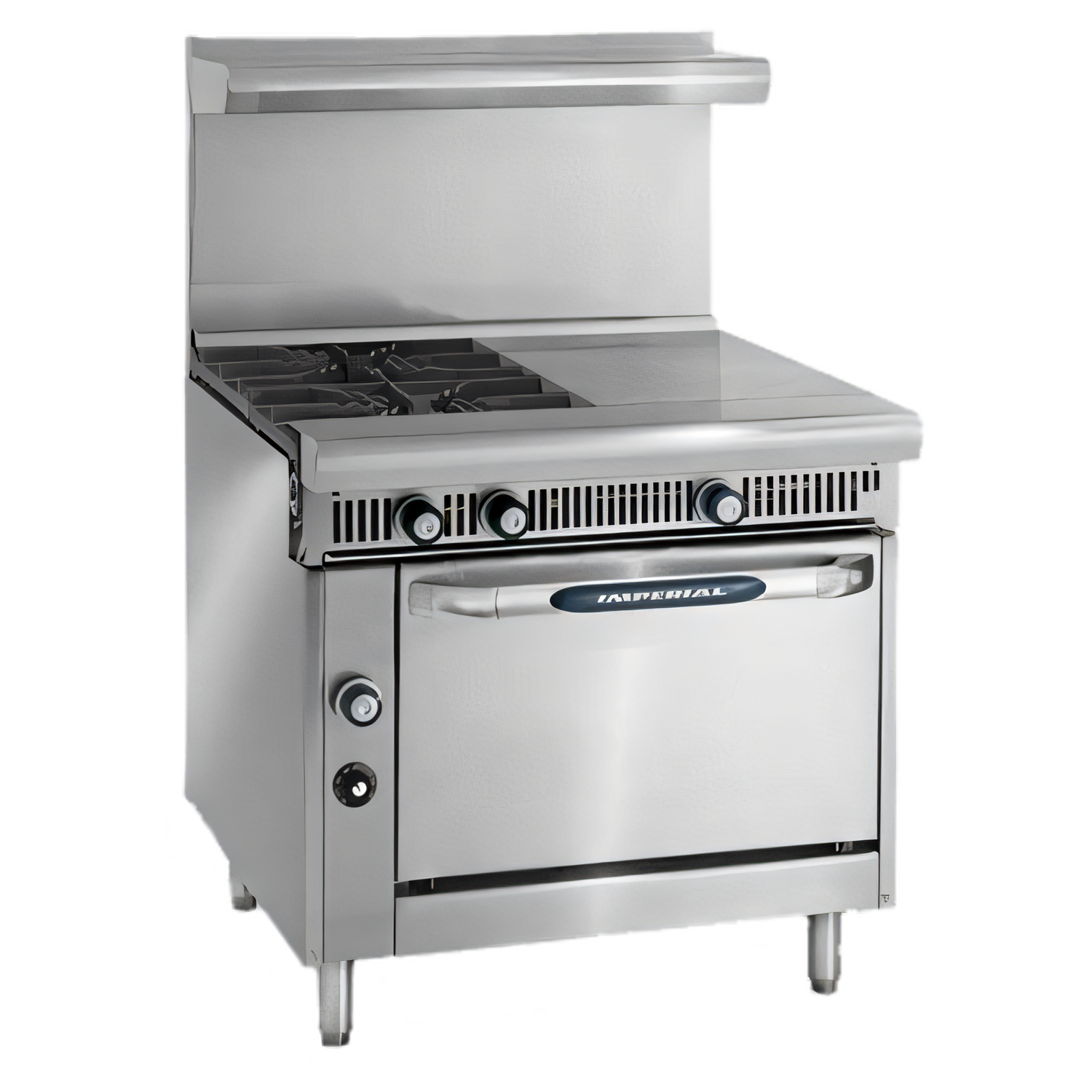

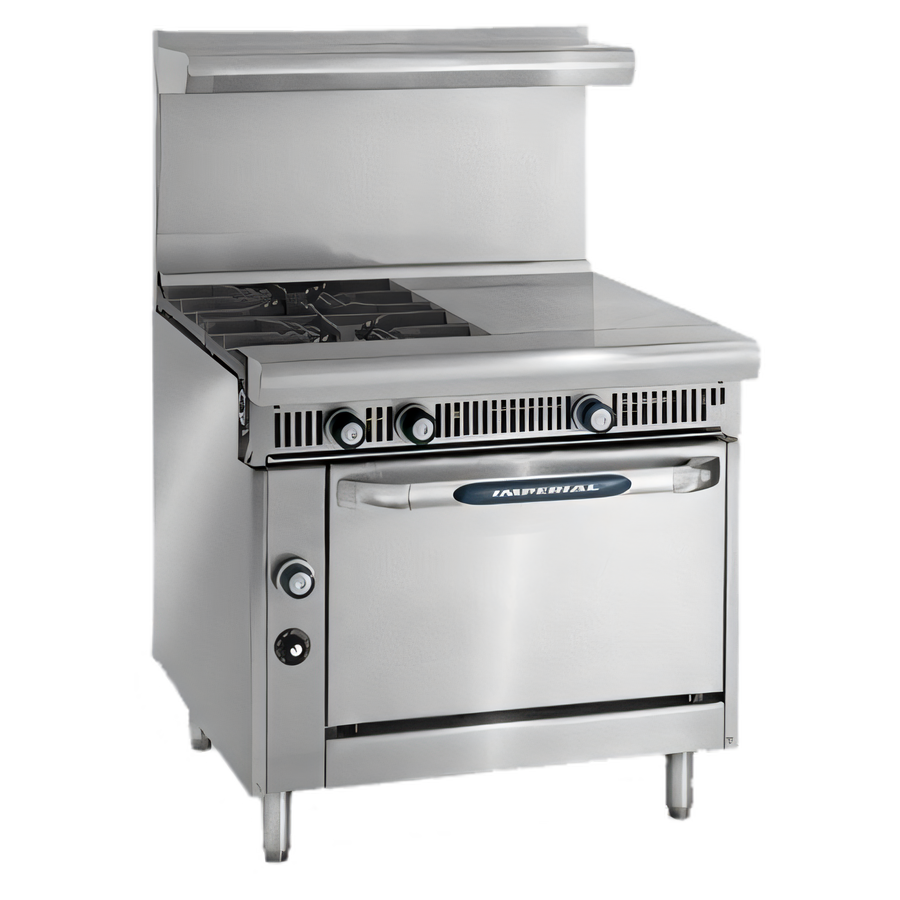

Imperial Spec Series 36" Heavy-Duty Gas Range
4 Open Burners • 12" Even-Heat Hot Top • Convection Oven • 225,000 BTUBuilt for chefs who refuse to compromise, Imperial’s Spec Series range combines high-output open burners, a seamless hot-top plate, and a powerful convection oven in one 36-inch footprint. From breakfast service right through the dinner rush, this workhorse delivers consistent heat, rugged durability, and the versatility today’s high-volume kitchens demand.
Why You’ll Love It
- 4 × 35,000 BTU anti-clogging burners with 7,000 BTU low-simmer feature for delicate sauces.

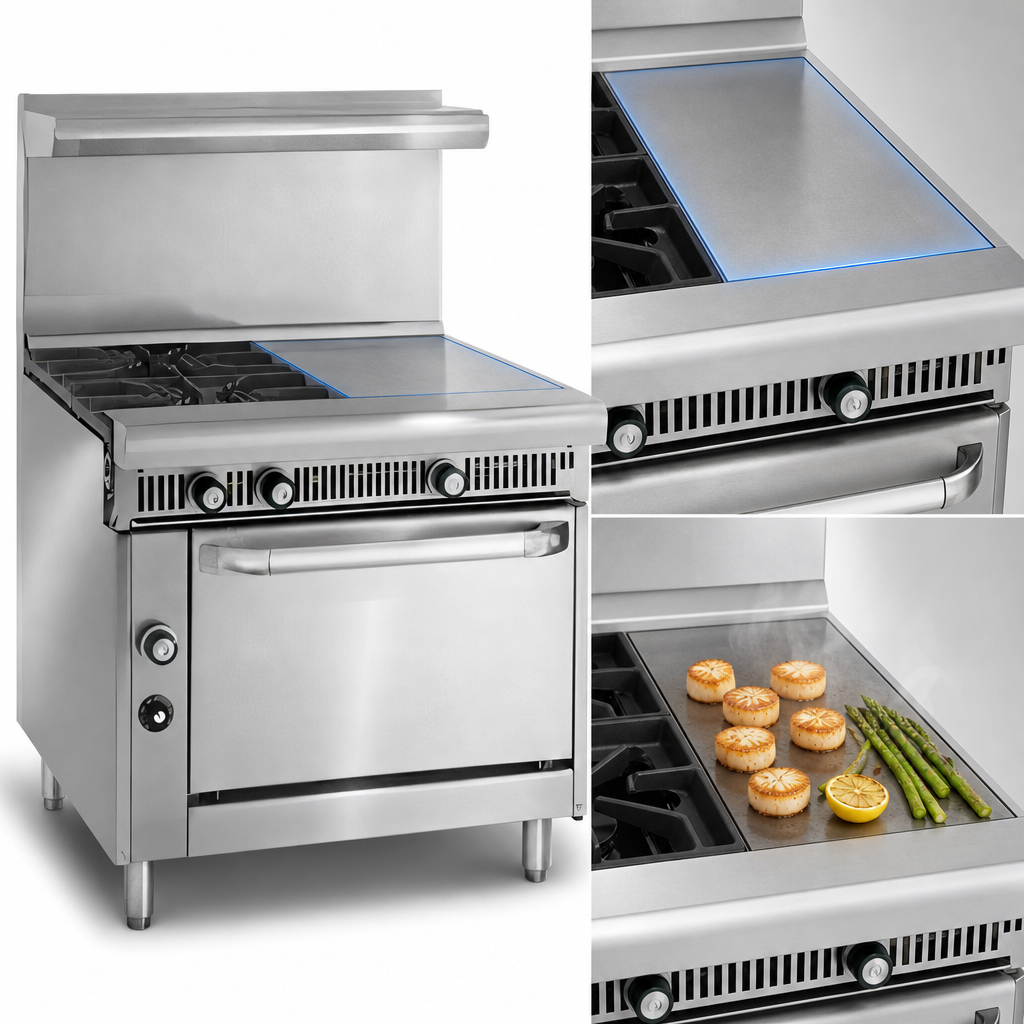

- 12" even-heat hot top (40,000 BTU U-shaped burner) – perfect for stock pots, sauté pans or holding.
- 35,000 BTU convection oven driven by a ½ HP blower motor for fast, even baking and roasting.
- Porcelain-enameled oven interior wipes clean; includes 3 chrome racks with 3-position slide supports.
- Full-width removable crumb tray and welded stainless seams simplify daily cleanup.
- 7" (178 mm) deep landing ledge plus oversized cast-iron “S” grates let you slide heavy pots with ease.
- Stainless steel front, sides, backguard & kick plate stand up to the toughest kitchen environments.
- 6" adjustable stainless legs for level positioning on uneven floors.
- cETLus & NSF certified for gas safety and sanitation.
Technical Specifications
| Model | Spec Series Heavy-Duty Range (36") |
|---|---|
| Total BTU Input | 225,000 BTU / 66 kW |
| Open Burners | 4 × 35,000 BTU cast-iron burners with removable “S” grates |
| Hot Top | 12" even-heat polished plate | 40,000 BTU U-shaped burner |
| Oven Type | Gas convection | ½ HP blower motor |
| Oven Interior (W × D × H) | 26 ½" × 22 ½" × 14" (673 × 572 × 356 mm) |
| Exterior Dimensions (W × D × H) | 36" × 37 ⅜" × 56 ¾" (914 × 949 × 1445 mm incl. backguard) |
| Gas Connection | ¾" NPT rear manifold (field convertible NG/LP) |
| Electrical | 120 V / 1-phase / 6 A (6-ft cord & NEMA 5-15 plug) |
| Certifications | cETLus, NSF |
| Warranty | 1 year parts & labor (USA & Canada) |
Built for the Long Haul
- Sleek European styling with wide-radius edges for a modern, easy-to-clean profile.
- Large, stay-cool die-cast control knobs with heat-shielded gas valves.
- Full-width, removable drip tray spans the entire front rail for fast crumb disposal.
- Welded & polished stainless seams resist corrosion and maintain a hygienic surface.
Peace-of-Mind Coverage
Imperial backs every Spec Series range with a limited 1-year parts & labor warranty when installed and serviced by an authorized technician. Refer to the included warranty statement for complete terms and conditions.
