Imperial Spec Series 36" Heavy-Duty Gas Range
Model IHR-3HT-3-XB • 3 Open Burners & (3) 12" Hot Tops • 240,000 BTUEngineered for high-volume, round-the-clock kitchens, Imperial’s Spec Series delivers uncompromising power, rugged construction, and service-friendly design in a compact 36-inch footprint. Three high-performance open burners sit beside three 12-inch Even-Heat hot tops, giving chefs instant flame control and a broad, evenly heated working surface—perfect for sauté, stock pots, or holding. A stainless, open-cabinet base keeps sheet pans and smallwares within arm’s reach while the full-width crumb tray and lift-off grates slash cleanup time.
Performance Highlights

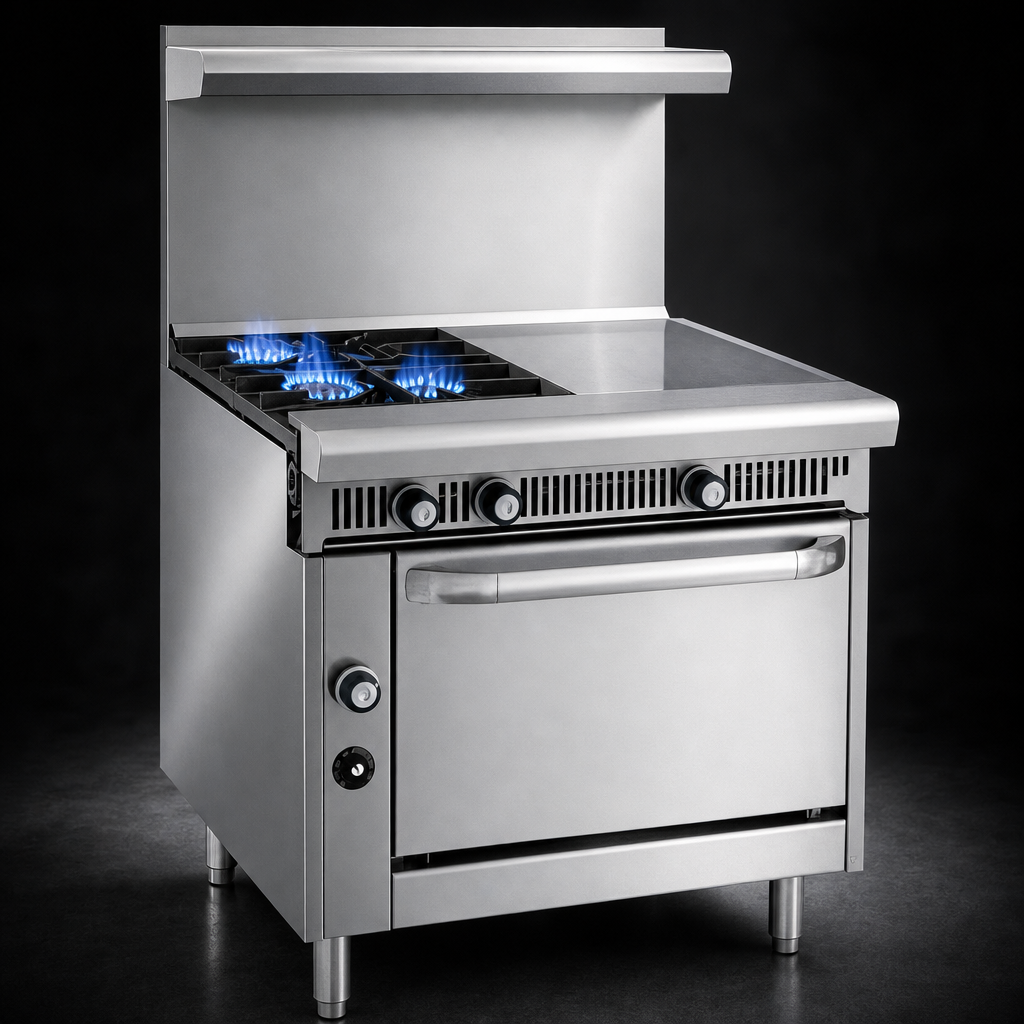

- 3 anti-clogging open burners rated 40,000 BTU each (low-simmer down to 7,000 BTU).

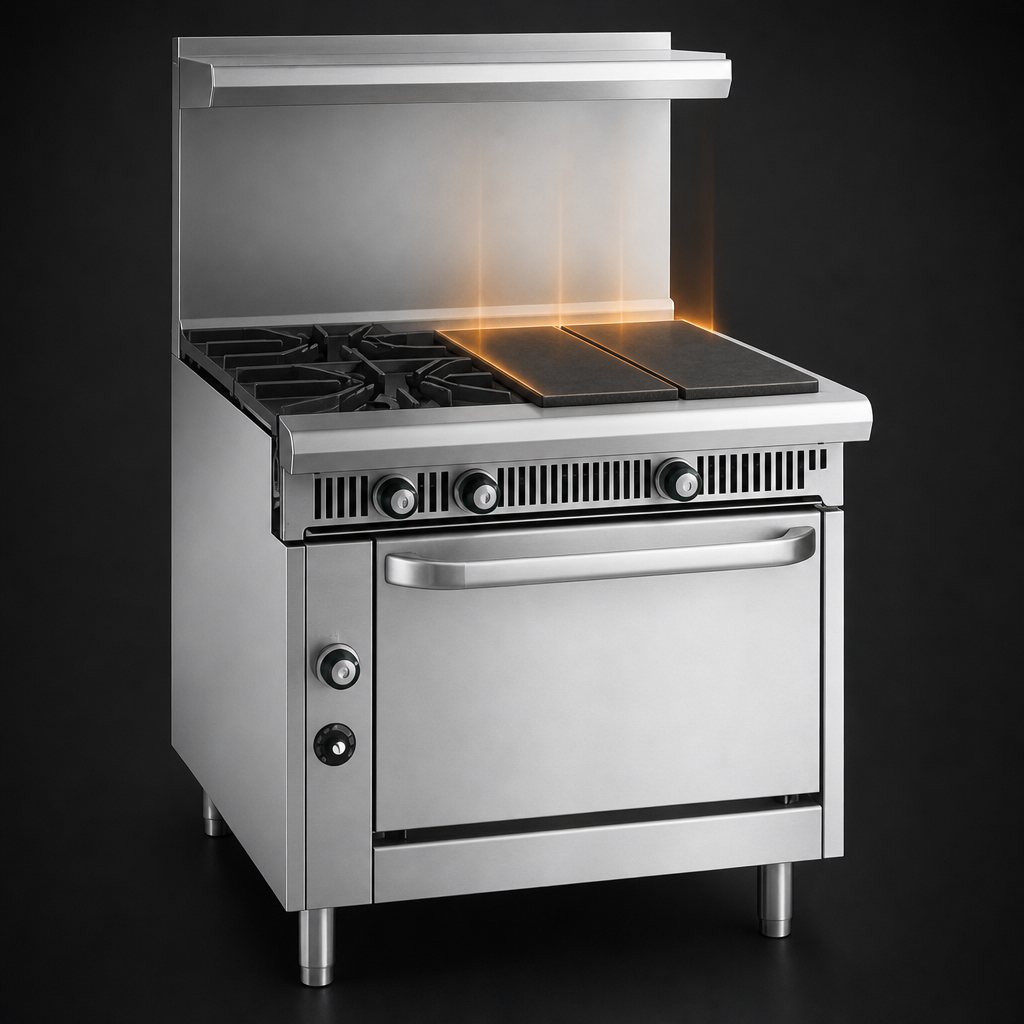

- 3 Even-Heat 12" hot tops, each with a dedicated 40,000 BTU “U”-shaped burner for edge-to-edge heat.
- Total input: 240,000 BTU (70 kW) for fast recovery during peak service.
- Cast-iron “S” grates (12" × 14") lift off individually for sink-side cleaning.
- Manual gas valves provide precise, instant flame adjustment.
Built to Last
- Stainless steel front, sides, 7" deep landing ledge, backguard, and kick plate resist corrosion.
- Welded and polished seams create a smooth, easy-to-wipe exterior.
- Full-width removable crumb tray protects burners and speeds nightly cleanup.
- Stainless open cabinet base with bottom shelf adds sturdy, accessible storage.
- 6" stainless steel legs with adjustable feet level the unit on uneven floors.
Specifications
| Model | IHR-3HT-3-XB |
|---|---|
| Overall Width | 36" / 914 mm |
| Overall Depth | 34" / 864 mm |
| Total BTU Input | 240,000 BTU / 70 kW |
| Open Burners | 3 × 40,000 BTU |
| Hot Tops | 3 × 40,000 BTU, 12" Even-Heat plates |
| Controls | Front-mounted manual valves, standing pilots |
| Base | Stainless open cabinet with bottom shelf |
| Landing Ledge | 7" deep, stainless steel |
| Gas Connection | 3/4" NPT rear (manifold pressure: NG 5.0" W.C. / LP 10.0" W.C.) |
| Legs | 6" stainless, adjustable |
| Certifications | cETLus, NSF |
| Warranty | One-year parts & labor (factory authorized service) |
Need to create a battery line-up? All Spec Series ranges share a common 1-1/4" rear manifold and can be ganged together for up to 600,000 BTU on a single gas connection.
