Imperial (Middleby) IHR-3HT-3 Spec Series Gas Ranges
Description

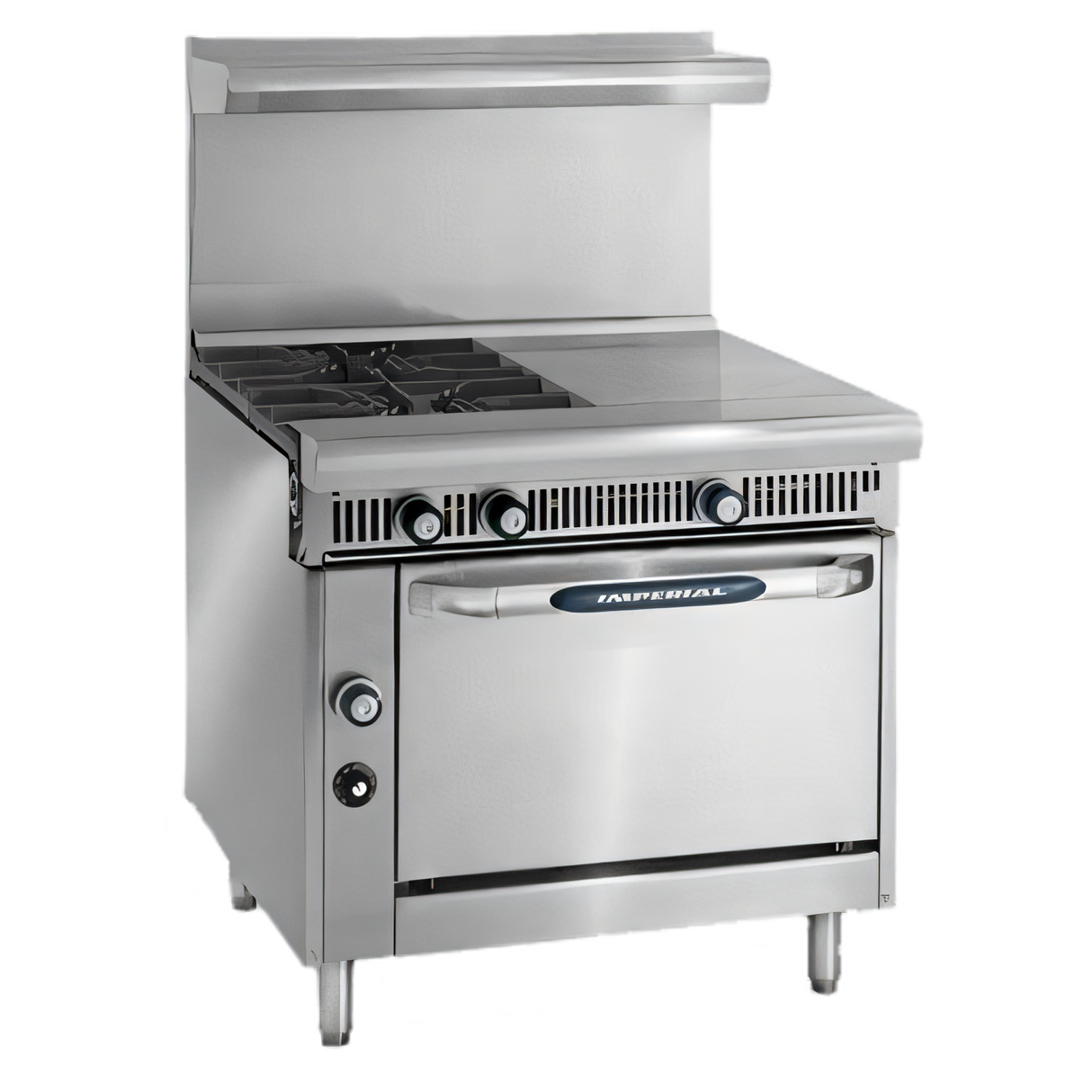

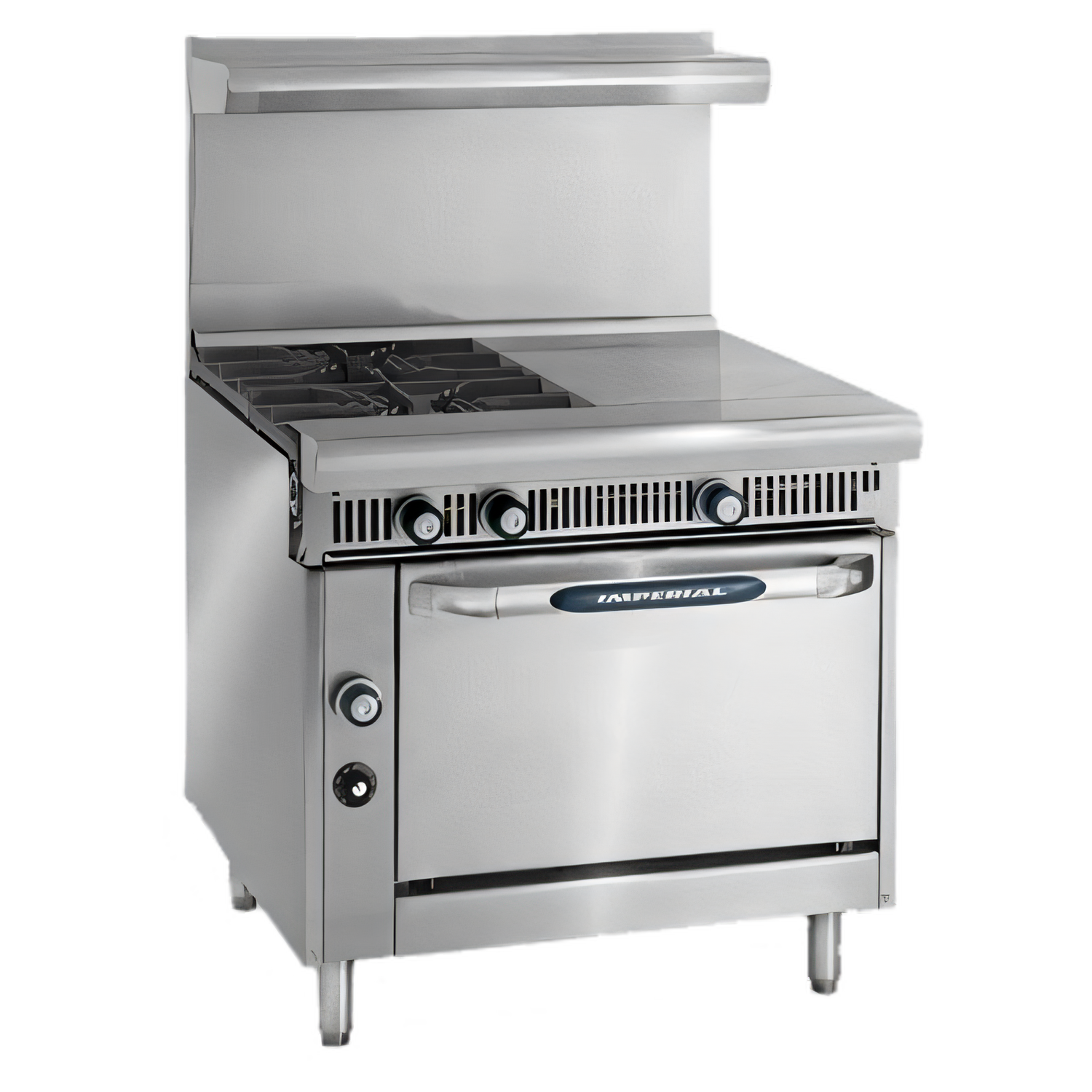

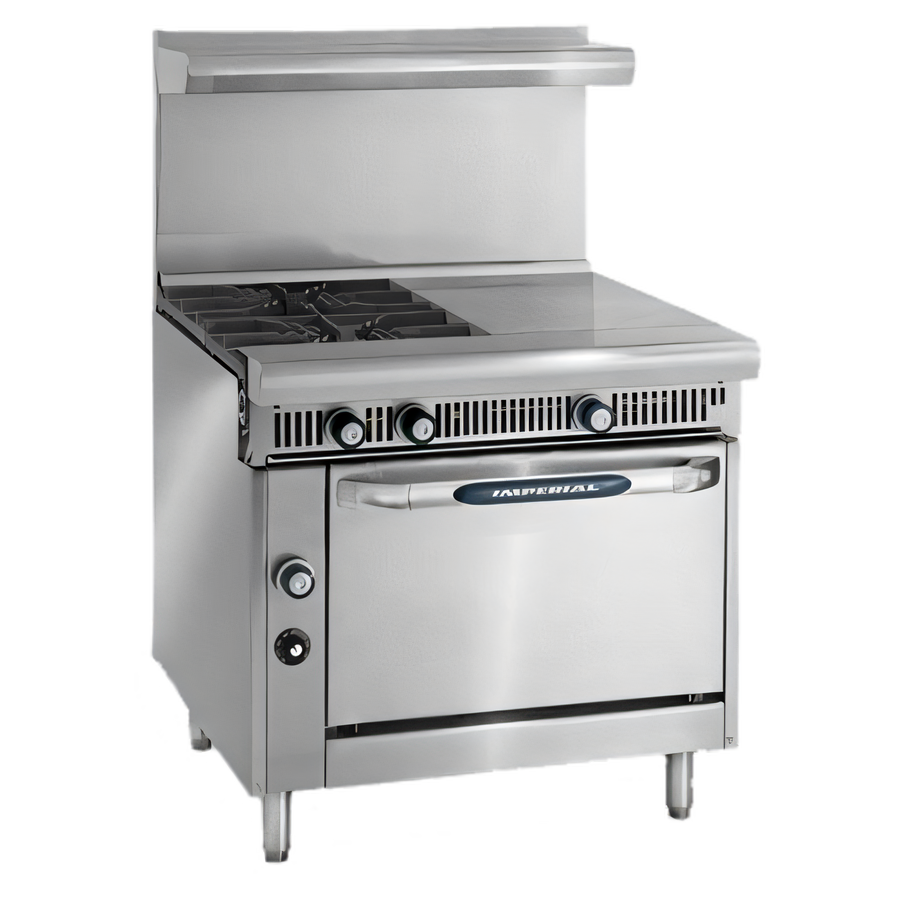

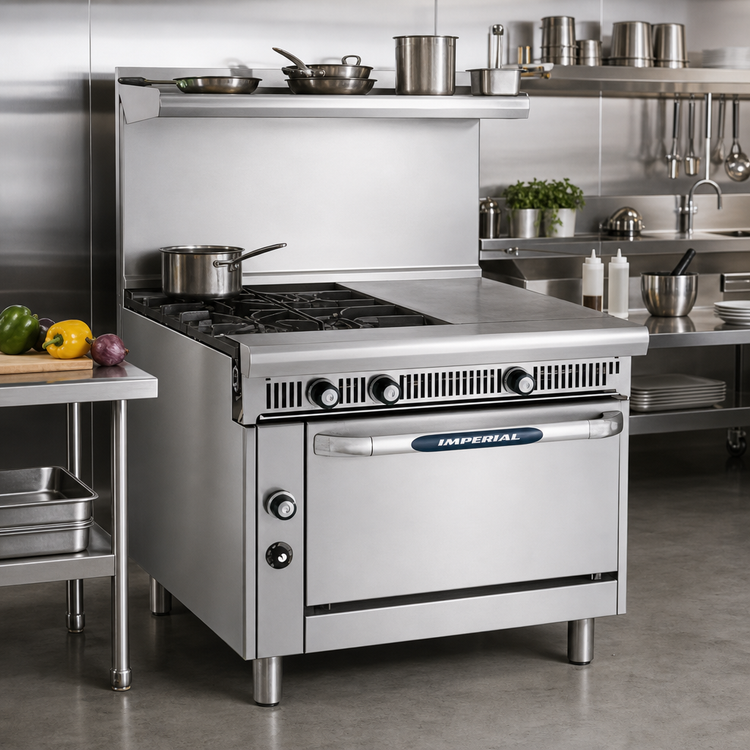

Imperial Spec Series 36" Heavy-Duty Gas Range – 3 Open Burners / 3 Hot Tops / Standard Oven
Model IHR-3HT-3 • 280,000 BTU (82 kW)The Imperial IHR-3HT-3 packs serious fire-power into a 36-inch footprint, pairing high-output open burners with even-heat hot tops for unbeatable versatility. From quick sauté work to slow braises and stock reduction, this Spec Series range is built to keep pace with the busiest professional kitchens.
Performance & Construction Highlights

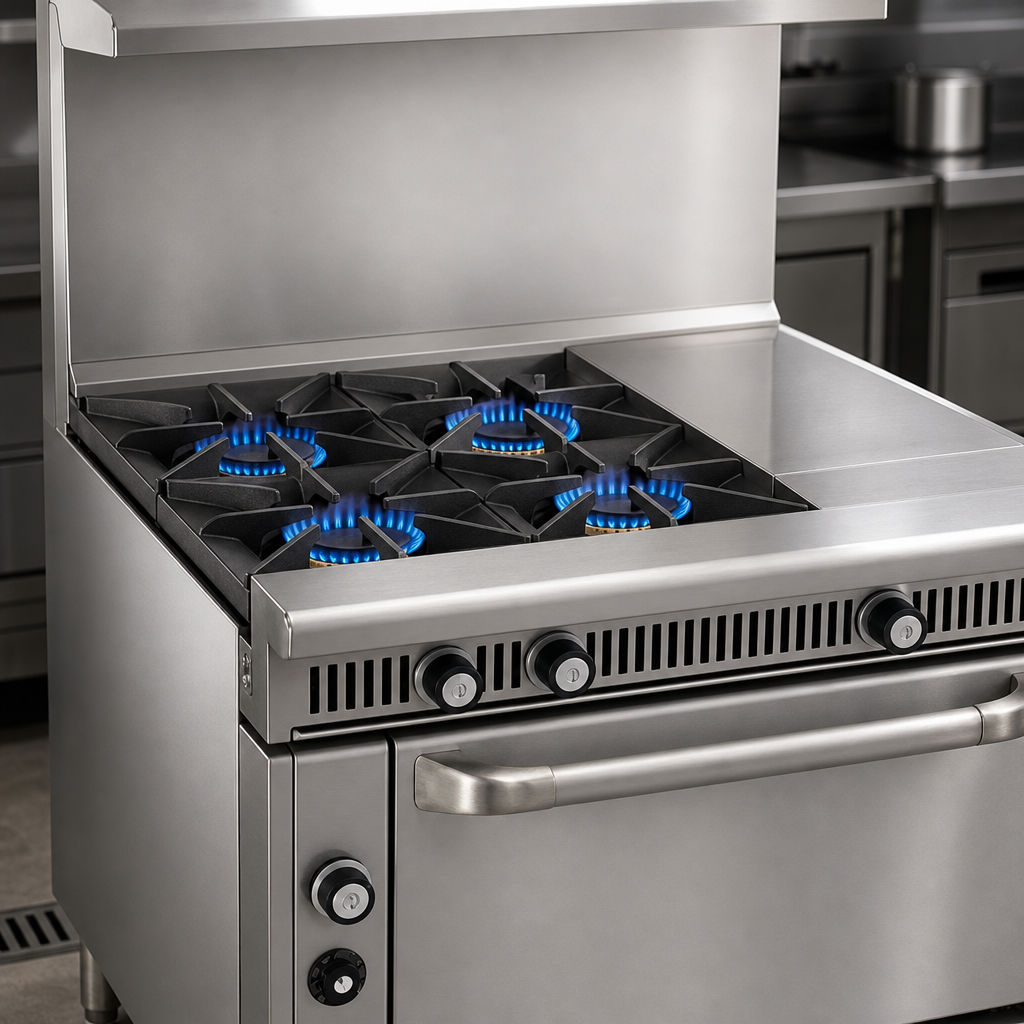

- Three 40,000 BTU open burners with anti-clogging design and 7,000 BTU simmer setting.
- Removable cast-iron “S” grates (12" × 14") let pans slide easily across the cooking surface.

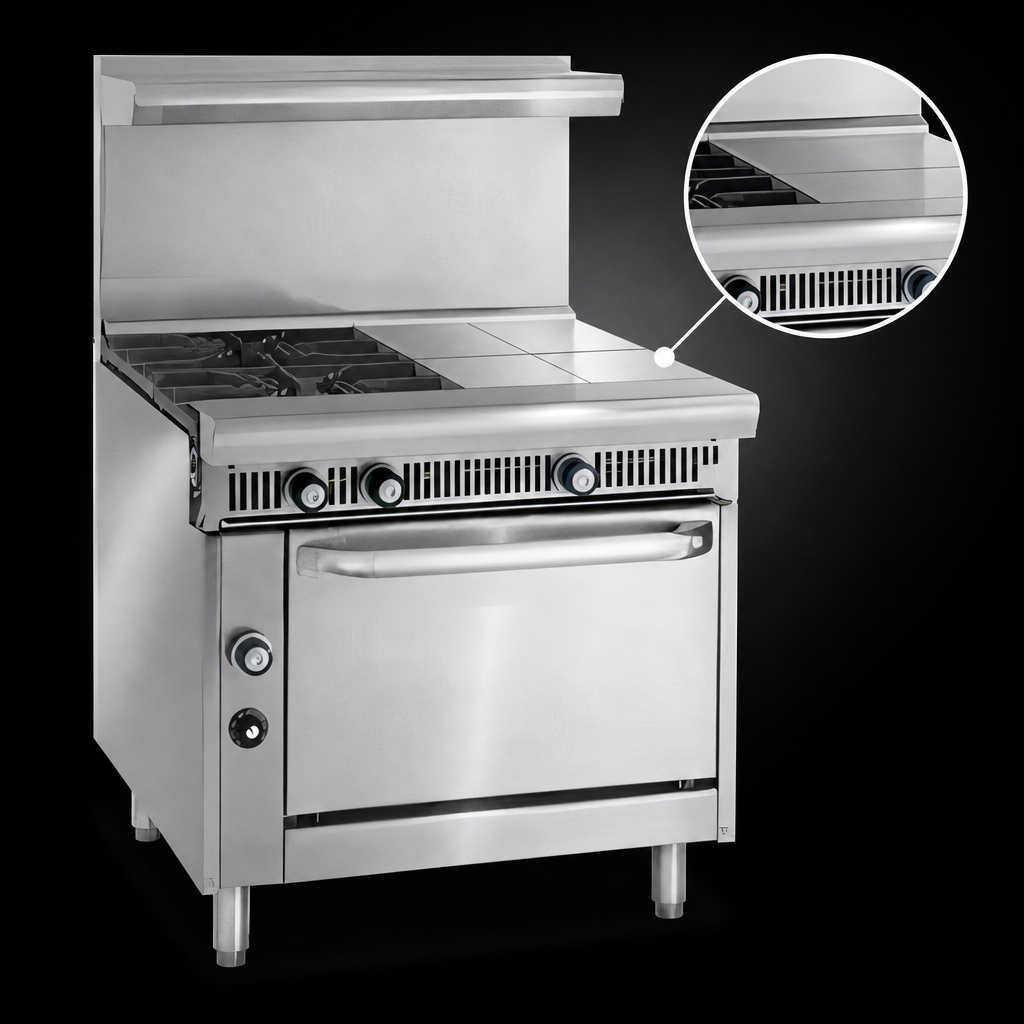

- Three 12" even-heat polished hot tops, each heated by a 40,000 BTU “U”-shaped burner for consistent, edge-to-edge heat.
- 40,000 BTU standard oven with porcelainized interior—fits full-size 18" × 26" sheet pans front-to-back or side-to-side.
- One chrome oven rack included; five rack positions for flexible baking and roasting.
- Full-width, removable crumb tray simplifies end-of-shift clean-up.
- All-stainless exterior (front, sides, 7" landing ledge, backguard & kick plate) resists corrosion and wipes clean fast.
- Large, cool-touch cast-aluminum knobs with heat-shield rings for safe, precise flame control.
- 6" stainless steel legs with adjustable feet keep the unit level and allow easy floor cleaning.
- Welded, polished seams and enclosed 1-1/4" manifold create a seamless, professional look.
Specifications
| Manufacturer | Imperial (Middleby) |
|---|---|
| Series | Spec Series Heavy-Duty Range |
| Model | IHR-3HT-3 |
| Configuration | 3 open burners + 3 × 12" hot tops, standard oven |
| Overall Width | 36" / 914 mm |
| Depth (to landing ledge) | 34" / 864 mm |
| Height (w/ backguard) | 56 ⅜" / 1,432 mm |
| Total Gas Input | 280,000 BTU / 82 kW |
| Oven Interior | 26 ½" W × 26" D × 14" H (673 × 660 × 356 mm) |
| Rack(s) Supplied | 1 chrome rack (adjustable) |
| Gas Connection | ¾" NPT (rear) |
| Manifold Pressure | Natural 5.0" W.C. | LP 10.0" W.C. |
| Ship Weight | 767 lb / 348 kg |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor |
Why Operators Love the Spec Series
- Made in the USA with rugged, all-stainless construction for years of dependable service.
- Field-convertible for natural or propane gas—ideal for new builds and retrofits alike.
- Backed by Imperial’s nationwide service network and no-hassle warranty support.
Need extra oven racks, casters, or a high-mass oven upgrade? Contact us for custom options and quick quotes.
