Imperial (Middleby) IHR-2HT-M Spec Series Gas Ranges
Description

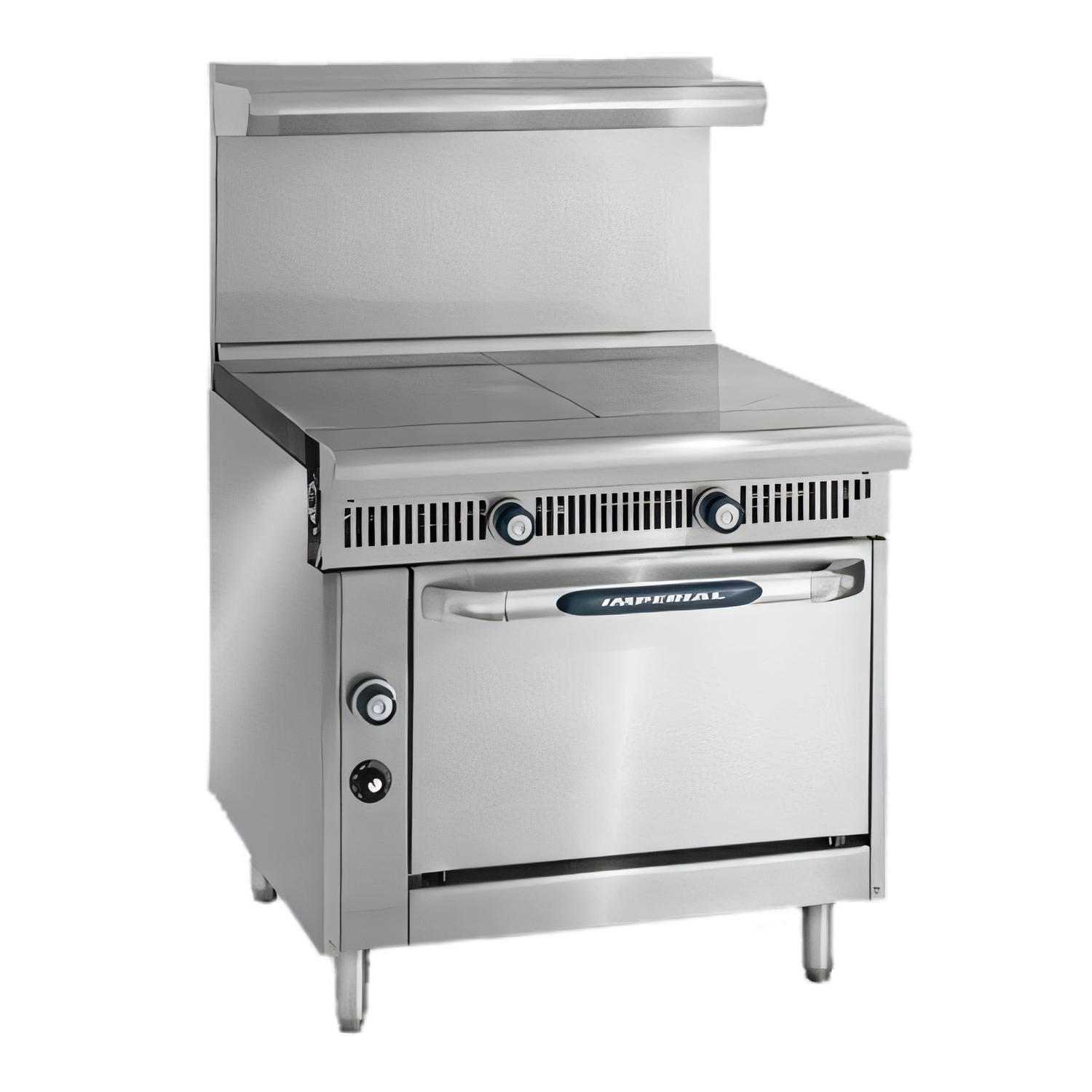

Imperial Spec Series 36" Modular Gas Range – Two Hot Tops
Model HR-2HT-M | 80,000 BTU | cETLus & NSFPurpose-built for the toughest commercial kitchens, the Imperial Spec Series HR-2HT-M packs two high-efficiency 18" hot tops into a low-profile 36" modular unit. Each thick, highly-polished plate is powered by a 40,000 BTU “U”-shaped burner that delivers fast, even heat across the entire surface—ideal for sauces, stock pots, sauté pans and all-day holding.
Key Benefits

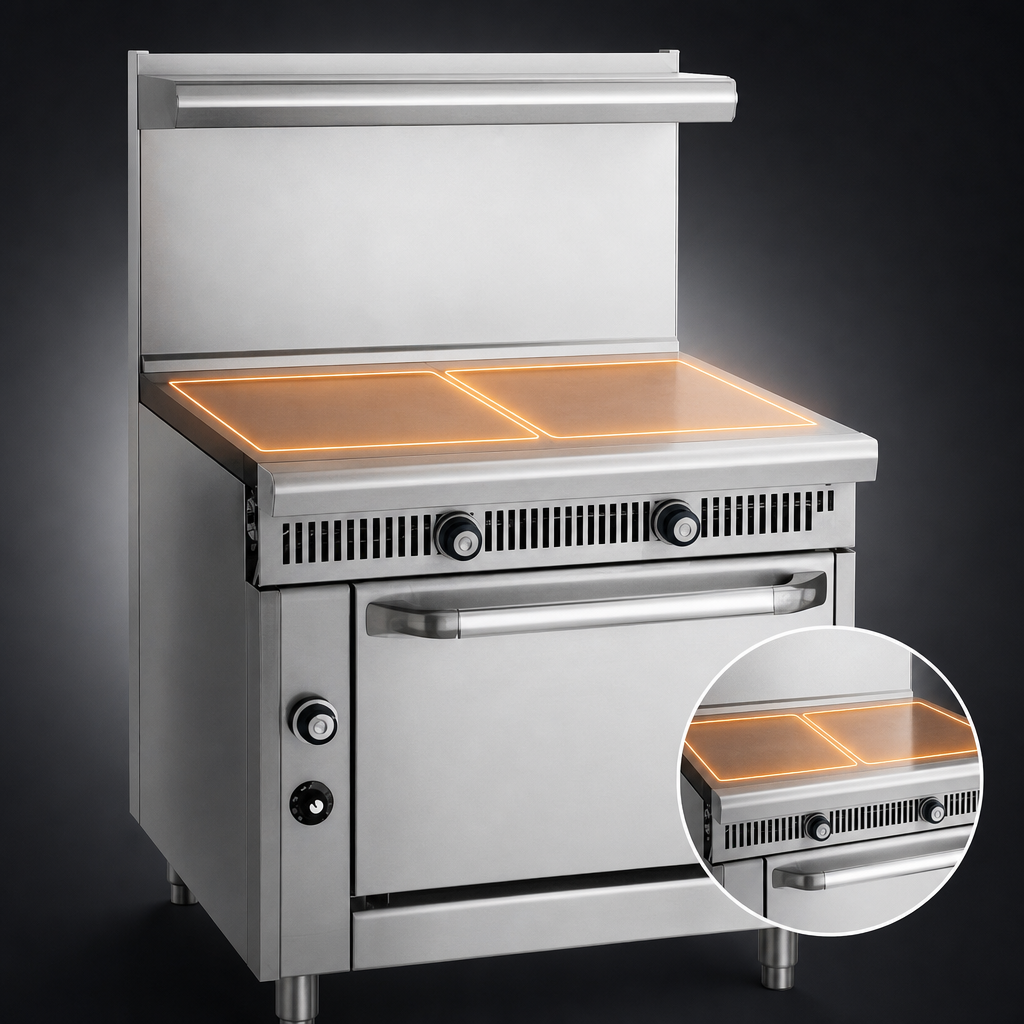

- 80,000 BTU total output – two 18" hot tops at 40,000 BTU each.
- Even, edge-to-edge heat for consistent results and reduced scorching.

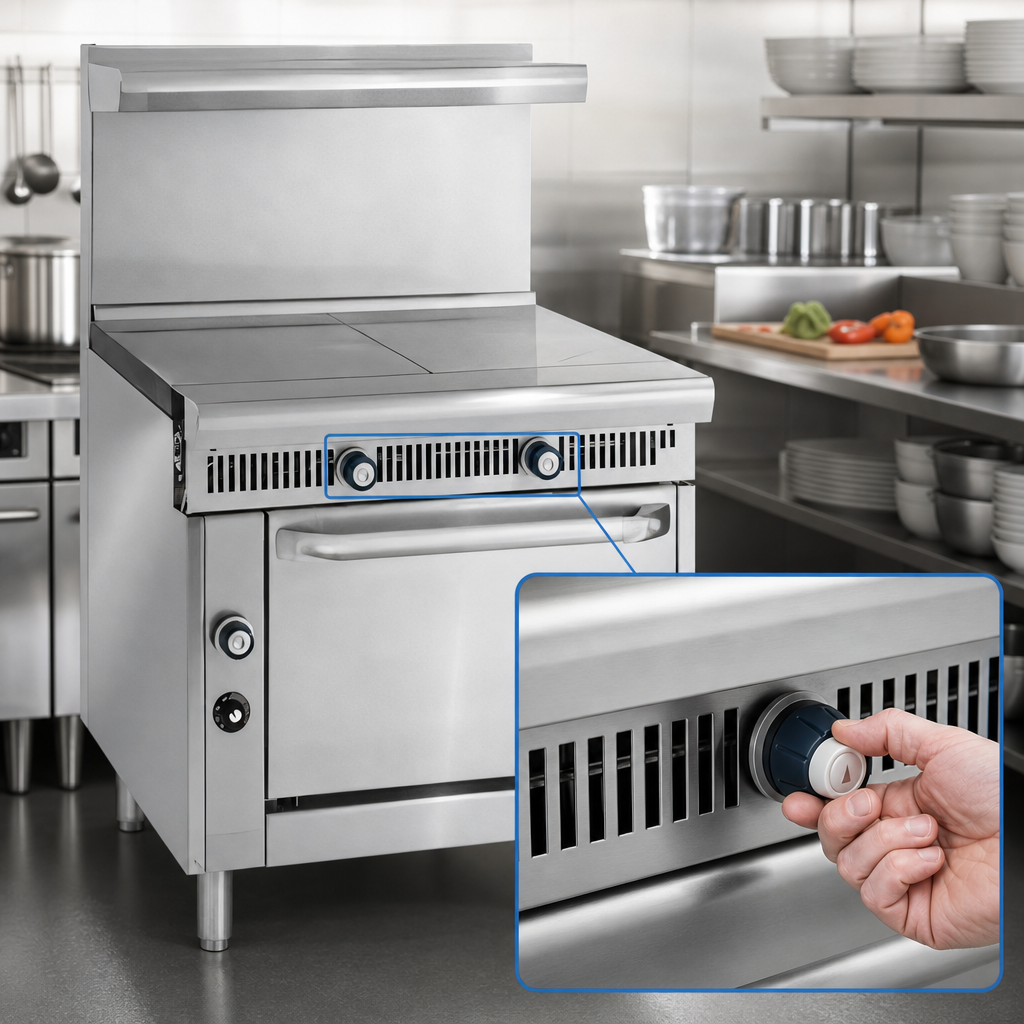

- Manual gas valves & standing pilots give you instant, independent zone control.
- Rapid recovery “U”-shaped burners with aeration baffles keep up with peak demands.
- Durable stainless steel front, sides, 7" landing ledge & backguard resist corrosion.
- Cool-touch cast-aluminum knobs protect operators from heat.
- 11" high modular body drops onto a refrigerated base, counter or optional stand.
- Certified cETLus & NSF for easy code compliance.
Specifications
| Model | HR-2HT-M (Spec Series) |
|---|---|
| Gas Type | Natural or Propane (field convertible) |
| Total BTU | 80,000 BTU / 23 kW |
| Hot Tops | Two 18" × 28" (457 × 711 mm) polished plates |
| Controls | Manual valve & standing pilot per burner |
| Exterior Dimensions | 36" W × 38" D × 11" H to cooktop |
| Manifold Pressure | 5" W.C. Natural | 10" W.C. Propane |
| Gas Connection | 1 ¼" front manifold (rear connection kit optional) |
| Shipping Weight | 335 lb / 152 kg |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor |
Popular Options & Accessories
- Stainless steel equipment stands (with or without 6" casters)
- Common front landing ledges & backguards for lineup installations
- Rear gas shut-off valve, pressure regulator & quick-disconnect hose (¾"–1 ¼")
Need help configuring a cookline or sizing gas connections? Reach out to our equipment specialists for free assistance.
