Imperial (Middleby) IHR-2HT-24-XB Spec Series Gas Ranges
Description
Imperial IHR-2HT-24-XB “Spec Series” 24" Add-A-Unit Gas Hot-Top Range
60,000 BTU • Two 12" × 14" hot tops • Open cabinet baseBuild out the perfect cook-line or fill in a tight space with true heavy-duty performance. Designed to mate seamlessly with any Imperial Spec Series range, the 24" IHR-2HT-24-XB delivers 60,000 BTU of even, recover-quick heat on two polished steel hot tops while providing instant storage below. Rugged stainless construction, simple manual controls, and a removable crumb tray make this Add-A-Unit a low-maintenance powerhouse for kitchens that can’t compromise on durability or output.
Why You’ll Love It

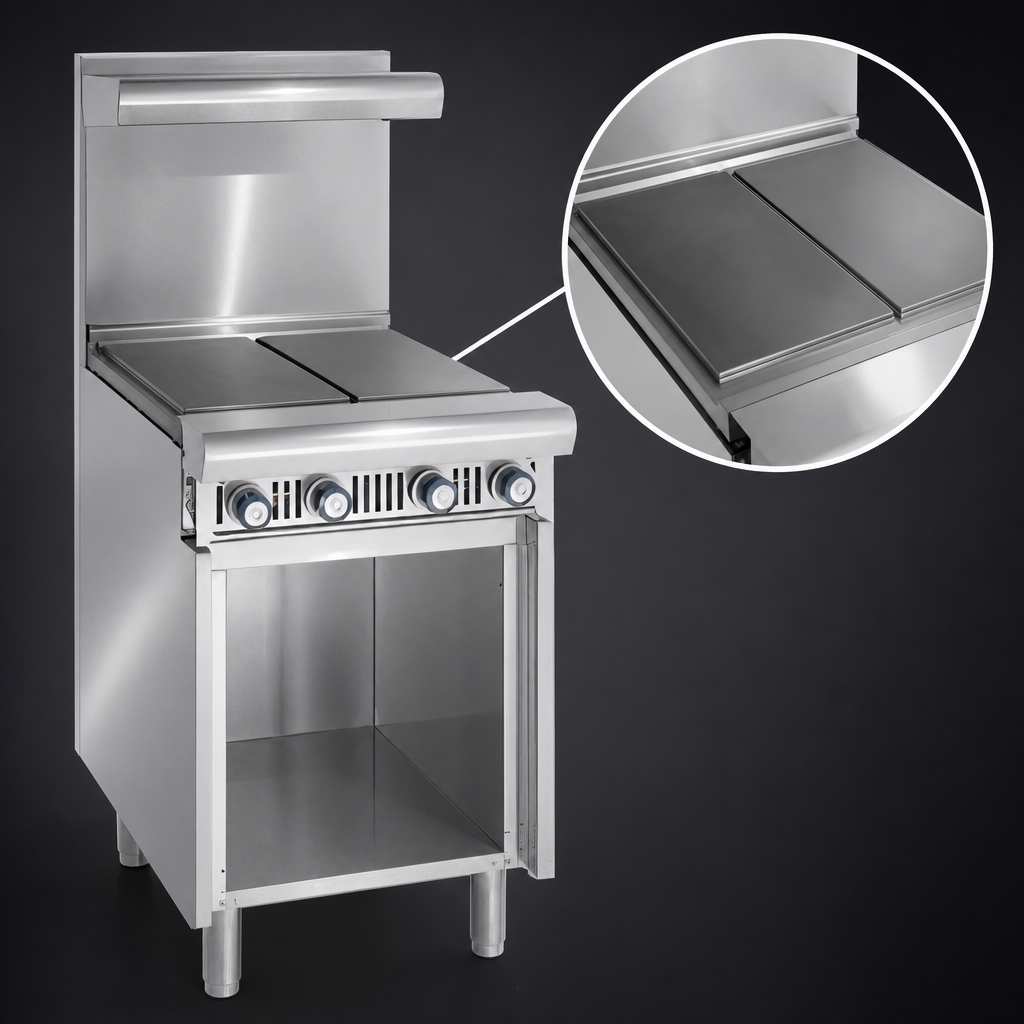

- Two high-polish 12" × 14" (305 × 356 mm) hot plates spread heat evenly across the entire surface.
- Independent “U”-shaped burners (30,000 BTU each) with aeration baffles for fast recovery.
- Open cabinet base with bottom shelf keeps sheet pans, stock pots, or smallwares within reach.
- Large 7" (178 mm) stainless steel landing ledge acts as a convenient plating or staging area.
- Cast-aluminum control knobs stay cool to the touch and feature a positive-grip design.
- Full-width, removable crumb tray pulls out for quick end-of-shift clean-up.
- All-stainless front, sides, 4" backguard, landing edge & kick plate resist corrosion and wipe clean.
- 6" (152 mm) stainless legs with adjustable feet for easy leveling on uneven floors.
- cETLus & NSF listed for gas safety and sanitation compliance.
- Covered by Imperial’s 1-year parts-and-labor warranty.
Specifications
| Model | IHR-2HT-24-XB |
|---|---|
| Overall width | 24" / 610 mm |
| Depth (front to back) | 38" / 965 mm |
| Height to cook surface | 36" / 914 mm (47" / 1 197 mm to top of backguard) |
| Hot-top plates | 2 × 12" W × 14" D polished steel |
| Total BTU input | 60,000 BTU/hr (17.6 kW) |
| Gas connection | 3/4" NPT rear (1-1/4" front manifold plug) |
| Manifold pressure | Natural Gas — 5.0" W.C. | Propane — 10.0" W.C. |
| Certifications | cETLus, ETL-Sanitation (NSF) |
| Warranty | 1 year parts & labor, on-site service |
| Ship weight | approx. 300 lb / 136 kg |
