Spec Series™ 24" Add-A-Unit Modular Hot Top Range
Model IHR-2HT-24-M • 60,000 BTU (18 kW) • GasBuild the cookline you’ve always wanted—one seamless section at a time. Imperial’s Spec Series Add-A-Unit hot top delivers heavy-duty performance and butter-smooth heat distribution in a space-saving 24" footprint, making it the ideal expansion piece for sauté, holding, or finishing stations.
Why You’ll Love It

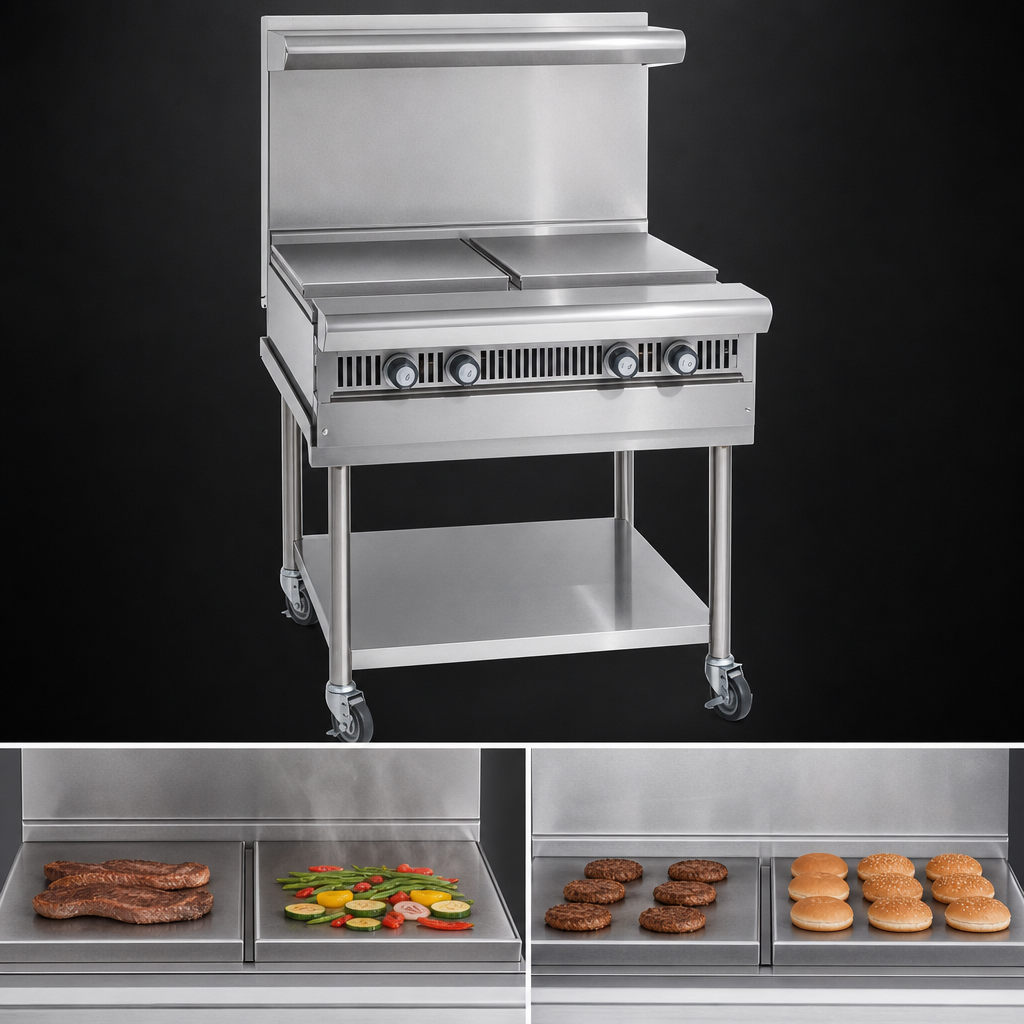

- Even-heat hot tops – Two 12" × 14" highly-polished plates blanket the surface with consistent heat for caramelizing, sautéing, or holding.
- Power to spare – Twin “U”-shaped burners crank out a combined 60,000 BTU (18 kW) for fast recovery on the busiest lines.

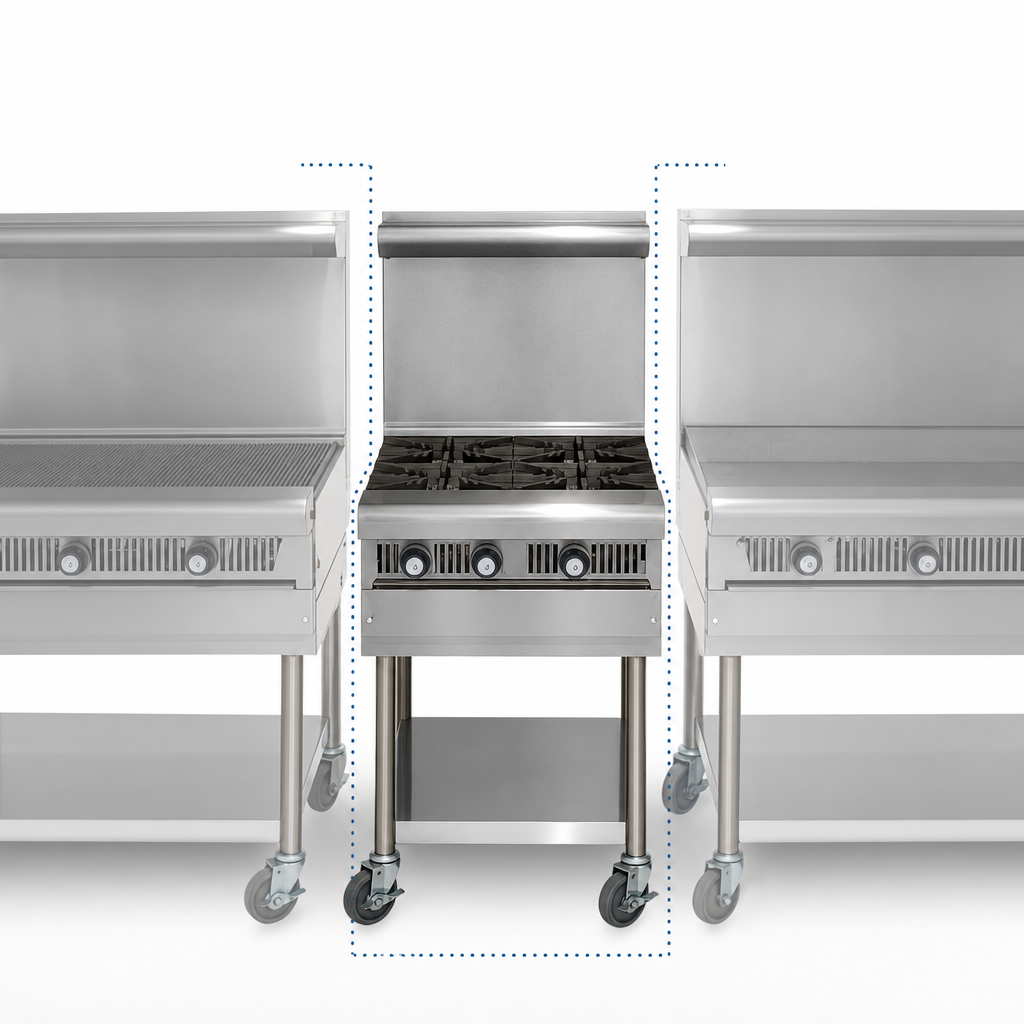

- True modularity – 24" Add-A-Unit design mates flush with other Spec Series pieces, sharing a common 1-¼" gas manifold for a clean, battery-style installation.
- Built for the long haul – Stainless steel front, sides, 7" landing ledge, and 6" backguard resist corrosion and daily abuse.
- Operator-friendly controls – Manual, infinite-setting valves and heat-shielded cast-aluminum knobs give chefs precise control without the hot-seat.
- Easy to clean – Full-width removable crumb tray and polished plates wipe down fast at shift’s end.
- Safe & compliant – cETLus and NSF listed for use in commercial kitchens across North America.
At-a-Glance Specs
| Width | 24" / 610 mm |
|---|---|
| Depth | 30" / 765 mm (plate to back) |
| Overall height | 11" / 279 mm (+6" backguard) |
| Landing ledge | 7" / 178 mm stainless steel |
| Hot top plates | Two 12" × 14" (305 × 356 mm) polished steel |
| Total BTU / kW | 60,000 BTU / 18 kW |
| Burners | 2 “U”-shaped cast-iron |
| Gas connection | 3/4" NPT rear (single unit) | 1-¼" rear manifold for line-ups |
| Manifold pressure | 5.0" W.C. Natural | 10.0" W.C. Propane |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor (factory authorized service) |
Important: For non-combustible surfaces, this unit requires 0" clearance.
Provide 6" (152 mm) clearance from combustible surfaces.
Installation must comply with all local gas and fire codes.
Ask about Middleby Equipment Financing for fast credit decisions and low, fixed monthly payments—ideal for preserving your working capital.
$4,617.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial Spec Series 24" gas range, heavy-duty modular design with 2 hot tops, 60,000 BTU, stainless steel, removable crumb tray, NSF/cETLus certified.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, cETLus
Height
11.0in
Width
24.0in
Depth
38.0in
Shipping Weight
310.0lbs
Top
(2) hot tops
Type
add-a-unit
Exterior Finish
stainless steel front & sides
Base
modular
Specifications
Spec Series Heavy Duty Range, gas, 24"W, modular, Add-A-Unit, (2) hot tops, manual controls, removable crumb tray, stainless steel front, sides, 7"D landing ledge & 6"H backguard, 60,000 BTU, 18kW, cETLus, NSF
