Description

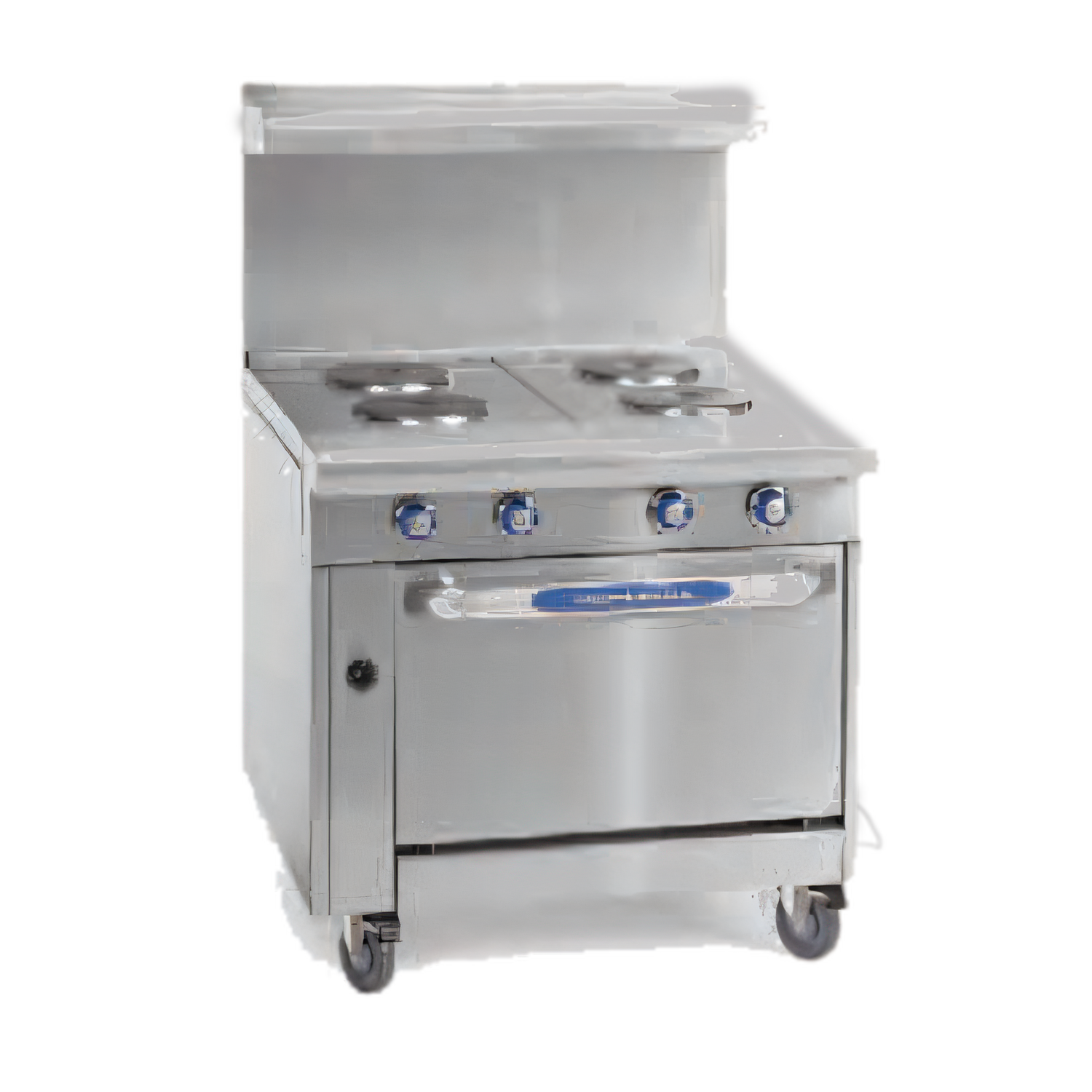

Imperial Spec Series 36" Electric Heavy-Duty Range/Hot-Top Combo

2 Round Elements • 2 Hot Tops • Convection Oven Base

Built for kitchens that never slow down, the Imperial Spec Series packs four versatile electric heat sources and a full-size convection oven into a rugged 36" footprint—delivering the power, consistency and durability you need on the hot line every single day.

Key Features

  • Flexible cooktop
    • (2) 2 kW sealed round plate elements, 9" (229 mm) diameter—fast heat-up & easy wipe-clean surface
    • (2) 12" × 12" heavy cast-iron hot tops—solid contact for stock pots and even heat transfer
  • Infinite heat controls for every element and hot top
  • Full-size convection oven with ¼ HP blower motor for rapid, even baking and roasting
  • Porcelainized oven cavity and removable crumb tray speed up end-of-shift cleanup
  • (3) chrome-plated oven racks with 5 rack positions
  • Stainless steel front, sides, landing ledge, backguard and kick plate—tough enough for demanding volume operations
  • 6" adjustable stainless steel legs (locking caster kit available)
  • Safety & sanitation approvals: cETLus, ETL-Sanitation, CE

Performance & Capacity

  • Total connected load: 15.3 kW (208 V) / 16.3 kW (240 V)
  • Oven holds 18" × 26" full-size sheet pans left-to-right or front-to-back
  • Cool-touch, spring-balanced oven door with heavy-duty hinge
  • Side-mounted controls are enclosed in an insulated compartment for longer component life

Specifications

Model IHR-2HT-2-E (Spec Series)
Width 36" / 914 mm
Depth 38" / 965 mm
Height – cook surface 36" / 914 mm
Overall height – with backguard 57¼" / 1 457 mm
Electrical 208 V or 240 V, 1- or 3-phase (field wired)
Amps @ 208 V 1-phase 74 A  |  3-phase 43 A
Amps @ 240 V 1-phase 64 A  |  3-phase 37 A
Shipping weight Approx. 619 lb / 281 kg
Convection motor ¼ HP
Listings cETLus | ETL-Sanitation | CE

All measurements are nominal. Refer to the official Imperial spec sheet for detailed installation drawings.

Included & Optional Accessories

  • (3) chrome oven racks – included
  • Removable crumb tray – included
  • 6" adjustable stainless legs – included
  • Heavy-duty locking casters – optional
  • Stainless solid oven door (no window) – no-charge option, specify when ordering

Clearance & Installation

  • For non-combustible floors only; legs or casters required when curb-mounted
  • 6" (152 mm) clearance required from combustible side and rear walls
  • Unit ships without cord & plug—field connection by a qualified electrician is required
Warranty: 1-year limited parts & labor when serviced by an authorized Imperial agent.
See full warranty statement for complete terms and exclusions.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Spec Series

Certifications

CE, cETLus, ETL-Sanitation

Height

42.0in

Width

36.0in

Depth

38.0in

Shipping Weight

679.0lbs

Vent

backriser

Base

(1) convection oven

Exterior Finish

stainless steel front & sides

Top

(2) hotplates / french plates, (2) 12" hot tops

Specifications

Spec Series Heavy Duty Range, electric, 36", (2) round elements, (2) 12" hot tops, (1) convection oven, (3) chrome racks, infinite heat controls, removable crumb tray, porcelain oven interior, stainless steel front, sides, backguard, landing ledge & kick plate, 6" legs, adjustable feet, 1/4 HP, cETLus, ETL-Sanitation, CE
