Imperial (Middleby) IHR-2FT-XB Spec Series Gas Ranges
Description
Imperial Spec Series 36" Heavy-Duty Gas Range with Dual 18" French Tops – 70,000 BTU
Model #: IHR-2FT-XB | Open Cabinet BaseDial-in gentle simmering or full-throttle searing with Imperial’s French-top powerhouse. This 36 inch Spec Series range supplies 70,000 BTU of evenly diffused heat, housed in a rugged stainless-steel body that’s built to thrive in the harshest commercial kitchens.
Highlights & Benefits

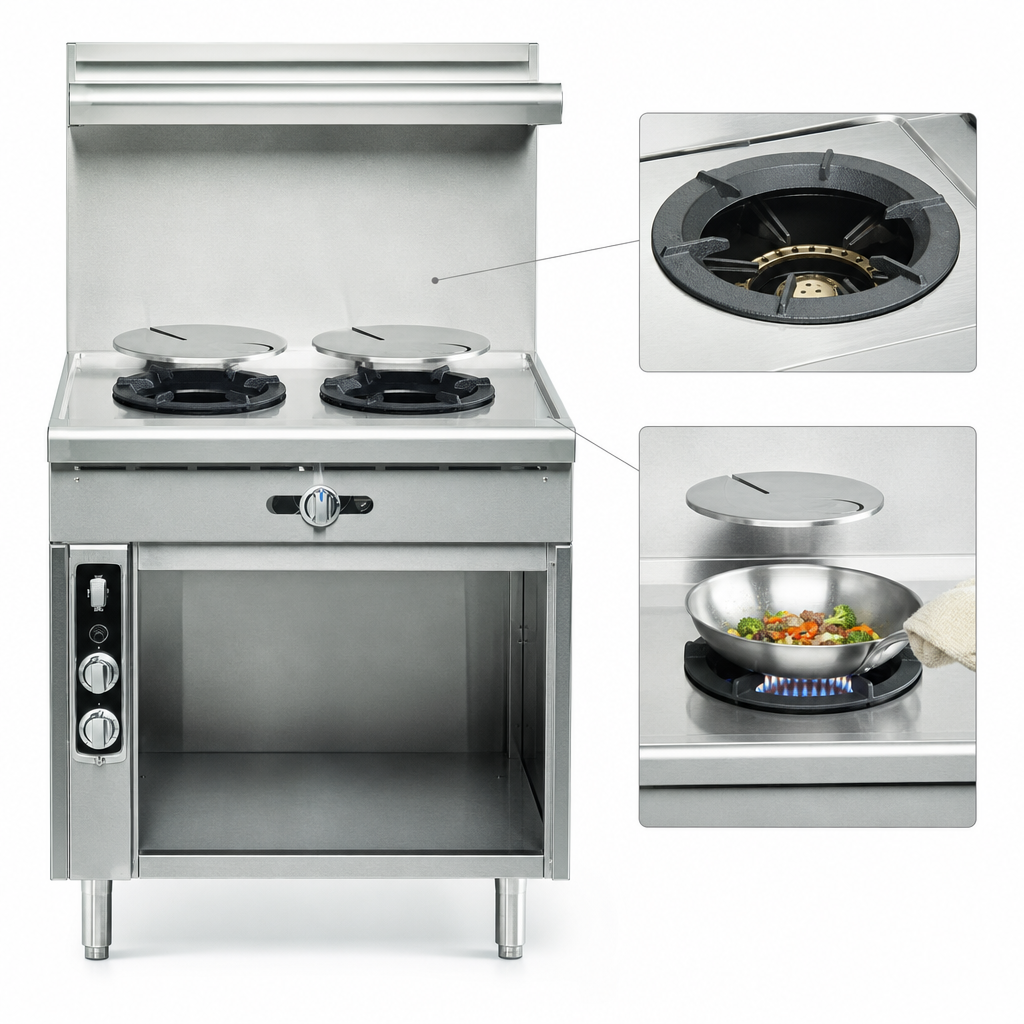

- (2) 18" circular French tops with cast-iron rings and lift-off covers
- Individual 35,000 BTU ring burners (70,000 BTU total) with standing pilots
- Graduated heat zones—move cookware toward the edge for instant low-temp holding
- Open stainless cabinet base with bottom shelf keeps oversized pots within reach
- 5" deep stainless landing ledge maximizes plating and prep space
- Durable cast-aluminum knobs protected by heat deflectors
- Stainless front, sides, backguard & kick plate for fast wipe-downs and lasting shine
- 6" heavy-duty legs with adjustable feet for quick leveling
- 3/4" rear gas connection plus enclosed 1-1/4" front manifold for easy line-up in a battery
- cETLus & NSF listed—ready for installation in the U.S. and Canada
Why Choose a French Top?
- Versatile surface lets chefs slide pans to hotter or cooler zones without valve adjustments.
- Lift-off center rings allow direct-flame cooking for stockpots, woks or rapid boils.
- Cast-in heat-retaining projections absorb and evenly diffuse heat across the plate.
Specifications
| Cooktop | (2) 18" French tops, cast-iron rings & covers |
|---|---|
| Overall Width | 36" / 914 mm |
| Depth (incl. ledge) | 38" / 965 mm |
| Height to Cook Surface | 36" / 914 mm (on 6" legs) |
| Total Input | 70,000 BTU h / 20.5 kW |
| Burners | (2) 35,000 BTU cast-iron ring burners |
| Gas Type | Natural or Propane (field convertible) |
| Manifold Pressure | Nat. 5.0" W.C. | LP 10.0" W.C. |
| Rear Gas Connection | 3/4" NPT (plus 1-1/4" front manifold) |
| Clearances | 0" sides & rear (non-combustible) | 8" rear (combustible) |
| Ship Weight | ≈ 588 lb / 267 kg |
| Certifications | cETLus, NSF |
What’s Included
- Stainless open cabinet base with bottom shelf
- Standing pilots for instant burner ignition
- (4) 6" adjustable stainless-steel legs
- Factory-installed gas pressure regulator
Popular Options & Accessories (sold separately)
- Heavy-duty stainless backguards (54"–108") for line-ups
- Salamander or cheesemelter mounting channels
- Stainless interior or double-door kits for cabinet base
- Extra chrome storage racks
- 6" swivel casters (front locking)
- Quick-disconnect & flexible gas hose assemblies
Warranty
Backed by Imperial’s 1-year parts & labor warranty when installed and serviced by an authorized technician.
Need help configuring a full cookline? Contact our food-service specialists for quotes, lead times or CAD drawings.
