Imperial (Middleby) IHR-2-1HT-XB Spec Series Gas Ranges
Imperial (Middleby) IHR-2-1HT-XB Spec Series Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description
Spec Series 36" Gas Range – 2 Open Burners & 18" Hot Top
Model IHR-2-1HT-XB | Imperial (Middleby)Built for the punishing pace of high-volume kitchens, the Imperial Spec Series heavy-duty range combines twin 40,000 BTU open burners with an even-heat 18" hot top and an open cabinet base that keeps sheet pans and smallwares right where you need them. Rugged stainless construction, polished cast-iron components and a full-width crumb tray make this range a powerhouse that cleans up fast and lasts for years.
Performance You Can Count On
- 120,000 BTU total output (35 kW) – plenty of muscle for sautés, stocks and searing.

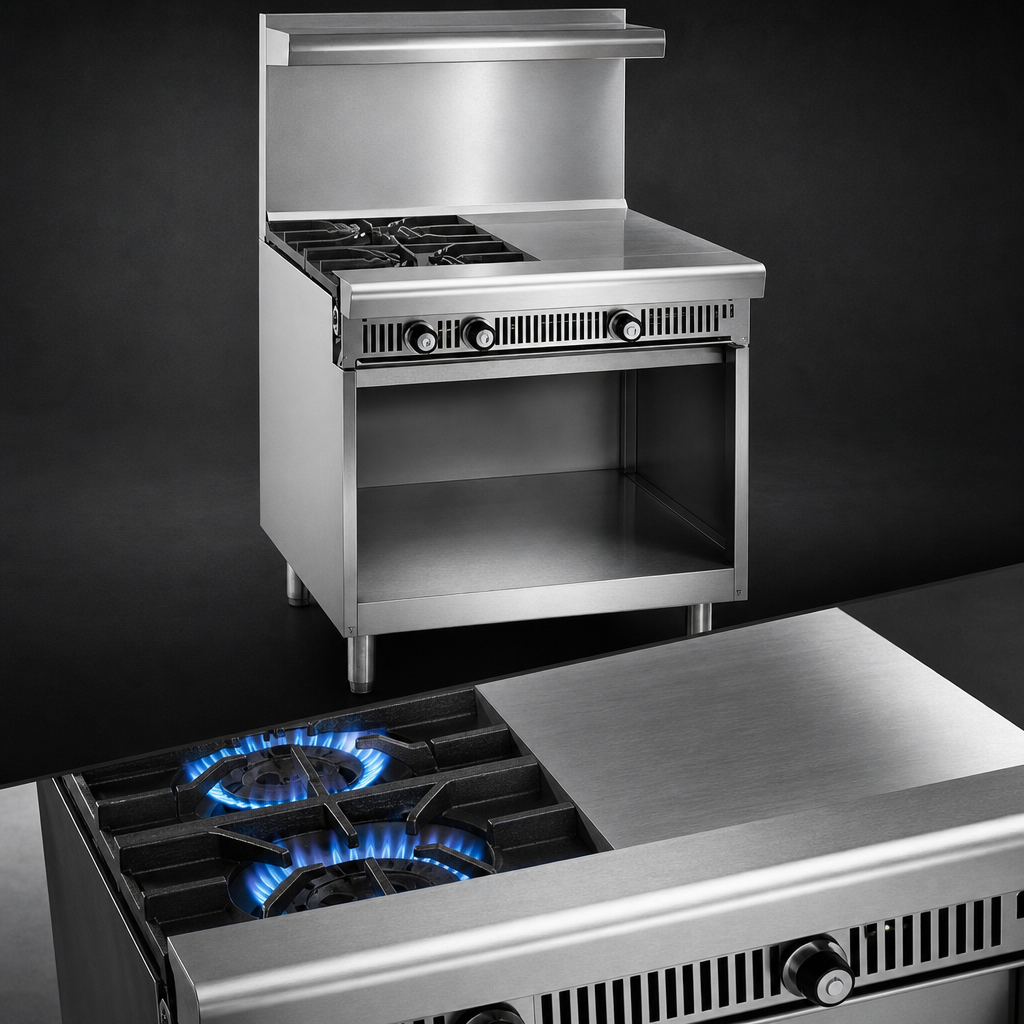

- (2) 40,000 BTU anti-clogging open burners with easy-clean cast-iron heads.

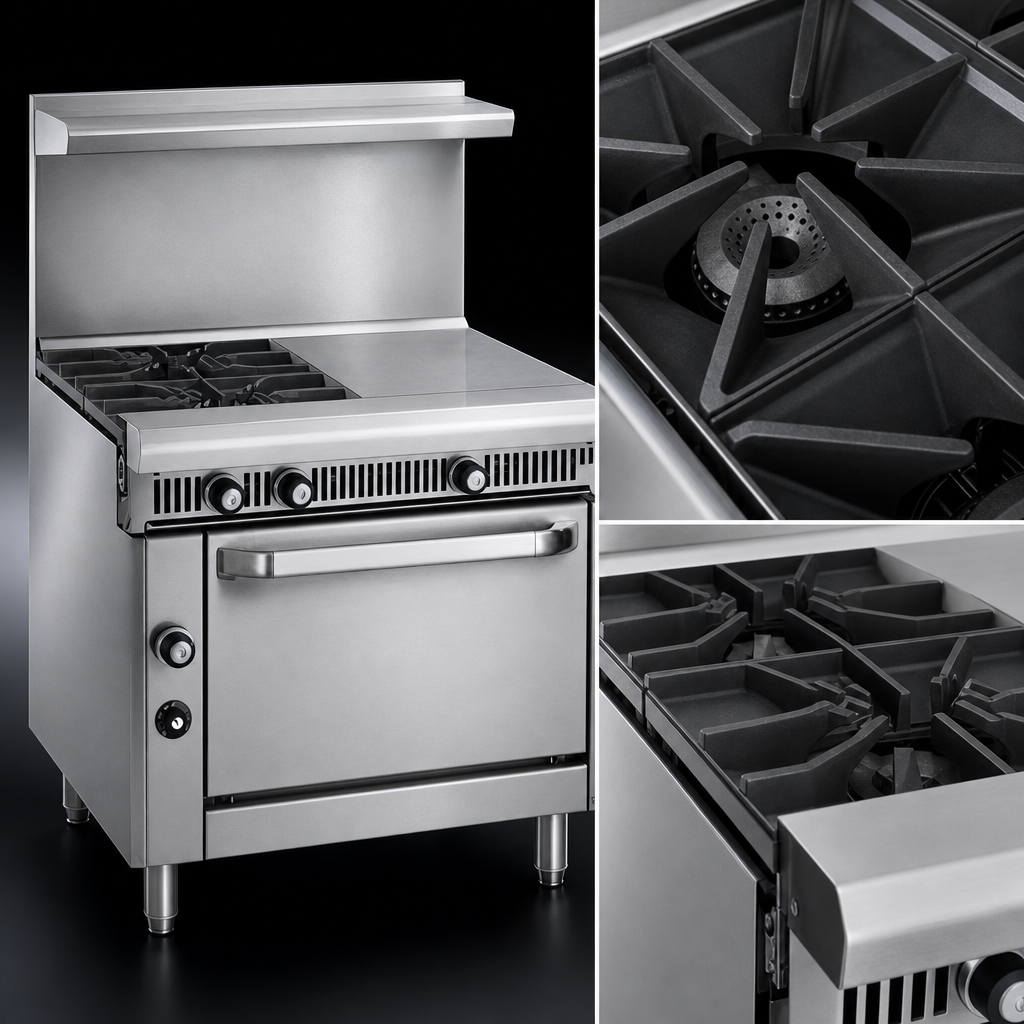

- Cast-iron “S” grates (12" × 14") provide a continuous, level cooking surface.
- 18" (457 mm) even-heat hot top with highly-polished steel plate for uniform heat distribution.
- Individual manual control valves for infinite flame adjustment on every section.
Built for the Line
- All stainless-steel front, sides, backguard & kick plate withstand daily abuse.
- 7" (178 mm) deep landing ledge doubles as plate-up shelf.
- Open cabinet base with reinforced bottom shelf keeps pans, trays or stockpots close at hand.
- Full-width, removable crumb tray speeds end-of-shift cleanup.
- 6" (152 mm) adjustable stainless legs level the unit on uneven floors.
Specifications
Overall Width | 36" (914 mm) |
---|---|
Overall Depth | 34" (864 mm) |
Working Height | 36 ½" (927 mm) to cooktop |
Total BTU / kW | 120,000 BTU / 35 kW |
Gas Inlet | 3/4" NPT rear connection (regulator included) |
Manifold Pressure | Natural Gas 5.0" W.C. | LP Gas 10.0" W.C. |
Electrical | None required – purely gas-fired |
Certifications | cETLus, NSF |
Shipping Weight | 592 lb (269 kg) (approx.) |
One-year limited warranty on parts & labor when installed and maintained per manufacturer guidelines.
