Imperial (Middleby) IHR-2-1HT Spec Series Gas Ranges
Description

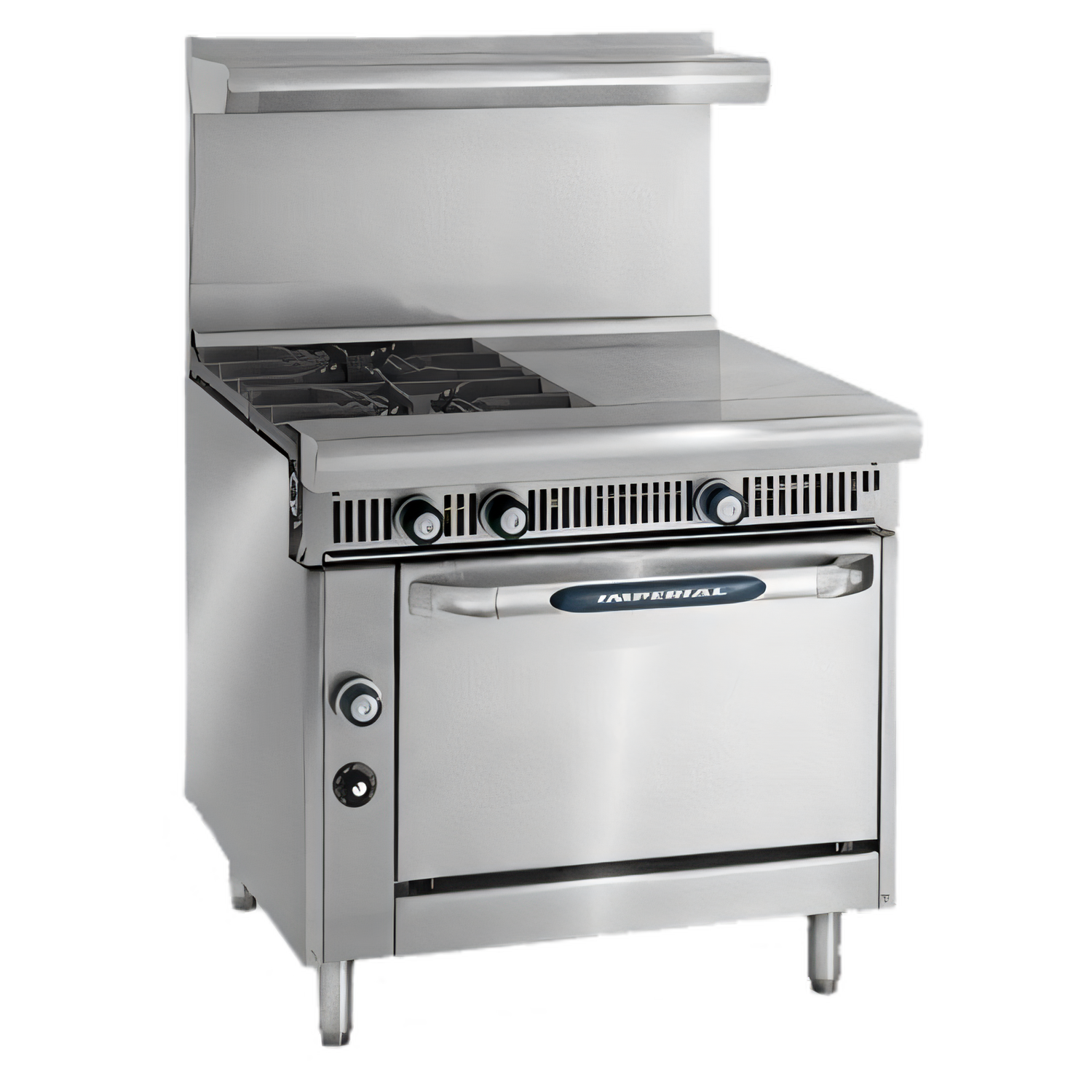

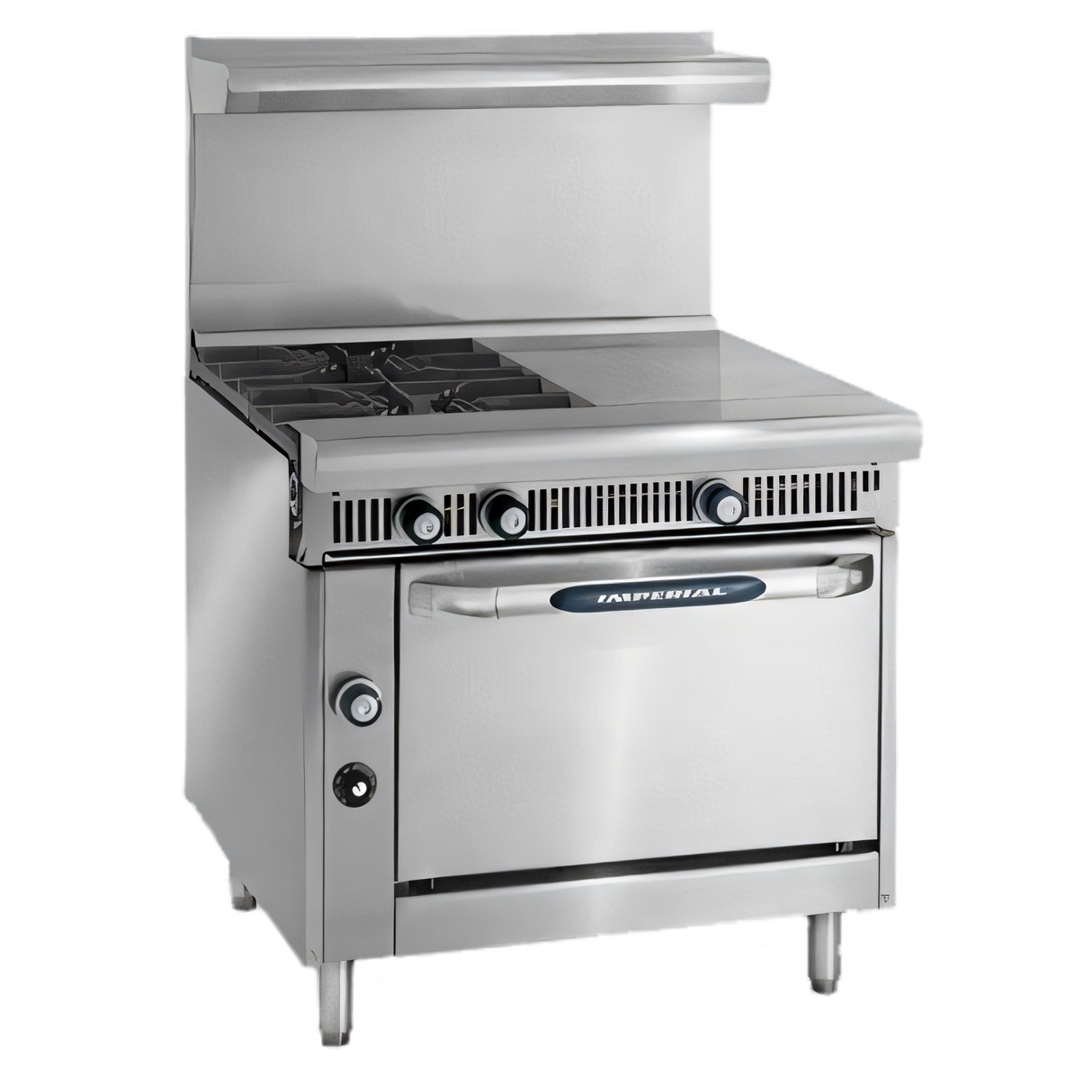

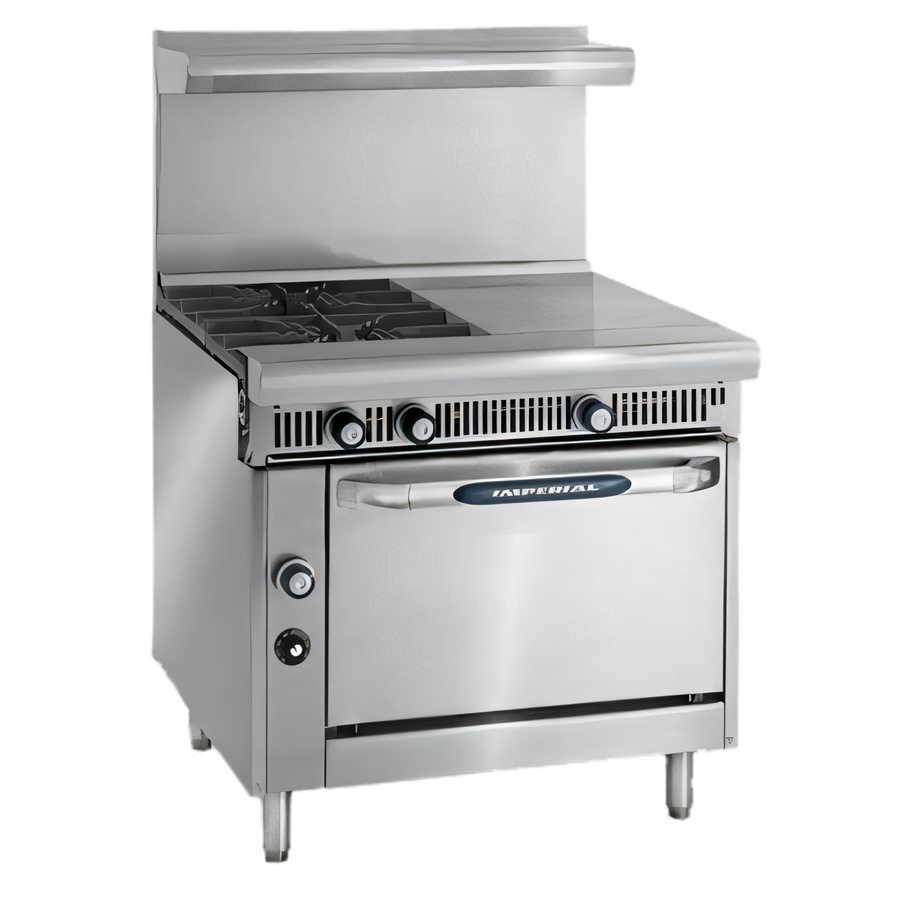

Imperial Spec Series 36" Heavy-Duty Gas Range – 2 Burners / 18" Hot Top / Standard Oven
Model IHR-2-1HT • 160,000 BTU (47 kW)Built for the punishing pace of high-volume kitchens, the Imperial IHR-2-1HT combines searing open-burner power, an even-heat hot top and a full-size oven in one 36" footprint. From rapid sauté service to all-day stock reduction, this Spec Series range delivers the versatility, durability and consistency chefs depend on.
Cooking Performance

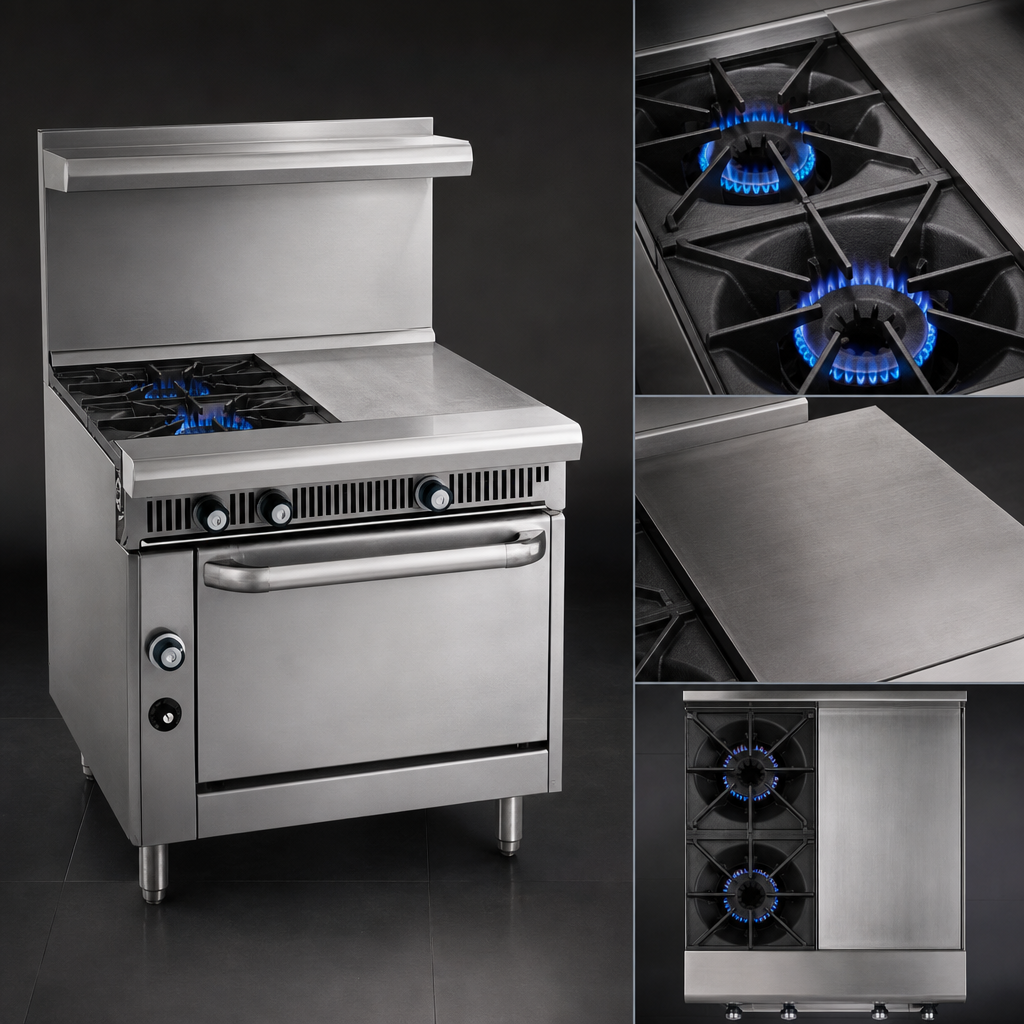

- 2 Open Burners — 40,000 BTU/hr each with anti-clogging design and 7,000 BTU low-simmer setting.
- Heavy cast-iron “S” grates sit flush, form a continuous work surface and lift off for fast cleaning.
- 18" Even-Heat Hot Top — 40,000 BTU/hr “U”-shaped burner under polished steel plates provides uniform heat across the entire surface for stockpots, saucepans and griddling.
- Standard Oven — 40,000 BTU/hr chef-depth cavity fits full-size 18" × 26" sheet pans left-to-right or front-to-back.

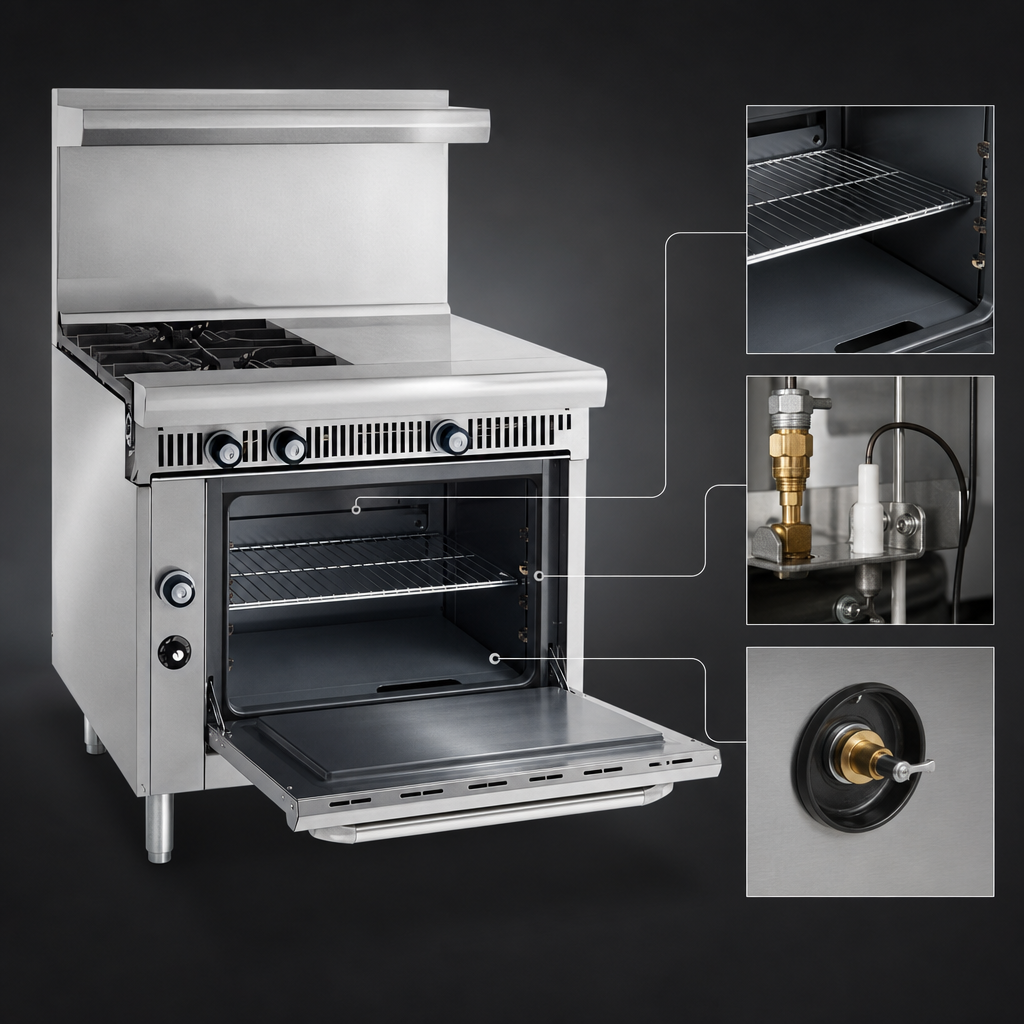

Standard Oven Highlights
- Interior dimensions: 26 ½" W × 26" D × 14" H (673 × 660 × 356 mm)
- 100 % safety pilot and manual shut-off valve
- Porcelainized sides, deck, door and rear liner for simple wipe-down cleaning
- Exclusive heat deflector sends heat back into the cavity — not onto the floor
- Includes one chrome rack with three rack positions
Built to Last
- Sleek stainless-steel front, sides, backguard, kick plate and 7" (178 mm) landing ledge
- Welded and polished seams create a seamless, professional appearance
- Large cast-aluminum control knobs stay cool and feature a heat-protecting grip ring
- Full-width removable crumb tray speeds end-of-shift clean-up
- 6" (152 mm) heavy-duty legs with adjustable feet for accurate leveling
Technical Specifications
| Model | IHR-2-1HT |
|---|---|
| Overall Width | 36" (914 mm) |
| Overall Depth | 34" (864 mm) |
| Cooking Surface Height | 37" (940 mm) (w/ 6" legs) |
| Total BTU | 160,000 BTU/hr (47 kW) |
| Open Burners | (2) × 40,000 BTU anti-clog burners |
| Hot Top | 18" Even-Heat, 40,000 BTU |
| Oven Output | 40,000 BTU/hr | 200 °F – 650 °F thermostat |
| Oven Interior (W × D × H) | 26 ½" × 26" × 14" (673 × 660 × 356 mm) |
| Gas Connection | 3/4" NPT (rear), 3/4" gas pressure regulator supplied |
| Manifold Pressure | Natural Gas 5.0" W.C. | LP Gas 10.0" W.C. |
| Shipping Weight | 762 lb (346 kg) |
| Certifications | cETLus, NSF |
| Warranty | 1-year limited parts & labor |
Popular Factory Options (sold separately)
- Stainless-steel high shelf or 10"-wide landing ledge
- Salamander or cheesemelter mounting brackets
- 6" (152 mm) locking casters
- Additional chrome oven racks
- LP conversion kit
Peace-of-Mind Coverage
- 1-year parts & labor warranty when serviced by an authorized Imperial agency
- Five-year pro-rated fry tank warranty applies to fryers only (not applicable to this range)
Specifications and design are subject to change without notice. Always verify gas type, installation clearances and local code requirements before ordering.
