Imperial (Middleby)

Imperial Spec Series 18-Inch Gas Add-A-Unit Range with 2 Open Burners and Open Cabinet Base

SKU: IHR-2-18-XB
$4,550.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Gas Ranges Imperial (Middleby) New Arrivals Ranges Restaurant Equipment

Imperial Spec Series 18-Inch Gas Add-A-Unit Range with 2 Open Burners and Open Cabinet Base

Floor Model, Stainless Steel Exterior, 70,000 BTU

A compact heavy-duty gas range section that delivers 70,000 BTU across two open burners and fits cleanly into a professional lineup.

  • 18-inch add-a-unit gas range built for space-saving commercial kitchen layouts.
  • Two open burners provide 35,000 BTU/hr each for a 70,000 BTU total output.
  • Cast iron S grates and anti-clogging burner design support efficient, reliable cooking.
  • Open cabinet base with bottom shelf adds storage below the cooktop.
  • Stainless steel exterior surfaces and removable crumb tray simplify cleaning.
  • Includes 6-inch legs with adjustable feet for stable, level installation.

Overall Dimensions:

18.0"W x 38.0"D x 42.0"H

Product Weight:

354.0 lb

Two Open Burners

Provides 35,000 BTU/hr per burner for a 70,000 BTU total output, with a low-simmer feature for better heat control.

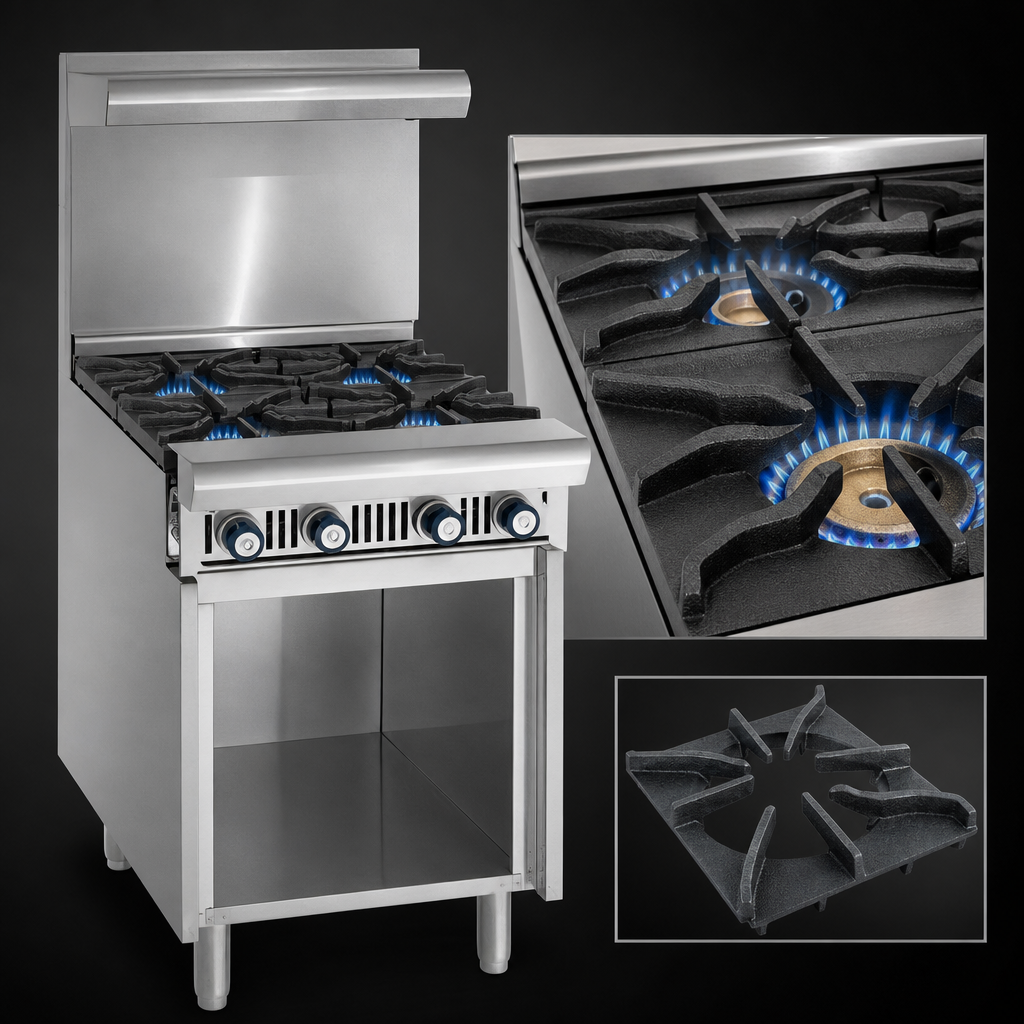

Cast Iron S Grates

Wavy cast iron grates improve heat transfer and maintain strong pan contact for more efficient cooking.

Open Cabinet Base

Floor model includes an open cabinet base with a bottom shelf for convenient undercounter storage.

Stainless Steel Exterior

Stainless steel front, sides, landing ledge, backguard, and kick plate help provide durability and easier cleanup.

Removable Crumb Tray

Full-width crumb tray removes easily to speed up daily cleaning.

Adjustable Leveling Feet

6-inch legs with adjustable feet help stabilize the range during installation.

Heavy-Duty Burner Construction

Anti-clogging burner design, removable cast iron burners, and brass components are built for long service life.

Common Line-Up Capability

Optional common front landing ledges are available to help create a seamless lineup with adjoining equipment.

Type Add-A-Unit Range
Style Open Burner
Installation Type Floor Model
Base Type Open Cabinet Base
Burner Count 2
BTU 70,000 BTU
Material Stainless Steel
Finish Stainless Steel
Controls Manual
Gas Connection Size 3/4 Inch NPT
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has two open burners.
The unit delivers 70,000 BTU total, with 35,000 BTU/hr per burner.
Yes. It includes an open cabinet base with a bottom shelf.
Yes. The range includes a full-width removable crumb tray for easier cleaning.
It includes a one-year parts and labor warranty.
The unit uses a 3/4 inch NPT gas inlet, and the front gas manifold is 1-1/4 inches.
