Imperial (Middleby)  |  Spec Series  |  SKU: IHR-2-18-M

Imperial (Middleby) IHR-2-18-M Spec Series Gas Ranges

$4,038.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Imperial Spec Series 18" Add-A-Unit Modular Gas Range – 2 Open Burners

Model IHR-2-18-M | 70,000 BTU (20 kW) Total Output

Slide extra fire-power into any cookline with this heavy-duty, countertop range from Imperial’s Spec Series. Two 35,000 BTU anti-clog burners, rugged cast-iron “S” grates and a 7" landing ledge deliver full-size range performance in just 18 inches of space.

Why You’ll Love It

  • Modular “Add-A-Unit” design integrates flush with adjacent equipment for a seamless cookline.

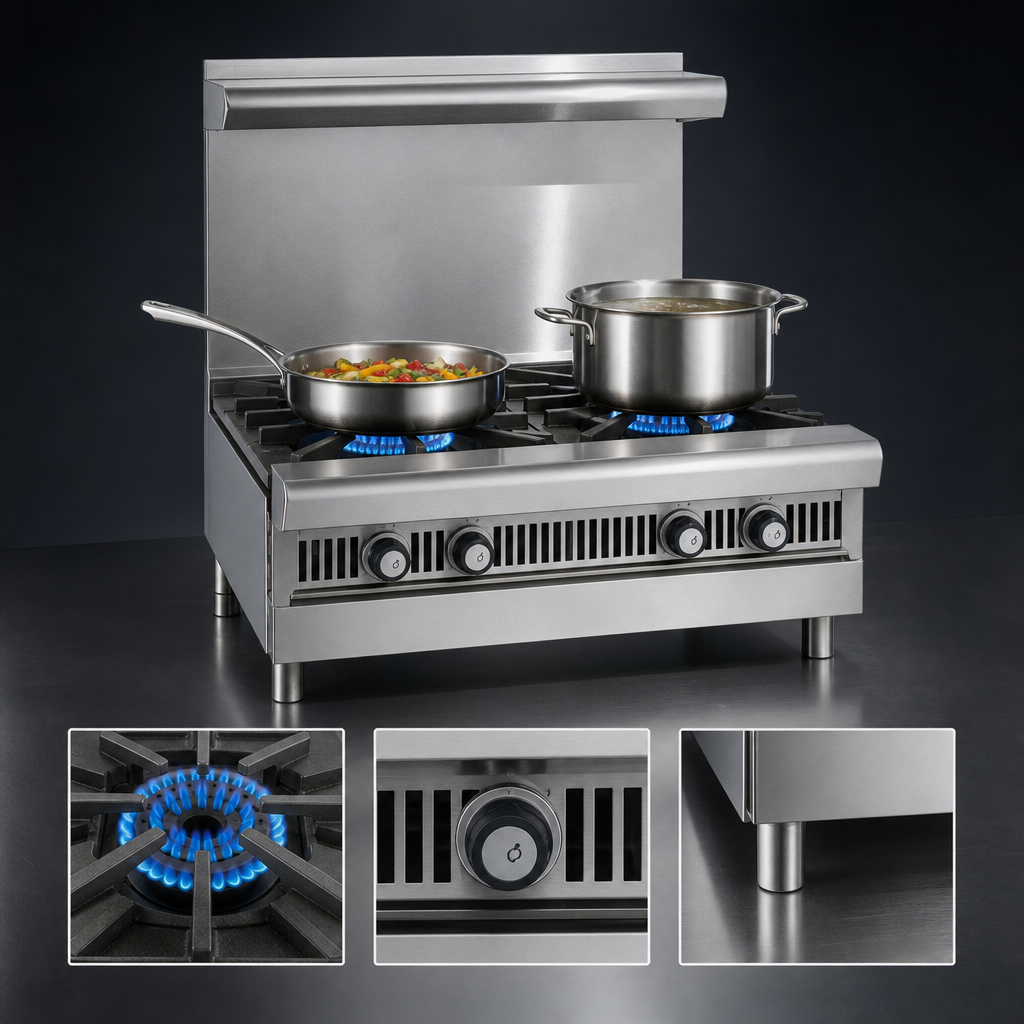

  • 35,000 BTU open burners (7,000 BTU low simmer) deliver fast boil and delicate simmer control.

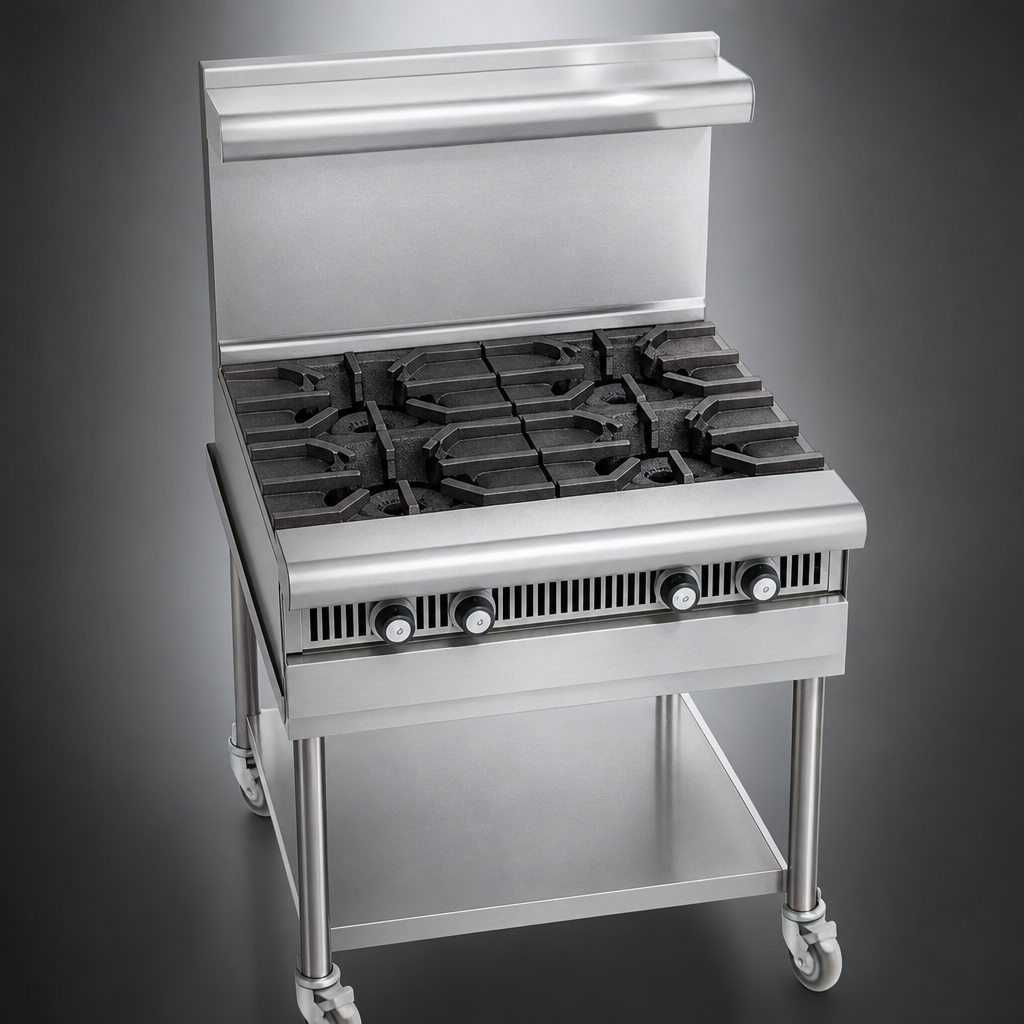

  • Cast-iron “S” grates create wavy heat convection for efficient pan-to-flame contact.
  • All-stainless exterior (front, sides, 6" backguard & 7" landing ledge) stands up to daily abuse and wipes clean.
  • Full-width removable crumb tray speeds end-of-shift clean-up.
  • One-piece venturi bases with no gaskets improve burner efficiency and longevity.
  • Cool-touch cast-aluminum knobs with heat-shield grips help protect hands during service.
  • 3/4" rear gas connection simplifies single-unit hook-up.
  • cETLus & NSF listed for gas safety and sanitation compliance.

At-a-Glance Specs

Width 18" (457 mm)
Depth 38" (965 mm)
Height (to grate) 11" (279 mm) + 6" (152 mm) backguard
Open Burners 2 × 35,000 BTU (10 kW) each
Total Output 70,000 BTU / 20 kW
Simmer Setting 7,000 BTU per burner
Gas Inlet 3/4" NPT (rear connection)
Manifold Pressure Natural Gas 5.0" W.C. | LP Gas 10.0" W.C.
Shipping Weight 156 lb (71 kg)
Certifications cETLus, NSF
Warranty 1-Year Parts & Labor

Installation Notes

  • For single-unit connections, provide 3/4" gas line at rear.
  • 0" clearance from non-combustible surfaces; 6" (152 mm) from combustible.
  • Unit ships ready for Natural Gas; field convertible to LP (kit sold separately).

Need Financing?

Take advantage of Middleby Equipment Financing to turn this purchase into predictable monthly payments and preserve your cash flow.

Warranty Reminder: Coverage applies to equipment installed and maintained per Imperial guidelines. Service must be performed by an authorized agency. See full warranty for details.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Spec Series

Certifications

NSF, cETLus

Height

11.0in

Width

18.0in

Depth

38.0in

Shipping Weight

156.0lbs

Top

(2) open burners

Exterior Finish

stainless steel front & sides

Type

add-a-unit

Base

modular

Specifications

Spec Series Heavy Duty Range, gas, 18"W, modular, Add-A-Unit, (2) open burners, cast iron "S" grates (standard), removable crumb tray, stainless steel front, sides, 7"D landing ledge & 6"H backguard, 70,000 BTU, 20kW, cETLus, NSF
