Imperial (Middleby) IHR-2-12-XB Spec Series Gas Ranges
Description
Spec Series 12″ Add-A-Unit Gas Range – 2 Open Burners
Model IHR-2-12-XB | 70,000 BTU Total OutputBring big-range performance to the smallest footprint in your lineup. At just 12 inches wide, Imperial’s Spec Series Add-A-Unit drops two 35,000 BTU open burners into any make-up line, delivering the searing heat, low-simmer precision, and rugged durability chefs expect from a full-size heavy-duty range.
Performance & Construction Highlights

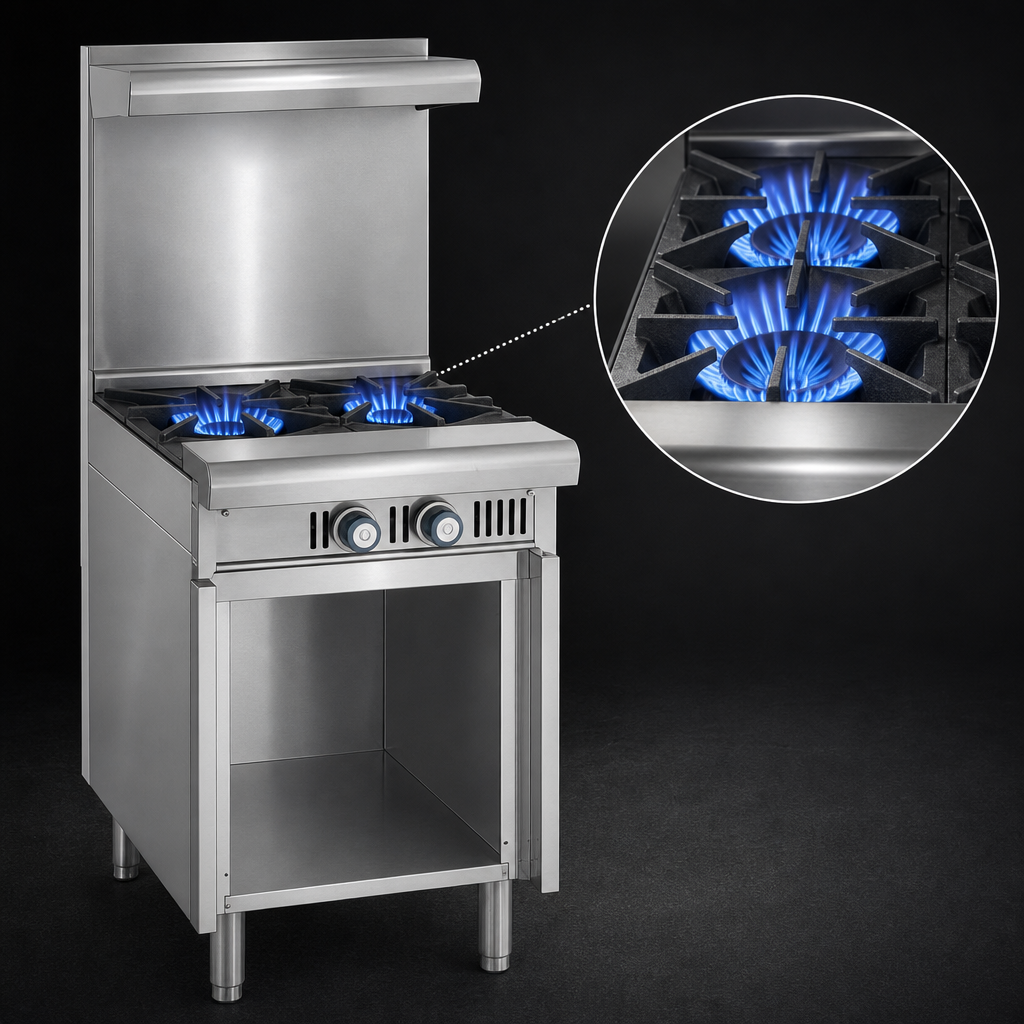

- 35,000 BTU anti-clogging burners (x2) with low-simmer ports for delicate sauces or rapid-fire sautés.
- Cast-iron “S” grates create waves for maximum heat transfer and are fully removable for cleaning.
- One-piece venturi design—no gaskets—slopes down to the burner for superior ignition and longevity.
- Stainless steel exterior: front, sides, landing ledge, 7″ deep front rail, backguard & kick plate resist rust and corrosion.
- Open cabinet base with reinforced bottom shelf keeps pans, stockpots, and hotel pans within arm’s reach.
- Full-width removable crumb tray speeds daily clean-up.
- 6″ (152 mm) stainless legs with adjustable feet level the unit on any floor.
- Factory-set for Natural Gas with 5″ W.C. manifold; LP conversion kit & 10″ W.C. regulator available.
- 3/4″ NPT rear gas connection; manifold runs the full width for easy line-up installation.
- Certified cETLus, NSF – safe for commercial kitchens across the U.S. & Canada.
Add-A-Unit Advantages
- 12″, 18″ & 24″ widths share common 27-7/8″ cook-top depth for a seamless cookline.
- Instantly expands menu capacity without committing to another full-size range.
- Sleek European styling with wide-radius landing ledge matches the entire Imperial Spec Series family.
Technical Specifications
| Width | 12″ (305 mm) |
|---|---|
| Depth | 38″ (965 mm) |
| Cooking Height | 36″ (914 mm) |
| Overall Height (to top of backguard) | 47″ (1194 mm) |
| Open Burners | 2 × 35,000 BTU (10 kW) |
| Total Input | 70,000 BTU (20 kW) |
| Gas Connection | 3/4″ NPT (rear) |
| Manifold Pressure | Natural Gas 5″ W.C. | Propane 10″ W.C. |
| Crated Weight | 185 lb (84 kg) |
| Certifications | cETLus, NSF |
| Warranty | 1-Year Parts & Labor (factory authorized service network) |
Popular Options & Accessories
- High stainless backguard or single-deck high shelf.
- Common front landing ledges (54″ to 108″) for multi-unit battery set-ups.
- Reinforcement channels for mounting cheesemelters or salamanders.
- Stainless steel equipment stands.
- Quick-disconnect gas hose kits.
