Imperial Spec Series™ 12" Modular Add-A-Unit Range – 2 Open Burners
Model IHR-2-12-M | 70,000 BTU Countertop Heavy-Duty RangePack more power into less space. Imperial’s 12-inch Spec Series Add-A-Unit delivers two 35,000 BTU open burners, rugged cast-iron “S” grates and the stainless-steel durability your high-volume kitchen demands—all in a compact, modular footprint that lines up seamlessly with other Spec Series equipment.
Performance & Construction Highlights
- Space-saving 12" (305 mm) width integrates with existing cook suites

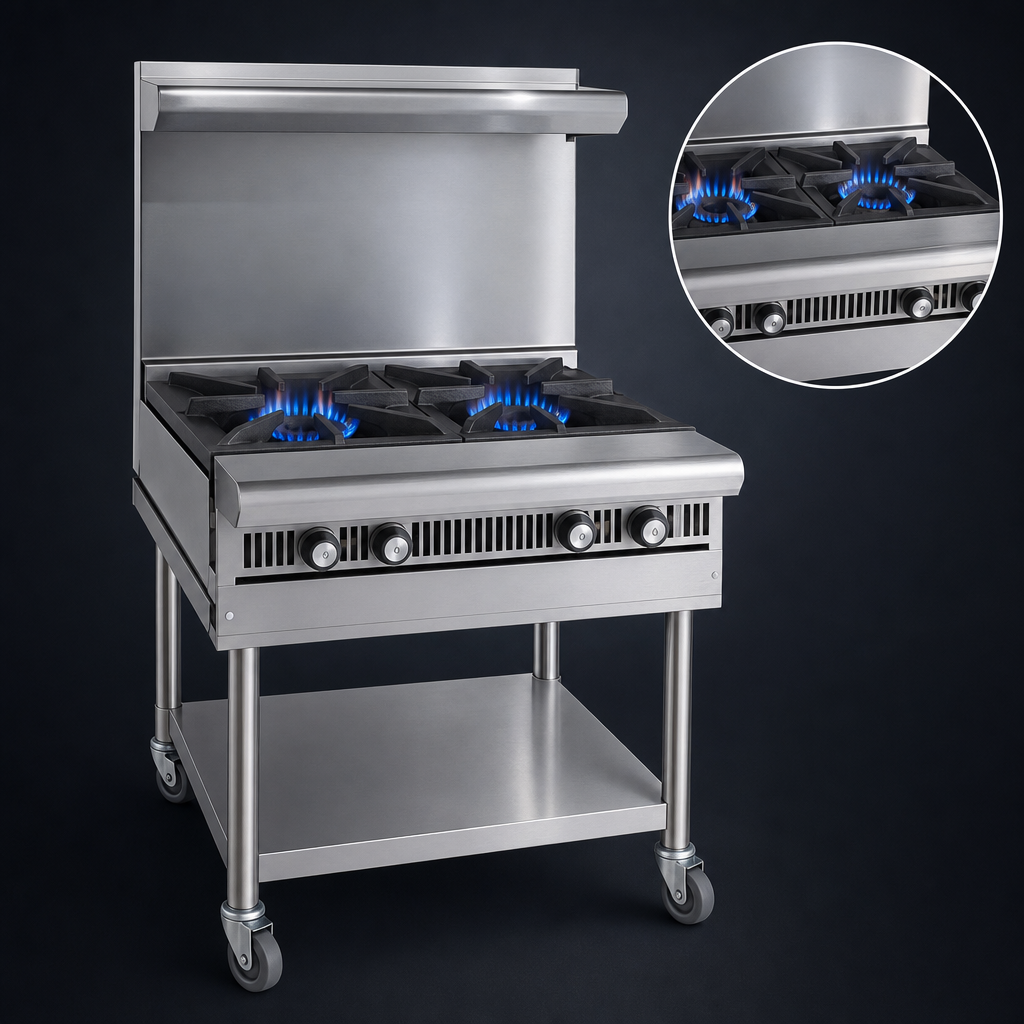

- Two 35,000 BTU anti-clog open burners for rapid heat and low simmer control
- Heavy cast-iron “S” grates remove individually for easy cleaning
- 7" (178 mm) deep stainless landing ledge doubles as a plating shelf
- Full-width removable crumb tray speeds daily cleanup
- Stainless steel front, sides, 6" backguard & wide-radius ledge resist corrosion
- Cool-touch cast-aluminum knobs with heat-protection grip ring

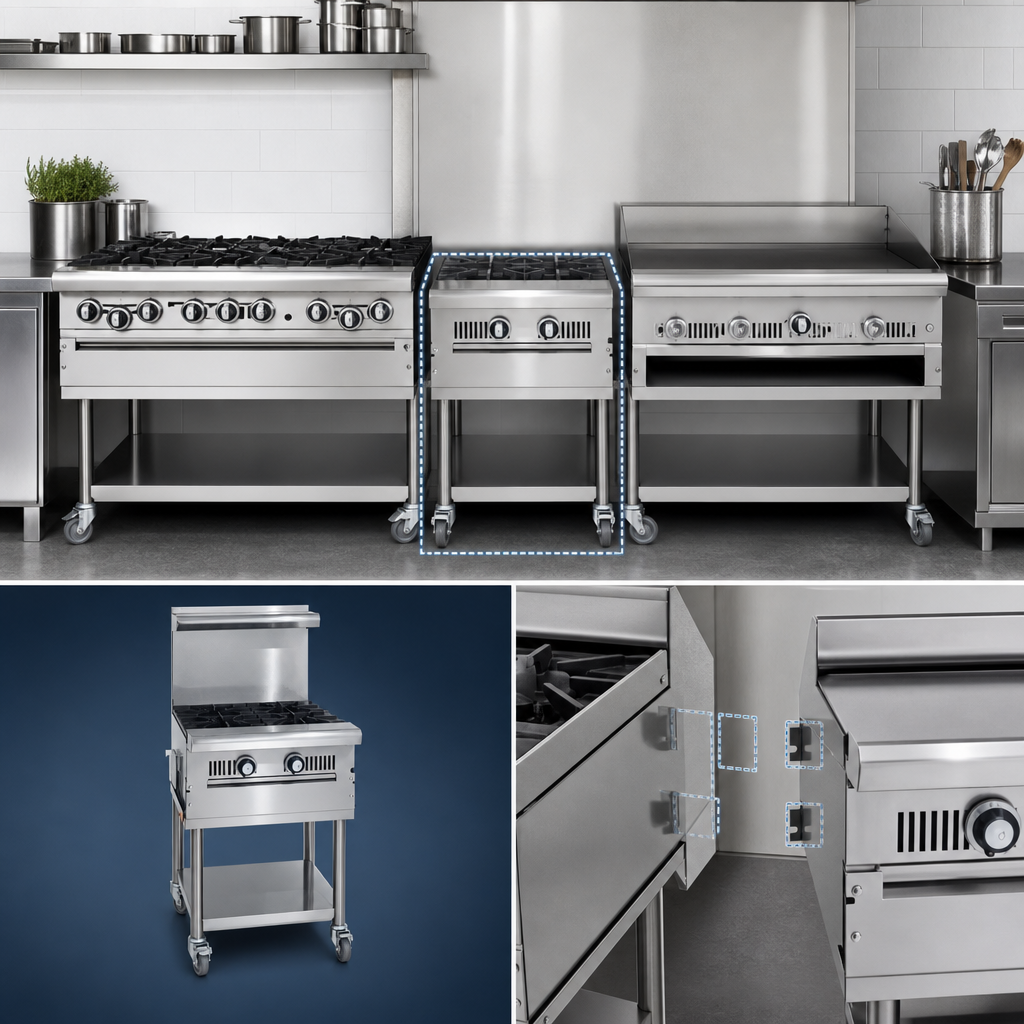

- Countertop (-M) design—pair it with griddles, broilers, fryers and more
- cETLus & NSF listed for safety and sanitation
- Protected by Imperial’s 1-year parts & labor warranty
Ideal For
- Line stations needing an extra pair of high-performance burners
- Food trucks, ghost kitchens & concession operations with limited space
- Restaurants creating a custom modular cookline with Imperial Add-A-Units
Key Specifications
| Width | 12" / 305 mm |
|---|---|
| Depth | 31 1/2" / 800 mm (incl. 7" landing ledge) |
| Height | 11" counter height + 6" backguard |
| Burners | 2 open burners, 35,000 BTU each |
| Total Output | 70,000 BTU/hr (20 kW) |
| Gas Connection | 3/4" NPT rear; 5" W.C. natural / 10" W.C. propane |
| Front Manifold | 1-1/4" (32 mm) stainless gas manifold |
| Shipping Weight | Approx. 185 lb / 84 kg |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor (USA/Canada) |
Clearance & Installation
- 0" clearance required from non-combustible surfaces
- 6" (152 mm) side & rear clearance from combustible surfaces
- Install on a countertop or stainless equipment stand (sold separately)
- Connection and start-up must be performed by a qualified technician
Heads-up: This is a countertop (modular) unit—it has no oven base.
Need a stand? Contact us for compatible stainless equipment stands and accessory shelves.
Want predictable monthly payments? Middleby Equipment Financing is available on this model—ask your sales rep for details.
$2,931.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Imperial (Middleby) IHR-2-12-M 12" gas range: heavy-duty modular design, 70,000 BTU, 2 burners, stainless steel, NSF/cETLus certified.
Manufacturer
Imperial (Middleby)
Brand name
Spec Series
Certifications
NSF, cETLus
Height
11.0in
Width
12.0in
Depth
38.0in
Shipping Weight
185.0lbs
Type
add-a-unit
Base
modular
Exterior Finish
stainless steel front & sides
Top
(2) open burners
Specifications
Spec Series Heavy Duty Range, gas, 12"W, modular, Add-A-Unit, (2) open burners, cast iron "S" grates (standard), removable crumb tray, stainless steel front, sides, 7"D landing ledge & 6"H backguard, 70,000 BTU, 20kW, cETLus, NSF
