Imperial (Middleby) IHR-1HT-18-XB Spec Series Gas Ranges
Description

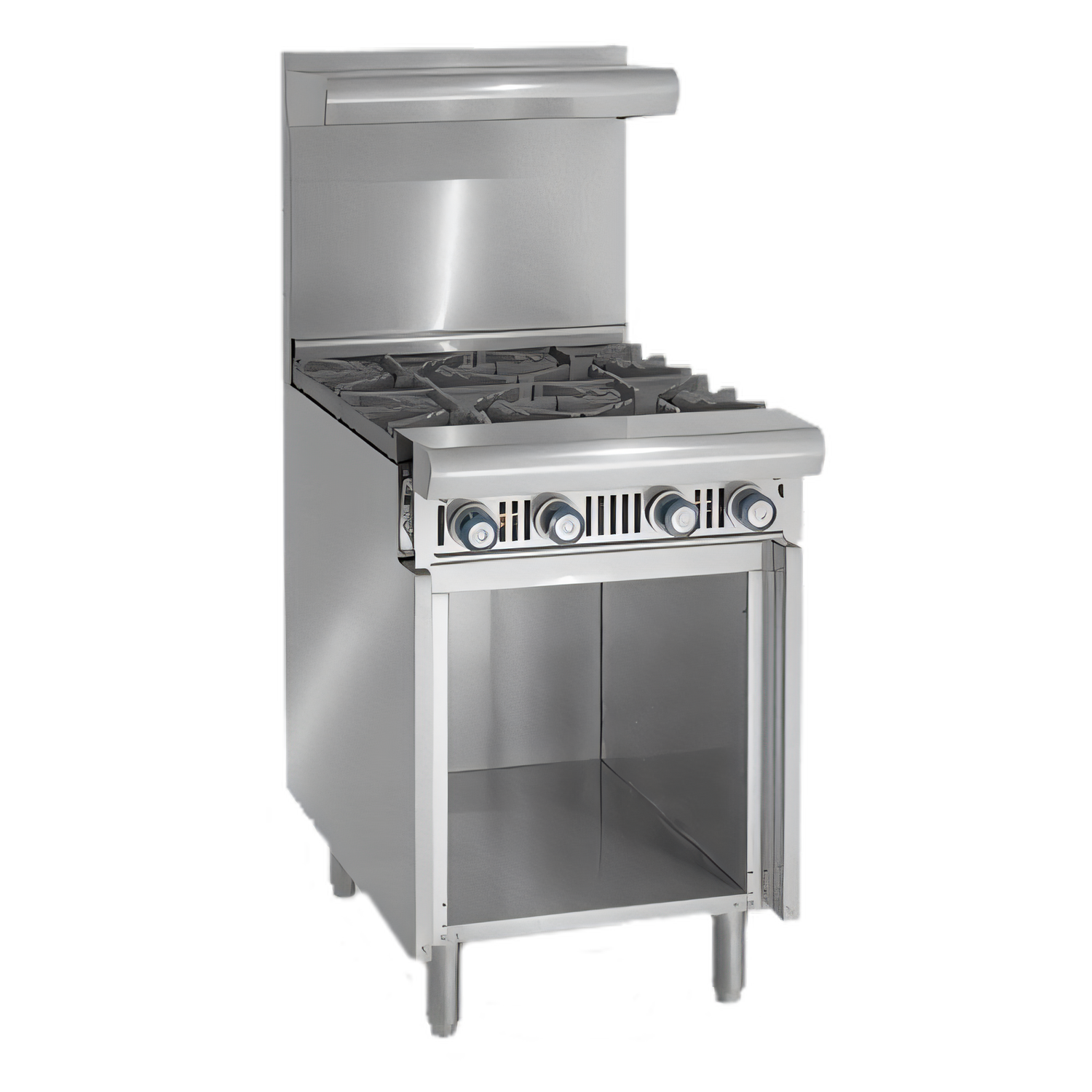

Imperial Spec Series 18" Add-A-Unit Gas Hot Top Range
Model IHR-1HT-18-XB | 40,000 BTU | Open Cabinet BaseDesigned for high-volume kitchens that need big-range performance in a compact footprint, the Imperial Spec Series 18" Hot Top Range delivers an even, 40,000 BTU heat blanket across a heavy-duty polished plate. Pair it with other Spec Series Add-A-Units for a seamless cookline, or use it as a stand-alone powerhouse with convenient under-shelf storage.
Why You’ll Love It
- 40,000 BTU “U”-shaped burner provides fast, even heat and rapid recovery.

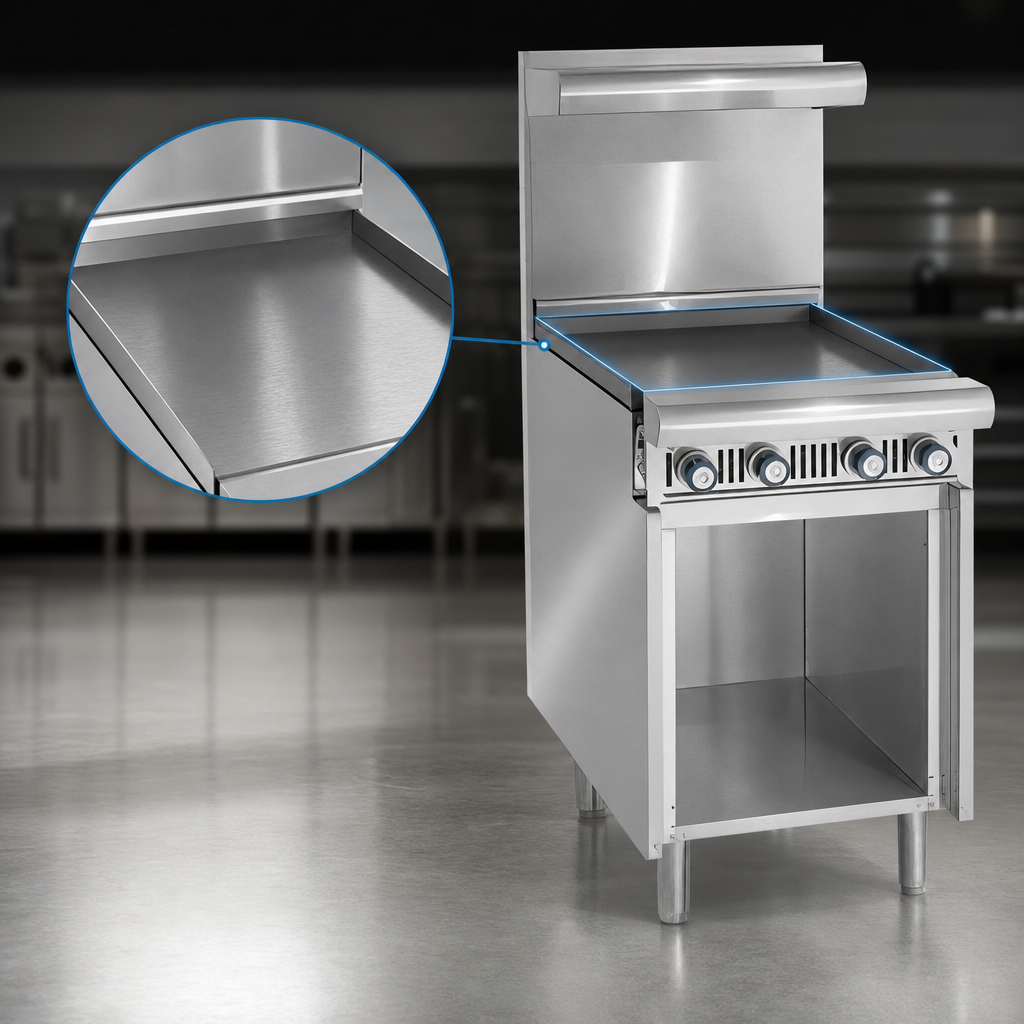

- One-piece 18" W x 28" D hot top plate is highly polished for excellent contact and easy cleanup.
- Open cabinet base with a stainless steel bottom shelf keeps sheet pans and cookware within reach.
- Full-width removable crumb tray simplifies end-of-shift maintenance.
- Manual gas controls give operators straightforward, responsive heat adjustment.
- All-stainless exterior (front, sides, landing ledge, backguard & kick plate) stands up to daily wear and tear.
- 7" (178 mm) landing ledge creates extra plating space in the cookline.
- 6" stainless steel legs with adjustable feet level the unit on any surface.
- Certified cETLus & NSF for safe, code-compliant operation.
Technical Specs
| Model | IHR-1HT-18-XB |
|---|---|
| Gas Type | Natural or Propane (field convertible) |
| Total BTU | 40,000 BTU/hr (12 kW) |
| Cooking Surface | 18" W × 28" D polished hot top plate (457 × 711 mm) |
| Overall Width | 18" (457 mm) |
| Overall Depth | 38" (965 mm) |
| Overall Height | 41" (1041 mm) to top of backguard |
| Gas Connection | 3/4" NPT rear or 1-1/4" front manifold |
| Manifold Pressure | 5.0" W.C. (Natural) | 10.0" W.C. (LP) |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor (factory authorized service) |
Perfect For
- Restaurants and hotel kitchens building a modular cook suite
- High-output sauté, sauce or holding stations
- Caterers and commissaries needing extra hot-top capacity without sacrificing space
Need extra peace of mind? Imperial backs every Spec Series range with a full one-year, on-site parts & labor warranty when serviced by an authorized Imperial agency.
