Imperial (Middleby) IHR-1HT-12-M Spec Series Gas Ranges
Description
Imperial Spec Series™ 12" Modular Hot Top Add-A-Unit

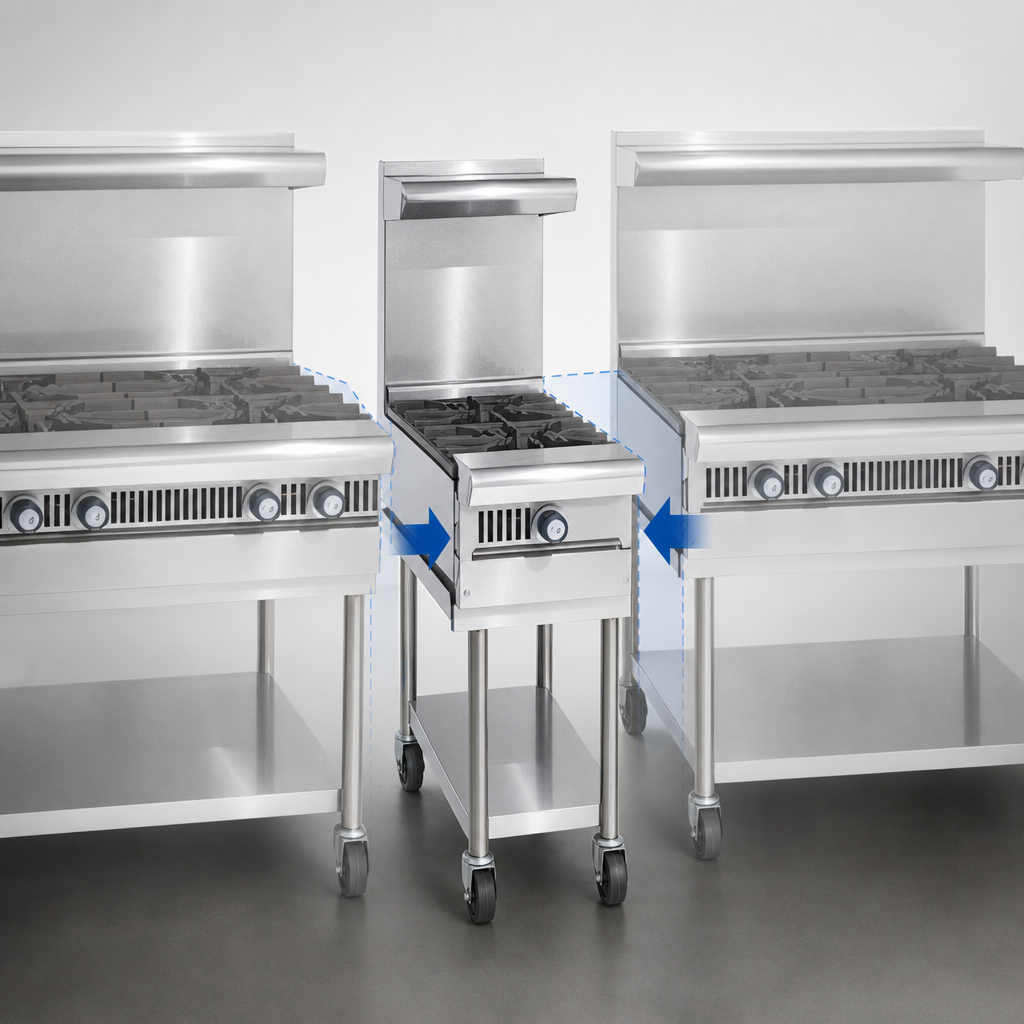

Model IHR-1HT-12-M | 30,000 BTU (9 kW)Build the cook line you’ve always wanted—one powerful 12" section at a time. This Spec Series Hot Top delivers even, concentrated heat on a heavy-duty polished plate, while its modular “Add-A-Unit” design integrates seamlessly with other Imperial Spec Series components for a perfectly level, high-performance lineup.
Why You’ll Love It
- Heavy-duty 12" W x 28" D polished hot top plate provides uniform heat across the entire surface.
- High-efficiency “U”-shaped burner delivers 30,000 BTU/h (9 kW) with fast heat recovery.
- Manual infinite valve controls paired with cool-touch cast-aluminum knobs.
- 7" (178 mm) deep stainless steel landing ledge for plating, pans, and utensils.
- All stainless steel front, sides, backguard, shelf, and kick plate resist corrosion and wipe clean easily.
- Full-width removable crumb tray speeds up end-of-shift cleanup.
- 3/4" rear gas connection for stand-alone use & 1-1/4" front gas manifold for line-ups.
- cETLus & NSF listed for safety and sanitation.
At-a-Glance Specs
| Model | IHR-1HT-12-M |
|---|---|
| Type | Countertop / Modular Hot Top “Add-A-Unit” |
| Total Heat Input | 30,000 BTU/h • 9 kW |
| Cooking Surface | 12" W × 28" D (305 × 711 mm) polished plate |
| Overall Dimensions | 12" W × 30" D × 11" H (305 × 762 × 279 mm) |
| Gas Inlet | 3/4" NPT (rear); 1-1/4" NPT front manifold |
| Manifold Pressure | Natural Gas 5" W.C. | Propane 10" W.C. |
| Ship Weight | ≈ 155 lb (70 kg) |
| Certifications | cETLus, NSF |
| Warranty | 1 year parts & labor (factory authorized service) |
Installation Notes
- Unit is shipped for Natural Gas; field convertible to LP.
- Provide 0" clearance to non-combustible surfaces and 6" (152 mm) to combustible surfaces.
- Factory-supplied 3/4" pressure regulator required (not included).
Always refer to the current Imperial installation manual and local codes before installing.
Peace-of-Mind Warranty
Imperial backs this unit with a 1-year parts & labor warranty when serviced by an authorized Imperial agency.
