Imperial (Middleby)

Imperial Spec Series Heavy-Duty 36-Inch Gas French Top Range with Open Cabinet Base, 35,000 BTU

SKU: IHR-1FT-XB
$7,508.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Imperial (Middleby) New Arrivals Ranges Restaurant Equipment

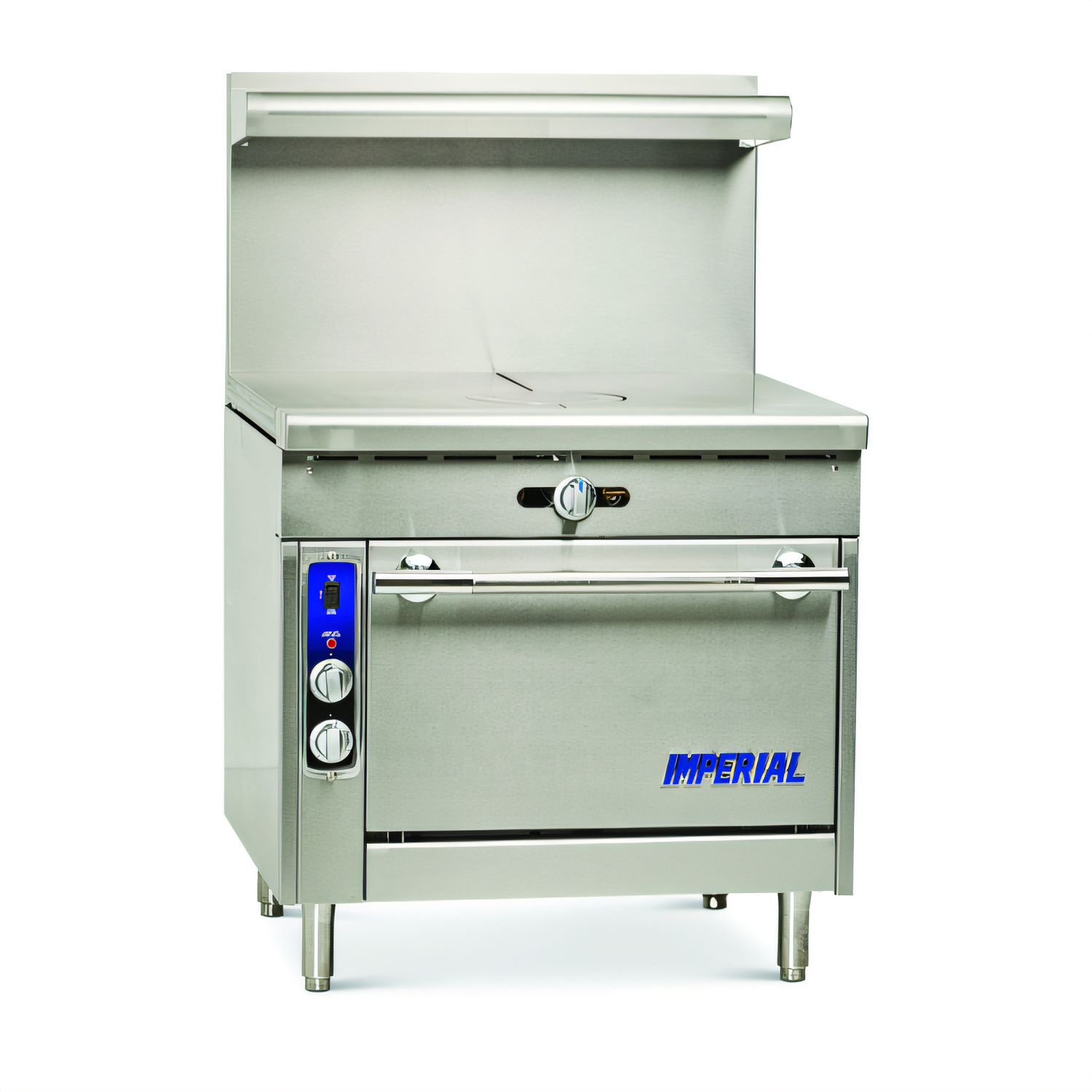

Imperial Spec Series Heavy-Duty 36-Inch Gas French Top Range with Open Cabinet Base, 35,000 BTU

Manual controls, cast-iron ring and lift-off cover, stainless steel exterior

Built for high-heat cooking and controlled simmering, this 36-inch French top range combines a 35,000 BTU cast-iron burner with a rugged open cabinet base.

  • Single 36-inch gas French top with a cast-iron ring burner and lift-off cover.
  • 35,000 BTU output with heat that tapers toward the rear for simmering.
  • Open cabinet base with bottom shelf adds convenient under-range storage.
  • Stainless steel front, sides, backguard, landing ledge, and kick plate for durability.
  • Manual gas controls and standing pilot simplify day-to-day operation.
  • Heavy-duty 6-inch legs with adjustable feet help level the range during installation.

Overall Dimensions:

36.0"W x 38.0"D x 42.0"H

Product Weight:

588.0 lb

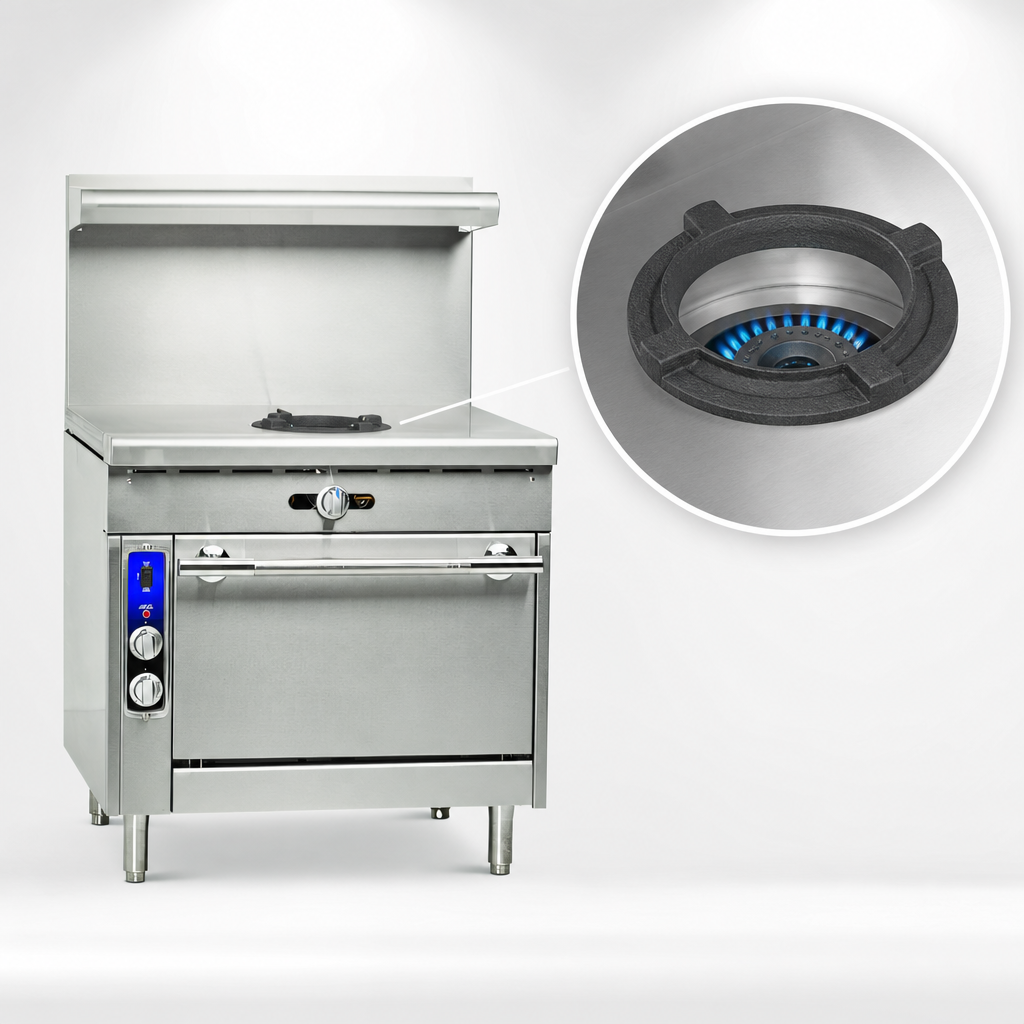

Cast-Iron French Top Ring

Circular cast iron ring is positioned directly over the burner for concentrated heat and even cooking.

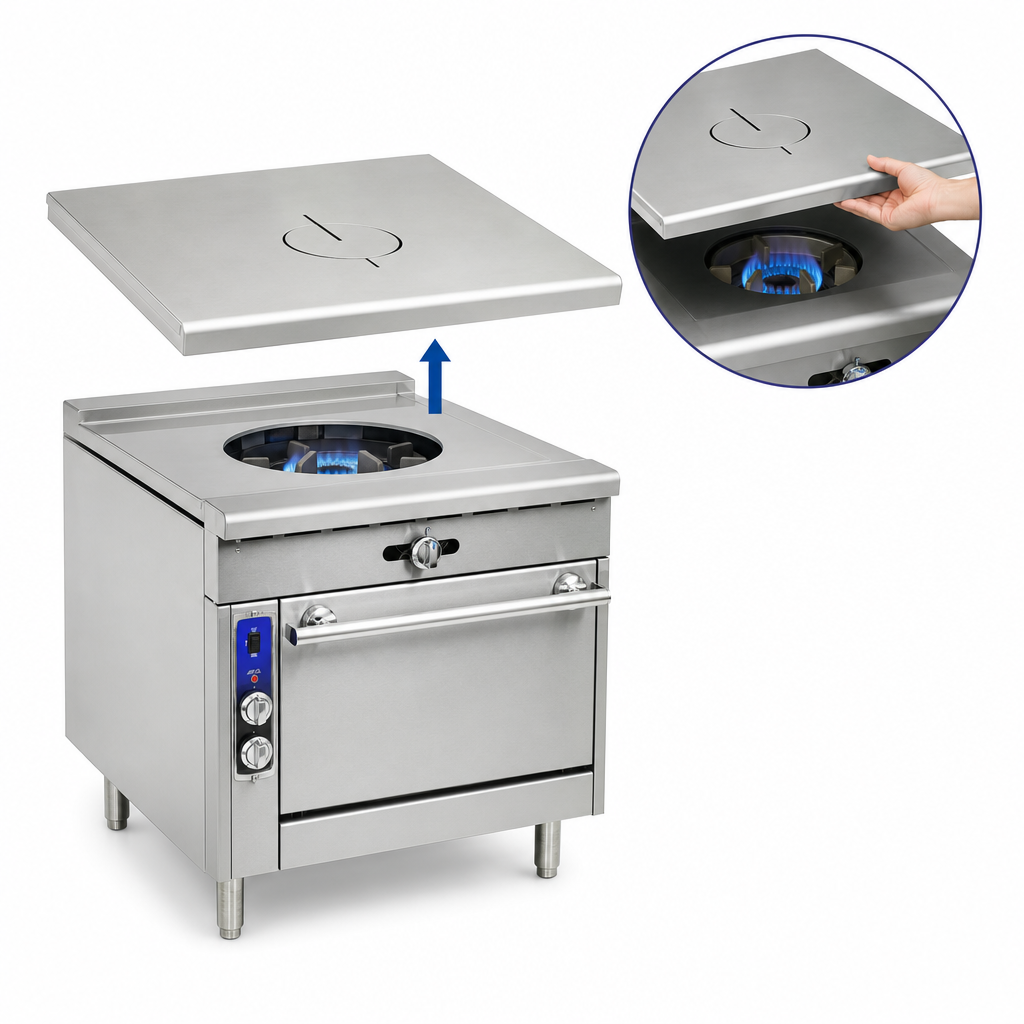

Lift-Off Cover

Removable cover allows pans to be placed directly over the open flame when needed.

35,000 BTU Burner Output

Single burner output for the IHR-1FT-XB model delivers strong heat for searing and fast cooking.

Manual Burner Controls

Each burner uses an adjustable gas valve and standing pilot for straightforward operation.

Heat-Zoned Cooking Surface

Temperatures gradually reduce toward the rear of the top, creating a built-in simmering area.

Open Cabinet Base with Bottom Shelf

Provides accessible storage below the cooking top and includes a bottom shelf.

Stainless Steel Exterior Package

Front, sides, backguard, landing ledge, and kick plate are stainless steel for durability and easier cleaning.

Heavy-Duty Adjustable Legs

6-inch legs with adjustable feet help stabilize and level the unit on the floor.

Rear Gas Connection

Designed with a 3/4-inch rear gas connection and enclosed front manifold for installation flexibility.

Type Range
Style French Top
Installation Type Floor Model
Controls Manual
Material Stainless Steel
BTU 35,000 BTU
Gas Connection Size 3/4 Inch NPT
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model has one cast iron ring burner rated at 35,000 BTU/hr.
Yes. It includes circular cast iron rings and lift-off covers.
It is equipped with an open cabinet base and bottom shelf.
It is for use only on non-combustible floors. Provide 0" clearance from non-combustible surfaces and 8" from combustible surfaces.
The product includes a one-year parts and labor warranty to the original purchaser under normal use and service.
