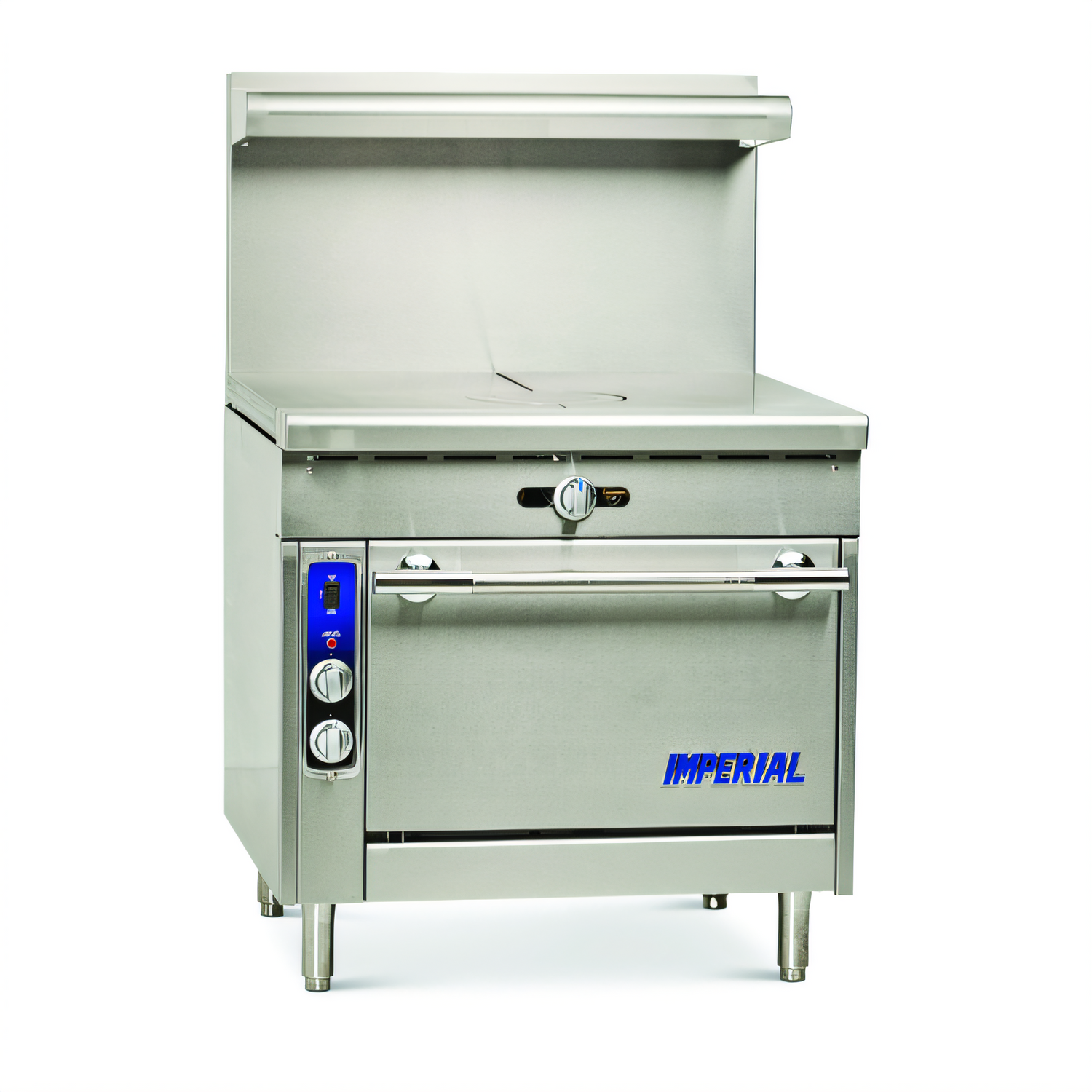

Imperial (Middleby) IHR-1FT Spec Series Gas Ranges
Description
Imperial Spec Series 36" Gas French Top Range w/ Standard Oven – 75,000 BTU
Model IHR-1FT | SKU 4528Engineered for the high-volume kitchen, the Imperial Spec Series 36" French Top Range delivers intense searing heat, gentle simmer zones, and a chef-depth standard oven—all within a rugged, all-stainless chassis. Precise manual controls and industry-leading construction make this the dependable workhorse your line has been waiting for.

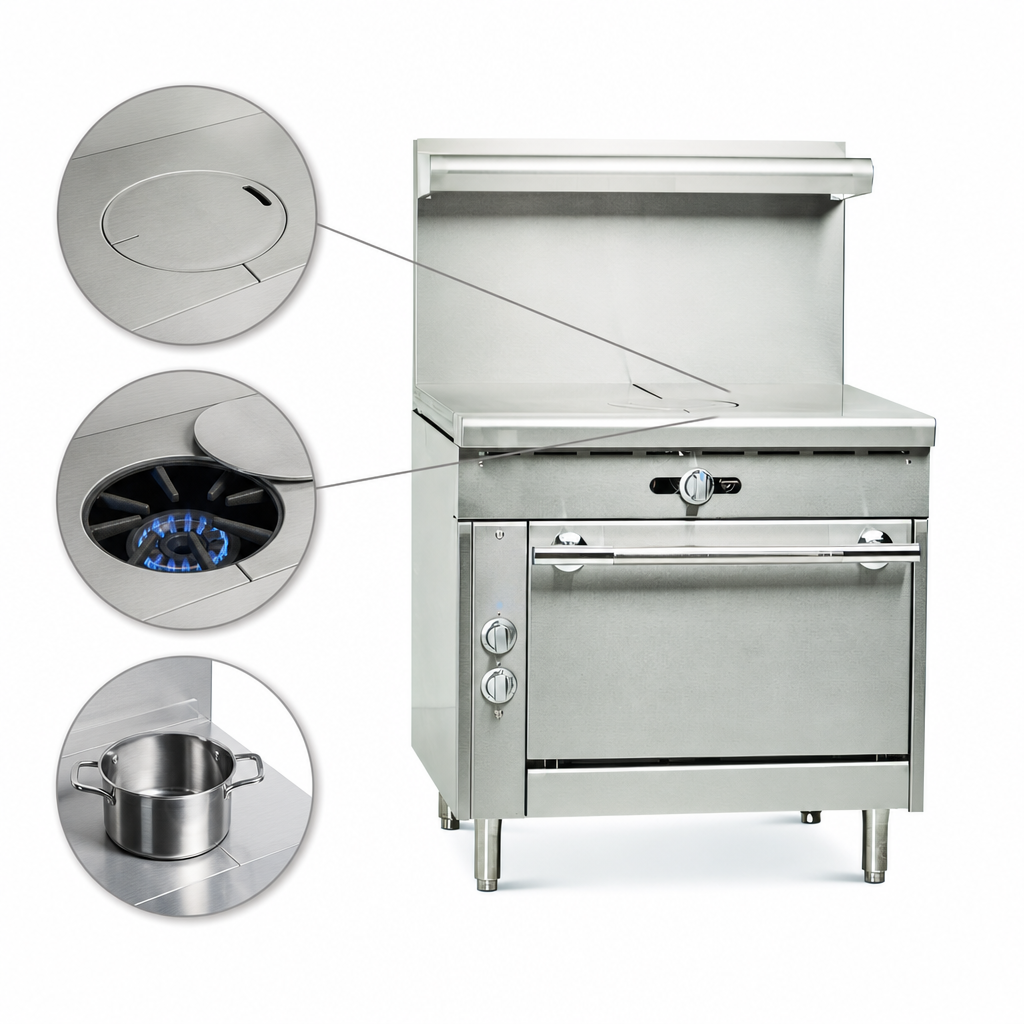

French Top Highlights
- Circular cast-iron ring & lift-off center cover sit directly above the burner for rapid heat transfer.
- 35,000 BTU ring burner; remove the cover for direct-flame wok or skillet work.
- 18" W × 28" D (457 × 711 mm) plate tapers in temperature from front to rear—perfect for holding & simmering.
- Cast-in heat-retaining fins below the plate diffuse heat evenly across the surface.
- Manual gas valve & standing pilot provide instant, electricity-free ignition.
Standard Oven Performance
- 40,000 BTU bake burner with 100 % safety pilot & manual shut-off.
- Patented burner baffle & heat deflector create uniform cavity temperatures.
- Chef-depth interior: 26½" W × 26" D × 14" H fits 18" × 26" sheet pans left-to-right or front-to-back.
- Porcelainized sides, rear, deck & door liner clean up quickly.
- Heavy-duty door hinge built to stay true and level under constant use.
- One chrome rack included; six rack positions maximize capacity.
Construction & Convenience
- Stainless steel front, sides, 5" landing ledge, 22" backguard & kick plate resist corrosion.
- Welded & polished seams for a sleek, sanitary finish.
- Cool-touch cast-aluminum knobs with heat-shield grips.
- 6" (152 mm) heavy-duty legs with adjustable feet for easy leveling.
- 3/4" rear NPT gas connection; enclosed 1-1/4" front manifold simplifies battery line-ups.
- cETLus & NSF listed for safety and sanitation compliance.
Specifications
| Cooktop | One 36" cast-iron French top with removable ring & cover |
|---|---|
| Total Input | 75,000 BTU/hr (35,000 BTU top + 40,000 BTU oven) |

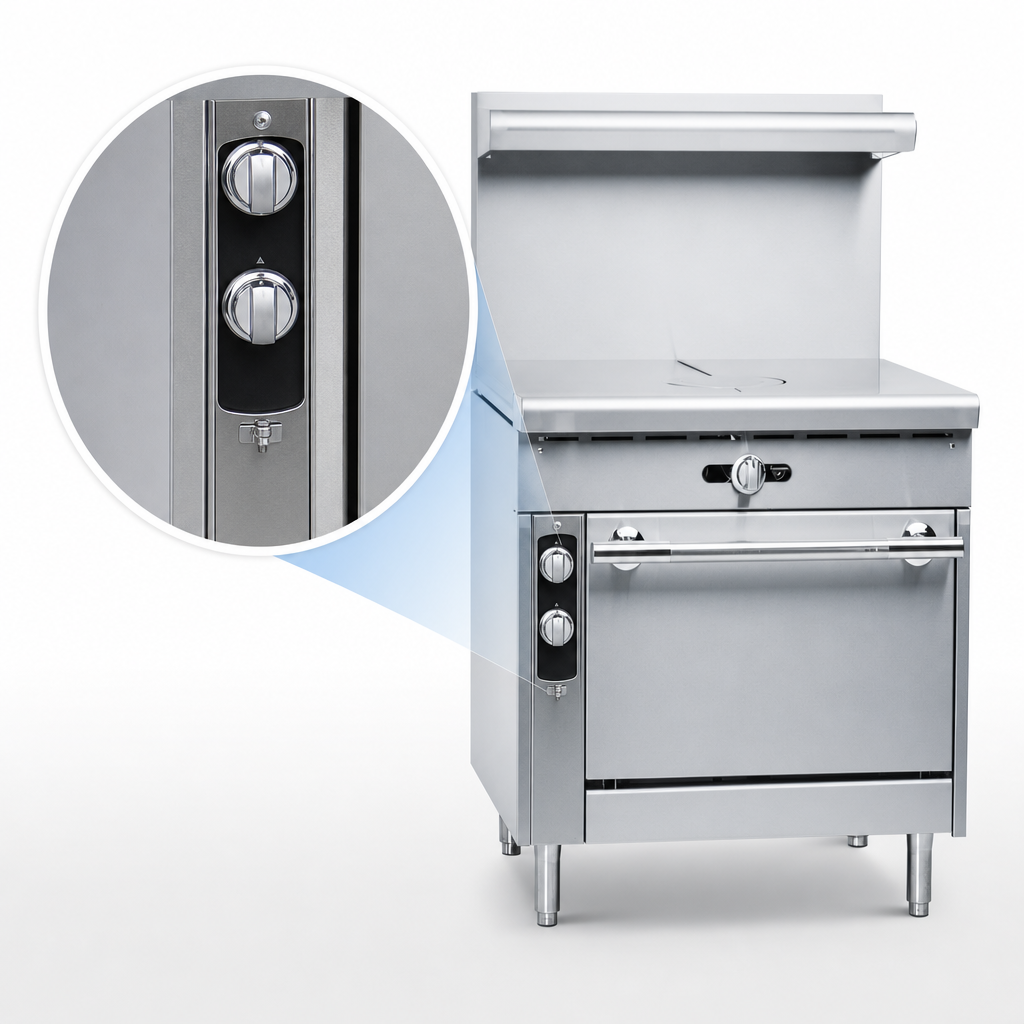

| Controls | Manual gas valves & standing pilots (no electrical hookup required) |
| Exterior Dimensions | 36" W × 38" D × 36" H to cooktop (914 × 965 × 914 mm) |
| Oven Interior | 26½" W × 26" D × 14" H (673 × 660 × 356 mm) |
| Rack Positions / Included Racks | 6 / 1 chrome rack |
| Shipping Weight | Approx. 718 lb (326 kg) |
| Gas Connection | 3/4" rear NPT |
| Certifications | cETLus, NSF |
Popular Options & Accessories
- Stainless steel oven interior
- High-mass cast-iron oven interior with 650 °F thermostat
- Stainless common landing ledge (54", 72", 90", 108") for battery set-ups
- Heavy-duty stainless backguards or overshelves
- Salamander / cheesemelter mounting channels
- Extra chrome oven racks
- Quick-disconnect & flexible gas hose kits
- 6" (152 mm) locking casters
Specifications are subject to change without notice. Always consult the installation manual and local codes before setting or operating equipment.
