Imperial (Middleby) IHR-1FT-M Spec Series Gas Ranges
Description
Imperial Spec Series 36" Modular French Top Range – 35,000 BTU
Model IHR-1FT-M | cETLus & NSF CertifiedBuilt for the rigors of high-volume commercial kitchens, Imperial’s Spec Series modular French top delivers intense central heat and a gentle perimeter simmer in one space-saving 36 inch footprint. The heavy-duty cast-iron plate with concentric ring and lift-off cover gives you unrivaled versatility for searing, sautéing, holding and finishing — all while the stainless steel chassis stands up to daily abuse.
Key Features

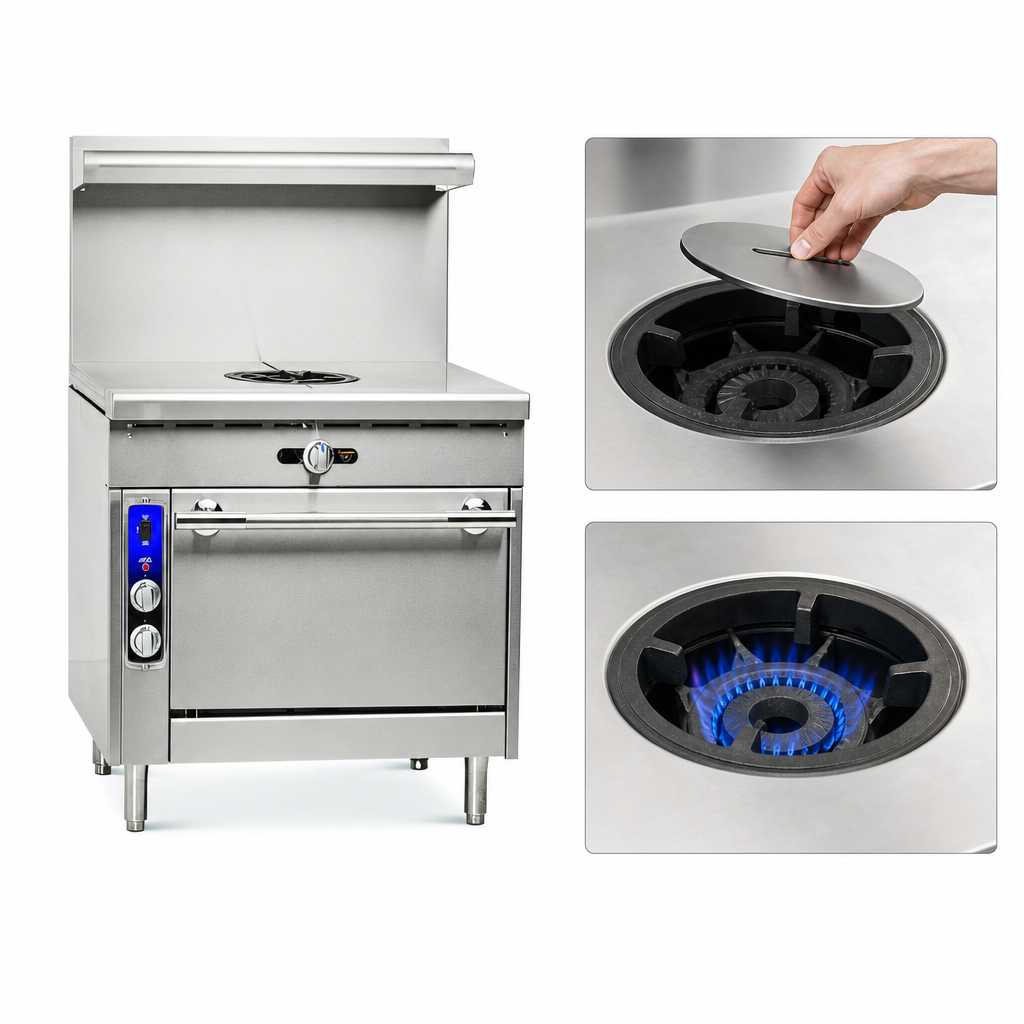

- Single 36" circular French top with cast-iron ring & removable lift-off center cover

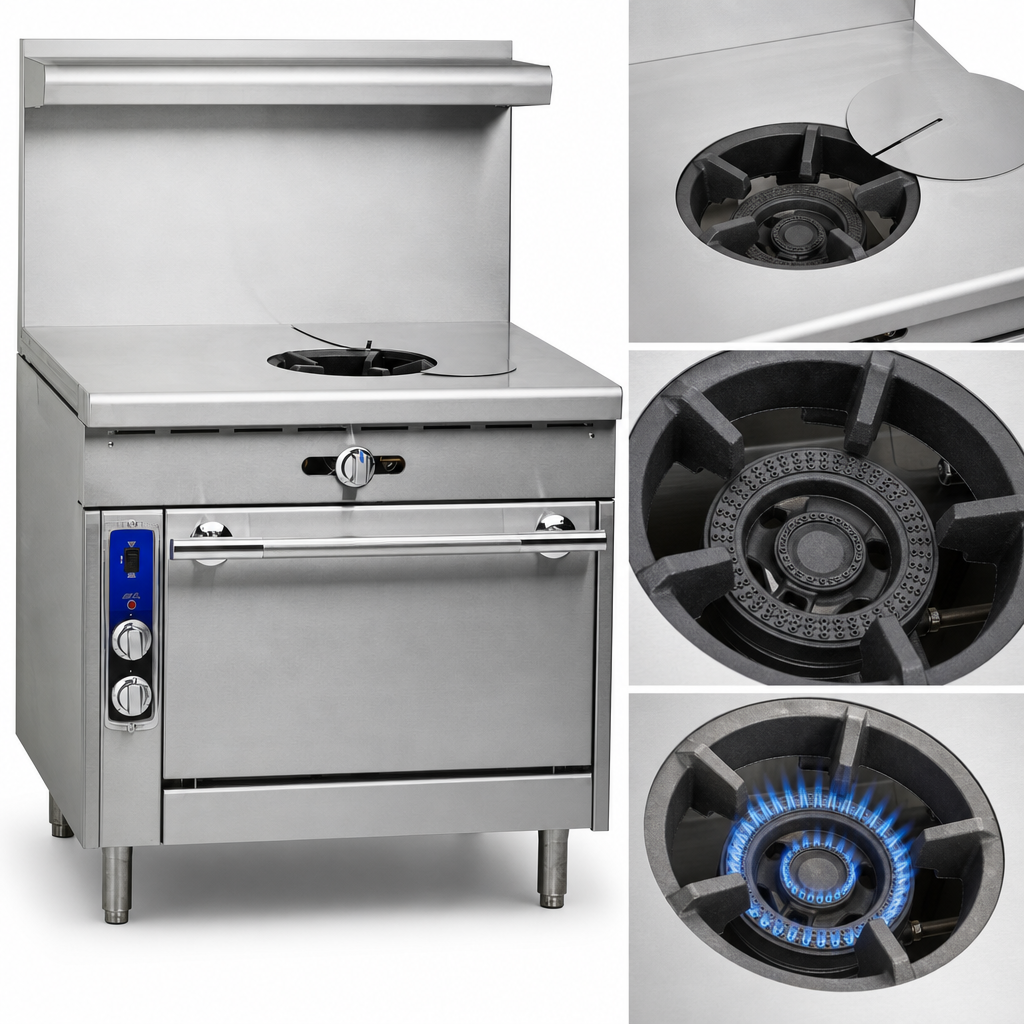

- 35,000 BTU heavy-duty cast-iron burner located directly under the ring for maximum surface heat
- Natural heat gradient — rolling boil in the center, low simmer toward the edges
- Pots may be placed directly over the open flame when the cover is removed for wok or stock-pot work
- Manual gas valve with standing pilot for instant ignition and infinite heat adjustment
- Durable cast-aluminum control knob with heat-shield grip
- 5" (178 mm) deep stainless steel landing ledge keeps plating area cool and clutter-free
- Stainless steel front, sides, backguard and welded seams for easy wipe-down
- Rear 3⁄4" NPT gas connection with 1-1/4" front manifold for single-point hook-up
- Ships as a modular / counter-top unit — perfect for suites, chef lines or custom stands
Specifications
| Gas Input | 35,000 BTU/hr (10 kW) |
|---|---|
| Gas Type | Natural or Propane (field convertible) |
| Manifold Pressure | 5.0" W.C. NG | 10.0" W.C. LP |
| Exterior Dimensions | 36" W × 38" D × 11 ¾" H* |
| Cooking Surface | Cast-iron plate Ø 36" with concentric ring |
| Controls | Manual valve, standing pilot |
| Construction | Stainless steel front, sides, landing ledge & backguard |
| Ship Weight | Approx. 413 lb (188 kg) |
| Certifications | cETLus, NSF |
| Warranty | 1 year parts & labor (see details below) |
*Height shown for modular countertop model. Overall height will vary when mounted on a base, stand or equipment suite.
Included With Your Range
- Heavy-duty heat-retaining cast-iron French plate with removable ring cover
- 3⁄4" rear gas pressure regulator
- Factory-installed standing pilot assembly
- User & installation manual
Imperial Limited Warranty
Imperial backs this Spec Series range with a one-year parts & labor warranty. Service must be performed by an authorized Imperial service agency — see warranty statement shipped with unit for full terms.
