Imperial (Middleby)

Imperial Spec Series 36-Inch Heavy Duty Gas French Top Range with Convection Oven

SKU: IHR-1FT-C
$14,373.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

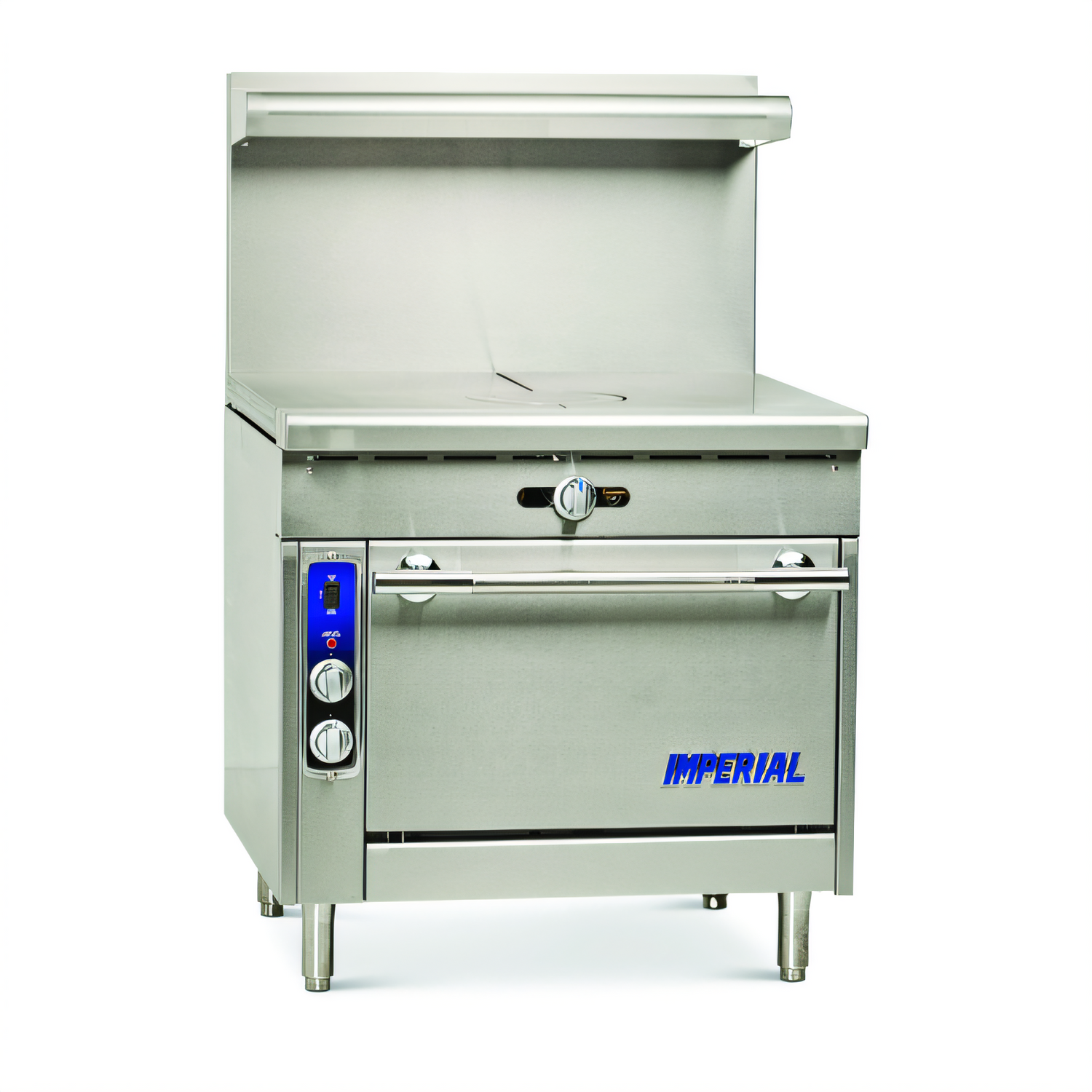

Imperial Spec Series 36-Inch Heavy Duty Gas French Top Range with Convection Oven

Single French Top, 1/2 HP Blower Motor, Stainless Steel Exterior

This 36-inch range combines a cast-iron French top and a convection oven to give chefs direct-flame versatility and even baking in one durable footprint.

  • 70,000 BTU total output powers a cast-iron French top and convection oven.
  • Single French top burner with circular cast iron ring and lift-off cover for direct open-flame cooking and simmering.
  • 35,000 BTU convection oven with 1/2 HP blower motor for fast, even results with less shrinkage.
  • Manual burner controls, electronic ignition, and one-hour timer for straightforward operation.
  • Stainless steel front, sides, backguard, landing ledge, and kick plate for durability and easy cleaning.
  • Includes three chrome oven racks and adjustable 6-inch legs.

Overall Dimensions:

36.0"W x 38.0"D x 42.0"H

Product Weight:

758.0 lb

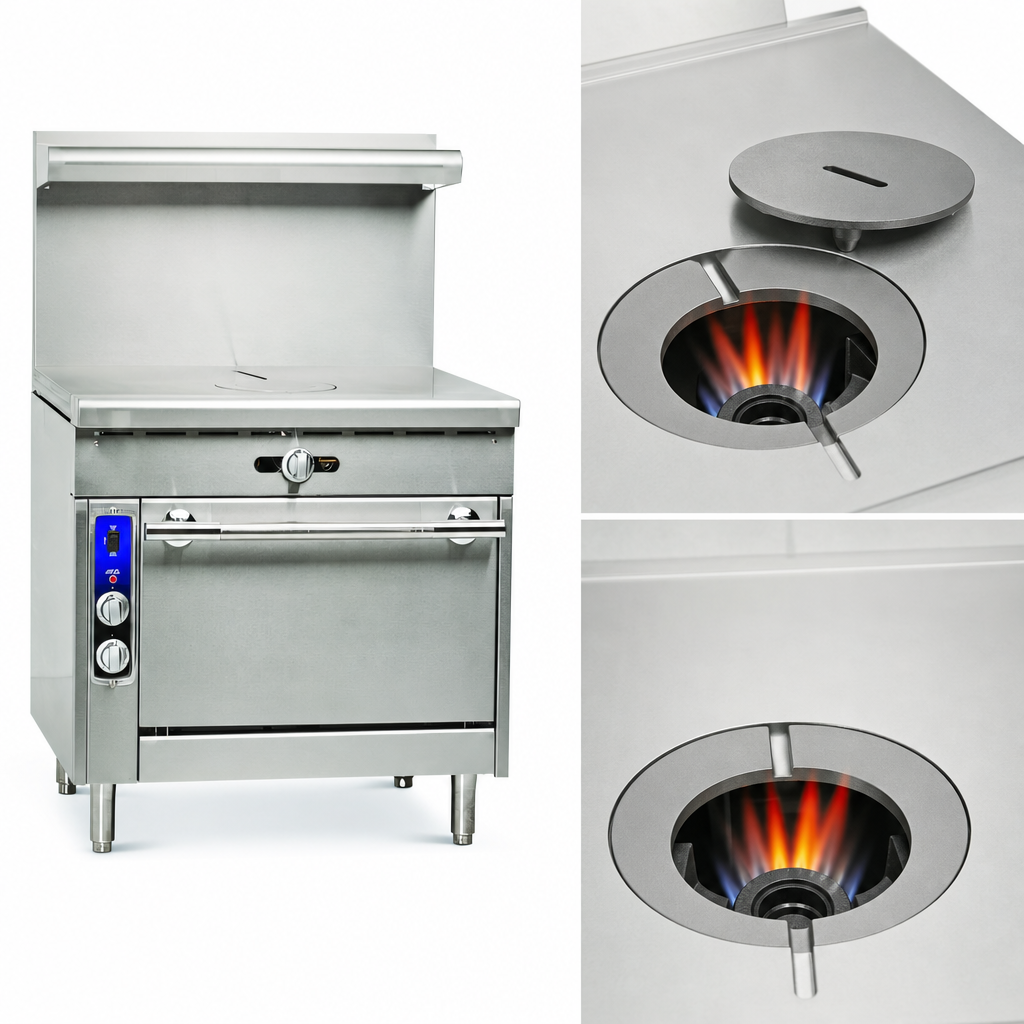

Cast-Iron French Top

One cast iron ring burner with lift-off cover lets you cook directly over open flame; temperatures taper toward the rear for simmering.

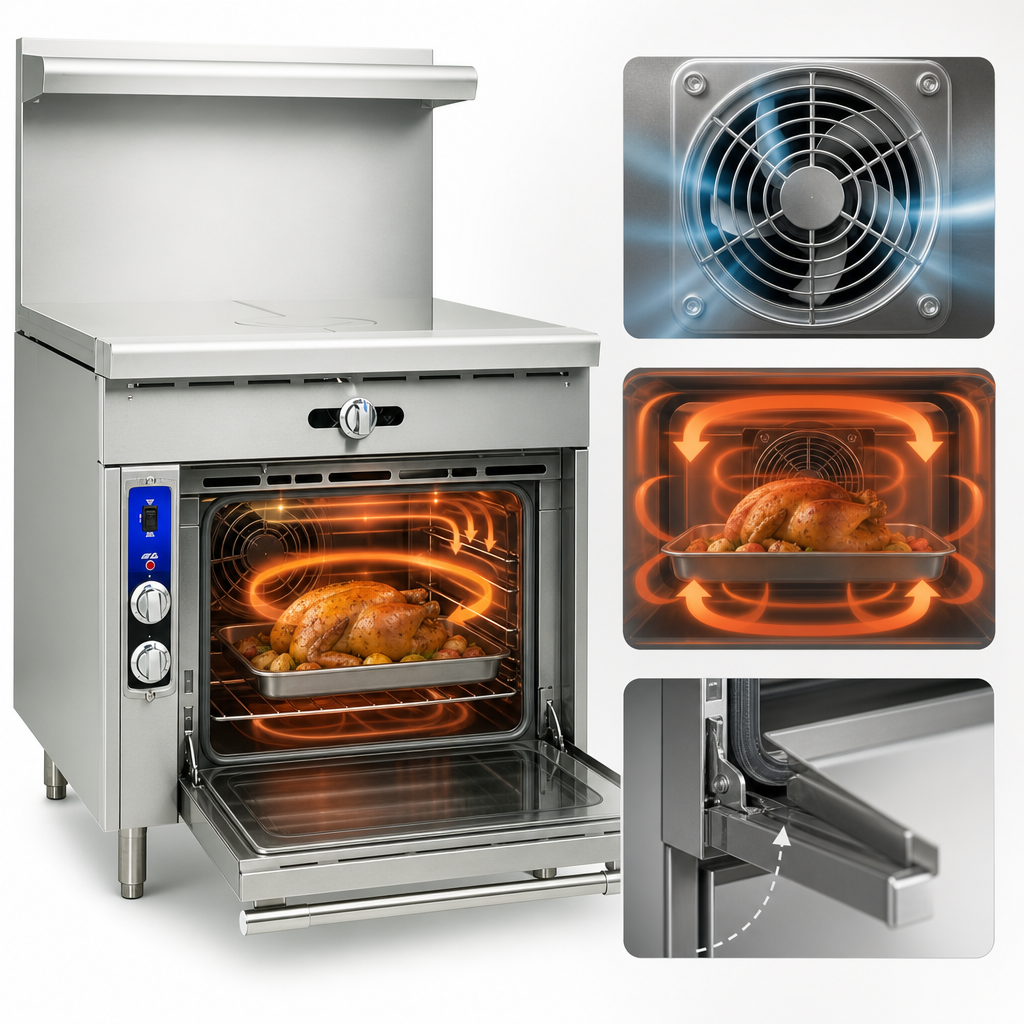

Convection Oven System

35,000 BTU/hr oven with 1/2 HP blower motor cooks quickly and evenly with less shrinkage; fan shuts off automatically when the door opens.

Electronic Ignition and Timer

Radiant solenoid valves, burner ON indicator light, and one-hour electronic timer support efficient operation.

Manual Burner Control

Adjustable gas valve and standing pilot provide direct control of the French top burner.

Stainless Steel Exterior

Stainless steel front, sides, backguard, shelf, landing ledge, and kick plate with welded and polished seams.

Easy-Clean Interior

Porcelainized oven surfaces and stainless steel door gasket simplify cleanup.

Included Accessories

Three chrome oven racks are included standard.

Service-Friendly Build

6-inch heavy-duty legs with adjustable feet, 3/4-inch rear gas connection, and 1-1/4-inch front manifold.

Type French Top Range
Style Heavy Duty
Installation Type Floor Model
BTU 70,000 BTU
Gas Connection Size 3/4 Inch NPT Rear Connection
Voltage 120 Volts
Amps 6 Amps
Phase 1-Phase
Controls Manual
Timer 1 Hour Electronic
Blower Motor 1/2 HP
Oven Interior Dimensions 26 1/2 Inches W x 22 1/2 Inches D x 14 Inches H
Material Stainless Steel
Interior Finish Porcelainized Steel
Shipping Width 38 1/2 Inches
Shipping Depth 41 Inches
Shipping Height 35 Inches
Shipping Weight 758 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It has one French top with a circular cast iron ring and lift-off cover for direct open-flame cooking.
The oven requires 120 Volts, 1-Phase, and 6 Amps.
The convection oven interior measures 26 1/2 Inches W x 22 1/2 Inches D x 14 Inches H.
Three chrome oven racks are included.
Use on non-combustible floors only. The unit requires 0 inches clearance from non-combustible surfaces and 8 inches from combustible surfaces.
