Imperial (Middleby)  |  SKU: IHPA-8-48SU

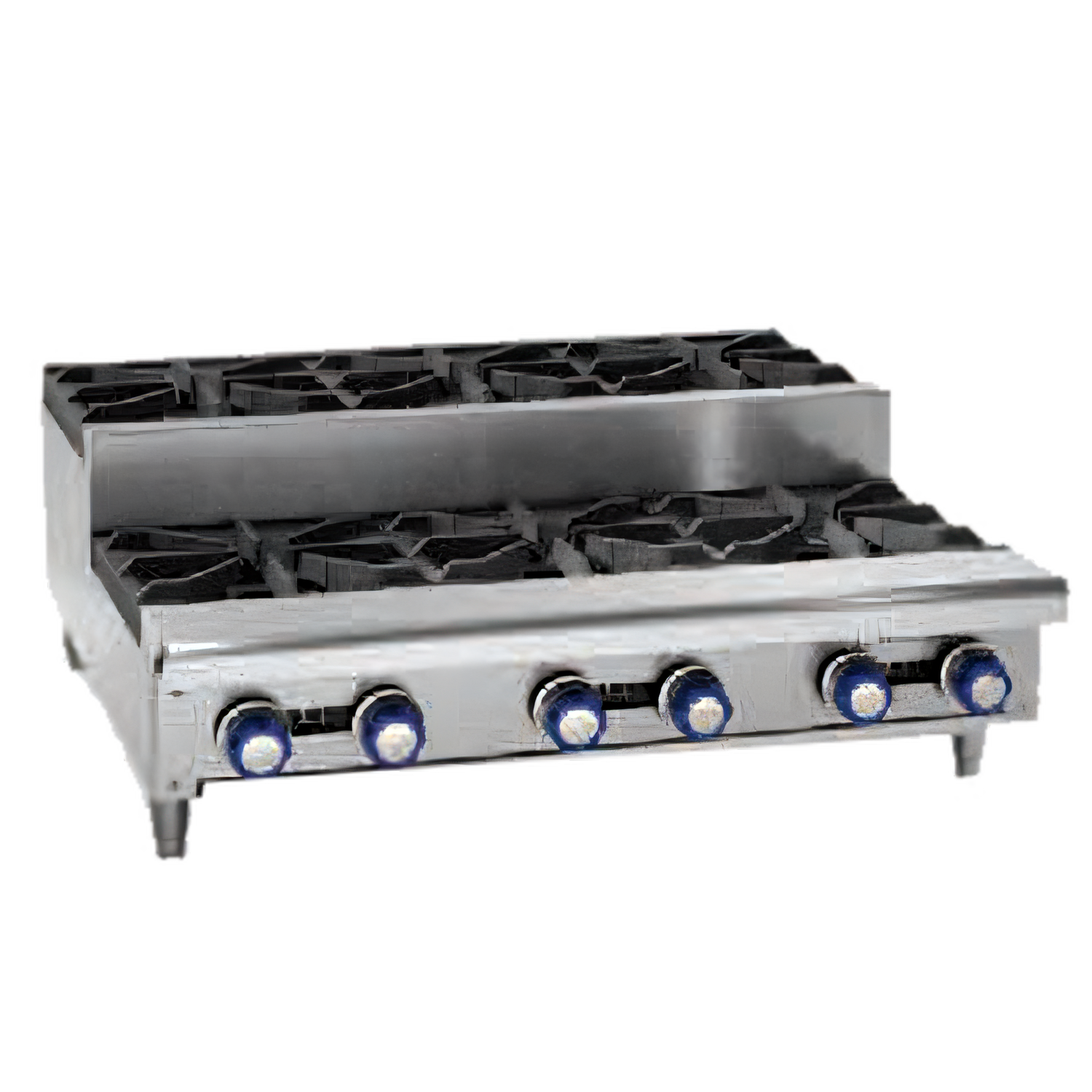

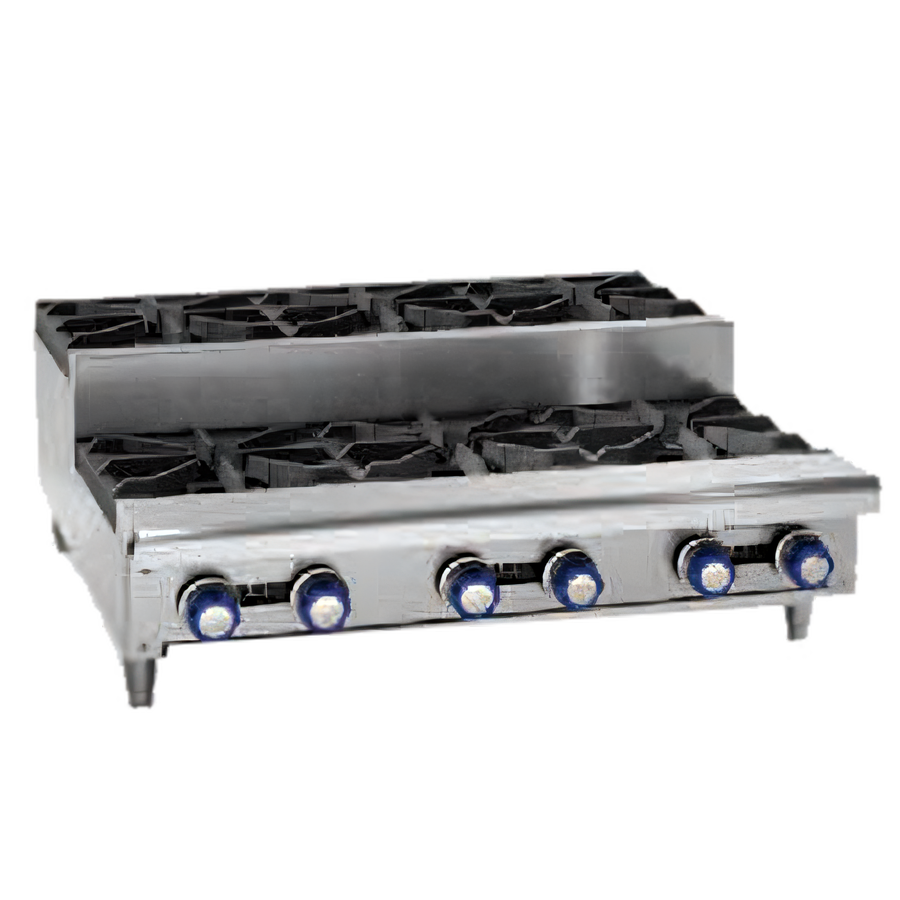

Imperial (Middleby) IHPA-8-48SU Hot Plates

$7,351.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Hot Plates Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Imperial IHPA-8-48SU Step-Up Gas Hot Plate – 48" W, 8 Open Burners, 256,000 BTU

Countertop power & versatility for busy commercial kitchens

Maximize production without sacrificing valuable line space. Imperial’s IHPA-8-48SU packs eight high-performance burners into a compact, two-tier design—delivering the speed, control and durability you need for all-day sautéing, searing and simmering.

Key Features

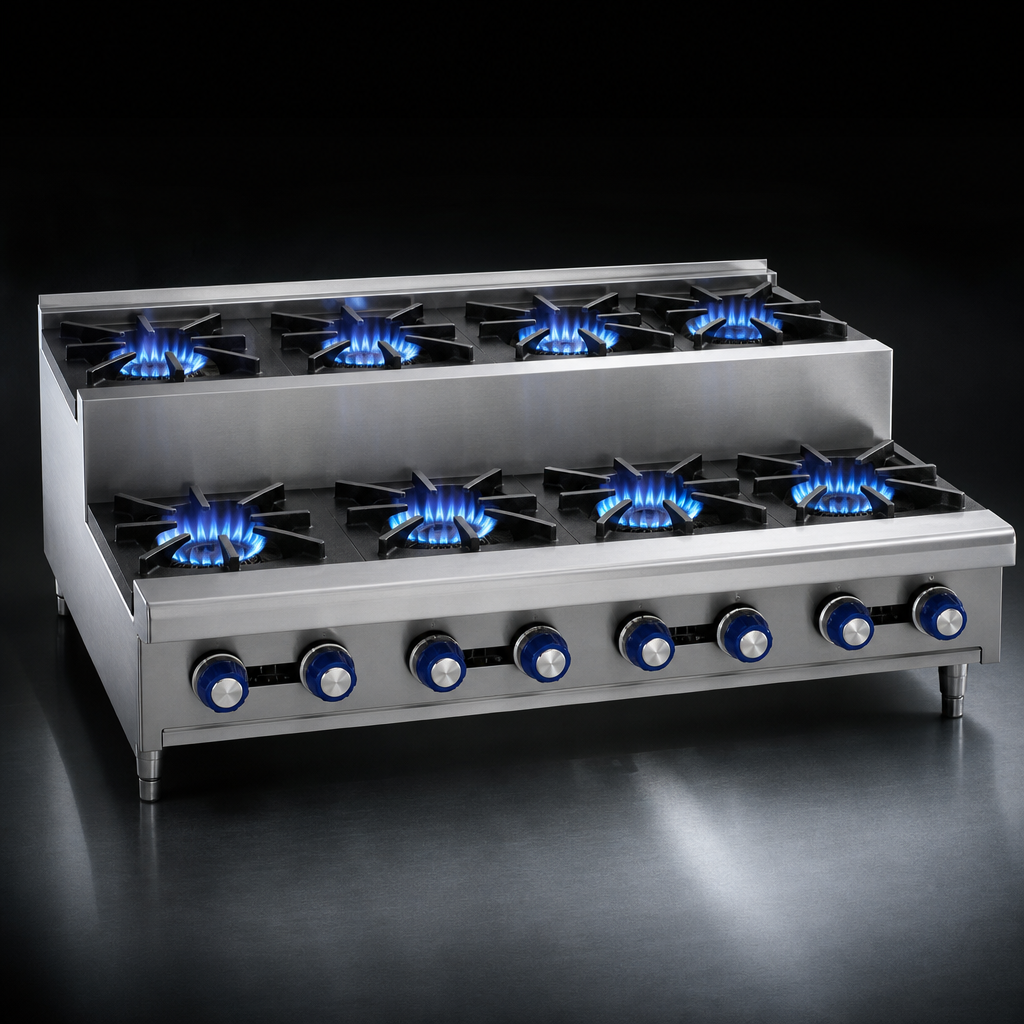

  • Dual-level cooking surface: (4) front burners at standard height plus (4) rear step-up burners for unobstructed access and pan visibility.
  • PyroCentric™ burners – 32,000 BTU each with a 7,000 BTU low-simmer setting; two rings of flame ensure even heat distribution.
  • Lift-off, gasket-free burner heads and heavy-duty cast-iron grates for fast, tool-free cleaning.
  • Integrated anti-clog pilots are shielded from grease and debris by the grate design.
  • 5" (127 mm) stainless-steel landing ledge provides a convenient plating & staging area.
  • Full-width removable crumb tray catches drips and debris, streamlining end-of-shift cleanup.
  • Durable die-cast metal control knobs; one standing pilot per burner for instant ignition.
  • All stainless-steel front, sides and ledge with welded & polished seams for a professional, easy-to-wipe finish.
  • 4" (102 mm) heavy-duty legs with adjustable feet keep the unit level on any countertop.

Performance at-a-Glance

Total Output 256,000 BTU/hr • 75 kW
Individual Burner Rating 32,000 BTU with 7,000 BTU simmer
Burner Count 8 open burners (4 front + 4 rear step-up)
Gas Type Natural or Propane (field convertible)
Manifold Pressure Natural 5.0" W.C. | Propane 10.0" W.C.
Gas Connection 3/4" NPT rear manifold

Dimensions & Weight

Width 48" (1219 mm)
Depth 31-3/8" (797 mm)
Height 14-3/4" (375 mm) – add 4" (102 mm) for legs
Shipping Weight 320 lb (145 kg)

Clearances & Installation

  • 0" clearance from non-combustible surfaces
  • 8" (203 mm) clearance from combustible surfaces
  • Ships ready for countertop use – optional stainless equipment stands, casters, wok rings, quick-disconnect hoses and shut-off valves available.

Certifications & Warranty

  • CSA Flame, CSA Star, NSF & CE listed for worldwide compliance.
  • Backed by Imperial’s limited 1-year parts & labor warranty.
Important: Installation and gas hookup must be performed by a licensed professional. Specifications are subject to change without notice.

Looking for easy ownership? Ask us about Middleby Equipment Financing and turn this purchase into fixed, affordable monthly payments.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

NSF, CE, CSA Star, CSA Flame

Height

15.13in

Width

48.0in

Depth

31.38in

Shipping Weight

320.0lbs

Burner Qty

(4) open burners, (4) step-up open burners

Legs

with legs

Width (side - side)

48 - 59"

Top and Front Finish

stainless steel front & sides

Specifications

Hotplate, gas, countertop, 48"W, (4) 32,000 BTU open burners, (4) 32,000 BTU step-up burners, cast iron grates, removable crumb tray, stainless steel front, sides & 5"D landing ledge, 4" legs with adjustable feet, 256,000 BTU, 75kW, CSA Flame, CSA Star, NSF, CE
