Imperial (Middleby) IHPA-6-36-E Hot Plates
Description

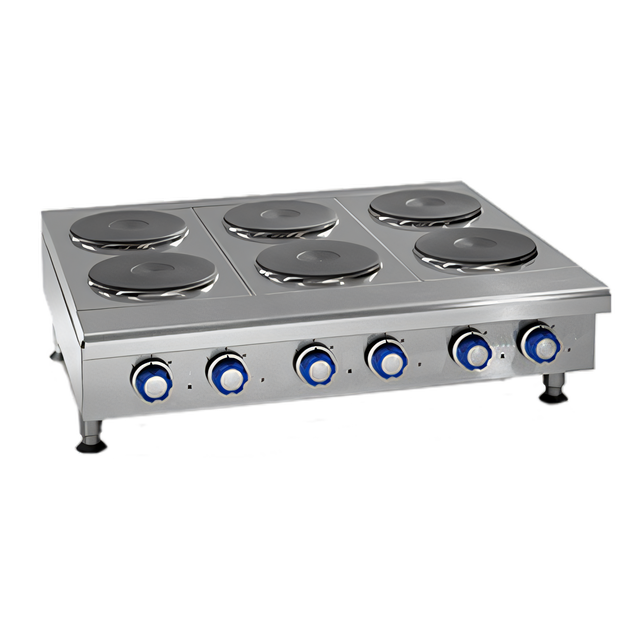

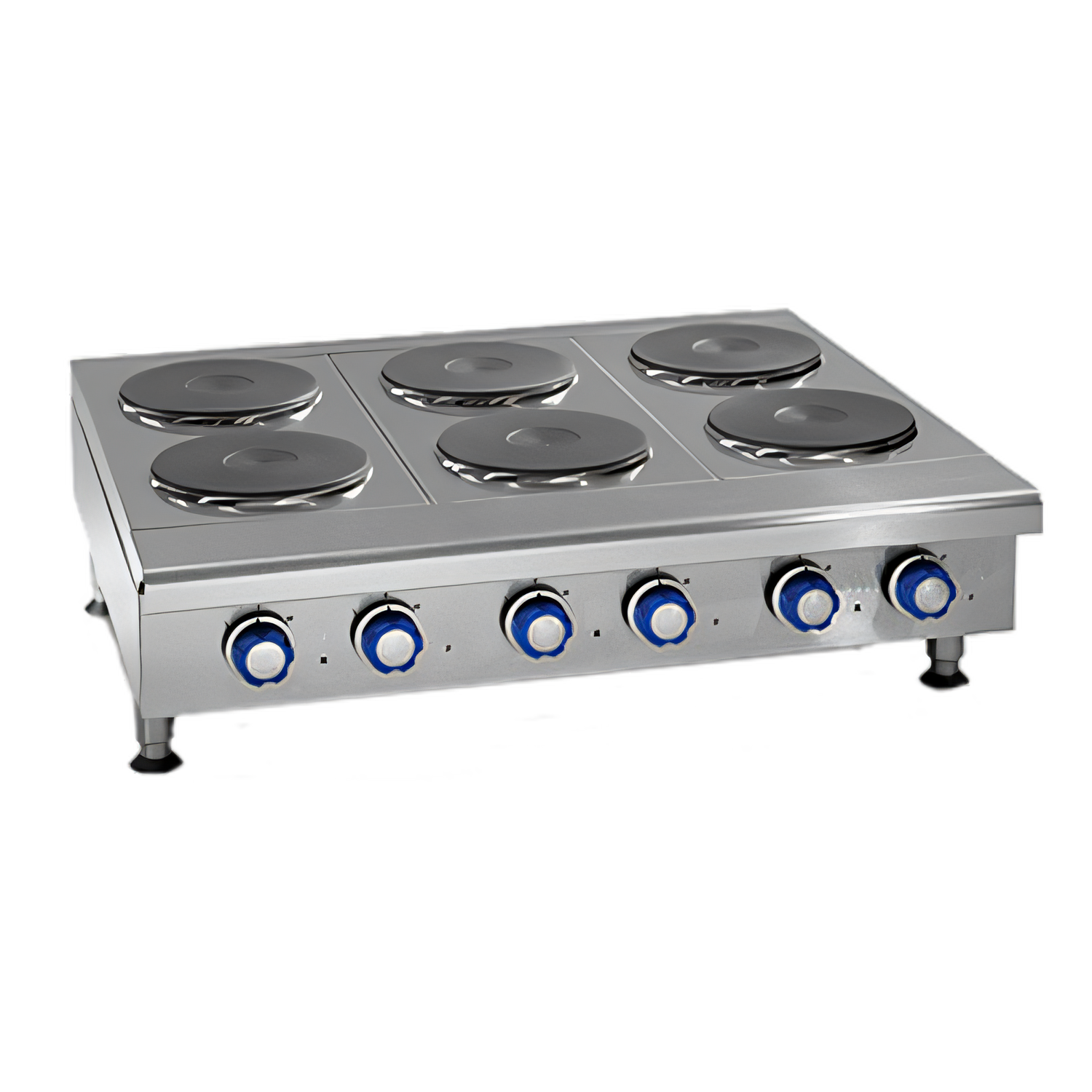

Imperial IHPA-6-36-E 36" Countertop Electric Hot Plate
6 × 9" sealed round plate elements • 12 kW total output • cETLus & ETL-SanitationDesigned to keep up with the busiest commercial kitchens, the Imperial IHPA-6-36-E delivers heavy-duty performance in a compact countertop footprint. Six 9-inch, 2 kW solid discs provide fast, even heat while an all-stainless exterior, welded seams and a spill-proof cooktop make clean-up a breeze.
Key Benefits

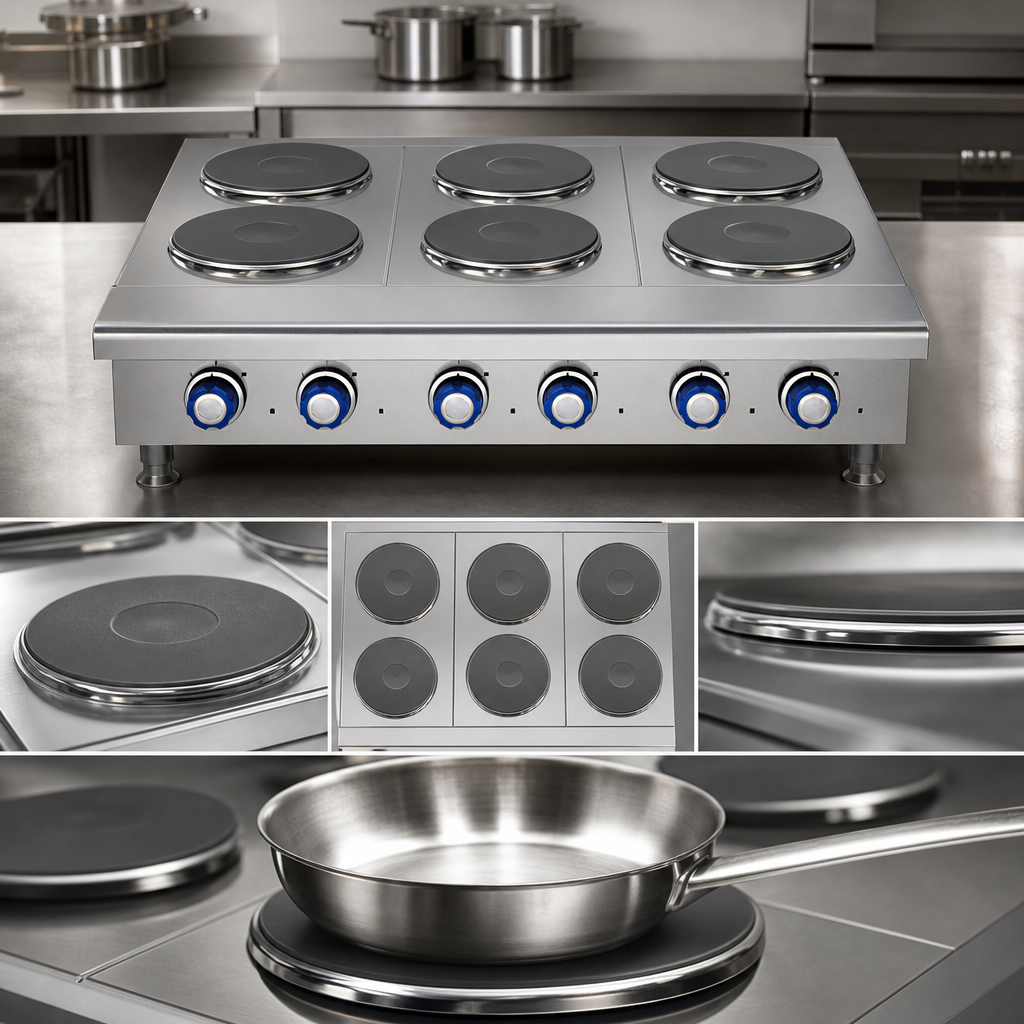

- Six 2 kW sealed round plate elements (9" Ø) for maximum pan contact and rapid recovery.

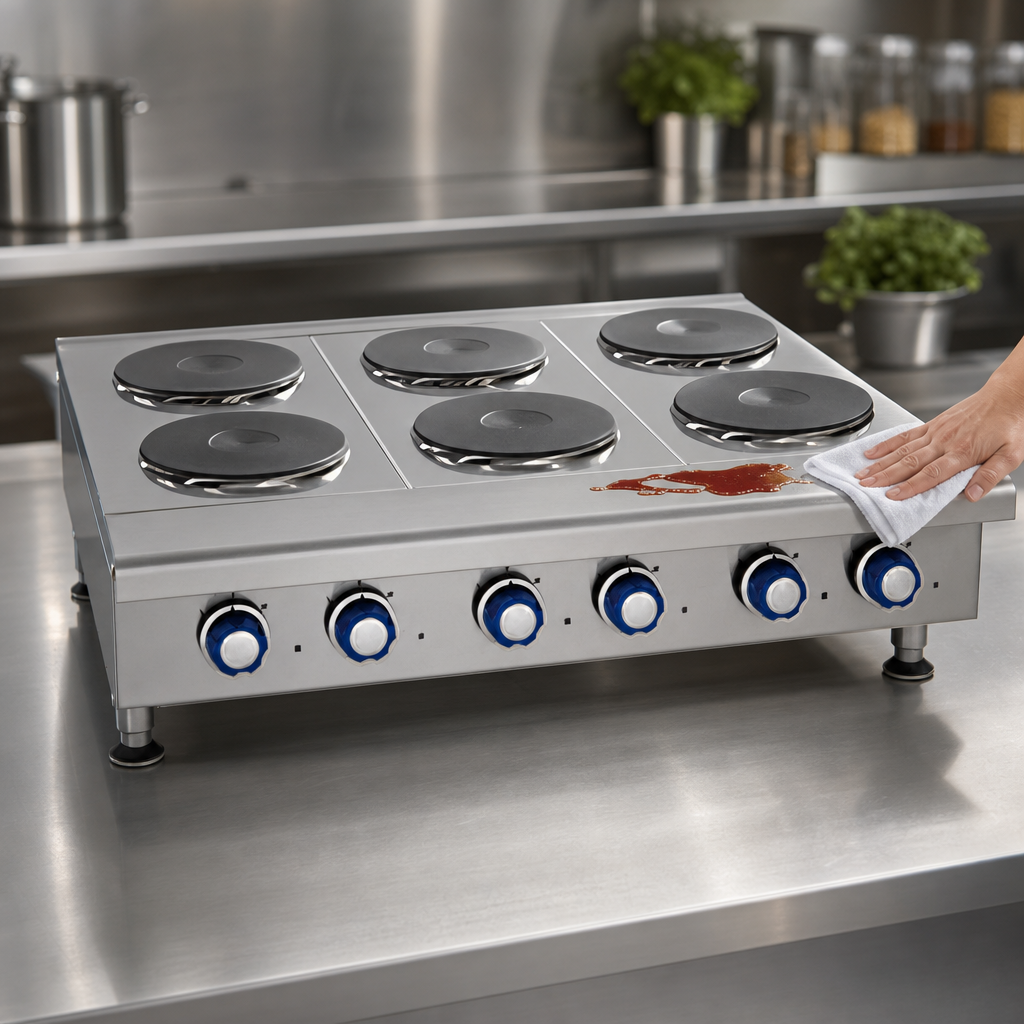

- Solid top surface prevents spills from entering the unit.
- Infinite heat controls—dial in the perfect temperature for every task.
- Stainless steel front, top and sides with welded & polished seams for long-lasting durability.
- 5" stainless steel landing ledge keeps plates close for fast plating.
- Cool-to-the-touch Valox™ grip knobs resist heat and daily wear.
- 4" heavy-duty legs with adjustable feet level the unit on any work surface.
- Range-match profile integrates cleanly with equipment stands or refrigerated bases.
- One-year parts & labor warranty backed by Imperial.
Specifications
| Model | IHPA-6-36-E |
|---|---|
| Cooktop width | 36" (914 mm) |
| Depth × Height | 31-3/8" D × 10-3/4" H (797 mm × 273 mm) |
| Number of elements | 6 sealed round plates |
| Element size / power | 9" Ø, 2 kW each |
| Total power | 12 kW |
| Controls | Individual infinite heat dials (6) |
| Landing ledge | 5" stainless steel |
| Construction | Stainless steel front, top & sides; welded seams |
| Legs | 4" heavy-duty, adjustable |
| Ship weight | 210 lb (95 kg) |
| Certifications | cETLus, ETL-Sanitation, CE |
| Warranty | 1-year parts & labor |
Electrical Requirements
| Voltage | Phase | Amps |
|---|---|---|
| 208 V | 1-phase | 58 A |
| 208 V | 3-phase | 38 A |
| 240 V | 1-phase | 50 A |
| 240 V | 3-phase | 33 A |
| 480 V* | 3-phase | 17 A |
*480 V configuration is for export only and incurs an additional charge.
Installation & Clearance
- For use on non-combustible surfaces only.
- 0" clearance required from non-combustible surfaces; 8" (203 mm) from combustible surfaces.
- Field wiring connection via rear junction box.
Optional Accessories
- Stainless steel equipment stands (various widths).
- 6" heavy-duty casters for stands.
Imperial reserves the right to modify specifications without prior notice. Images may show optional accessories.
