Imperial (Middleby)  |  SKU: IHPA-4-48

Imperial (Middleby) IHPA-4-48 Hot Plates

$3,246.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Hot Plates Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Imperial IHPA-4-48 Countertop Gas Hot Plate – 48 inch, 4 Open Burners

128,000 BTU | PyroCentric™ Power | NSF & CE Certified

Built for serious production in a compact footprint, the IHPA-4-48 delivers the precise flame control chefs demand and the rugged, all-stainless exterior operators love for easy wipe-down and years of service.

Why You’ll Love It

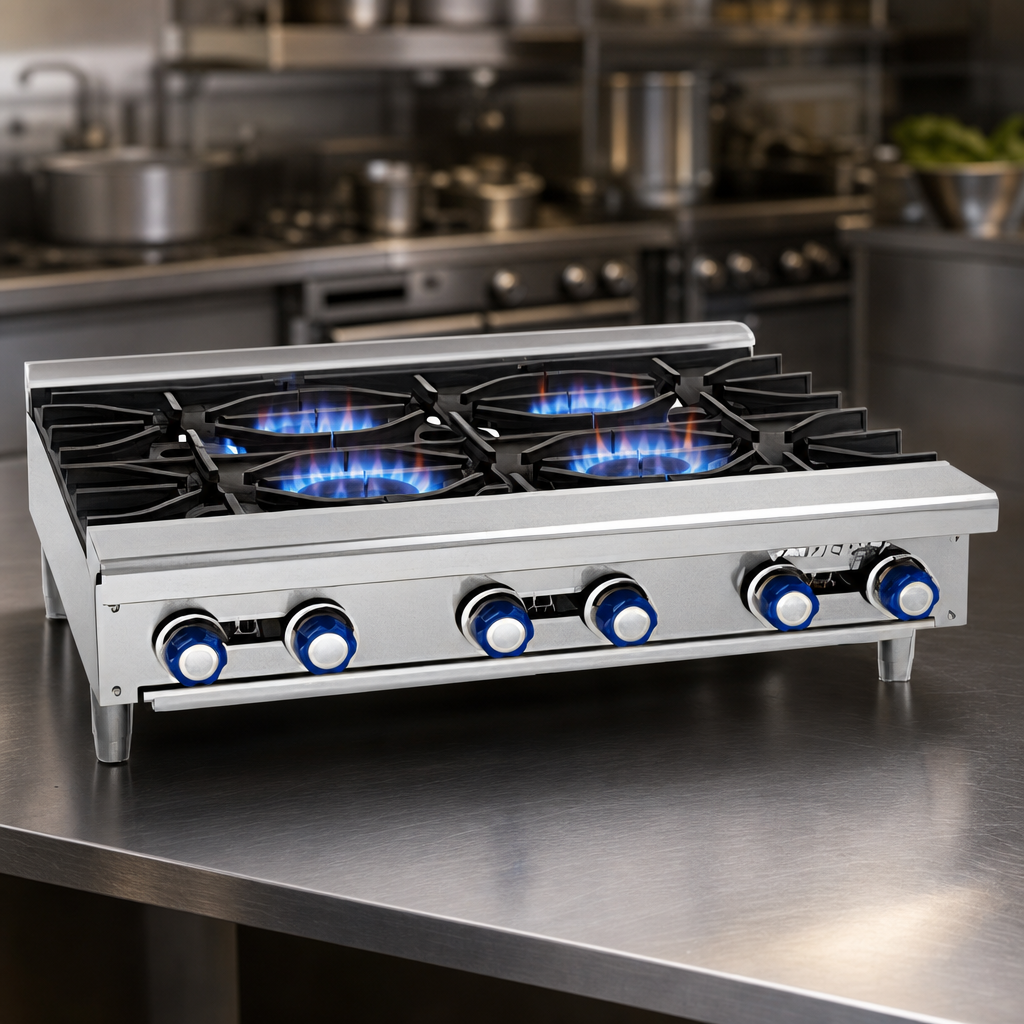

  • Four 32,000 BTU PyroCentric™ open burners with a 7,000 BTU low-simmer ring on each burner—perfect for everything from hard sears to delicate reductions.

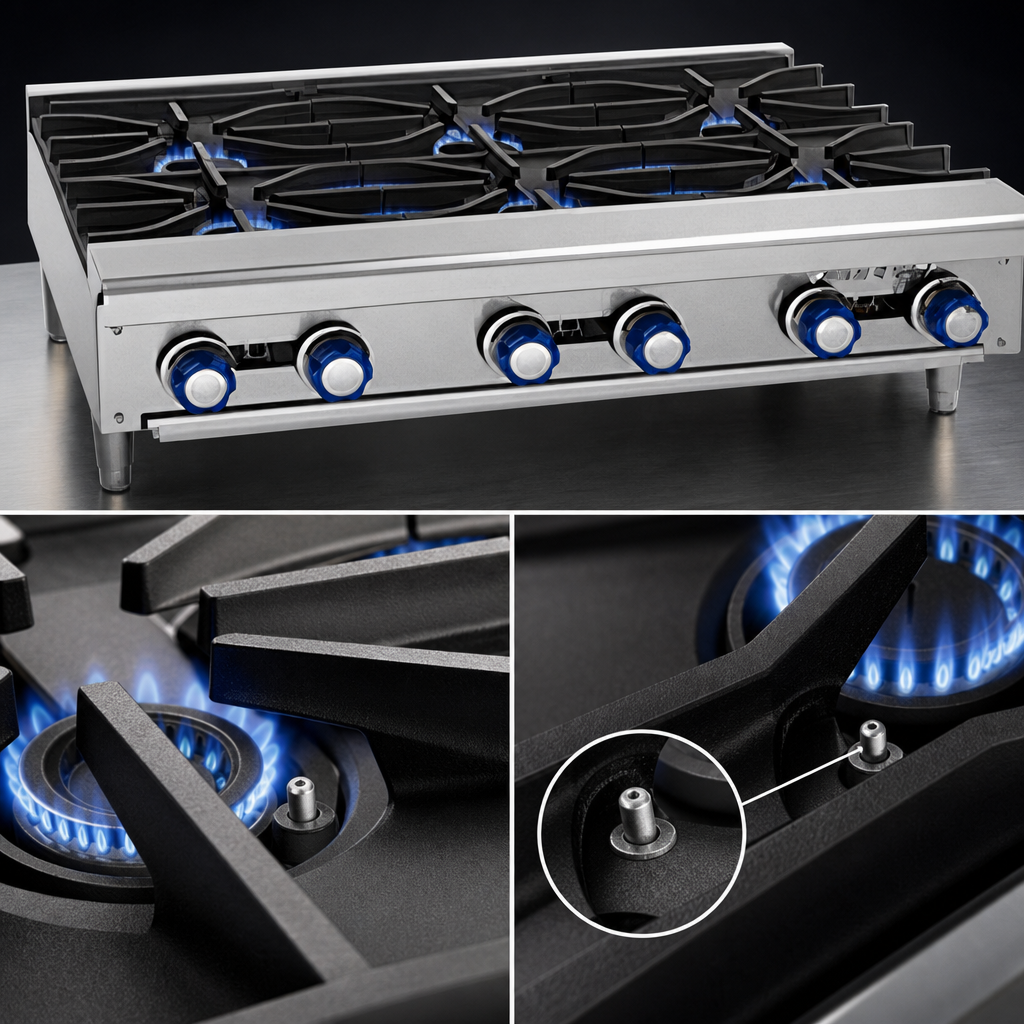

  • Standing pilot for every burner ensures instant ignition during the rush.
  • Cast-iron burners lift off in seconds—no screws, no gaskets, no hassle.
  • Two-piece cast-iron grates feature a cast-in bowl that concentrates heat upward and lets pots slide easily from section to section.
  • 5 in. (127 mm) stainless steel landing ledge provides extra plating and staging space right where you need it.
  • Full-width removable crumb tray catches drips and debris for quick nightly clean-up.
  • Stainless steel front, sides and ledge with welded, polished seams for a professional, easy-clean finish.
  • Die-cast metal control knobs stand up to constant daily use.
  • 4 in. heavy-duty legs with adjustable feet level the unit on any counter or equipment stand.
  • Range-Match profile pairs perfectly with refrigerated bases or Imperial equipment stands.
Specifications
Model IHPA-4-48
Total Heat Output 128,000 BTU/hr • 38 kW
Open Burners 4 × 32,000 BTU PyroCentric™ burners (each with 7,000 BTU simmer)
Cooking Surface 48 in. W × 19 1/4 in. D
Overall Dimensions (W × D × H) 48 in. × 19 1/4 in. × 10 3/4 in.
(1219 × 489 × 273 mm)
Landing Ledge Depth 5 in. (127 mm)
Gas Connection / Manifold 3/4 in. NPT, rear; 5.0 W.C. Natural / 10.0 W.C. LP
Ship Weight 140 lb (64 kg)
Clearance 0 in. to non-combustible surfaces, 8 in. (203 mm) to combustibles
Certifications CSA Flame, CSA Star, NSF, CE
Warranty 1-year parts & labor
Popular Accessories (sold separately)
  • Stainless steel equipment stand (with optional 6 in. casters)
  • 10 in. stainless steel wok ring
  • Interchangeable sauté or wok burner heads
  • 3/4 in. NPT gas shut-off valve
  • Quick-disconnect flexible gas hose
Installation Reminder: For safe operation and to maintain warranty coverage, this unit must be installed by a qualified technician in accordance with all local codes. Provide 0 in. clearance to non-combustible surfaces and 8 in. clearance to combustibles.

Imperial backs this hot plate with a 1-year parts & labor warranty. See full warranty statement for terms and conditions.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

NSF, CE, CSA Star, CSA Flame

Height

10.75in

Width

48.0in

Depth

19.25in

Shipping Weight

140.0lbs

Top and Front Finish

stainless steel front & sides

Legs

with legs

Width (side - side)

48 - 59"

Burner Qty

4 burners

Specifications

Hotplate, gas, countertop, 48"W, (4) open burners & standing pilots, cast iron grates, removable crumb tray, stainless steel front, sides & 5"D landing ledge, 4" legs with adjustable feet, 128,000 BTU, 38kW, CSA Flame, CSA Star, NSF, CE
