Imperial (Middleby)  |  SKU: IHPA-2-12SU

Imperial (Middleby) IHPA-2-12SU Hot Plates

$2,628.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Hot Plates Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

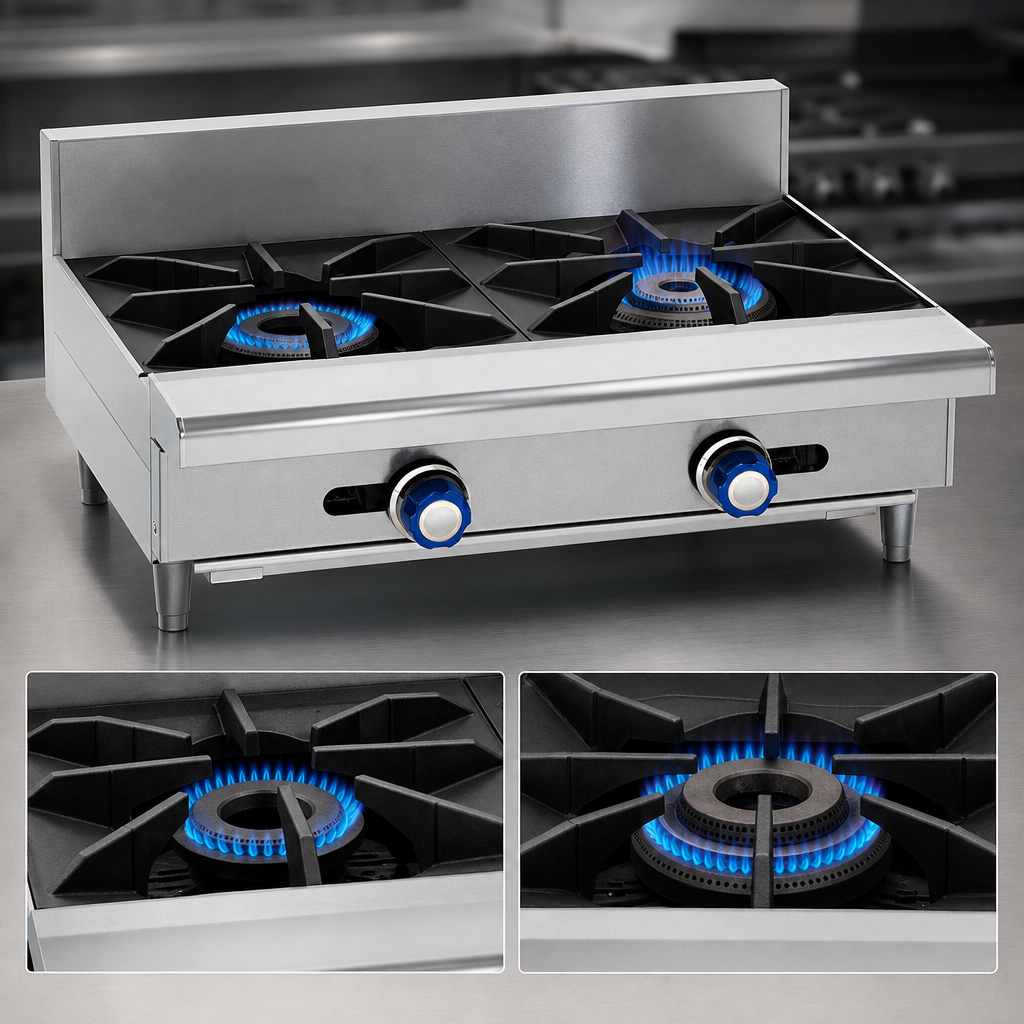

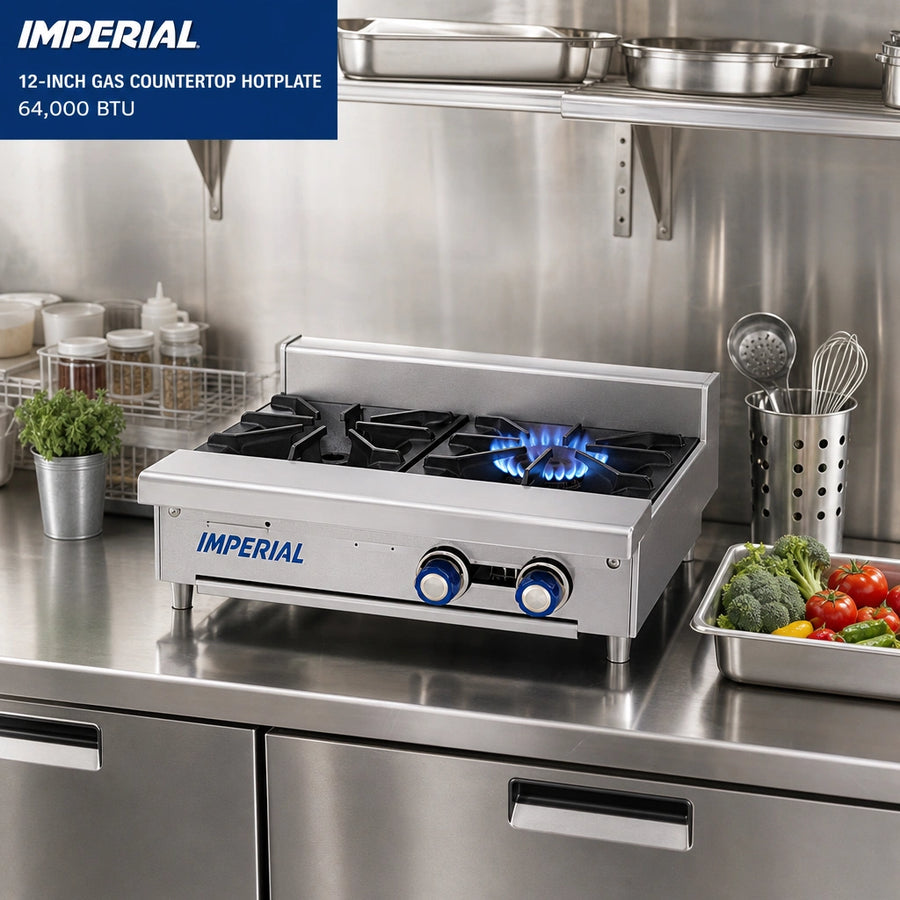

Imperial IHPA-2-12SU Step-Up Gas Hot Plate, 12"

64,000 BTU • 2 PyroCentric™ Open Burners • Countertop Range-Match Profile

Designed for demanding commercial kitchens with limited line space, the Imperial IHPA-2-12SU delivers full-size range performance in a 12-inch countertop footprint. Two 32,000 BTU PyroCentric™ open burners— one in a raised step-up position—provide powerful, even heat and a true 7,000 BTU low-simmer setting, letting you sear, sauté and simmer with precision.

Why You’ll Love It

  • 64,000 BTU total output: (2) 32,000 BTU anti-clog burners with dual rings of flame.
  • Low simmer control: Each burner drops to 7,000 BTU for delicate sauces and reductions.
  • Step-up design: Rear burner is elevated for better visibility and pan access on a crowded line.
  • Cast-iron grates: Heavy-duty, anti-clog grates allow pots to slide effortlessly across sections and onto the 5" landing ledge.
  • All-stainless exterior: Front, sides and ledge are easy to clean and match Imperial ranges & refrigerated bases.
  • One standing pilot per burner: Instant ignition keeps service moving.
  • Die-cast metal knobs: Built to withstand constant use and high heat.
  • Full-width removable crumb tray: Speeds up end-of-shift clean-up.
  • 4" adjustable legs: Level the unit on any countertop and provide 1" clearance for sanitation.

Engineered for Heavy Volume

  • No gaskets or screws on burner assemblies—burners lift off for tool-free cleaning.
  • Anti-clog pilot is recessed into the grate to stay protected from grease and food debris.
  • Welded & polished seams enhance strength and give a professional, seamless look.

Specifications

Model IHPA-2-12SU
Overall Width 12" (305 mm)
Overall Depth 31-3/8" (797 mm)
Overall Height 14-3/4" (375 mm)  |  19-1/2" (495 mm) to grate top
Number of Burners 2 open (front + step-up rear)
Total BTU 64,000 BTU/hr  |  19 kW
Gas Connection 3/4" NPT rear manifold
Manifold Pressure Natural 5.0" W.C.  |  Propane 10.0" W.C.
Clearances 0" sides/back (non-combustible) • 8" (203 mm) combustible surfaces
Shipping Weight 90 lb (41 kg)
Certifications CSA Flame • CSA Star • NSF • CE

Popular Options & Accessories

  • Stainless steel equipment stand (with or without 6" casters)
  • 10" stainless steel wok ring
  • Interchangeable sauté or wok burner heads
  • 3/4" NPT gas shut-off valve
  • Quick-disconnect & flexible gas hose kit
Warranty: 1-year parts & labor when installed, operated and maintained per Imperial guidelines.

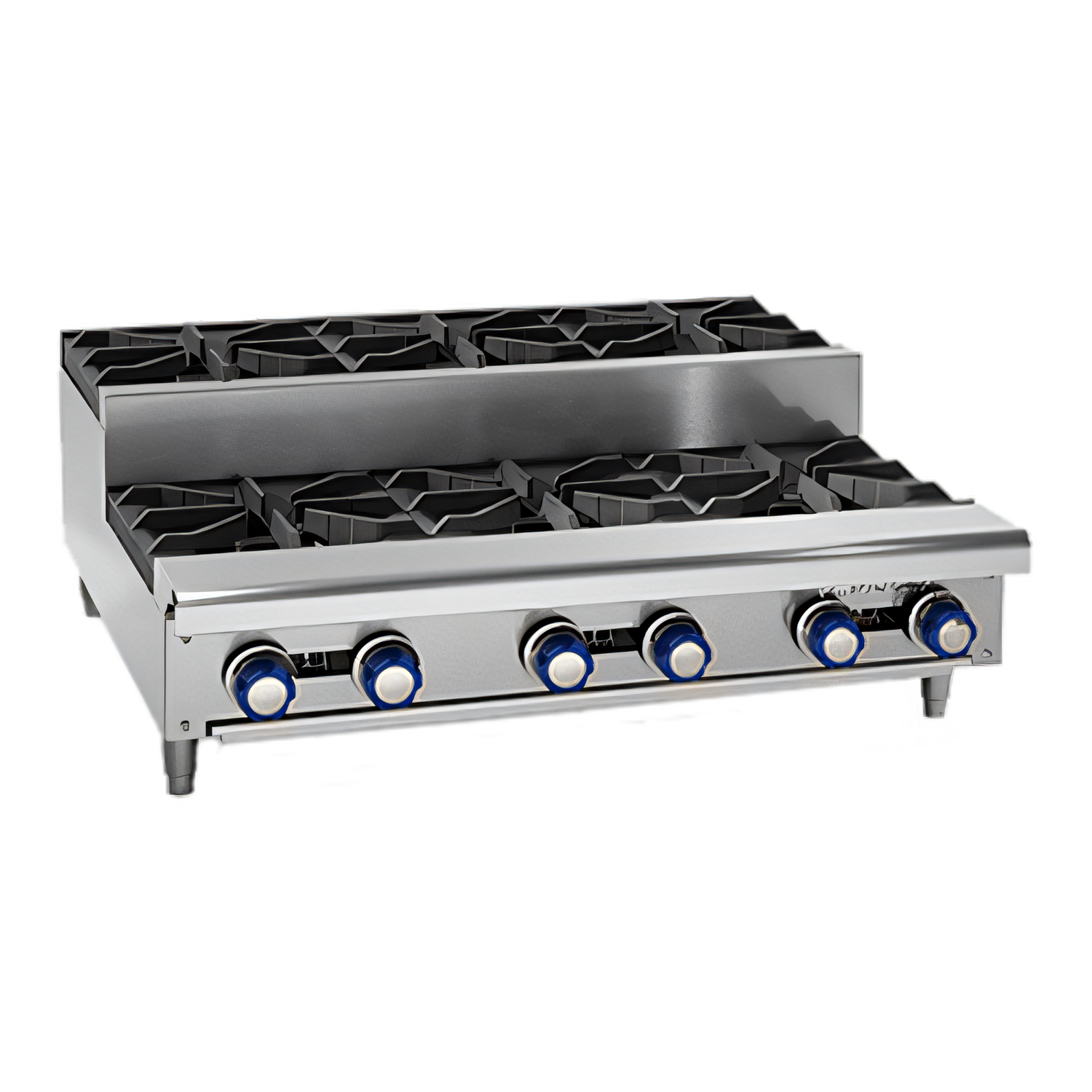

Need a larger configuration? Imperial IHPA hot plates are also available in 24", 36" and 48" widths. Contact us for details and lead times.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

NSF, CE, CSA Star, CSA Flame

Height

15.13in

Width

12.0in

Depth

31.38in

Shipping Weight

90.0lbs

Burner Qty

(1) open burner, (1) step-up open burner

Width (side - side)

12 - 23"

Legs

with legs

Top and Front Finish

stainless steel front & sides

Specifications

Hotplate, gas, countertop, 12"W, (1) 32,000 BTU open burner, (1) 32,000 BTU step-up open burner, cast iron grates, removable crumb tray, stainless steel front, sides & 5"D landing ledge, 4" legs with adjustable feet, 64,000 BTU, 19kW, CSA Flame, CSA Star, NSF, CE
