Imperial (Middleby) IHPA-10-60-E Hot Plates
Imperial (Middleby) IHPA-10-60-E Hot Plates is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Imperial (Middleby) IHPA-10-60-E Hot Plates
Description

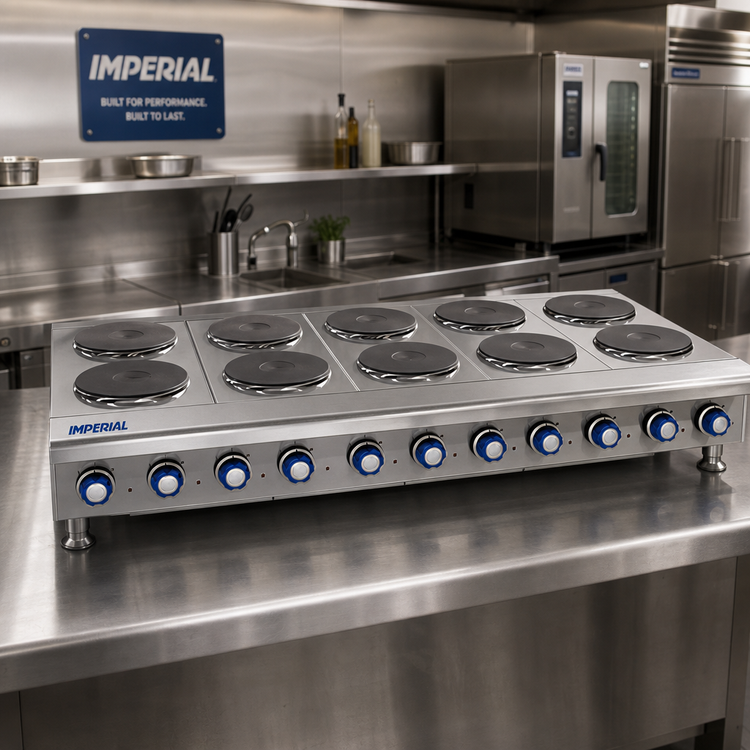

Imperial IHPA-10-60-E 60" Countertop Electric Hot Plate
Ten 9" sealed round elements • 20 kW total output • Stainless steel constructionEngineered for high-volume, all-day production, the Imperial IHPA-10-60-E delivers the performance of a full-size range in a low-profile countertop footprint. Ten powerful 2 kW round plate elements provide instant, even heat across a solid top that’s effortless to clean, while infinite controls put precision at your fingertips. Built to Imperial’s rugged commercial standards, this 60" electric hot plate is the perfect upgrade for kitchens that need serious capacity without sacrificing space.
Key features & benefits

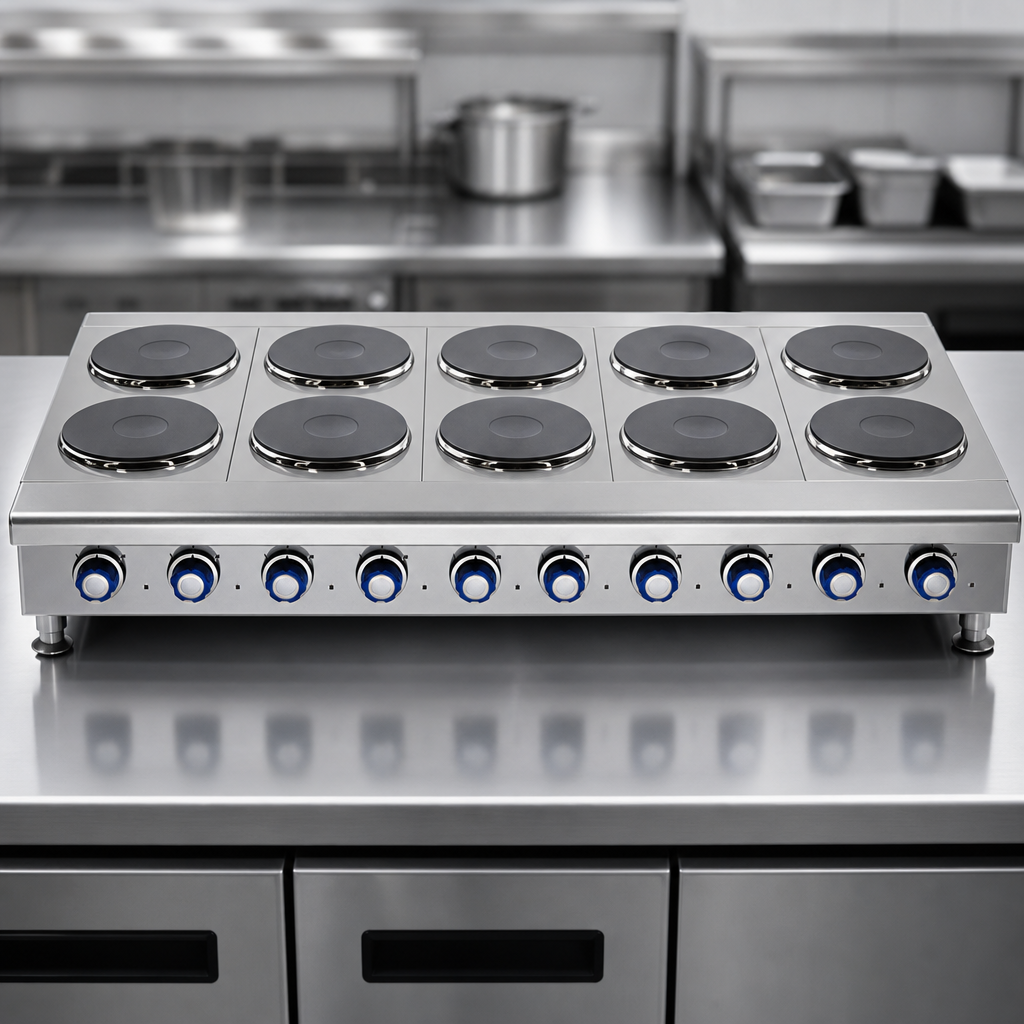

- Ten 9" (229 mm) sealed round plate elements – 2 kW each for fast, even heating.
- Solid top design keeps spills out of the cabinet, dramatically reducing cleanup time.
- Durable infinite heat controls for true low-to-high versatility on every element.
- Heavy-duty cast-aluminum knobs with Valox™ “cool-to-the-touch” grips for operator safety.
- Stainless steel front, top and sides with welded, polished seams for a professional look and easy sanitation.
- Extra-wide 5" (127 mm) stainless steel landing ledge – ideal for plating and staging.
- 4" (102 mm) legs with adjustable feet keep the unit level on any countertop.
- Range-Match profile integrates seamlessly with Imperial stands, refrigerated bases or adjacent equipment.
- cETLus, ETL-Sanitation & CE listed for compliance in the U.S., Canada and EU markets.
- Backed by a 1-year parts & labor warranty from Imperial.
Specifications
| Model | IHPA-10-60-E |
|---|---|
| Cooking surface | (10) × 9" sealed round plate elements | 2 kW each |
| Total power | 20 kW |
| Dimensions (W × D × H) | 60" × 31 3/8" × 10 3/4" (1524 × 797 × 273 mm) |
| Crated dimensions | 62 1/2" × 35" × 12" (1588 × 889 × 324 mm) |
| Shipping weight | 325 lb (147 kg) |
| Voltage / phase options |
208 V 1 ph | 208 V 3 ph 240 V 1 ph | 240 V 3 ph 480 V 3 ph (export option) |
| Amps per J-box* |
48 A @ 208 V 1 ph | 43 A @ 208 V 3 ph 42 A @ 240 V 1 ph | 37 A @ 240 V 3 ph 19 A @ 480 V 3 ph |
| Electrical connections | (2) field-wired junction boxes located at rear |
| Construction | Stainless steel front / top / sides, welded & polished seams |
| Controls | Infinite heat switches, cast-aluminum knobs with Valox™ grips |
| Included | 4" adjustable stainless legs, landing ledge, factory-installed elements |
| Optional accessories | Stainless equipment stands, 6" casters, 480 V configuration |
*Unit requires two dedicated circuits of equal amperage.
Warranty
Imperial backs the IHPA-10-60-E with a one-year, parts & labor warranty when installed and serviced by an authorized agency.
