Imperial (Middleby) IHPA-1-12 Hot Plates
Imperial (Middleby) IHPA-1-12 Hot Plates is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description
Imperial IHPA-1-12 12" Countertop Gas Hot Plate
32,000 BTU PyroCentric™ Open Burner with Standing PilotBring full-size range performance to any prep line, food truck, or satellite kitchen. The compact IHPA-1-12 delivers powerful, even heat from a single PyroCentric™ burner while its stainless steel exterior and removable components make end-of-shift cleanup fast and easy.
Key Performance Features

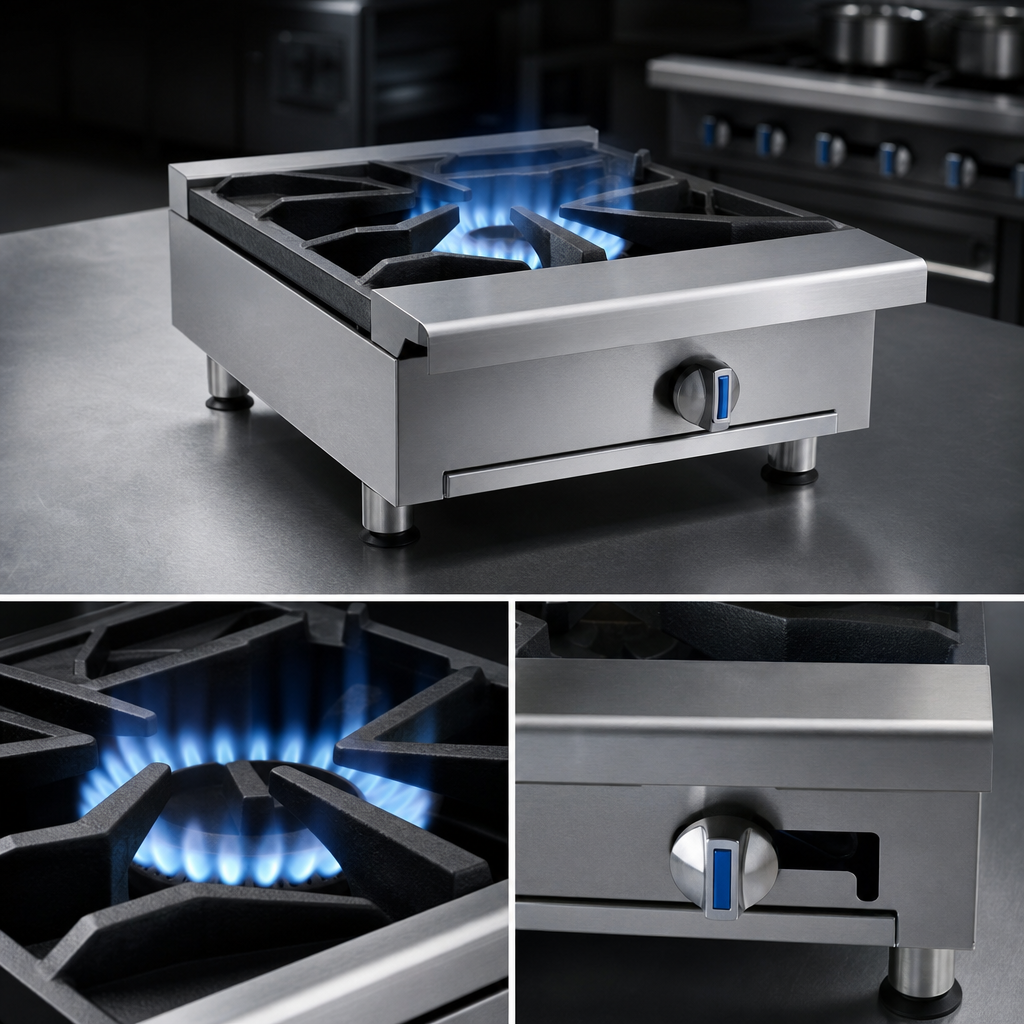

- 32,000 BTU (9 kW) PyroCentric™ burner with two rings of flame for rapid, uniform heating.
- 7,000 BTU/hr low-simmer setting—ideal for delicate sauces and reductions.

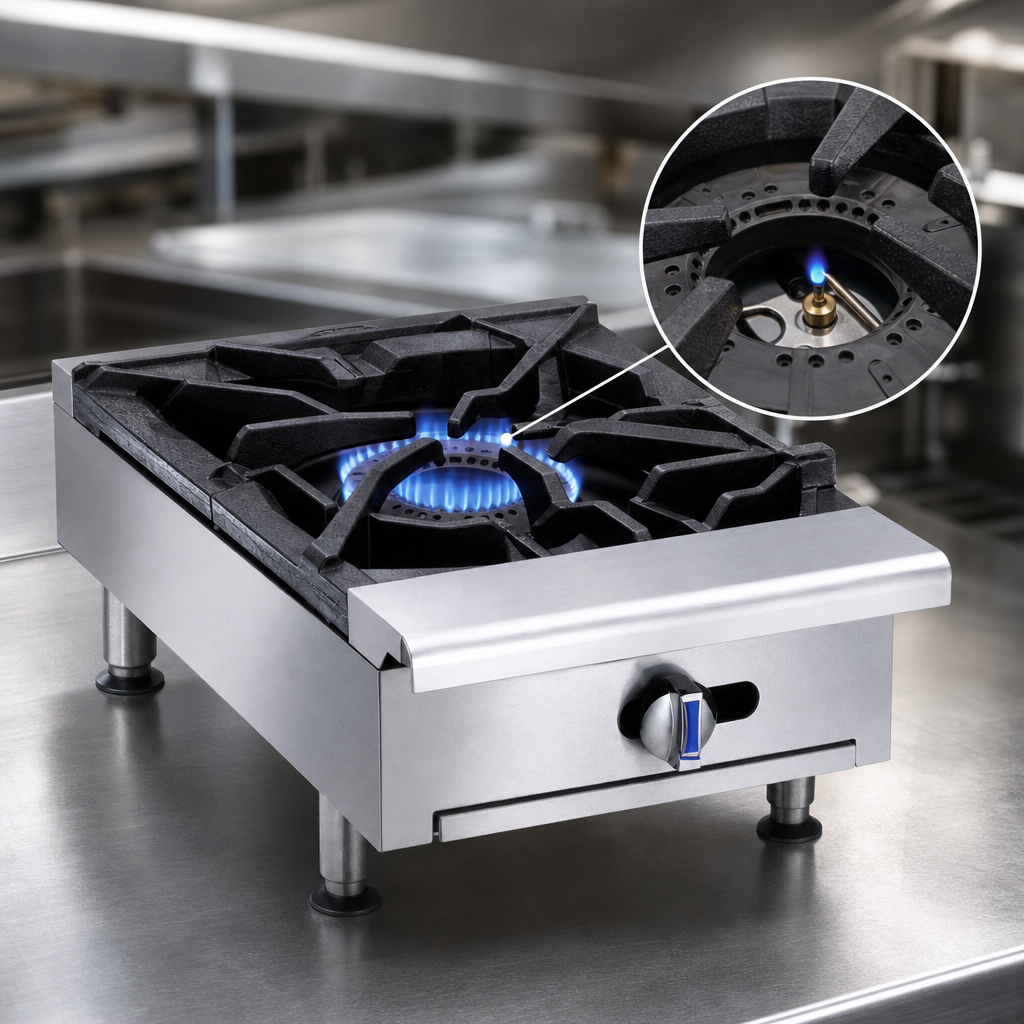

- Standing pilot light guarantees instant ignition—no matches required.
- Anti-clog, lift-off cast-iron burner design for hassle-free maintenance.
- Split, heavy-duty cast-iron grate lifts off in two sections for safe cleaning.
- Cast-in bowl design concentrates heat upward; pots slide easily from grate to 5" landing ledge.
- Full-width removable crumb tray keeps the cookline clean.
- Die-cast metal control knob built to withstand daily commercial abuse.
- 4" (102 mm) legs with adjustable feet for quick leveling on any countertop.
Built for the Long Haul
- Stainless steel front, sides, and landing ledge wipe clean in seconds.
- Welded & polished seams resist corrosion and trap less food soil.
- Range-Match profile aligns seamlessly with other Imperial countertop equipment.
Specifications
Model | IHPA-1-12 |
---|---|
Gas Type | Natural or Propane (field convertible) |
Total BTU Input | 32,000 BTU/hr |
Heat Output | 9 kW |
Burners | 1 open PyroCentric™ burner |
Simmer Output | 7,000 BTU/hr |
Dimensions (W × D × H) | 12" × 19 1/4" × 10 3/4" (305 × 489 × 273 mm) |
Gas Connection | 3/4" NPT (rear) |
Manifold Pressure | Natural: 5.0" W.C. | Propane: 10.0" W.C. |
Shipping Weight | 45 lb (21 kg) |
Clearances | 0" to non-combustible, 8" (203 mm) to combustible surfaces |
Certifications
- CSA Flame
- CSA Star
- NSF
- CE
Warranty & Options
- One-year parts & labor warranty backed by Imperial’s nationwide service network.
- Optional accessories: stainless steel equipment stand, 6" casters for stands, 10" wok ring, interchangeable sauté or wok burner heads, quick-disconnect gas hose, 3/4" shut-off valve.
Ask about Middleby Equipment Financing to convert your purchase into affordable monthly payments.
