Imperial (Middleby) IGG-60 Gas Griddles
Description

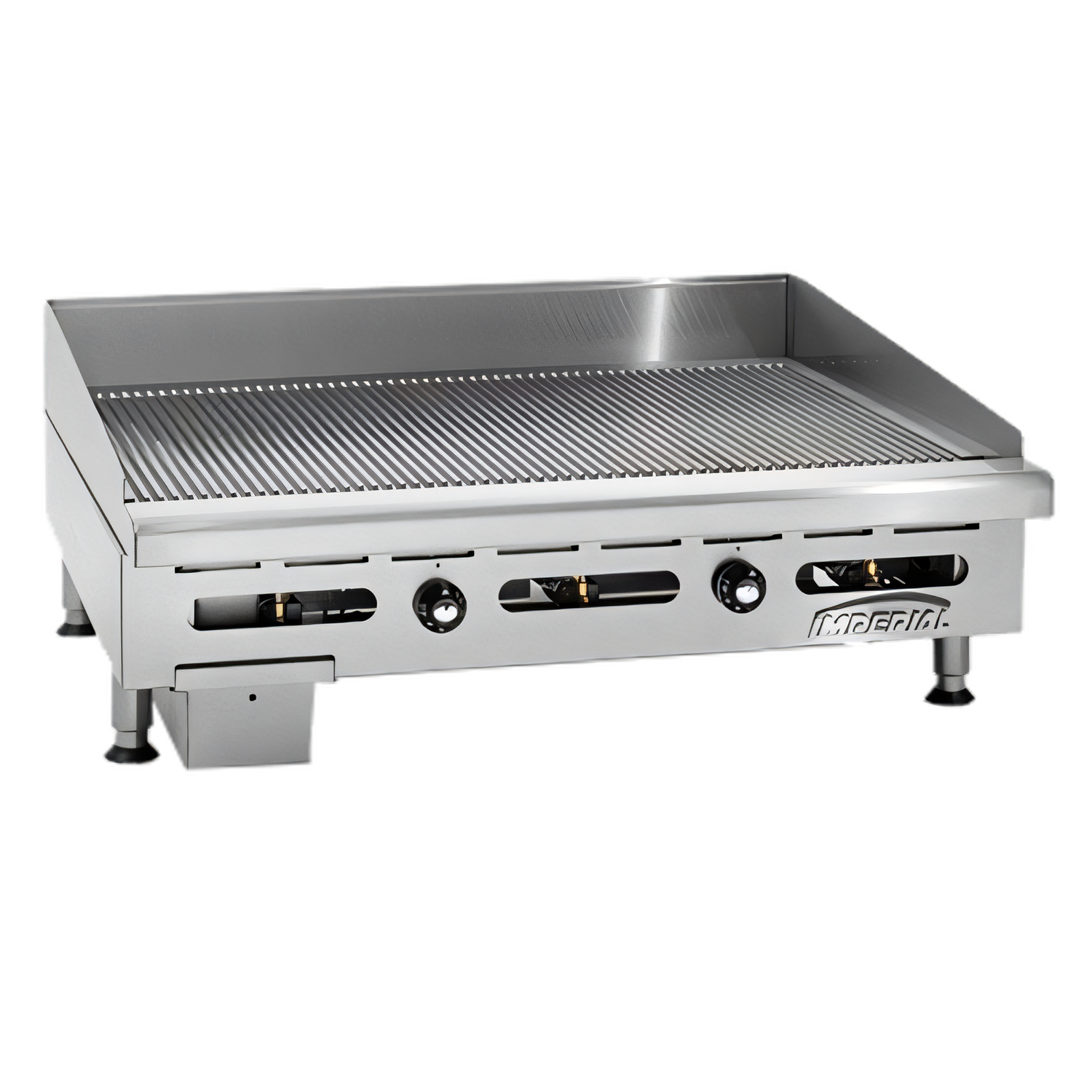

Imperial IGG-60 60" Countertop Grooved Gas Griddle
150,000 BTU • Thermostatic Control • Stainless Steel ConstructionGet unmistakable char-grilled presentation with the speed and consistency of a griddle. The Imperial IGG-60 delivers a generous 60" x 24" grooved cooking surface, precision thermostatic control and rugged stainless steel durability—perfect for high-volume kitchens that refuse to compromise on look or flavor.
Why You’ll Love It

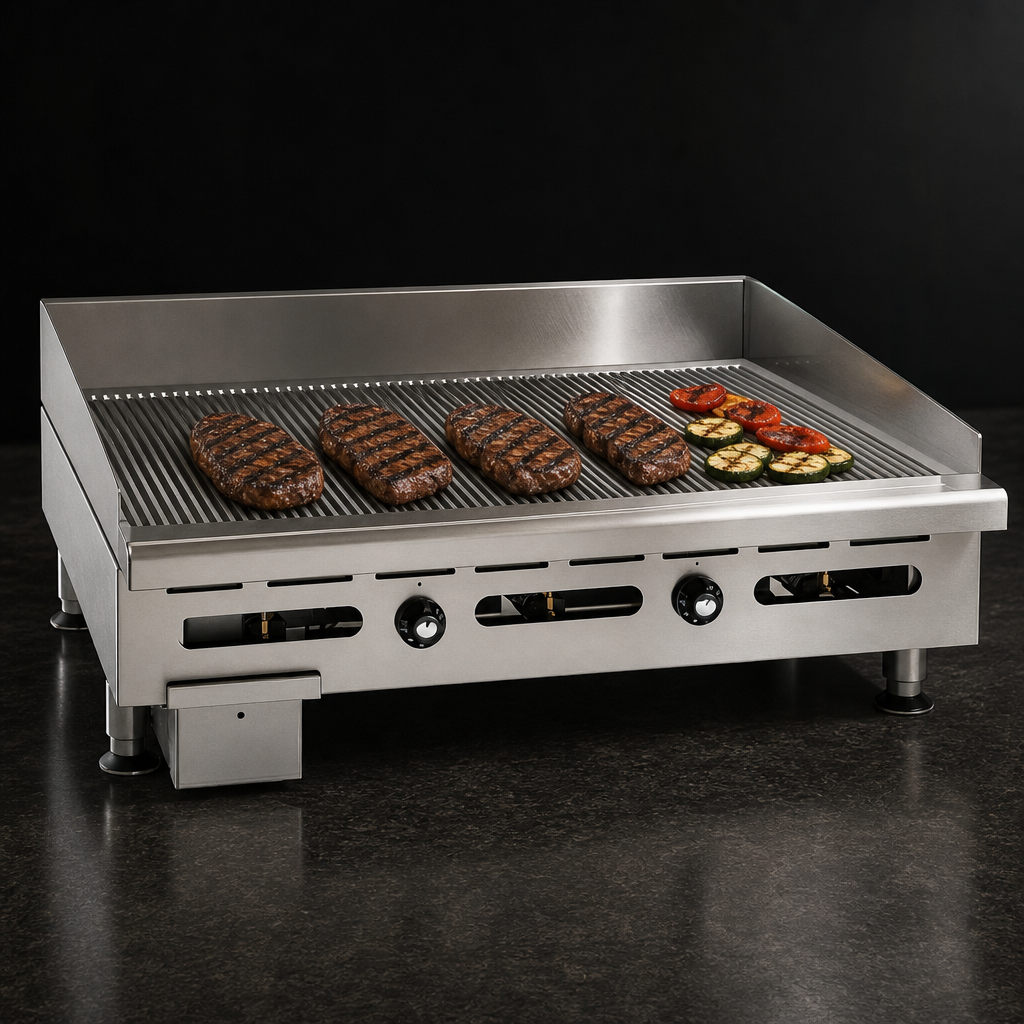

- 1" (25 mm) thick grooved steel plate brands foods with eye-catching grill marks.
- Five independent 30,000 BTU burners (150,000 BTU total) spaced every 12" for even heat.
- Aeration baffles & full-width rear flue distribute heat uniformly across the plate.

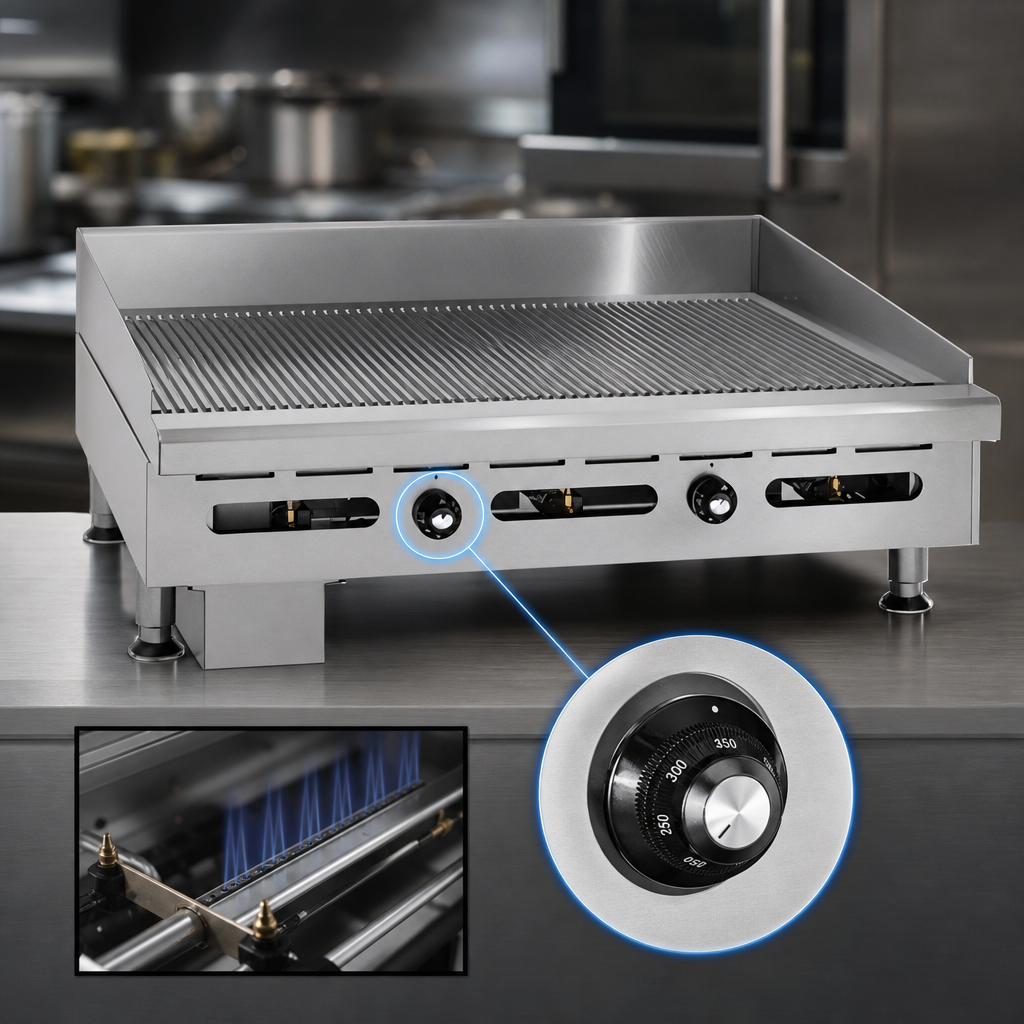

- Snap-action thermostats hold set temps during rush periods for consistent results.
- 4" (102 mm) wide stainless steel grease gutter plus 1 gal (3.8 L) removable grease can with weep hole.
- All-stainless exterior—front, sides, splash guard & rolled ledge—for quick, sanitary wipe-downs.
- 4" adjustable stainless steel legs keep the unit level and permit easy cleaning underneath.
- Virtually unbreakable high-temperature control knobs stand up to daily abuse.
- Certified cETLus, NSF & CE for gas safety and sanitation.
Specification Sheet
| Model | IGG-60 |
|---|---|
| Cooking Surface | 60" W x 24" D (1524 mm x 610 mm) |
| Plate Thickness | 1" (25 mm) grooved steel |
| Total Heat Output | 150,000 BTU (44 kW) |
| Number of Burners | 5 (30,000 BTU each) |
| Control Type | Thermostatic (snap-action) |
| Gas Connection | 3/4" NPT rear manifold |
| Manifold Pressure | Natural 5" W.C. • LP 10" W.C. |
| Overall Dimensions | 60" W x 32-3/8" D x 14" H (1524 mm x 822 mm x 356 mm) |
| Ship Weight | 725 lb (328 kg) |
| Certifications | cETLus, NSF, CE |
| Warranty | 1-Year Parts & Labor |
Installation & Clearance
- Designed for non-combustible countertops or equipment stands.
- 0" clearance to non-combustible surfaces; 6" (152 mm) to combustible surfaces.
- Specify elevation if installation is above 2,000 ft (610 m).
Optional accessories—equipment stands, casters, cleaning rake and extra grease cans—are available. Ask your Imperial representative for details.
