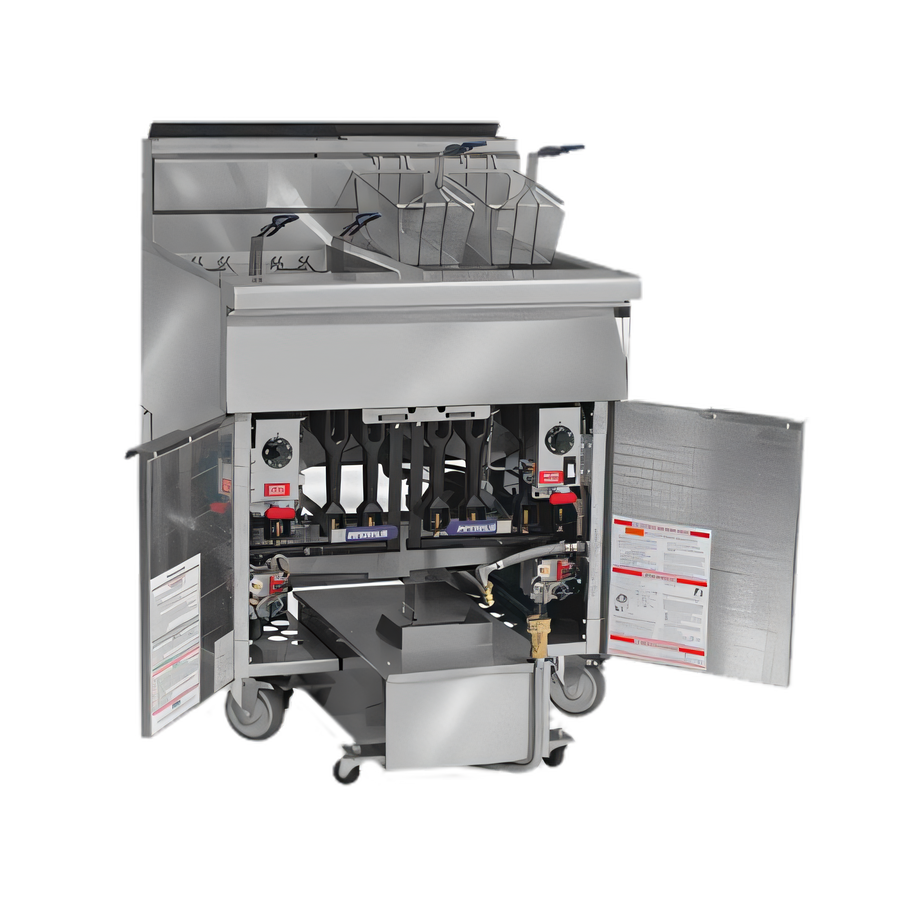

Imperial (Middleby) IFSSP475T Gas Fryers
Imperial (Middleby) IFSSP475T Gas Fryers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Imperial (Middleby) IFSSP475T Gas Fryers
Description
Imperial IFSSP475-T Space Saver Tube-Fired Fryer/Filter System – 4 Battery, 75 lb Each
700,000 BTU • Built-in Filtration • Electronic Thermostat PrecisionKeep pace with peak-hour demand without sacrificing product quality or floor space. The Imperial IFSSP475-T combines four high-performance 75 lb fryers with an integrated Space Saver filter system, giving you lightning-fast recovery, mess-free filtering and extended oil life in one sleek, stainless-steel line.
Key Features
- Four 75 lb stainless-steel frypots (300 lb total) powered by a combined 700,000 BTU.
- Space Saver under-cabinet filtration eliminates bulky external filter carts.
- 5.5 GPM roller pump with 1/3 HP motor returns filtered oil in seconds and can discharge up to 20 ft away.
- Electronic thermostats maintain ±3 °F accuracy from 200–400 °F for consistent, crisp results.
- Internally plumbed drain & return lines with quick-disconnect keep oil completely enclosed and staff safe.
- Continuous stainless-steel landing ledge and cabinet façade deliver a clean, professional appearance.
- Includes factory-installed casters, joiner strips and a filter starter kit—uncrate, hook up and fry.
At-a-Glance Specs
| Manufacturer / Model | Imperial IFSSP475-T |
|---|---|
| Fryer Count | (4) tube-fired gas fryers, battery configuration |
| Oil Capacity | 75 lb (51 L) per frypot • 300 lb total |
| Input | 700,000 BTU/hr (175,000 BTU per frypot) |
| Thermostat | Electronic, 200–400 °F |
| Filtration | Built-in Space Saver system, 5.5 GPM roller pump |
| Electrical | 120 V / 60 Hz / 1-ph, 6.8 A, 6 ft cord with NEMA 5-15P |
| Motor | 1/3 HP filter pump motor |
| Gas Connection | Rear manifold, single-point ¾" NPT |
| Overall Dimensions | 78" W × 39" D × 45 ¾" H (1981 × 991 × 1162 mm) |
| Shipping Weight | Approx. 1,130 lb (513 kg) |
| Certifications | CSA Flame, CSA Star, NSF, CE |
| Warranty | 1-yr parts & labor • 5-yr pro-rated stainless fry tank |
Why Kitchen Pros Love It
- Filter on demand—one touch starts the pump while oil drains and returns automatically.
- Closed cabinet keeps hoses, paper and pump out of the traffic lane, reducing slips and burns.
- High-efficiency tube burners cut gas consumption and help extend oil life.
- Modular system lets you battery up to six fryers on one filter setup as your volume grows.
Need basket lifts, side drain shelves or tank covers? Ask our team about factory-installed options to tailor your IFSSP fryer line to your exact workflow.
