Imperial (Middleby) IFSSP250-OP Gas Fryers
Description

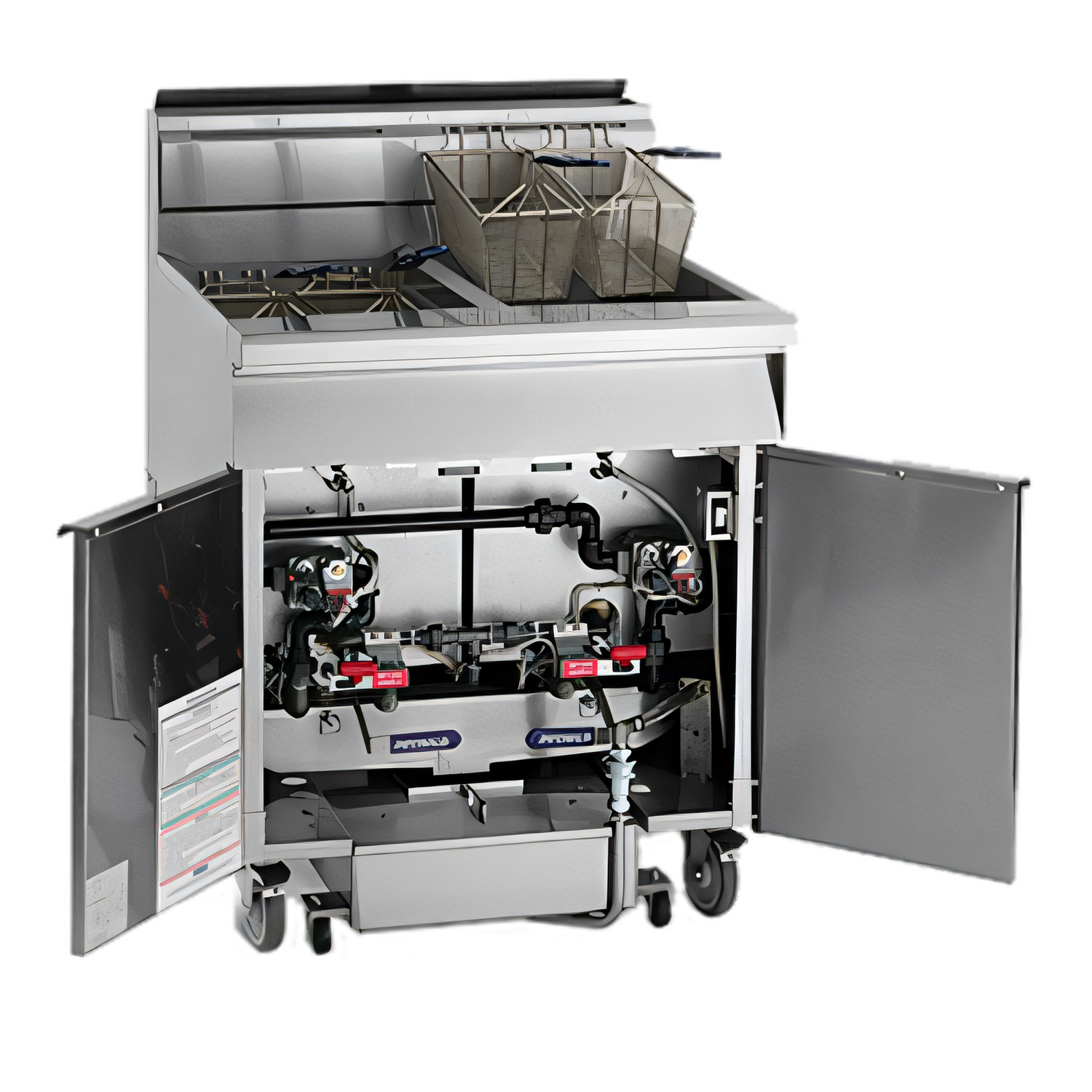

Imperial IFSSP250-OP Space Saver Gas Fryer / Filter System
50 lb x 2 Open-Pot Fryers • 280,000 BTU • Built-In 5.5 GPM Roller PumpDouble your output without expanding your line. The Imperial IFSSP250-OP combines two high-performance 50-lb open-pot fryers with an integrated Space Saver filter tucked neatly beneath the cabinet. Filter, polish and return oil in minutes—right where you fry—so you can serve consistently crispy food and cut oil costs, all from a single, compact footprint.
Key Performance Features
- Integrated under-fryer filtration eliminates bulky external carts and frees up floor space.
- 5.5 GPM, 1/3 HP roller pump powers fast, quiet oil return and can discharge up to 20 ft away.
- 280,000 BTU total (140,000 BTU per pot) delivers rapid heat recovery during peak service.
- Snap-action thermostats ensure precise, responsive temperature control.
- Stainless steel frypots, front and sides resist corrosion and wipe down fast.
- Includes heavy-duty casters for easy cleaning access and mobility.
- Ships with joiner strips for a seamless cabinet look and a filter starter kit so you’re ready to fry day one.
Built-In Filtration Advantages
- Positive-latching holder keeps filter paper flat for maximum oil return.
- Quick-disconnect return line provides splash-free, one-hand operation.
- Fully internal drain and return plumbing for a cleaner, safer work area.
- Routine filtering extends oil life, improves food quality, and reduces operating costs.
Specifications
| Model | IFSSP250-OP |
|---|---|
| Frypots / Capacity | 2 open-pot fryers | 50 lb (41 L) each |
| Total BTU | 280,000 BTU/hr (natural or LP – specify when ordering) |
| Filter Pump | 5.5 GPM roller pump | 1/3 HP motor |
| Thermostat | Snap-action mechanical (200–400 °F range) |
| Electrical | 120 V / 60 Hz / 1-Ph | 6.8 A | 6 ft cord, NEMA 5-15P |
| Gas Connection | Rear manifold, single-point |
| Exterior Construction | Stainless steel frypots, front & sides |
| Overall Dimensions | 31" W × 35" D × 45-3/4" H |
| Shipping Weight | Approx. 556 lb (252 kg) |
| Listings | cETLus • ETL-Sanitation |
| Warranty | 1 yr parts & labor • 5-yr pro-rated frypot warranty |
What’s in the Box
- (2) wire fryer baskets with cool-touch handles
- Filter starter kit (paper & powder)
- Joiner strips for continuous cabinet look
- Set of heavy-duty casters (front locking)
- Factory-installed 6 ft power cord & plug
Popular Options & Accessories
- Electronic thermostat (suffix “T”)
- Computer controls (suffix “C”)
- Automatic or manual basket lifts
- 3/4" N.P.T. gas shut-off valve
- Stainless steel tank cover, side drain shelf or side splash
- Manual timer kit
- Imperial 40 lb, 20-micron filter paper (box of 100)
Imperial reserves the right to modify specifications without notice. Always consult the installation manual for detailed utility and clearance requirements.
