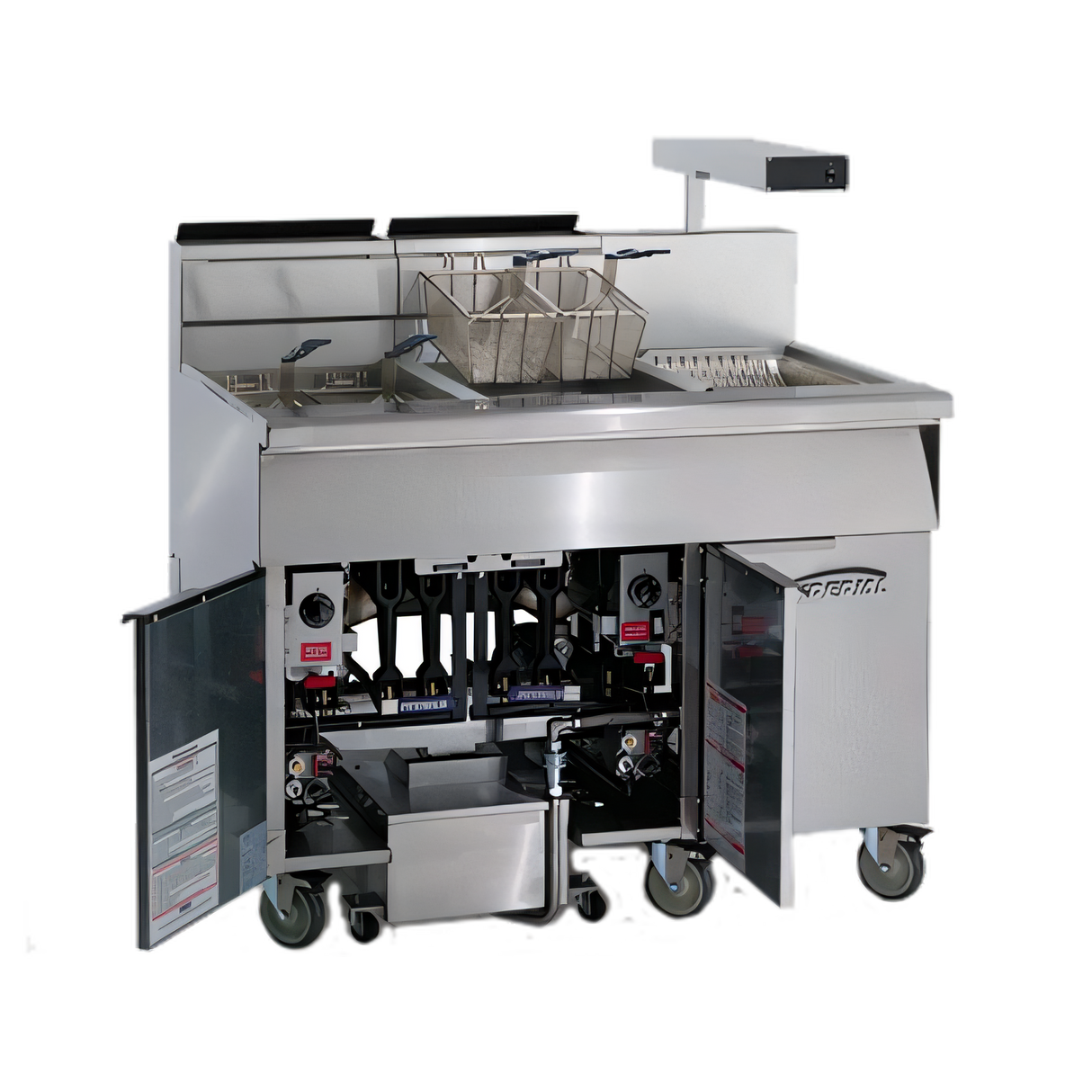

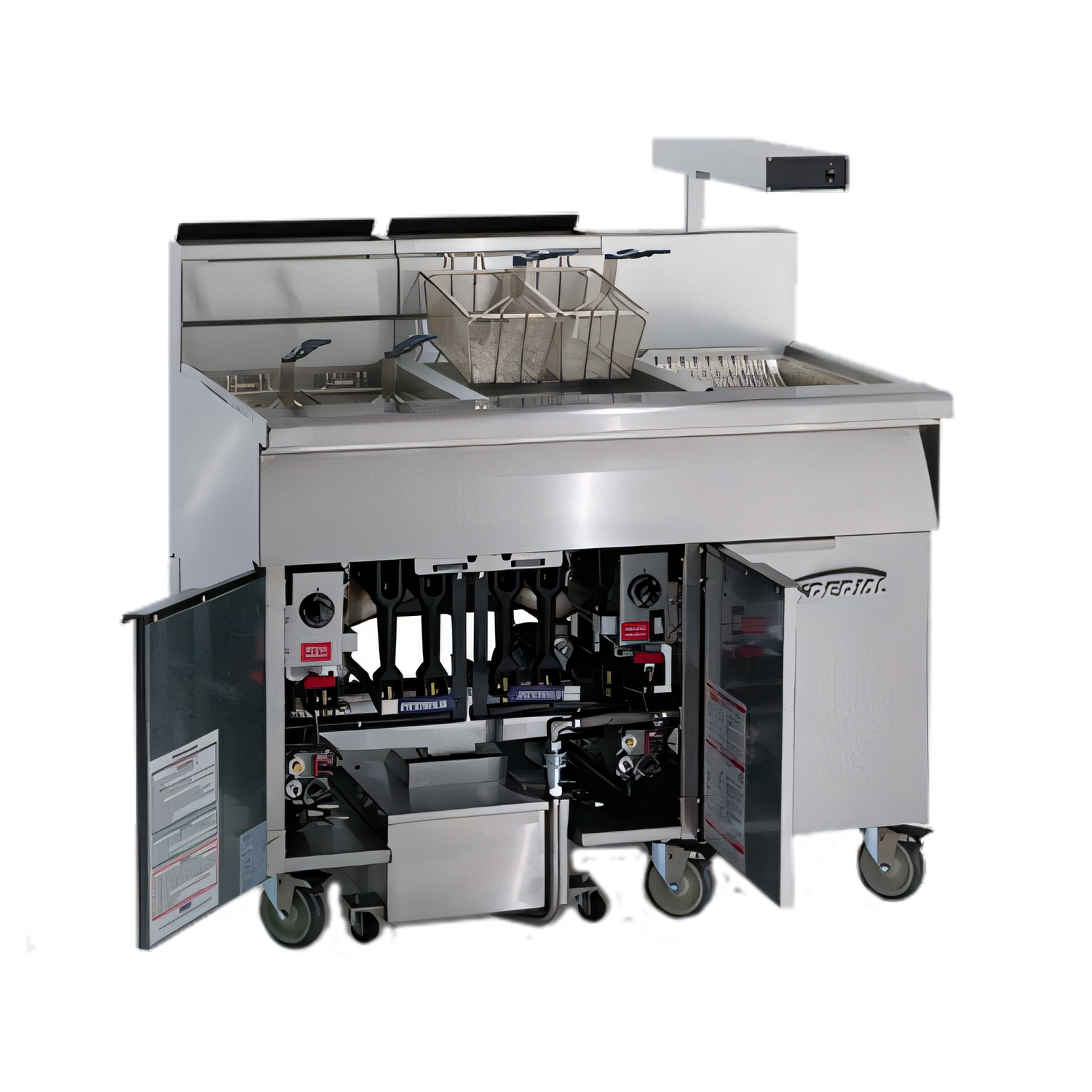

Imperial Gas Floor Model 5-Battery Side Car Fryer/Filter System with 50 lb Tanks, Built-In Filter, and Drain Station

Stainless Steel, Snap Action Thermostat, 5.5 GPM Roller Pump

This high-capacity gas side car combines five 50-lb fryers with an integrated filter system and drain station to save space and streamline oil handling.

  • Five 50-lb fryer tanks in one gas battery for high-volume service
  • Built-in under-fryer filter system saves floor space and keeps oil lines internal
  • 5.5 GPM roller pump with 1/3 HP motor speeds filtration and moves oil up to 20 feet
  • Matching stainless steel drain station includes a food warmer and dump pan
  • Snap action thermostat with stainless steel frypot, front, sides, landing ledge, and cabinet
  • Includes casters, joiner strips, filter starter kit, and a 6-ft power cord with 3-prong plug

Overall Dimensions:

93.0"W x 36.5"D x 45.75"H

Product Weight:

1445.0 lb

Five-Fryer Battery

Configured as a 5-fryer battery with 50 lb. oil capacity fryers for high-volume production.

Built-In Under-Fryer Filter

Filter location under the fryers saves valuable floor space and keeps oil drain and return lines internally plumbed.

Hands-Free Filter Connection

Quick disconnect connection provides a fast and safer way to return filtered oil back to the frypots.

5.5 GPM Roller Pump

A 1/3 HP roller pump speeds up the filtering process and can pump oil into a disposal vat up to 20 feet away.

Drain Station Cabinet

Includes a matching stainless steel cabinet with a food warmer and dump pan for convenient oil handling.

Snap Action Thermostat

Thermostatic control provides straightforward temperature management.

Stainless Steel Construction

Stainless steel frypot, front, sides, landing ledge, and cabinet provide durability and a professional appearance.

Included Installation Components

Casters, joiner strips, and a filter starter kit are included with the unit.

Rear Gas Manifold

Rear gas manifold with one-point gas connection simplifies installation.

Type Fryer/Filter System
Style Tube Fired Side Car
Installation Type Floor Model
Compartments 5
Capacity 50 lb. Per Fryer
Controls Snap Action Thermostat
Voltage 115 Volts
Amps 6.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type 3-Prong Plug
Cord Length 6 Feet
BTU 700,000 BTU
Horsepower 1/3 HP
Material Stainless Steel
Finish Stainless Steel Front & Sides
Shipping Width 94-1/2 Inches
Shipping Depth 39 Inches
Shipping Height 49-1/2 Inches
Shipping Weight 1445 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Training video PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is a five-fryer battery designed for 50 lb. oil capacity fryers.
A matching stainless steel cabinet with a food warmer and dump pan.
115V, 1-phase, 60Hz, 6.8 amps, with a 6-foot cord and 3-prong plug.
It uses a 5.5 GPM roller pump with a 1/3 HP motor and can pump oil up to 20 feet away.
Use only on non-combustible floors with legs or casters. Provide 0" clearance from non-combustible surfaces and 6" from combustible surfaces.
