Imperial (Middleby) IFSCB475T Gas Fryers
Description

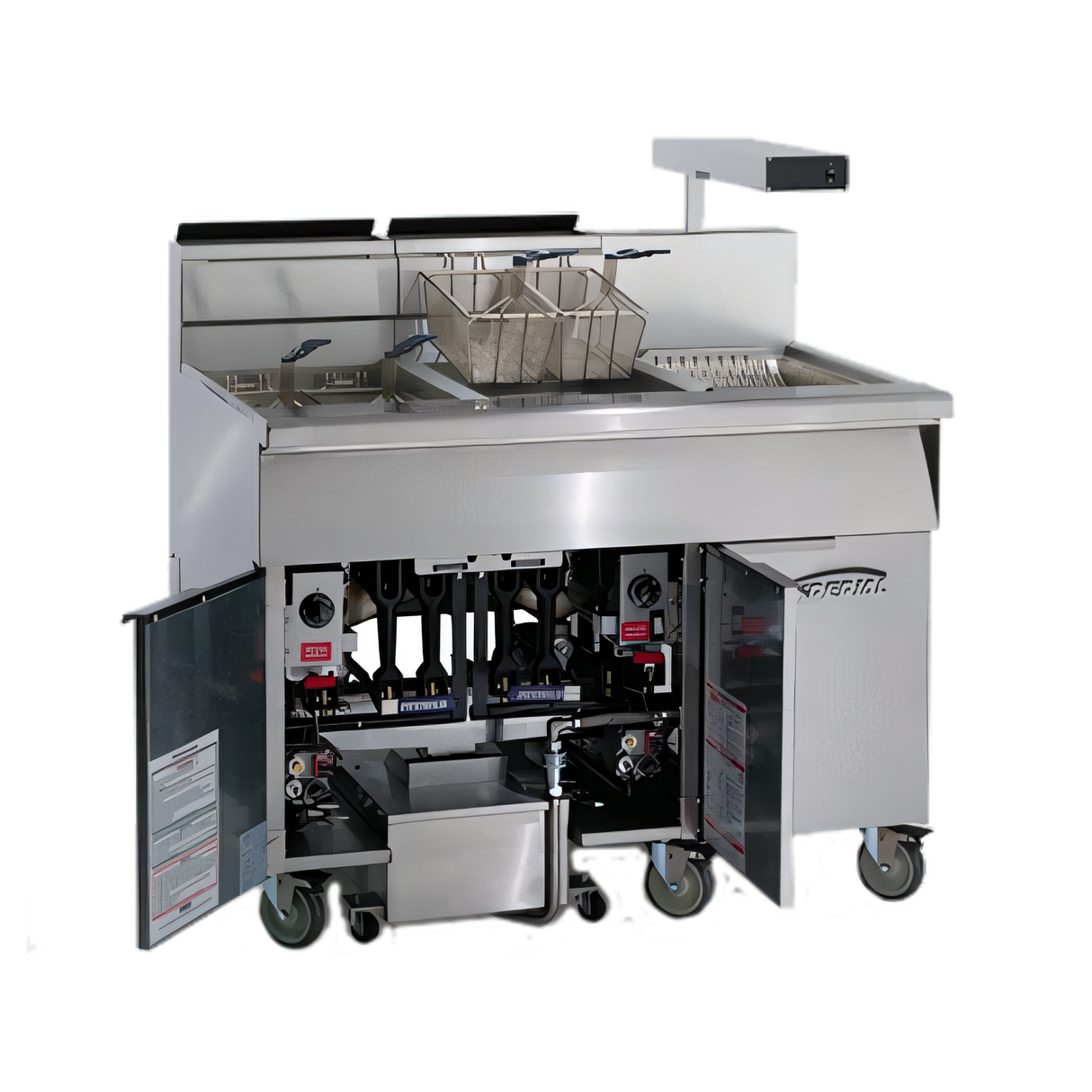

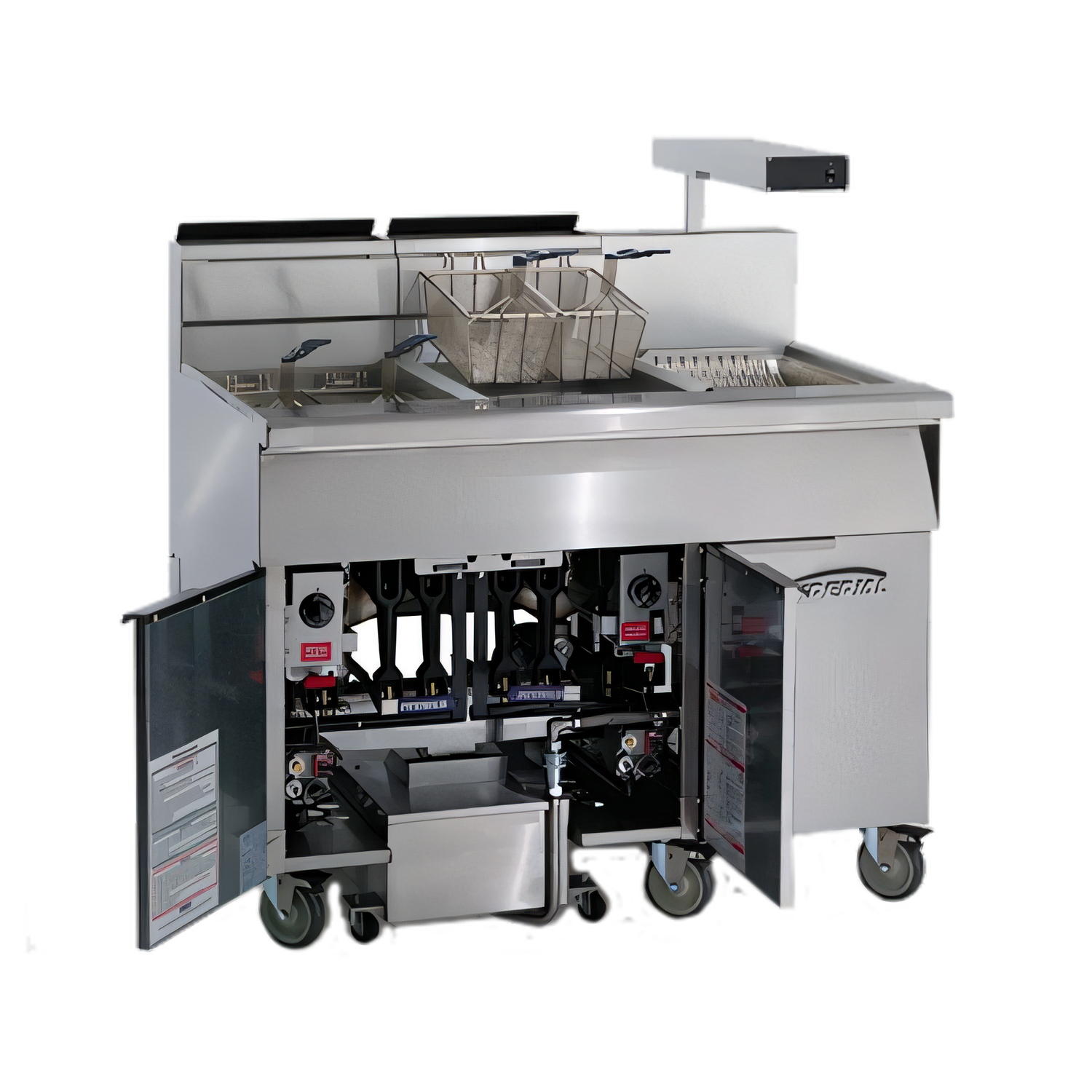

Imperial IFSCB475-T 4-Battery 75 lb Gas Fryer System with Built-In Filtration
High-volume, space-saving solution for nonstop fryingEngineered for the busiest kitchens, the Imperial IFSCB475-T combines four 75 lb tube-fired fryers with a powerful under-fryer filter system to keep oil fresh, food quality high and service moving fast. Electronic thermostats, a 5.5 GPM roller pump and a stainless steel drain station with built-in food warmer transform back-of-house efficiency while preserving precious floor space.
Performance & Productivity
- Total 300 lb (136 L) oil capacity – four independent 75 lb frypots handle peak-hour volume.
- 700,000 BTU tube-fired burners provide rapid recovery and consistent heat.
- Electronic thermostats (200-400 °F) deliver precise temperature control and faster set-point recovery.
- Large 5" stainless steel landing ledge simplifies basket loading and unloading.
- Mounted on heavy-duty casters for easy cleaning and flexible line-ups.
Integrated Filtration Advantage
- Space-saving filter system tucked below the fryers—no external frame or floor space required.
- 5.5 GPM roller pump with 1/3 HP motor filters an entire frypot in minutes and can discharge oil up to 20 ft.
- Stainless steel filter pan with positive-latching paper holder maximizes oil return.
- Internally plumbed drain and return lines for safer, closed-loop oil handling.
- Quick-disconnect connection for fast, tool-free filter pan removal.
Built-In Drain Station
- Stainless steel cabinet houses a heated food warmer and dump pan—ideal for seasoning and holding.
- May be positioned anywhere within the fryer battery for the best workflow.
What’s Included
- Food warmer & stainless steel dump pan
- Joiner strips for seamless battery installation
- Filter start-up kit (paper & powder)
- 4 nickel-plated fry baskets
- 6 ft (1829 mm) cord & plug – 120 V / 6.8 A single phase
Specifications
| Model | IFSCB475-T |
|---|---|
| Oil Capacity | 4 × 75 lb (51 L each) | 300 lb total |
| Total BTU Input | 700,000 BTU/hr (natural or LP gas) |
| Heating System | Tube-fired, stainless steel frypots |
| Filtration Pump | 5.5 GPM roller pump | 1/3 HP motor |
| Electrical | 120 V / 60 Hz / 1-ph | 6.8 A (filter system only) |
| Overall Dimensions | 97-1/2" W × 40-1/2" D × 45-3/4" H (2477 × 1029 × 1162 mm) |
| Shipping Weight | 1260 lb (572 kg) |
| Gas Connection | Rear manifold, single-point 1-1/4" NPT |
| Certifications | CSA Flame, CSA Star, NSF, CE |
| Warranty | 1 year parts & labor | 5-year pro-rated frypot |
Clearance: 0" from non-combustible surfaces, 6" (152 mm) from combustible surfaces. Legs or casters are required for installation on non-combustible floors.
Gas type must be specified at time of order. Electrical connection powers the filter pump and heater only.
