Imperial (Middleby) IFSCB475ET Electric Fryers
Description
Imperial 4-Battery 75 lb Electric Fryer with Built-In Filtration
Model family: IFSCB475E-T (immersed elements + electronic thermostat)Put high-volume frying, fast recovery and space-saving filtration all in one seamless battery. The Imperial IFSCB475E-T lines up four independent 75 lb stainless-steel frypots on a single chassis and tucks the filter system directly underneath—keeping your kitchen footprint tight and your oil clean, all shift long.
Why you’ll love it
- 300 lb total capacity – four 75 lb (51 L) frypots handle peak-hour demand with ease.
- Immersed heating elements deliver rapid heat transfer and lightning-fast recovery.
- Electronic thermostat keeps oil at precise set points for consistent, crispy results.

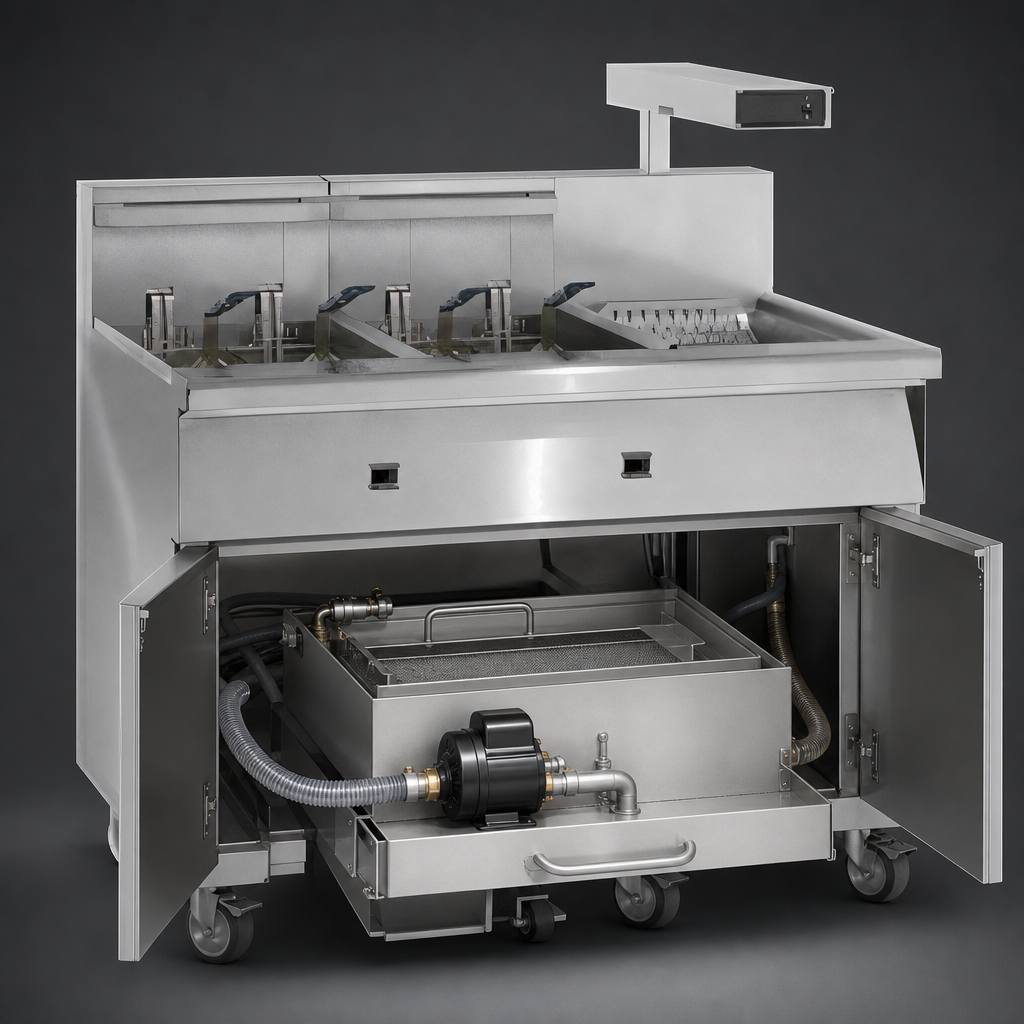

- Under-fryer filtration saves floor space and encourages more frequent filtering.
- 5.5 GPM roller pump | 1/3 HP motor returns filtered oil in seconds and can discharge up to 20 ft to a disposal vat.
- Dump station & food warmer built into a matching stainless cabinet—perfect for quick seasoning and holding.
- Operator-friendly filter pan with positive-latching paper holder and quick-disconnect return line.
- All stainless-steel exterior (frypots, front & sides) for durability and easy cleanup.
- Factory-installed casters plus joiner strips for a finished, movable battery.
- Shipped with a filter starter kit so you’re ready to fry on day one.
- Full safety & sanitation compliance: cETLus, CSA Flame, CSA Star, CSA-Sanitation, CE.
At-a-Glance Specifications
| Number of fryers / frypots | 4 (batteried) |
|---|---|
| Oil capacity | 75 lb per pot • 300 lb total (≈ 51 L / 204 L) |
| Heat source | Immersed electric elements |
| Thermostat | Electronic, 200 °F – 400 °F |
| Filtration pump | 5.5 GPM roller pump, 1/3 HP motor |
| Overall width | 97-1/2″ / 2477 mm |
| Depth × Height | 40-1/2″ D × 44-1/8″ H (1029 mm × 1121 mm) |
| Shipping weight | Approx. 1,260 lb / 572 kg |
| Electrical – each fryer |
208 V / 3 PH / 60 Hz – 50.0 A 240 V / 3 PH / 60 Hz – 43.4 A 480 V / 3 PH / 60 Hz – 21.7 A |
| Electrical – filter system | 115 V / 1 PH / 60 Hz – 6.8 A |
| Clearances | 0″ sides & back (non-combustible) • 6″ (152 mm) combustible |
| Included accessories | Food warmer, dump pan, joiner strips, filter starter kit, heavy-duty casters |
| Warranty | 1-year parts & labor • 5-year pro-rated frypot |
Popular Options (factory-installed)
- Automatic or manual basket lifts
- Stainless-steel tank covers
- Side drain shelf or side splash
- Manual timer
- Filter paper (40 lb, 20 μm, 100 sheet case)
Ask your product specialist to add options at the time of order.
