Imperial (Middleby) ICRA-6 Wok Ranges
Description
Imperial ICRA-6 174" Gas Chinese Wok Range – 6 Burners, 660,000 BTU
Water-Cooled Top • Built-In Drain • Knee-Level ControlsEngineered for the busiest Asian kitchens, the Imperial ICRA-6 spans an impressive 14 ½ ft and delivers six independent wok stations. A water-cooled surface, integrated drain system, hands-free gas controls and a manual swing faucet equip chefs to cook faster, safer and cooler—service after service.
Performance Highlights
- Six heavy-duty burners (jet or three-ring) generating up to 660,000 BTU/hr total.
- Water-cooled top with built-in trough drain keeps the deck temperature in check and flushes away residue.
- Manual Chinese swing faucet services two adjacent wok holes for rapid filling and rinsing.
- Knee-level “L” shaped gas handles let cooks adjust flame without leaving the wok.
- Continuous pilots at every burner provide instant ignition.
- 24" flue riser with high backsplash and pipe rack keeps utensils and ladles within reach.
- 7" stainless steel landing ledge offers a convenient plating and staging surface.
- 12-3/4" adjustable stainless steel legs level the unit on any non-combustible floor.

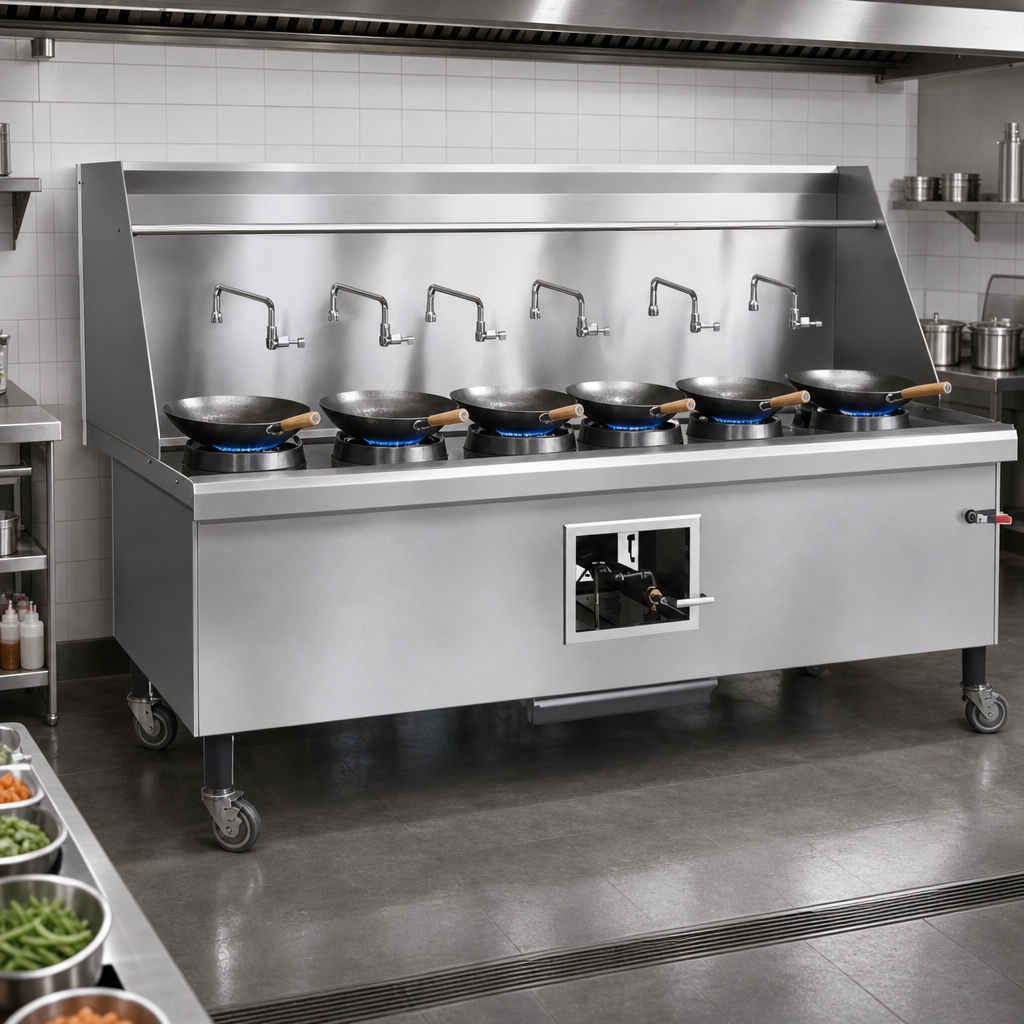

Choose Your Burner Configuration
- Anti-clog 18-tip jet burner – 125,000 BTU
- 23-tip jet burner – 125,000 BTU
- Three-ring burner – 110,000 BTU with independent inner/outer controls
- 32-tip jet burner – 160,000 BTU (additional charge, requires 20" wok hole)
Specify burner style and wok hole diameter (13"–24") at time of order.
Specifications
| Model | ICRA-6 |
|---|---|
| Overall width | 174" / 4420 mm |
| Depth × Height * | 41" × 33" / 1041 × 838 mm |
| Number of burners | 6 |
| Total input | 660,000 BTU/hr (193 kW) |
| Gas connection | 3/4" NPT, 5.0" WC Natural / 10.0" WC LP |
| Water connection | 1/2" NPT cold-water inlet |
| Drain connection | 1-1/4" NPT (left rear, right rear or front—specify) |
| Ship weight | 1,650 lb / 747 kg |
| Certifications | cETLus, NSF |
| Warranty | 1 year parts & labor |
*Height measured to cooktop; 24" flue riser included.
Installation & Clearance
- Must be installed on a non-combustible floor using supplied legs or optional casters.
- 0" clearance from non-combustible rear and side walls.
- 6" minimum clearance from combustible side walls.
What’s Included
- Imperial ICRA-6 Chinese wok range
- 24" flue riser with backsplash & pipe rack
- Manual Chinese swing faucet
- Six burner heads & pilots (as specified)
- Adjustable stainless steel legs
- Installation & operation manual
Elevate your throughput—and the theatrics of open-flame cooking—with the Imperial ICRA-6 Chinese Range, proudly built in the USA for nonstop wok action.
