Imperial (Middleby) ICRA-1 Wok Ranges
Description

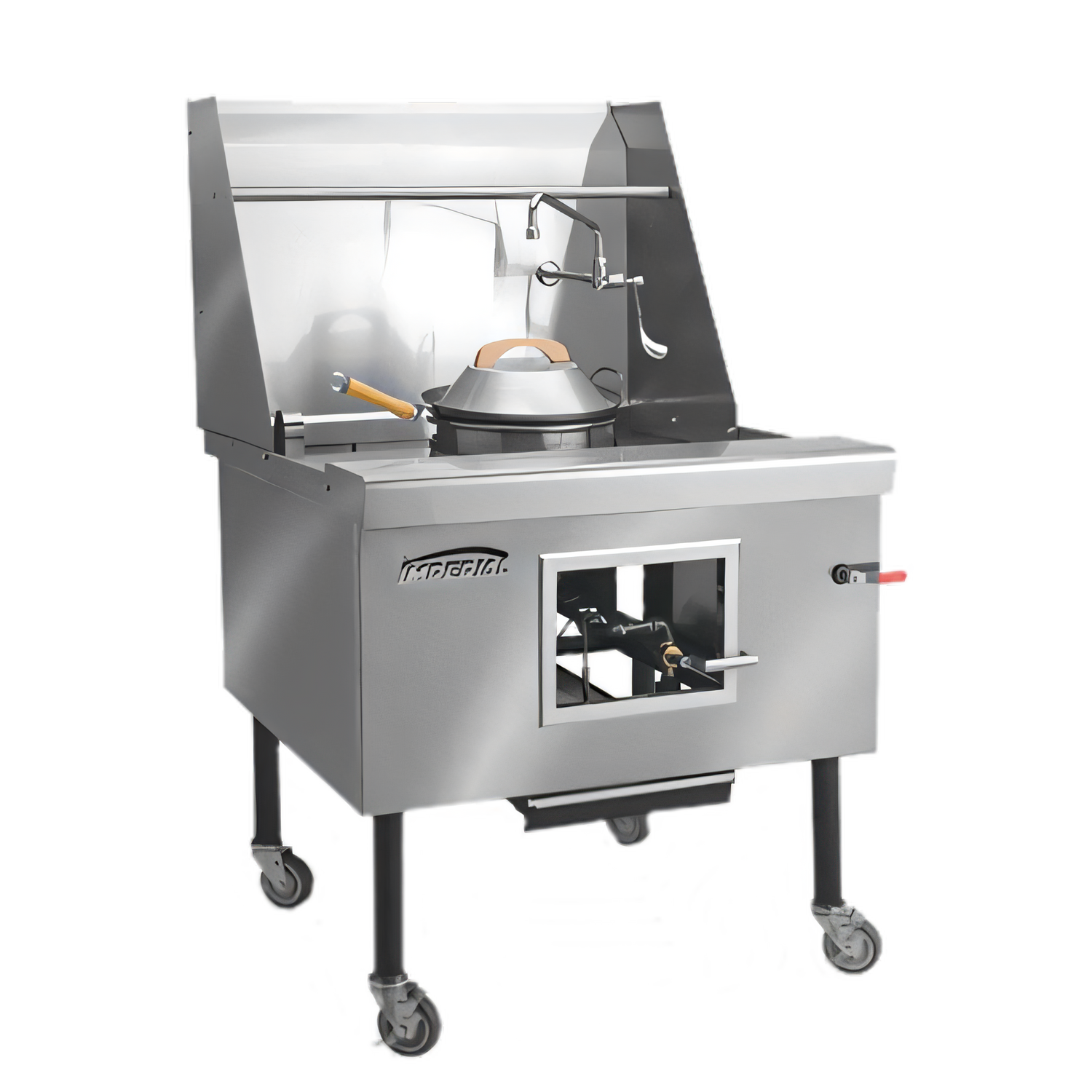

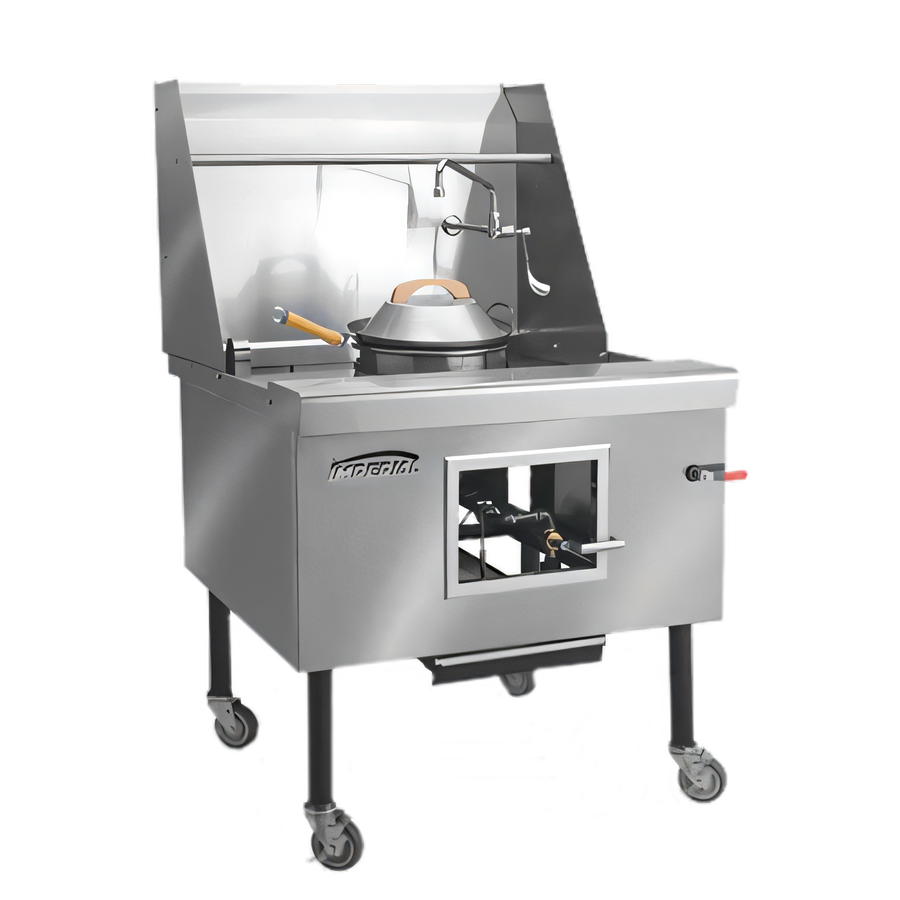

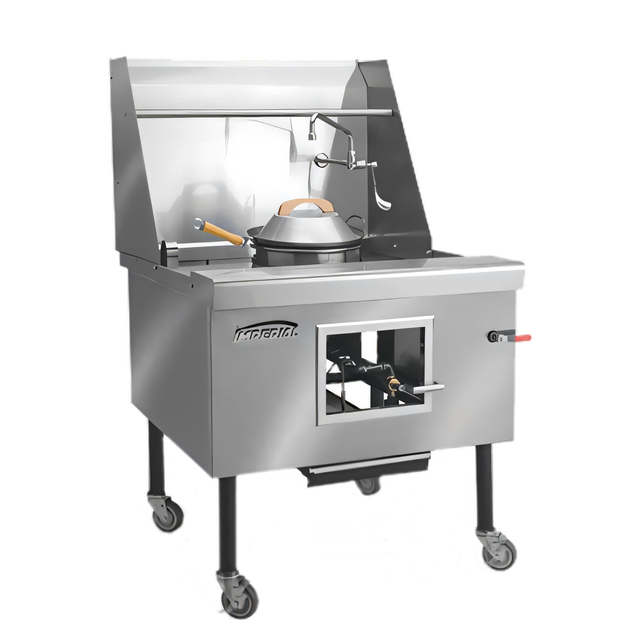

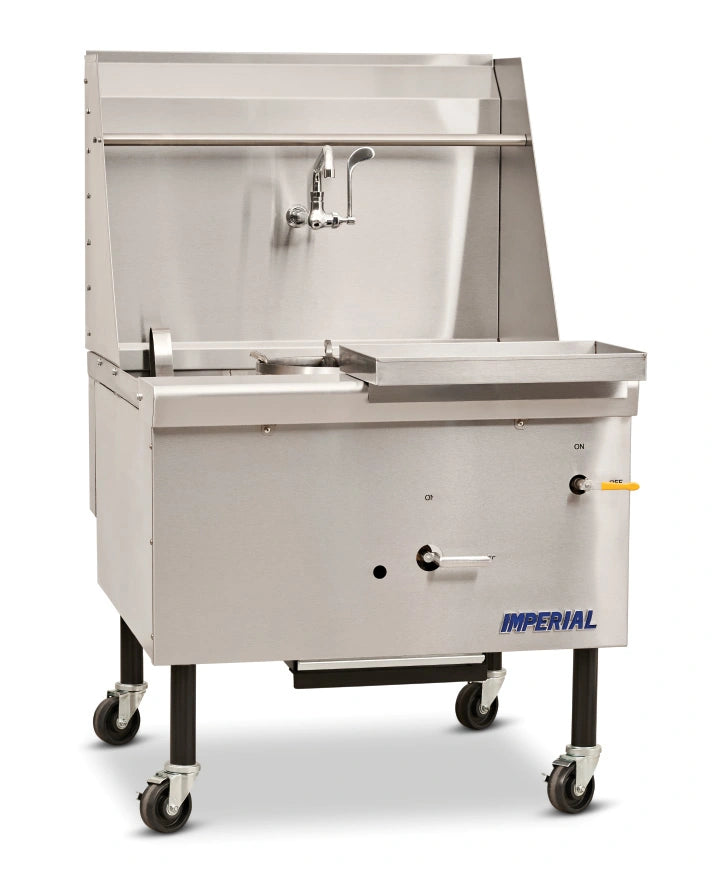

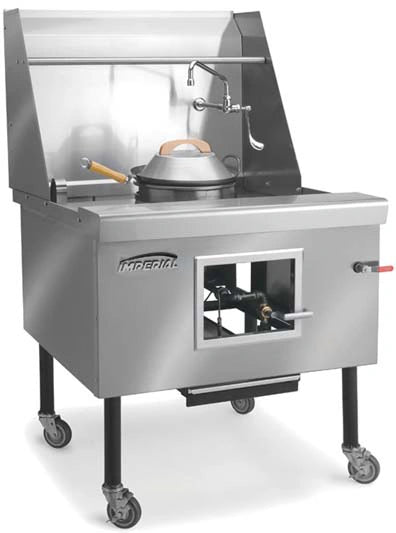

Imperial ICRA-1 Water-Cooled Wok Range – 36", 110,000 BTU
Single-hole Chinese range with three-ring burner & built-in faucetPurpose-built for high-heat Asian cookery, the Imperial ICRA-1 delivers the power chefs demand while keeping the cooktop cool and safe. A water-cooled top with integrated drain, knee-level gas control, and a 110,000 BTU three-ring burner make this compact 36" model the ideal centerpiece for restaurants, ghost kitchens, and culinary schools looking to elevate their wok program.
Key Features
- 110,000 BTU three-ring burner with separate inner/outer ring valves for precise heat control.

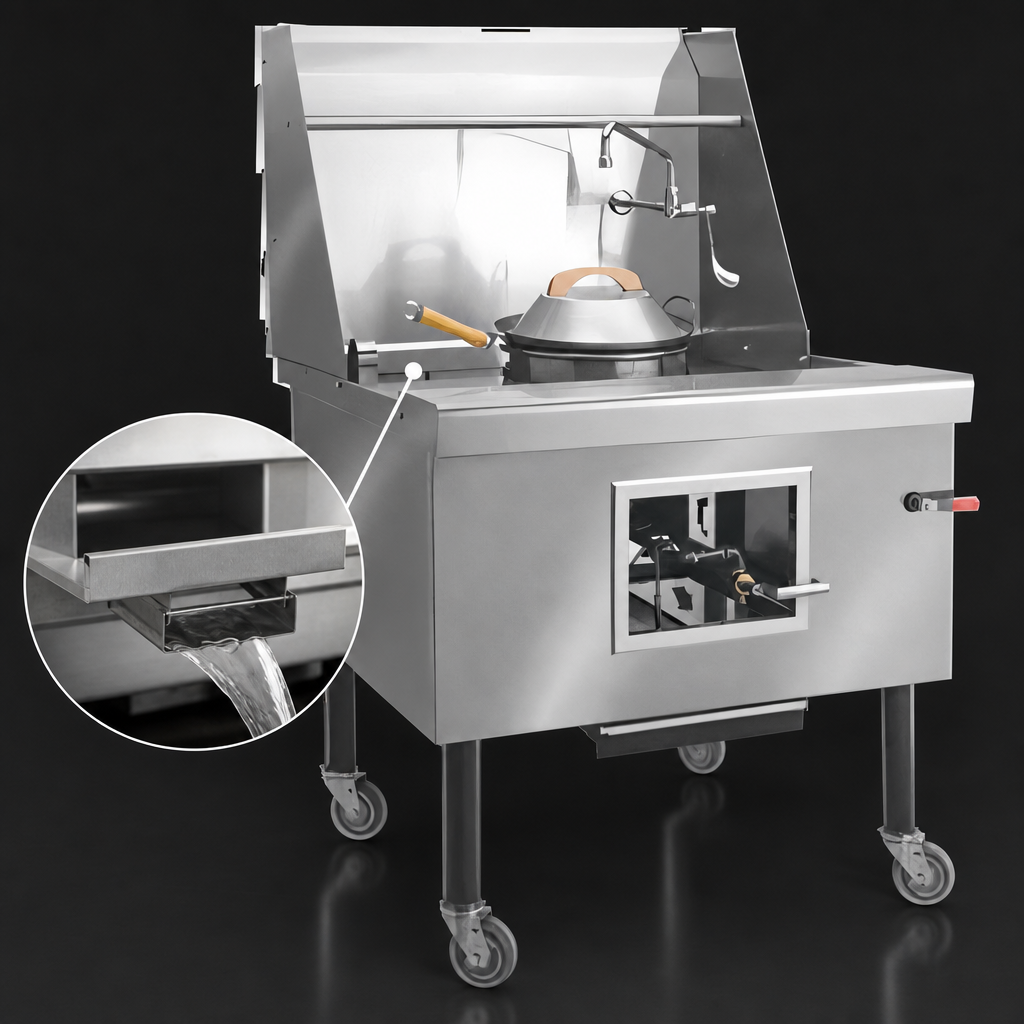

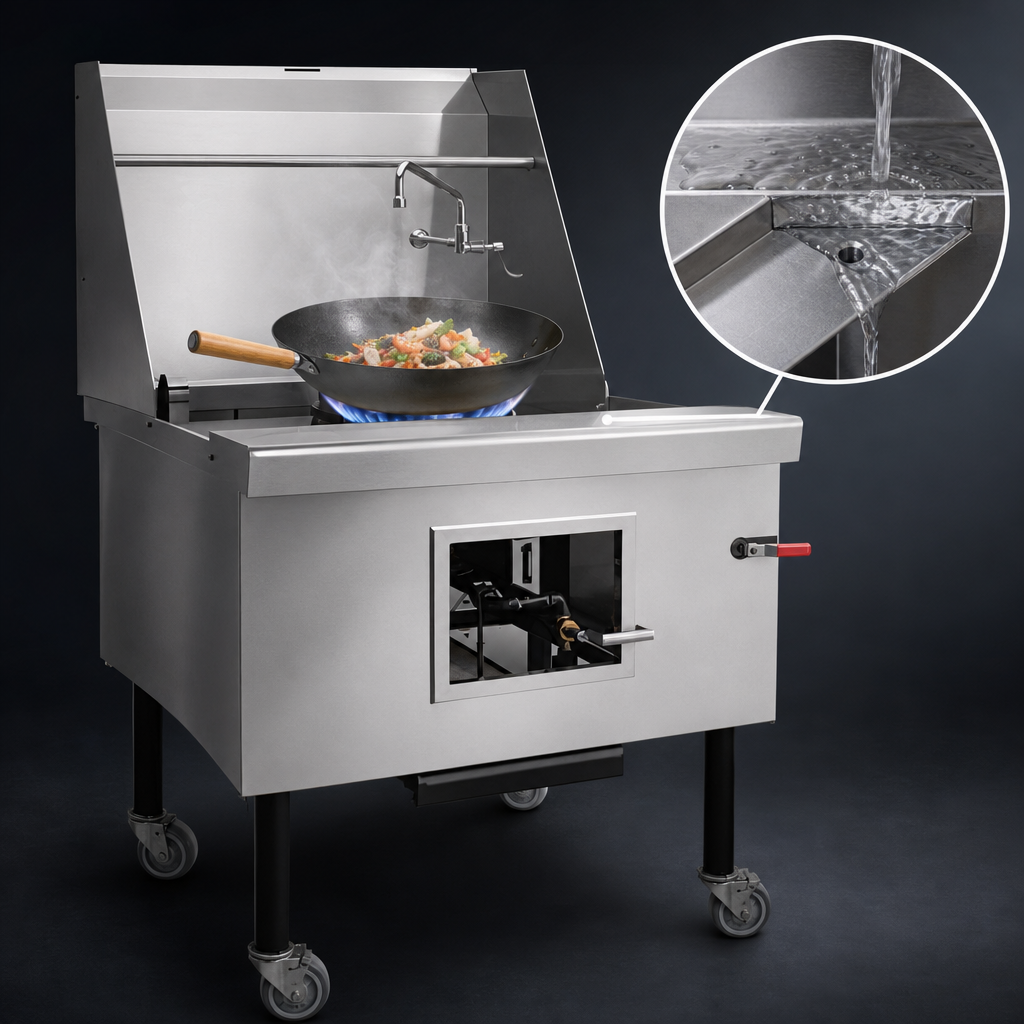

- Water-cooled top & built-in drain regulate deck temperature and help contain spills.
- Manual Chinese swing faucet (rear-mounted) quickly fills woks or stockpots without crowding the workspace.
- Knee-level “L” handle lets cooks adjust flame hands-free while tossing or plating.
- Stainless steel construction on front, top, 7" landing ledge, high backsplash & pipe rack for lasting durability and easy cleanup.
- 24" flue riser channels exhaust away from the chef and hood filters.
- Continuous pilot for instant ignition.
- 12-3/4" heavy-duty legs with adjustable feet for a level install on any non-combustible floor.
- cETLus & NSF listed; one-year parts & labor warranty.
Technical Specs
| Model | ICRA-1 |
|---|---|
| Cooktop openings | 1 (16" minimum diameter) |
| Burner style | Three-ring cast iron |
| Total BTU | 110,000 BTU/hr (32 kW) |
| Gas connection | 3/4" NPT rear (specify Natural 5" W.C. or LP 10" W.C.) |
| Water connection | 1/2" NPT cold-water inlet |
| Drain outlet | 1-1/4" NPT (standard rear) |
| Dimensions (W × D × H*) | 36" × 41" × 33" (914 × 1041 × 838 mm) |
| Flue riser height | 24" (610 mm) |
| Shipping weight | 300 lb (136 kg) |
| Certifications | cETLus, NSF |
| Warranty | 1 year parts & labor |
*Height measured to cooktop. Overall height including flue riser is 57".
Installation & Clearance
- For use only on non-combustible floors with supplied legs or optional casters.
- 0" clearance required at non-combustible sides & rear; allow 6" minimum from combustible side walls.
- Plumbing and gas inlets should be roughed-in 8" above the floor.
Peace of Mind
Every Imperial wok range is manufactured in the USA and backed by a full one-year parts & labor warranty. Authorized service agencies across North America keep downtime to a minimum.
